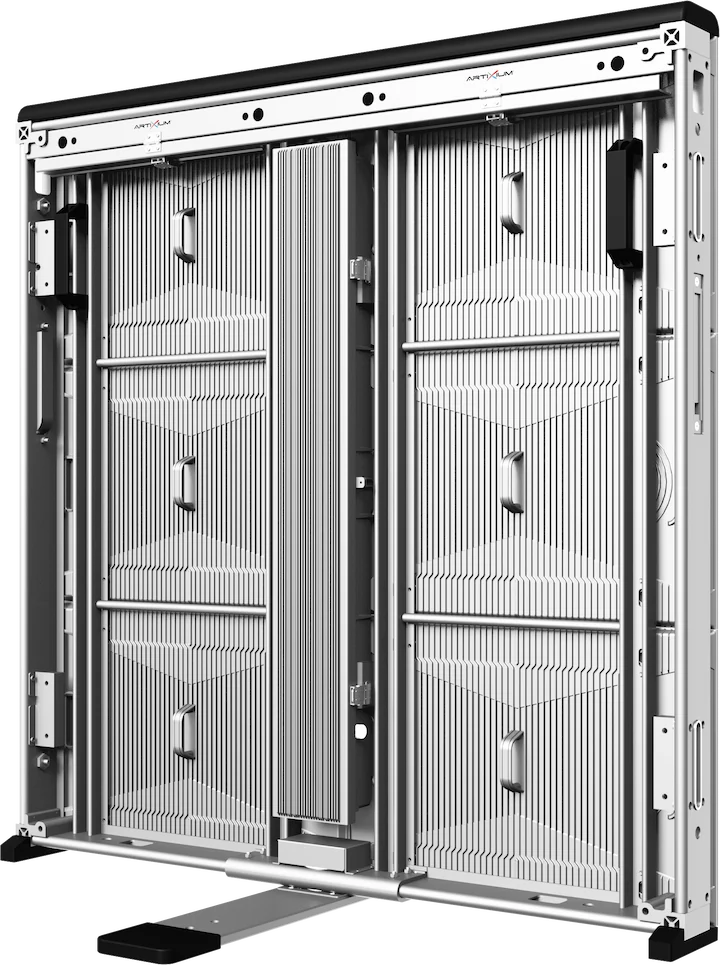

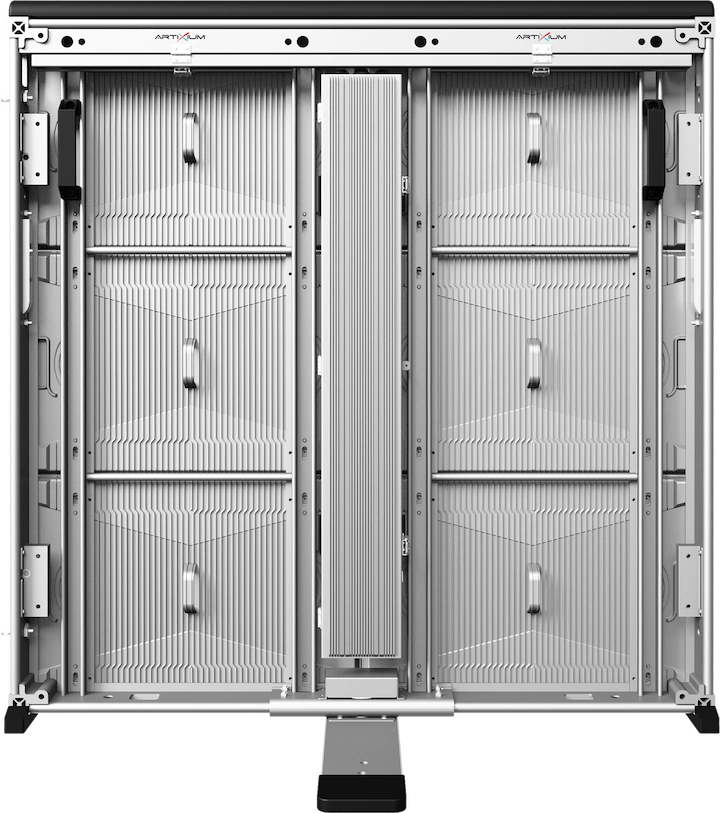

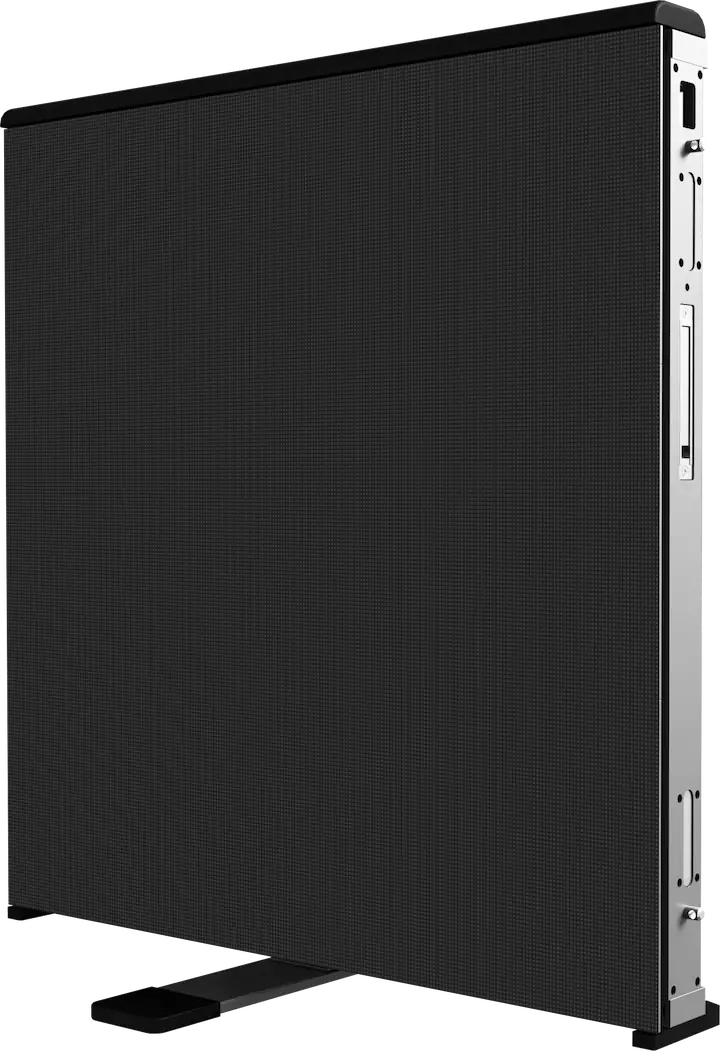

The COBALT SPORT is the latest addition to our range of LED perimeter systems. It is directly derived from our COBALT products, with additional elements to make it a LED stadium perimeter that is both reliable and durable, capable of meeting demanding projects. It is a more economical alternative to the NEIPATEC ST, although it remains a worthy option for renowned sports clubs and organizations.
Application
OUTDOOR
PIXEL PITCH
P6.6 P8 P10
MAINTENANCE
Back & Front Maintenance

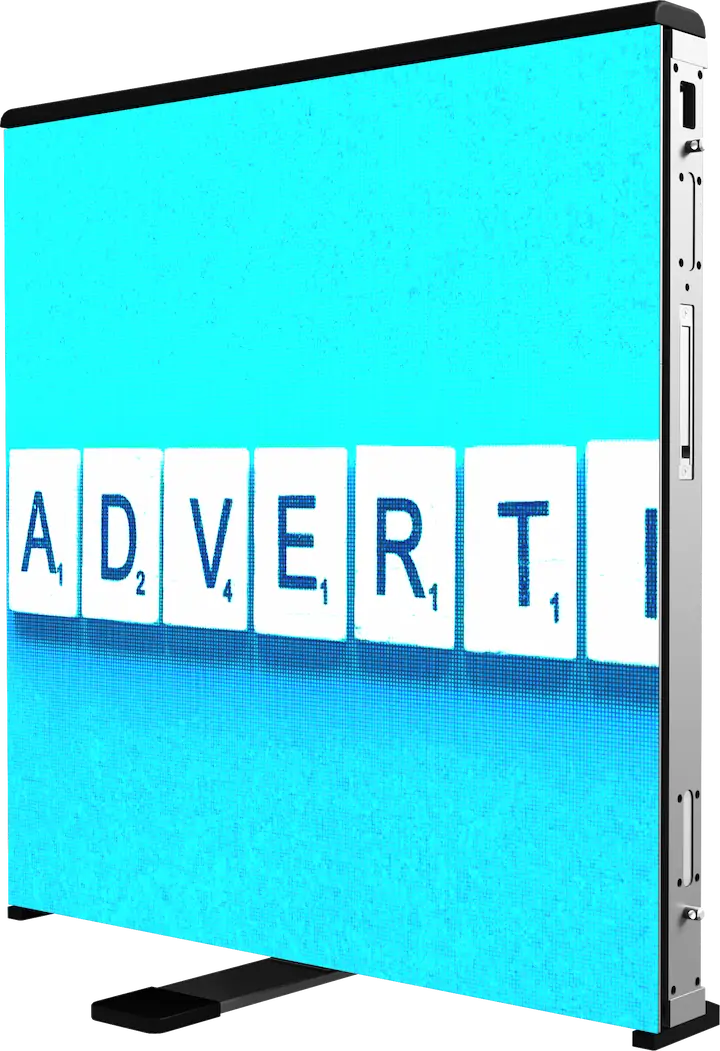

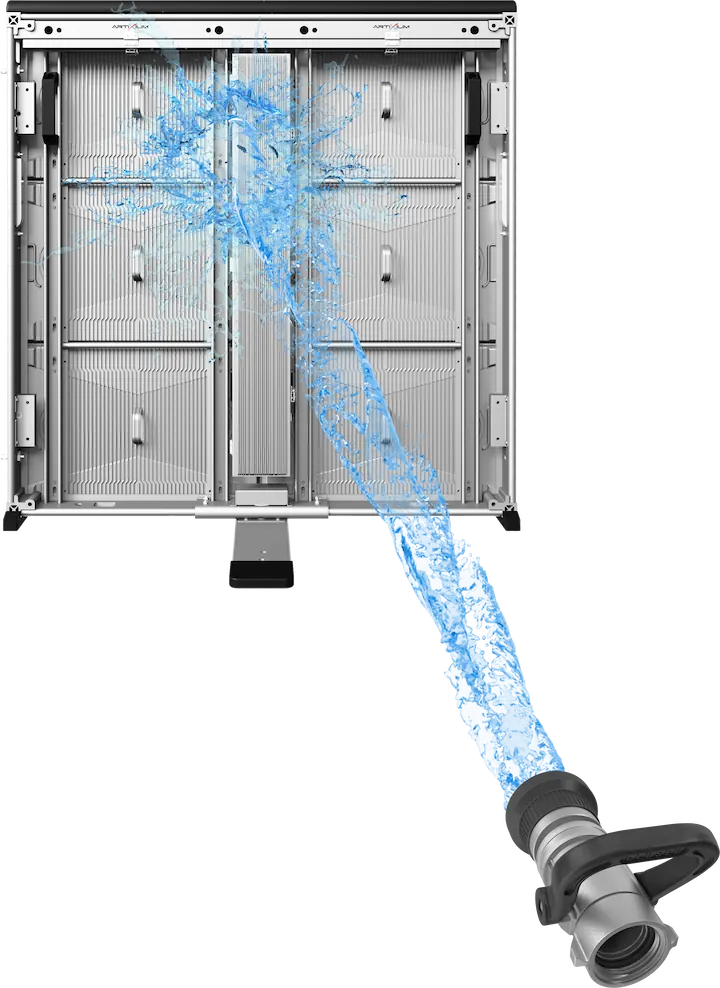

INGRESS PROTECTION
IP66
Display Area (W X H)
960 x 960 mm
BRIGHTNESS
≤ 6000 NITS
WEIGHT
35 kg/cabinet
MATERIAL
Die-casting aluminum

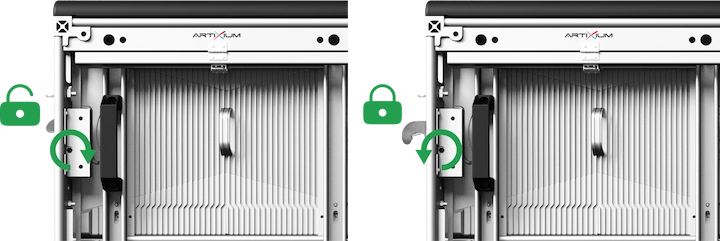

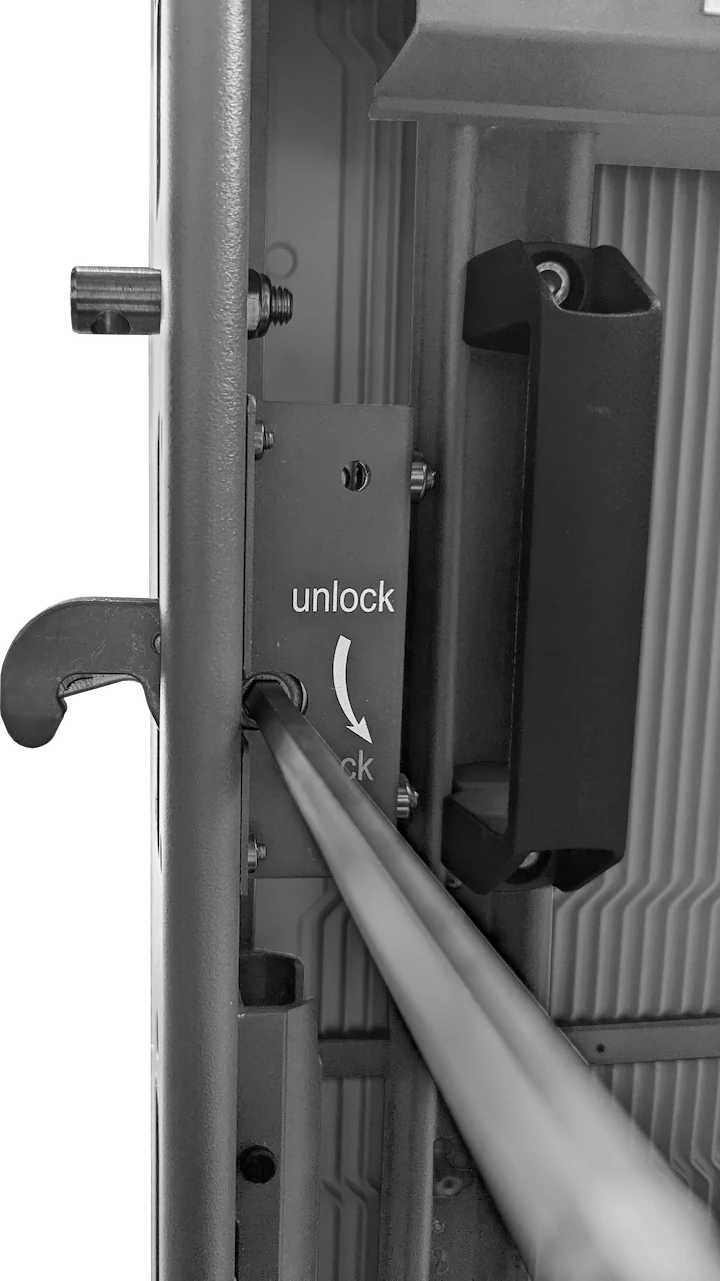

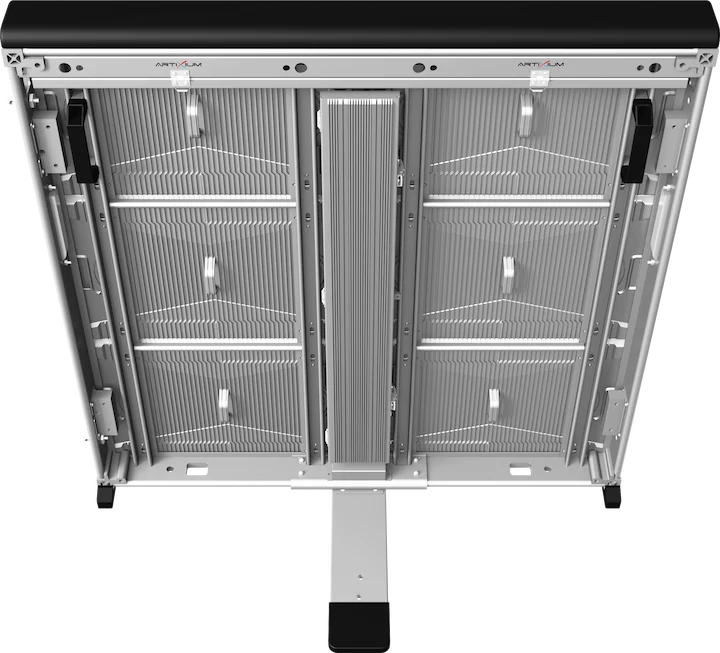

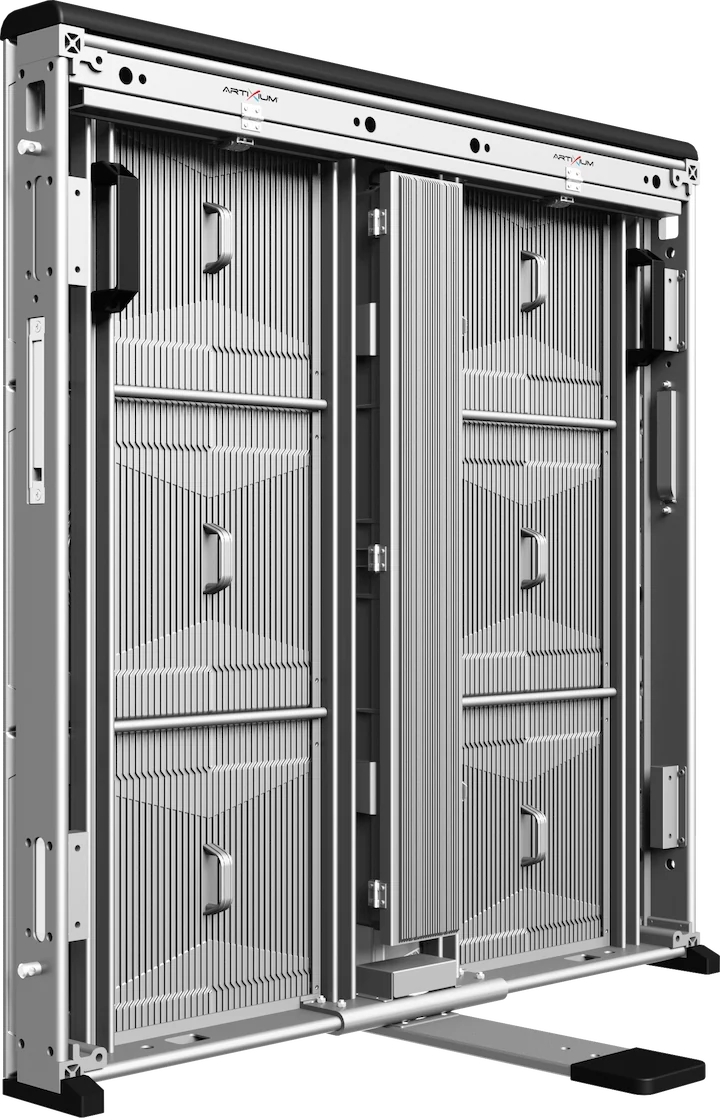

Artixium’s partners are already familiar with the COBALT, our flagship product for outdoor applications. It stands out not only for its brightness but also for the quality and durability of its LED modules, designed to provide visible visual content from a distance while withstanding heat, cold, weather conditions, etc. The COBALT SPORT shares these same characteristics, with the addition of transport handles, side locks, a rotating central stand, and rubber bumpers. We also offer optional rubber masks inspired by the NEIPATEC ST to ensure the integrity of the modules in the event of very violent impacts.

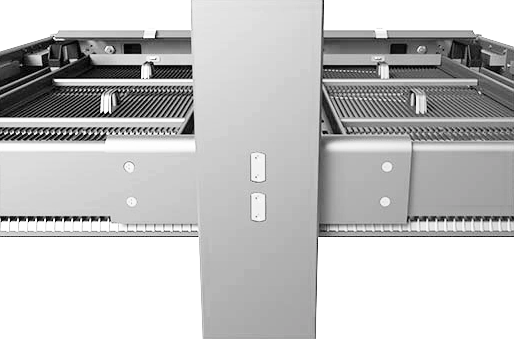

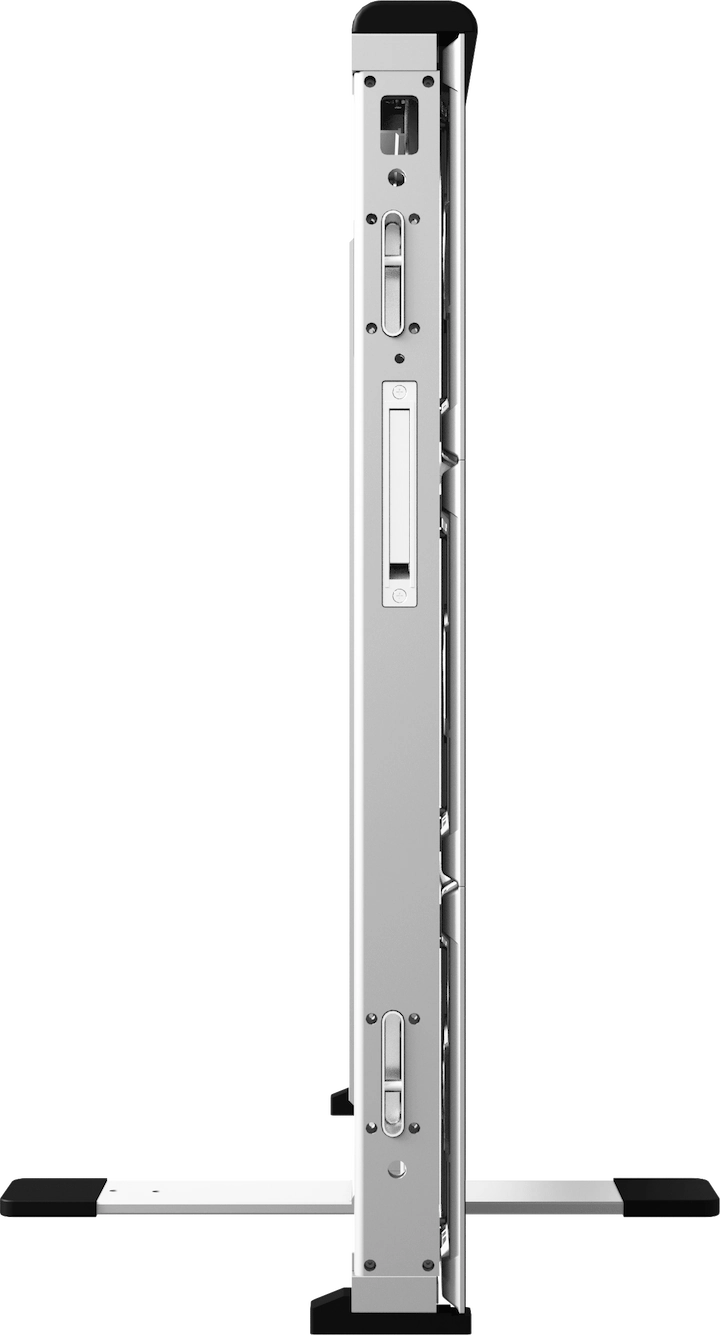

Like the NEIPATEC ST, the COBALT SPORT features a rotating central stand ensuring its stability, enabling it to effectively withstand wind force and other pressures, whether they come from the front or the back. Furthermore, the cabinets, once assembled, stabilize laterally.

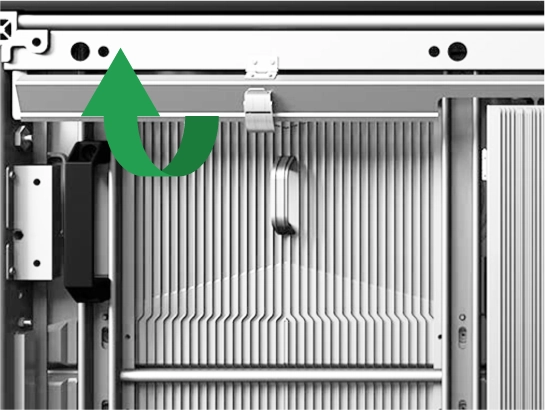

The power and data cables of the COBALT SPORT are easily accessible through tool-free openable enclosures. This solution ensures the integrity of your wiring while hiding it for a more aesthetic appearance.
| OUTDOOR | ||||
| Product Parameters | Unit | 6.6 | 8 | 10 |
| Pixel Pitch | mm | 6,67 | 8,00 | 10,00 |
| LED | SMD2727 | SMD3535 | ||
| Application | High brightness perimeter system | |||
| Ingress Protection | IP | IP66 | ||
| Brightness | cd/m² | ≤ 6000 Nits @5volts | ||
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||
| Viewing Angle (50% brightness) | deg. | 180(+/-90) H | ||
| Cabinet Size (WxHxD) | mm | 960 x 960 x 101 | ||
| Display area (WxH) | mm | 960 x 960 | ||
| Module Size (WxHxD) | mm | 480 x 320 x 26 | ||
| Pixel Matrix Per Cabinet (WxH) | px | 144 x 144 | 120 x 120 | 96 x 96 |
| Pixel Matrix Per Module (WxH) | px | 72 x 48 | 60 x 40 | 48 x 32 |
| Pixel Density | px/m² | 22500 | 15625 | 10000 |
| Weight | kg/m² | 35 | ||
| Cabinet Material | Die-casting aluminum | |||
| Maintenance Mode | Front & back | |||
| Mask specification | 95% Plastic + 5% Fiber / SS screws / Shaders | |||
| Contrast Ratio | High | |||
| Grey scale (linear) | bit | 16 | ||
| Brightness control | bit | 16 | ||
| Processing depth | bit | 16 | ||
| Color | 281 Trillions | |||
| Display Refresh Rate | Hz | 3840 | ||
| Operation Power | V | AC85-230V | ||
| Max. Power Consumption | W/m² | 550 | ||
| Average Power Consumption | W/m² | 200 | ||
| Control Mode | Synchronization | |||
| Video Frame Rate | Hz | 50/60Hz | ||
| Input Types Supported | DVI / SDI / HDMI | |||
| 3D ready (optional) | Yes | |||
| Calibration | Yes | |||
| Lifetime (50% brightness) | h | 50000 | ||
| Operating Humidity Range | 10-95% | |||
| Operating Temperature Range | - 20°C / + 60°C | |||
| Screen Uniformity Correction | - | |||
| Certification | EMC CLASS B / CE / ETL / CCC | |||
| Available options | Rubber masks | |||
