  1. products
  2. event
  3. Nickel XR
  • Application

    Indoor

  • PIXEL PITCH

    P2.6

  • OPTION
    C
    90

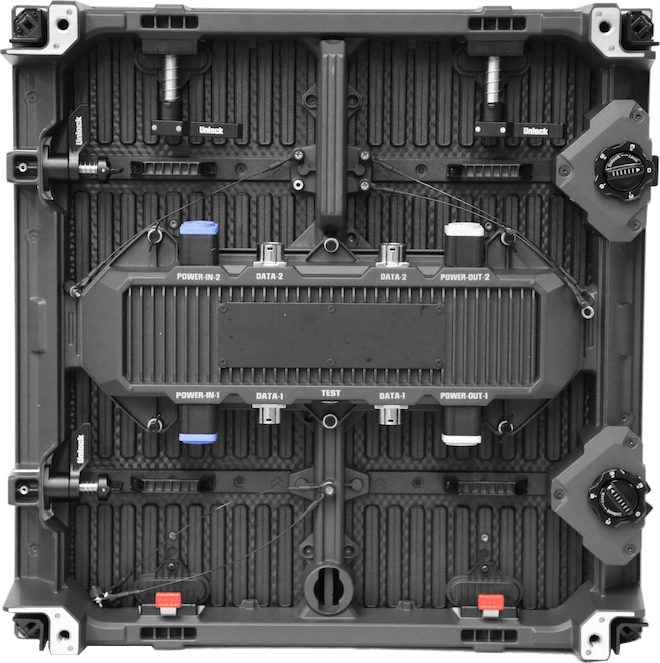

Overview

The NICKEL XR is our response to the ever-expanding range of use brought by the Extended Reality (XR) technology. Soon, the XR studios will replace the green screens found on many sets, which is the next logical step in audiovisual broadcasting. The NICKEL XR is a high-end LED display, modulable enough to fit perfectly your custom XR studio project, and its features were designed to match this technology’s requirements.

  • Application
    Indoor

  • PIXEL PITCH
    P2.6

  • MAINTENANCE
    Back & Front Maintenance

  • INGRESS PROTECTION
    IP30

  • Display Area (W X H)
    500 X 500 mm
    500 X 1000 mm

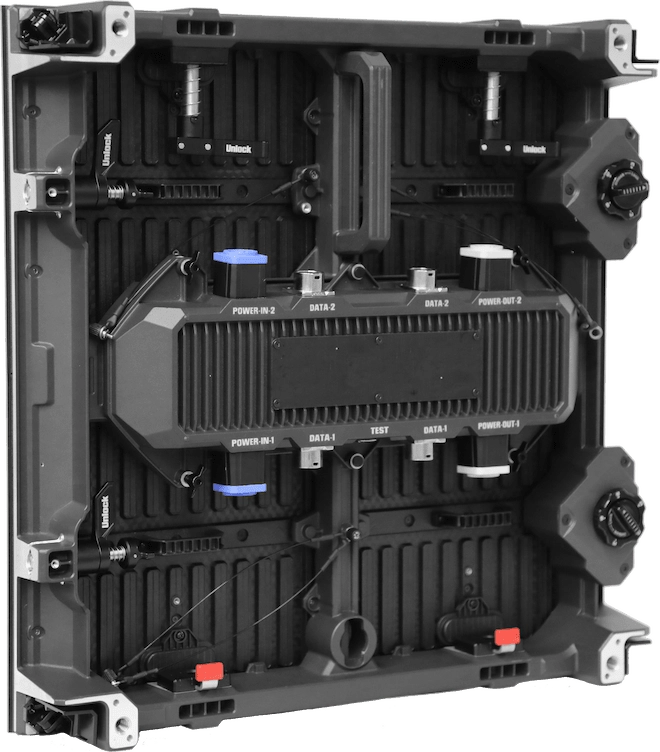

  • BRIGHTNESS
    ≤ 1000 NITS @5 Volts

  • WEIGHT
    7.5 - 11.5 kg/cabinet

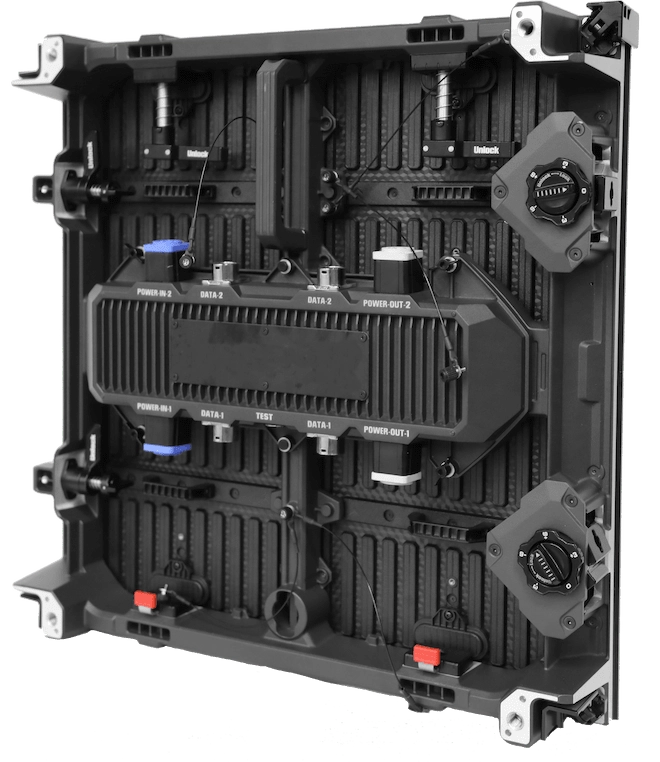

  • MATERIAL
    MAGNESIUM DIE CASTING

FEATURES

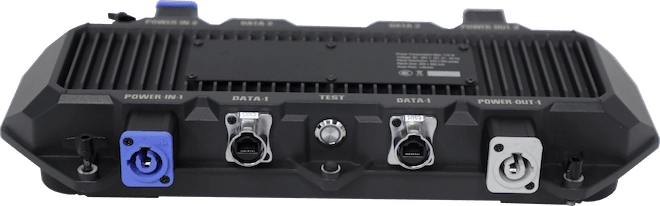

BROMPTON TECHNOLOGY VIDEO PROCESSING

Brompton Technology is the leader in the video processing system industry for LED screens, which is why we chose to integrate their processor into the NICKEL XR. Synchronization is very important in Extended Reality, you can’t afford to have any delay or your virtual set won’t respond in real-time to the actor's and cameras’ movements. The NICKEL XR allows for an undelayed reaction thanks to the Brompton Technology processors.

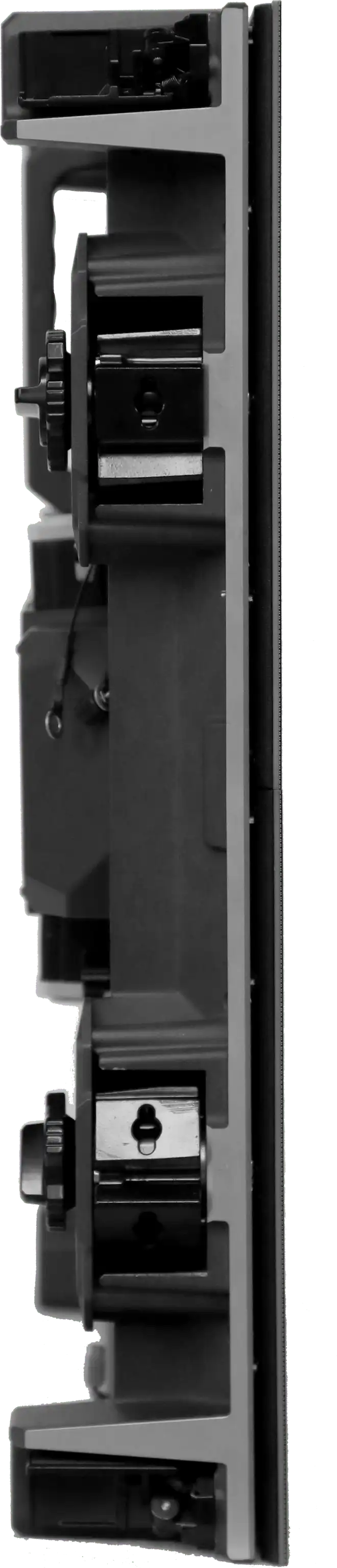

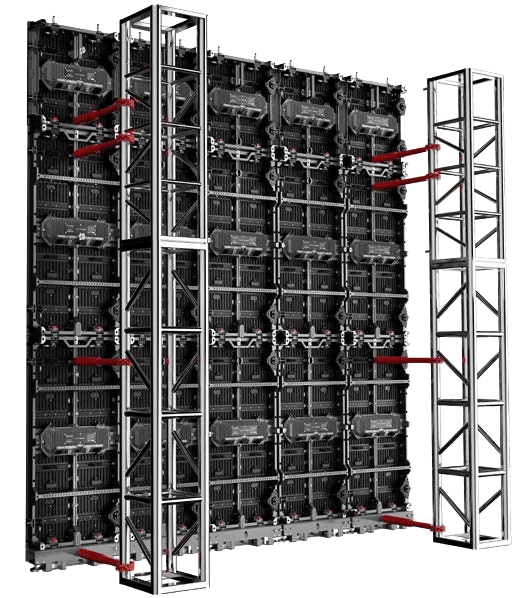

EASY AND DURABLE INTEGRATION

The NICKEL XR is conceived to be light, resistant, and practical. The cabinets can be locked together without tools, and once affixed to your structure they won't move an inch. Maintenance is very convenient, as each module can be replaced individually very quickly, from the front or the back.

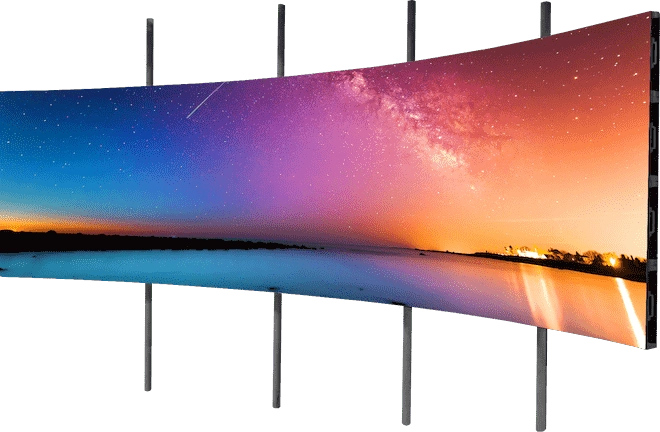

FIT FOR TAILORED PROJECTS

The NICKEL XR comes in two different sizes, compatible with each other. Each cabinet has a vertical curve locking system (from 3° to 6°, concave or convex) that allows you to create your custom XR set up. You can also place two cabinets at a concave 90° angle without modification, and we offer specially cut cabinets to create 90° convex angles.

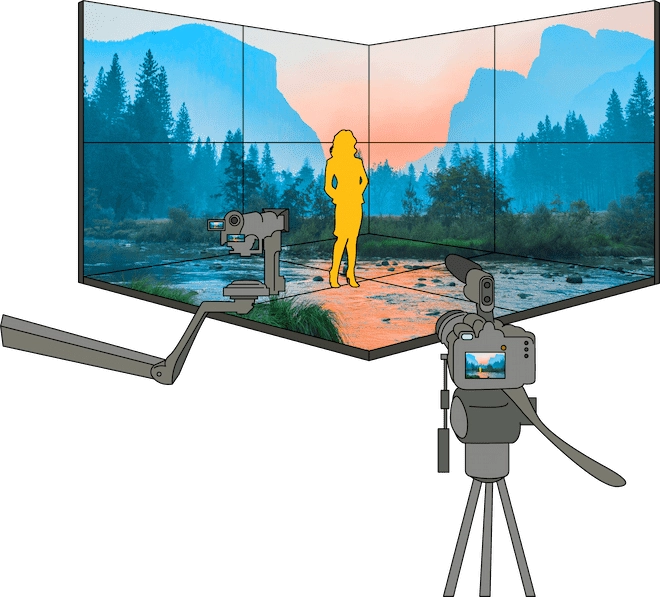

EXTENDED REALITY

Extended Reality (XR) is the combination of Augmented Reality (AR) and Mixed Reality (MR). AR places virtual imagery over a live background, while MR combines camera tracking and real-time rendering to create an immersive virtual environment, visible live on the LED set and shot on camera. With XR, you can implement extremely complex visual effects to any audiovisual production, even live broadcast. You can use this technology in innumerable ways, as any media that uses cameras can upgrade to XR to further improve their audience’s experience.

PERFECT LED DISPLAY FOR XR

The top two requirements for an effective XR LED set are high resolution and high refresh rate. Our NICKEL XR comes in P2.6, which is one of the finest pixel pitches on the market for this use, and we use Brompton Technology video processing systems to offer an astonishing 7680Hz refreshing rate, allowing a perfect calibration of your LED display with your cameras. While the quality of your renders will definitely show on this LED display, rest assured, your Extended Reality set will respond in real-time to the camera and the actor’s movements. Investing in the NICKEL XR is the best choice if you want to get ahead of this developing technology.

Certifications

EVENTBack MaintenanceRentalIndoorFront MaintenanceCurveXRExtended RealityNickel XR

Technical Specifications

    INDOOR
Product Parameters Unit 2.6
Pixel Pitch mm 2,60
LED   SMD1515
Application   XR Set LED application
Ingress Protection IP IP30
Brightness cd/sqm ≤ 1000 NITS @5volts
Color Temperature after calib (adjustable) deg. K 6500
Viewing Angle (50% brightness) deg. 140°/140°
Cabinet Size (WxHxD) mm 500 x 500 x 93 / 500 x 1000 x 93
Display area (WxH) mm 500 x 500 / 500 x 1000
Module Size (WxHxD) mm 250 x 250 x 15
Pixel Matrix Per Cabinet (WxH) px 192 x 192 / 192 x 384
Pixel Matrix Per Module (WxH) px 96 x 96
Pixel Density px/sqm 147456
Weight of cabinet and modules kg 7.5 / 11.5
Cabinet Material   Magnesium die-casting
Maintenance Mode   Front and Back
Mask specification   95% Plastic + 5% Fiber / Magnet (no screws) / no shaders
Contrast Ratio   High
Grey scale (linear) bit 16
Brightness control bit 16
Processing depth bit 16
Color   281 Trillions
Display Refresh Rate Hz 7680
Operation Power V AC 90-264V
Max. Power Consumption W/sqm 450
Average Power Consumption W/sqm 150
Control Mode   Synchronization
Video Frame Rate Hz 50/60Hz
Input Types Supported   DVI / SDI / HDMI
3D ready (optional)   Yes
Calibration   Yes
Lifetime (50% brightness) h 50000
Operating Humidity Range   -20°C~+50°C
Operating Temperature Range   10%~80%RH
Screen Uniformity Correction   Less than 0.0001 (non-control point)
Certification   CE / ETL / CCC
Features   Convex 90° angle, curve locking system
Compatibility    Yes

Compatible accessories

MSD300-1
Sending Card
MSD600-1
Sending Card
MCTRL300
Sending Box
MCTRL600
Sending Box
MCTRL660
Sending Box
MCTRL700
Sending Box
MCTRL4K
Sending Box
MCTRL R5
Sending Box
MRV328
Receiving card
MRV336
Receiving card
MRV366
Receiving card
MRV412
Receiving card
MRV432
Receiving card
MRV208
Receiving card
MRV266
Receiving card
MRV216
Receiving card
MRV416
Receiving card
MRV300-1
Receiving card
MRV560-1
Receiving card
AT32
Receiving card
A4S
Receiving card
A5S
Receiving card
A5S PLUS
Receiving card
A7S PLUS
Receiving card
A8S
Receiving card
A8S-N
Receiving card
A10S PLUS
Receiving card
A10S PRO
Receiving card
TB30
Media Player
TB50
Media Player
TB60
Media Player
VX4S-N
Video Processor
VX6S
Video Processor
VX600
Video Processor
VX1000
Video Processor
VX16S
Video Processor
HDR MASTER 4K
Video Processor
NOVAPRO UHD
Video Processor
NOVAPRO UHD JR
Video Processor
J6
Video Processor
MON300
Monitor Card
NS060
Light Sensor
MTH310
Temperature sensor
TCB300 LCD PLAYER
Media Player
CVT310
Fiber Converter
CVT320
Fiber Converter
CVT4K-S
Fiber Converter
CVT4K-M
Fiber Converter
CVT10
Fiber Converter
CVT10 PRO
Fiber Converter
ACCESSORY FLIGHT CASE
Flight case
Request a quotation
*
*
*
*
    INDOOR Product Parameters Unit 2.6 Pixel Pitch mm 2,60 LED   SMD1515 Application   XR Set LED application Ingress Protection IP IP30 Brightness cd/sqm ≤ 1000 NITS @5volts Color Temperature after calib (adjustable) deg. K 6500 Viewing Angle (50% brightness) deg. 140°/140° Cabinet Size (WxHxD) mm 500 x 500 x 93 / 500 x 1000 x 93 Display area (WxH) mm 500 x 500 / 500 x 1000 Module Size (WxHxD) mm 250 x 250 x 15 Pixel Matrix Per Cabinet (WxH) px 192 x 192 / 192 x 384 Pixel Matrix Per Module (WxH) px 96 x 96 Pixel Density px/sqm 147456 Weight of cabinet and modules kg 7.5 / 11.5 Cabinet Material   Magnesium die-casting Maintenance Mode   Front and Back Mask specification   95% Plastic + 5% Fiber / Magnet (no screws) / no shaders  Contrast Ratio   High Grey scale (linear) bit 16 Brightness control bit 16 Processing depth bit 16 Color   281 Trillions Display Refresh Rate Hz 7680 Operation Power V AC 90-264V Max. Power Consumption W/sqm 450 Average Power Consumption W/sqm 150 Control Mode   Synchronization Video Frame Rate Hz 50/60Hz Input Types Supported   DVI / SDI / HDMI 3D ready (optional)   Yes Calibration   Yes Lifetime (50% brightness) h 50000 Operating Humidity Range   -20°C~+50°C Operating Temperature Range   10%~80%RH Screen Uniformity Correction   Less than 0.0001 (non-control point) Certification   CE / ETL / CCC Features   Convex 90° angle, curve locking system Compatibility    Yes ">
