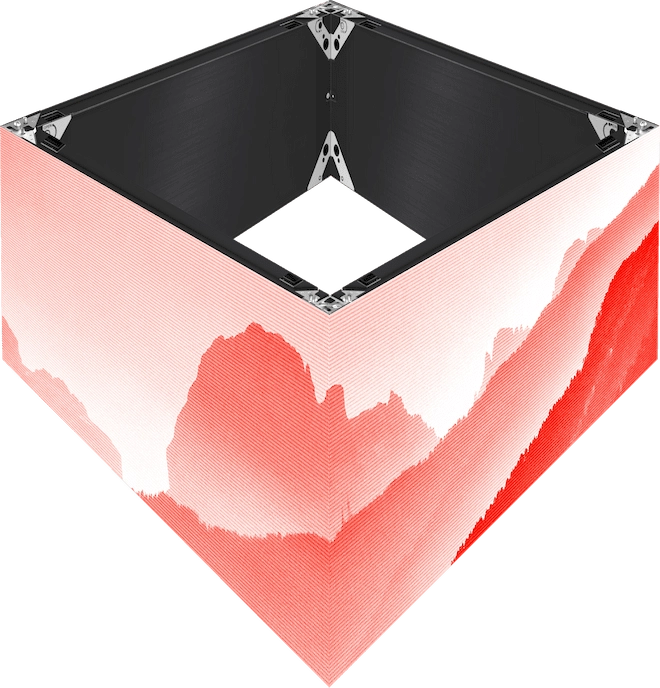

The LED MINICUBE is an integrated four faces LED display offering a 360° visibility. It can be hung, integrated into the floor, or into a tailored structure to perfectly fit your project, and its size can be customized upon request. This solution, constructed with our QUARTZ LED cabinets, is ideal for shops, malls, airports, etc.
Application
Indoor
PIXEL PITCH
P1.9 P2.6
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP30
Display Area (W X H)
(1500 x 500 mm) x4 pcs (standard application)
BRIGHTNESS
≤1500 NITS @5Volts
WEIGHT
76 kg (LED Part)
MATERIAL
DIE CASTING ALUMINUM

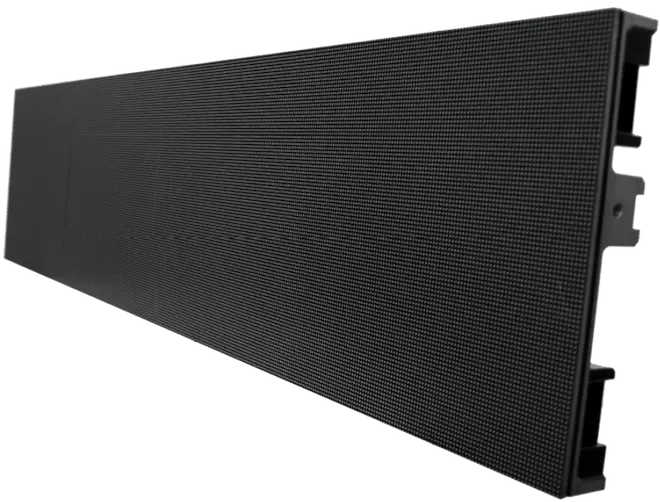

We use QWARTZ LED cabinets to construct the LED MINI CUBE. This product is one of the most popular cabinets in our media product range, with a fine pixel pitch allowing the broadcasting of quality visual content with a sharp definition. With their die-casting aluminum frame, these cabinets are lightweight enough to ease the integration process. Furthermore, the front access system makes for a quick and simple maintenance process.

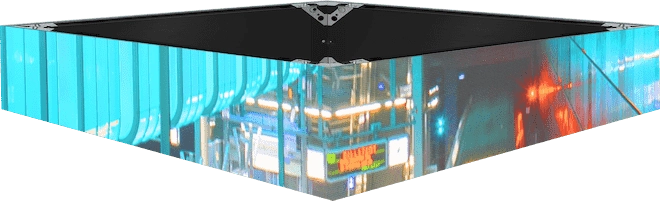

Even though we conceived a standard LED MINI CUBE, we can provide custom-size solutions according to your project. We can make miniature models as well as gigantic LED applications.

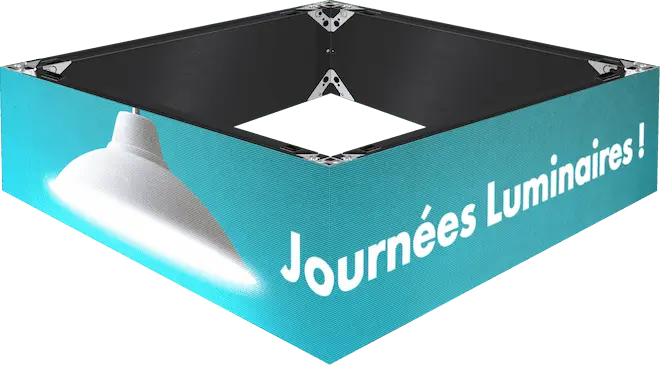

With a 1500 NITS brightness, a high contrast ratio, and a 1.95mm or 2.6mm pixel pitch, the LED MINI CUBE can display quality visual content, whether it's videos, animations, or even small letters. This solution is a high-end product that will fit many applications.
FRONT MAINTENANCESolutionIntegrated LED DisplayFine PitchHigh ResolutionCustom SizeLED Mini Cube
| INDOOR | |||
| Product Parameters | Unit | 1.9 | 2.6 |
| Pixel Pitch | mm | 1,95 | 2,60 |
| LED | SMD1515 3in1 (Full Black Face) | ||
| Application | 4 face indoor LED screen | ||
| Ingress Protection | IP | IP30 | |
| Brightness | cd/sqm | ≤ 800 Nits @5volts | ≤ 1500 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 | |
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | |
| Device size (WxHxD) | mm | 1500 x 500 x 1500 | |
| Display area (WxH) | mm | 1500 x 500 x 4pcs | |
| Cabinet size (WxHxD) | mm | 1000 x 250 x 42.5 / 750 x 250 x 42.5 / 500 x 250 x 42.5 | |
| Module size (WxHxD) | mm | 250 x 250 x 15 | |
| Device pixel matrix (WxH) | px | 768 x 256 x 768 | 576 x 192 x 576 |
| Cabinet pixel matrix (WxH) | px | 512 x 128 / 384 x 128 / 256 x 250 | 384 x 96 / 288 x 96 / 192 x 250 |
| Module pixel matrix (WxH) | px | 128 x 128 | 96 x 96 |
| Pixel Density | px/sqm | 262144 | 147456 |
| Total Weight (only LED part) | kg | 76 | |
| Cabinet Material | Die-casting aluminum | ||
| Maintenance Mode | Front maintenance | ||
| Mask specification | 95% Plastic + 5% Fiber / SS screws / No shaders | ||
| Contrast Ratio | High | ||
| Grey scale (linear) | bit | 16 | |
| Brightness control | bit | 16 | |
| Processing depth | bit | 16 | |
| Color | 281 Trillions | ||
| Display Refresh Rate | Hz | 1920 | |
| Operation Power | V | AC85-230V | |
| Max. Power Consumption | W/sqm | 600 | |
| Average Power Consumption | W/sqm | 200 | |
| Control Mode | Synchronization | ||
| Video Frame Rate | Hz | 50/60Hz | |
| Input Types Supported | DVI / SDI / HDMI | ||
| 3D ready (optional) | Yes | ||
| Calibration | Yes | ||
| Lifetime (50% brightness) | h | 50000 | |
| Operating Humidity Range | 10-95% | ||
| Operating Temperature Range | -10°C / +50°C | ||
| Screen Uniformity Correction | - | ||
| Certification | CE / ETL / CCC | ||
| Available options | GME (Global Module Encapsulation), Nanocoating | ||
| Compatibility | Custom sizes | ||
