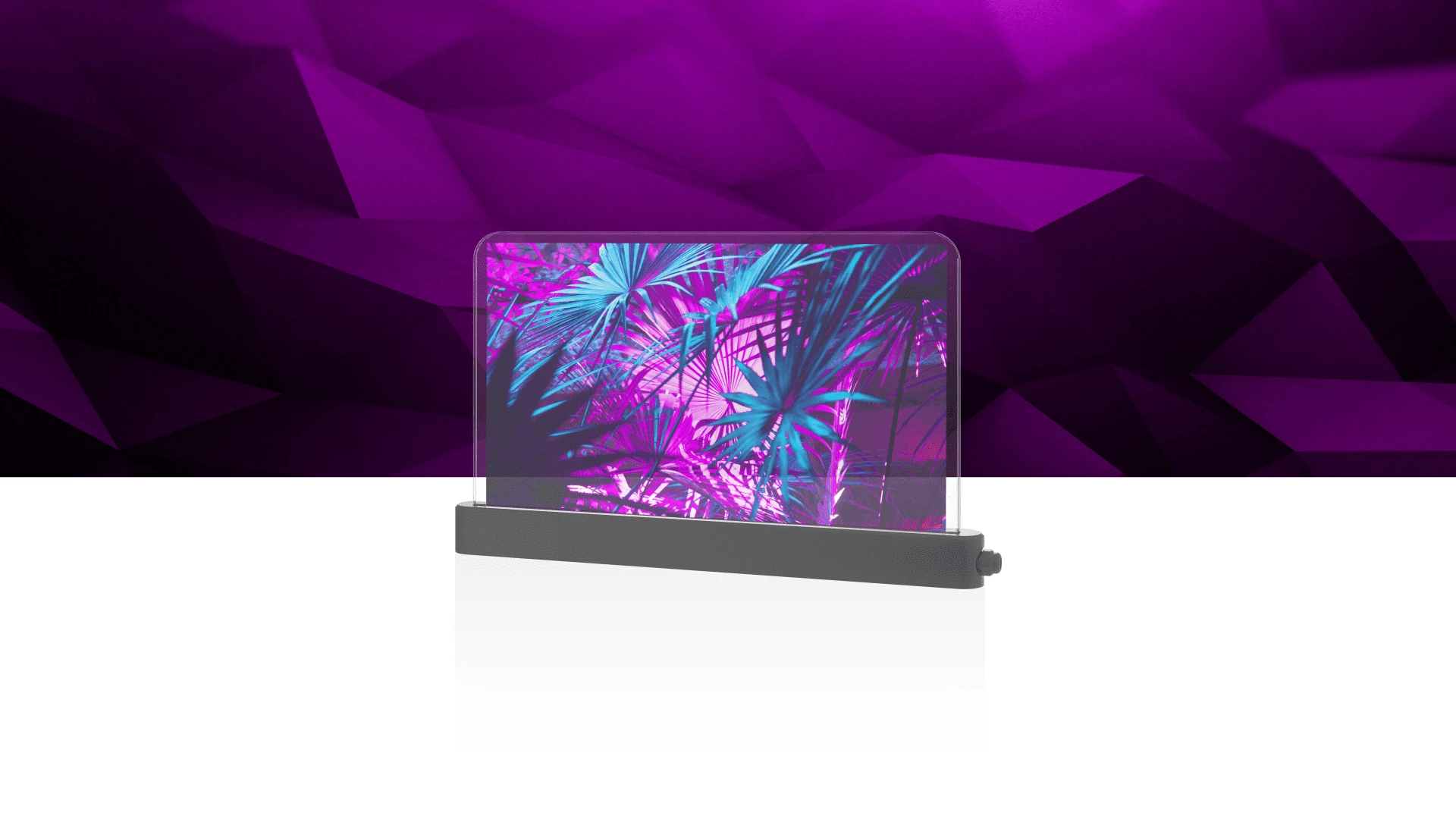

Our LED COUNTER is one of our best LED solutions for indoor applications, fitting both decorative and purposeful installations. Its transparency allows you to display visual content without blocking the visibility in the room. This product is available in different sizes and supports many integration methods as well as different shapes. These customizations are made possible by the use of photoelectric glass, a patented technology that conducts electric current between the LEDs while retaining the transparency of traditional glass.
Application
Indoor
PIXEL PITCH
P10.4
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP42
Display Area (W X H)
700 x 400 mm
1000 x 500 mm
BRIGHTNESS
≤4000 NITS @5Volts
WEIGHT
32 kg/sqm
MATERIAL
Photoelectric glass & Aluminum

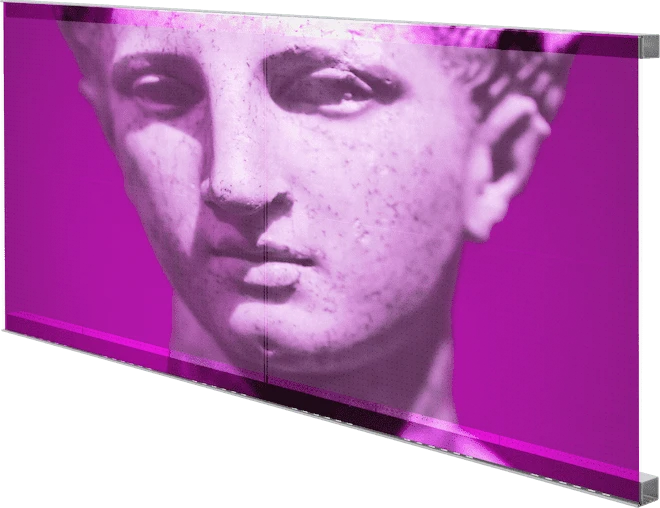

Just like most of our transparent products, the LED COUNTER has an asymmetric pixel pitch, which allows a higher transparency thanks to a wider vertical LED layout.

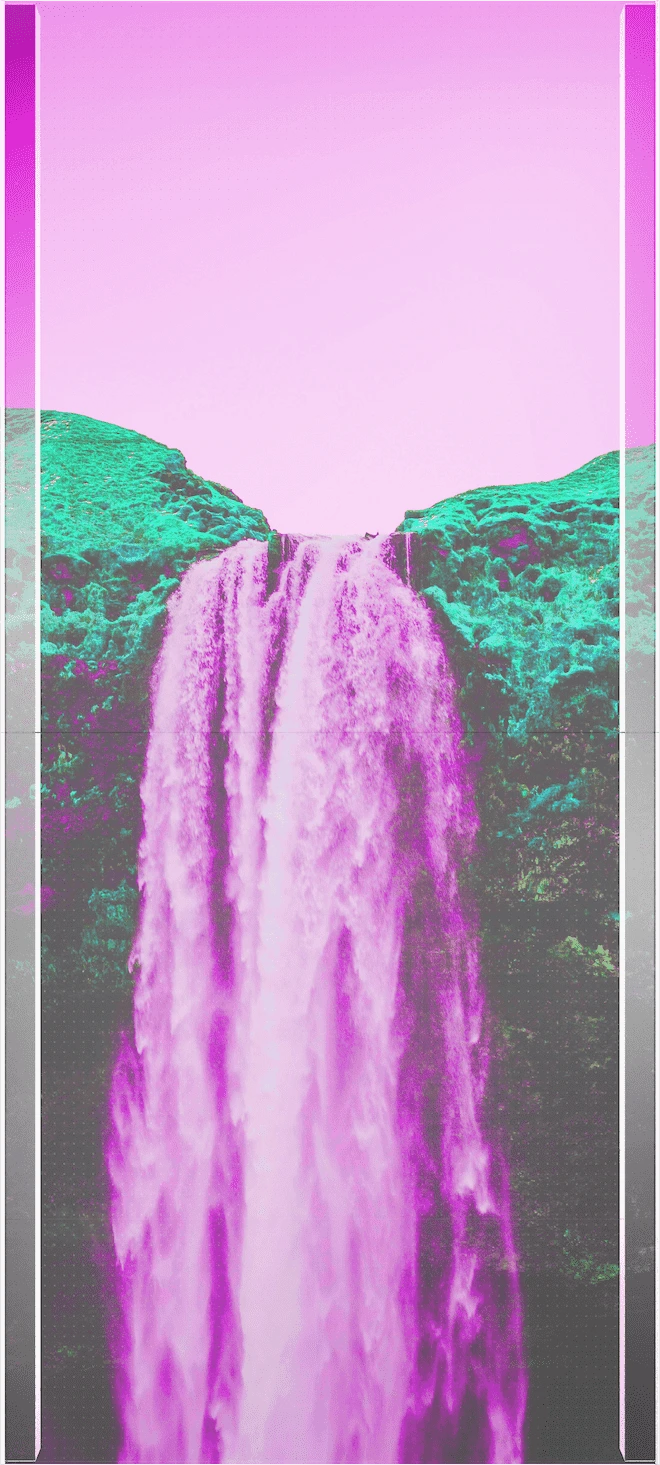

The LED COUNTER allows up to 75% transparency thanks to its asymmetric pixel pitch and the use of photoelectric glass. With a brightness going up to 4000 NITS and IP42 ingress protection, a semi-outdoor application can be managed. This product can fit a large range of aesthetic applications, as well as more practical ones.

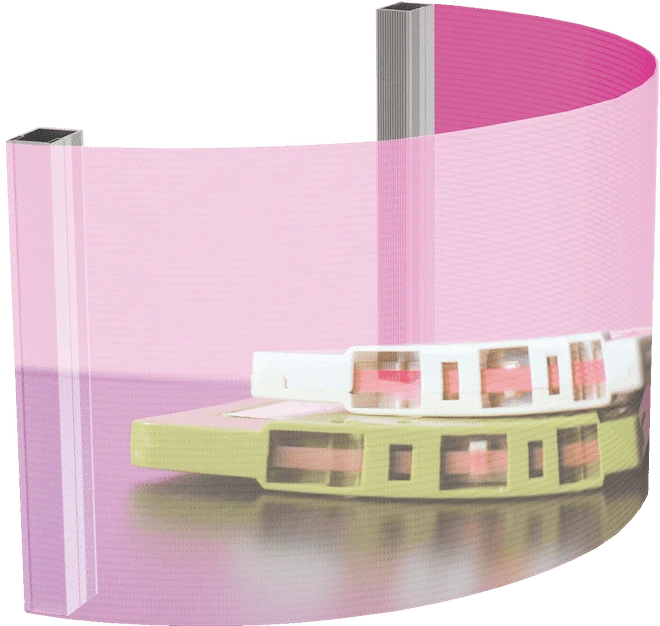

The use of photoelectric glass as the base material of this LED solution offers an extremely wide range of customizations for your LED COUNTER. Upon request, we can provide many different shapes and dimensions to fit your project.

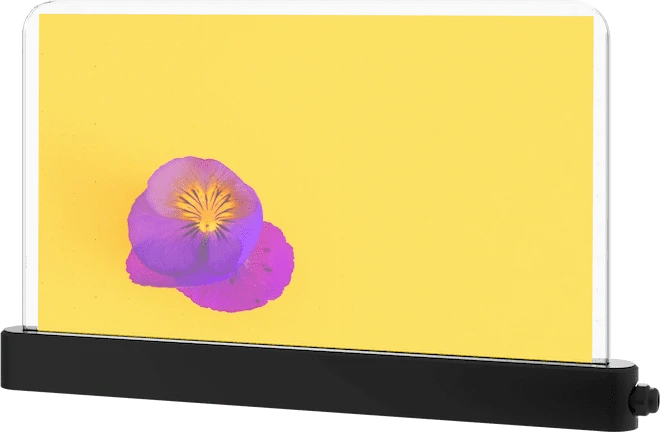

The glass used for the LED COUNTER is a specially designed current conducting glass that connects the LEDs together. Therefore, the absence of cables or PCB allows for an incredible visibility through the LED COUNTER, while the glass' waterproof properties protects the LEDs.
INDOORBack MaintenanceFront MaintenanceHigh BrightnessSolutionCreativeCustom SizeTransparentPhotoelectric Glass
| INDOOR | |||
| Product Parameters | Unit | 10.4 | |
| Pixel Pitch | mm | 10,42 | |
| LED | SMD2020 | ||
| Application | LED transparent counter | ||
| Ingress Protection | IP | IP42 | |
| Brightness | cd/sqm | ≤ 4000 Nits @5volts | |
| Color Temperature after calib (adjustable) | deg. K | 5500 - 9300Ajustable | |
| Viewing Angle (50% brightness) | deg. | 110°H / 110°V | |
| Device size (WxHxD) | mm | 700 x 464 x 51 | 1000 x 564 x 51 |
| Display area (WxH) | mm | 700 x 400 | 1000 x 500 |
| Cabinet size (WxHxD) | mm | 700 x 400 x 12 | 1000 x 500 x 12 |
| Module size (WxHxD) | mm | No module | |
| Device pixel matrix (WxH) | px | 67 x 38 | 96 x 48 |
| Cabinet pixel matrix (WxH) | px | 67 x 38 | 96 x 48 |
| Module pixel matrix (WxH) | px | - | |
| Pixel Density | px/sqm | 61450 | 9216 |
| Weight | kg/sqm | 32 | |
| Cabinet Material | Photoelectric glass + Aluminum | ||
| Maintenance Mode | Front & Back | ||
| Mask specification | No mask | ||
| Contrast Ratio | High | ||
| Grey scale (linear) | bit | 16 | |
| Brightness control | bit | 16 | |
| Processing depth | bit | 16 | |
| Color | 281 Trillions | ||
| Display Refresh Rate | Hz | 1920 | |
| Operation Power | V | AC220V | |
| Max. Power Consumption | W/sqm | 800 | |
| Average Power Consumption | W/sqm | 240 | |
| Control Mode | Synchronization | ||
| Video Frame Rate | Hz | 60Hz | |
| Input Types Supported | DVI / SDI / HDMI | ||
| 3D ready (optional) | - | ||
| Calibration | Yes | ||
| Lifetime (50% brightness) | h | 50000 | |
| Operating Humidity Range | 10 / 80% | ||
| Operating Temperature Range | -40°C / +45°C | ||
| Screen Uniformity Correction | - | ||
| Certification | FCC / CE / ETL / CCC / CB | ||
| Available options | - | ||
| Compatibility | No | ||
