The ECLIPSE range offers the unique cinema experience in the very comfort and privacy of your property. These giant outdoor private theaters are made for the outdoors, integrated to an underground system that allows them to disappear for your view to stay untouched. These luxurious products are available in three sizes, and will allow you to offer your friends and family some unforgettable evenings.
Application
OUTDOOR
PIXEL PITCH
P3.9
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
4000 x 2500 mm
BRIGHTNESS
≤5500 Nits @5 Volts
WEIGHT
240 kg (led parts)
MATERIAL
Anodized aluminum + CNC
The ECLIPSE range comes with a native 16:9 ratio and a P3.9 pixel pitch that allows you to enjoy a full cinematic experience.
Designed for the high-end market, the ECLIPSE has a high resolution, brightness, image sharpness, and contrast ratio. Paired with a high-quality surround sound system, this product offers the authenticity of a theater experience in the comfort of your yard.

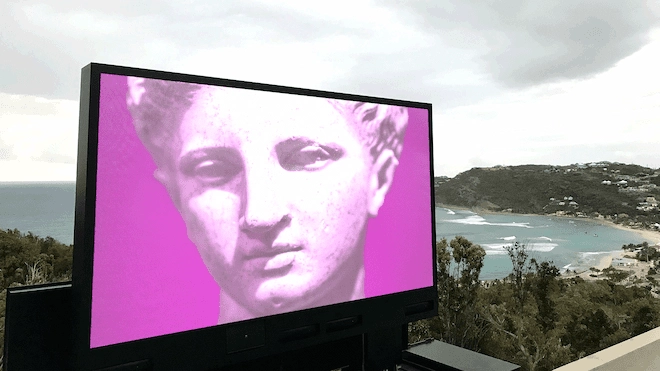

This giant LED screen is integrated into an underground platform, made in France, that allows it to emerge from the ground on demand.
It takes about two minutes for the ECLIPSE to emerge from the ground, without a sound. With a simple push of a button, treat yourself to an authentic cinematic experience.
We use THORITE 2.0 cabinets from our media product range to manufacture the ECLIPSE. These LED cabinets are renowned on the professional market for their visual performance and durability, even in harsh weather conditions.
OUTDOORBack MaintenanceFront MaintenanceHigh BrightnessSolutionHigh ResolutionTailored LED ApplicationHigh EndUndergound StructureCinemaHome Cinema
| OUTDOOR | ||
| Product Parameters | Unit | ECLIPSE185 |
| Pixel Pitch | mm | 3,91 |
| LED | SMD1921 (Black Face) | |
| Application | Private Outdoor Luxury Cinema | |
| Ingress Protection | IP | IP65 |
| Brightness | cd/sqm | 5500 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 |
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V |
| Device size (WxHxD) | mm | 4200 x 3000 x 500 |
| Display area (WxH) | mm | 4000 x 2500 |
| Cabinet size (WxHxD) | mm | 500 x 500 x 96 |
| Module size (WxHxD) | mm | 500 x 250 x 19.5 |
| Device pixel matrix (WxH) | px | 1024 x 640 |
| Cabinet pixel matrix (WxH) | px | 128 x 128 |
| Module pixel matrix (WxH) | px | 128 x 64 |
| Pixel Density | px/sqm | 65536 |
| Total Weight (only LED part) | kg | 240 |
| Cabinet Material | Anodized aluminum + CNC | |
| Maintenance Mode | Front and back (tools required for front) | |
| Mask specification | 95% Plastic + 5% Fiber / SS screws / Shaders | |
| Contrast Ratio | 5000:1 | |
| Grey scale (linear) | bit | 16 |
| Brightness control | bit | 16 |
| Processing depth | bit | 16 |
| Color | 282 Trillions | |
| Display Refresh Rate | Hz | 3840 |
| Operation Power | V | AC85-230V |
| Max. Power Consumption | W/sqm | 600 |
| Average Power Consumption | W/sqm | 200 |
| Control Mode | Synchronization | |
| Video Frame Rate | Hz | 50/60Hz |
| Input Types Supported | DVI / SDI / HDMI | |
| 3D ready (optional) | Yes | |
| Calibration | Yes | |
| Lifetime (50% brightness) | h | 50000 |
| Operating Humidity Range | 10-95% | |
| Operating Temperature Range | -20°C / +60°C | |
| Screen Uniformity Correction | - | |
| Certification | CE / ETL / CCC | |
| Available options | - | |
| Compatibility | - |
OUTDOOR
4000 x 2500 mm
IP65
≤5500 Nits @5 Volts
P3.9
240 kg (led parts)
Back & Front Maintenance
Anodized aluminum + CNC
