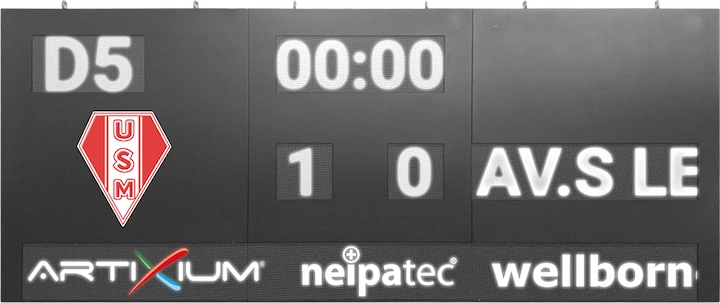

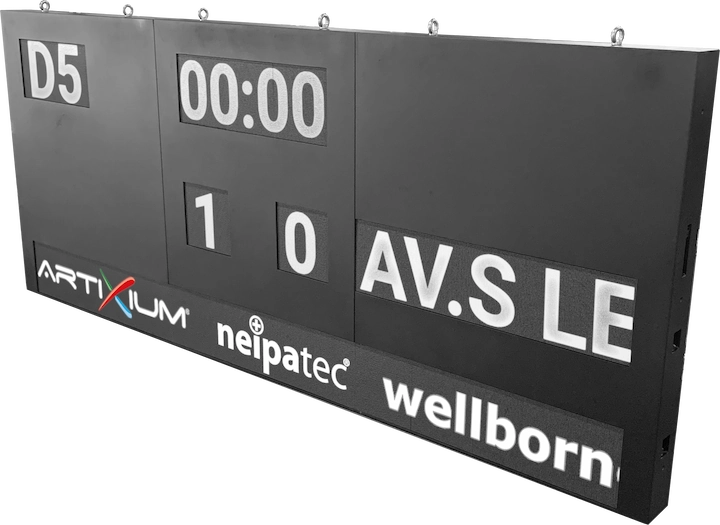

The SCOREBOARD CONNECT (formerly known as Hydrogen Scoreboard ST) is our newest scoreboard, designed for local clubs with a desire to offer a professional, digital scoring experience in their field. With a P3.9 pixel pitch and high brightness, this product allows you to display the league, guest team name, timing, score, and even sponsored content.
Application
OUTDOOR
PIXEL PITCH
P3.9
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP65 (front)
IP54 (back)
Display Area (W X H)
500 x 250 mm (league)
750 x 250 mm (timing)
250 x 250 mm x2 (score)
1000 x 250 mm (guest)
3000 x 250 mm (sponsors)
BRIGHTNESS
≤ 4500 NITS @5volts
WEIGHT
145 kg
MATERIAL
Steel
To accommodate every budget, we offer two SCOREBOARD CONNECT versions. The standard version’s sponsors’ area is made of PVC, while the premium version is made of high-brightness LED modules. While the former is cheaper, and thus more accessible, the latter allows for more versatility when it comes to sponsored content, and more opportunity for financial profit.
Going up to 4500 NITS, the brightness of the SCOREBOARD CONNECT allows good visibility from the other side of the playing field, no matter the weather conditions.

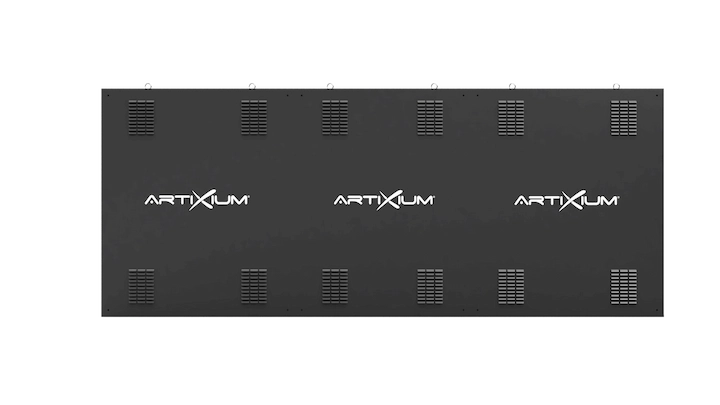

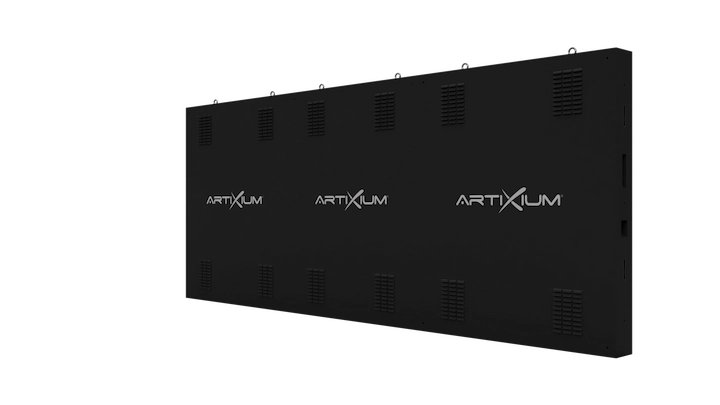

The SCOREBOARD CONNECT's frame is made of stainless steel and blackened for maximum durability. It’s very resilient to water projections and particle ingress. This product will endure the trial of time, ensuring a cost-effective investment.

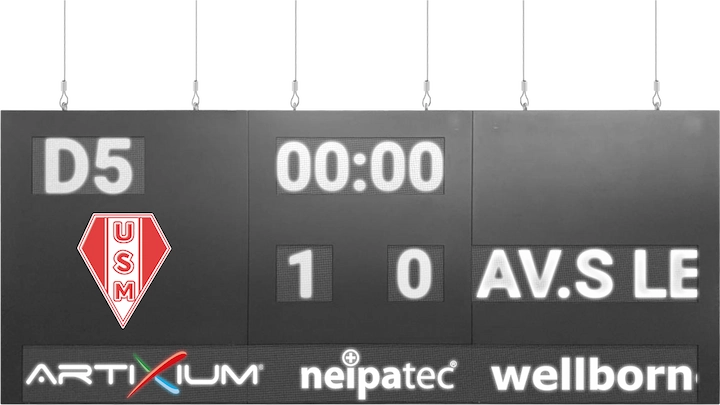

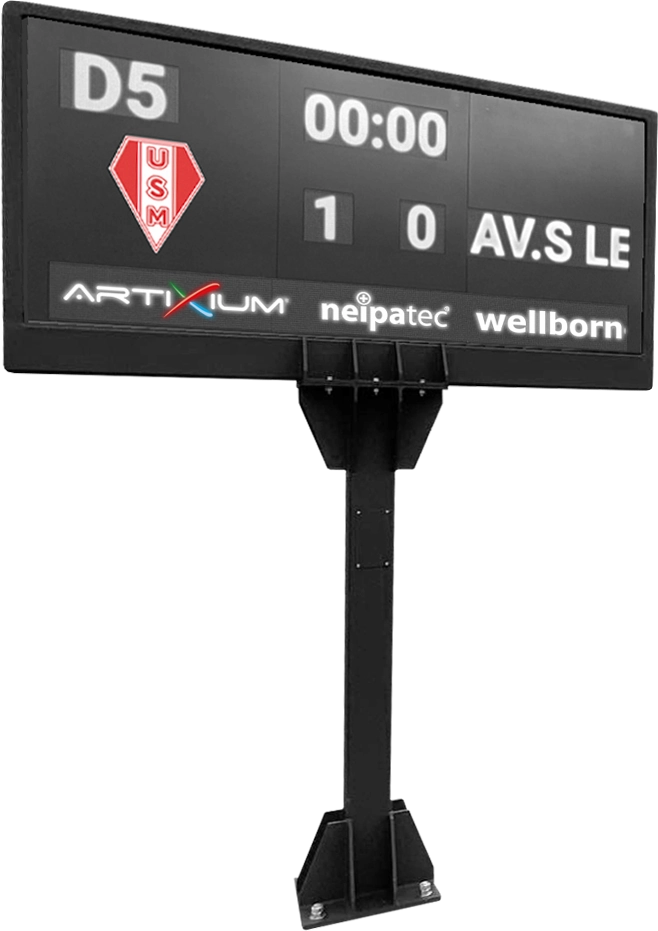

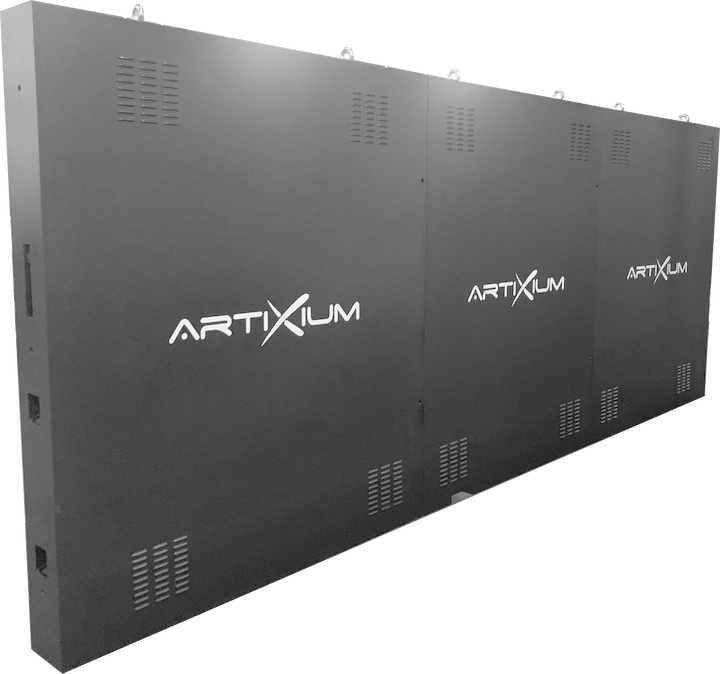

The SCOREBOARD CONNECT comes with hanging rings as well as wall mounting plates. We can also integrate your LED scoreboard as a custom unipol, facing your stadium’s bleachers for maximum visibility.
SPORTHydrogenMultisportSoccerRugbyHydrogen ScoreboardScoreboardLarge Scale LED Display
| OUTDOOR | ||||||
| Product Parameters | Unit | 3.9 | ||||
| Pixel Pitch | mm | 3,91 | ||||
| LED | SMD1921 3in1 | |||||
| Application | LED scoreboard | |||||
| Ingress Protection | IP | IP65 (front) / IP54 (back) | ||||
| Brightness | cd/m² | ≤ 4500 NITS | ||||
| Color Temperature after calib (adjustable) | deg. K | 6500-8500K | ||||
| Viewing Angle (50% brightness) | deg. | 140 (+/-70) H / 140 V | ||||
| Cabinet Size (WxHxD) | mm | 3200 x 1300 x 140 | ||||
| Display function | League | Timing | Score | Guest team | Sponsors | |
| Display area (WxH) | mm | 500 x 250 | 750 x 250 | 250 x 250 *2 | 1000 x 250 | 3000 x 250 |
| Module Size (WxHxD) | mm | 250 x 250 | ||||
| Pixel Matrix Per Cabinet (WxH) | px | 128 x 64 | 192 x 64 | 64 x 64 | 256 x 64 | 768 x 64 |
| Pixel Matrix Per Module (WxH) | px | 64 x 64 | ||||
| Pixel Density | px/m² | 256 x 256 | ||||
| Device weight | kg | 145 | ||||
| Cabinet Material | Steel | |||||
| Maintenance Mode | Front maintenance | |||||
| Mask specification | 95% plastic + 5% fiber / ss screws / shaders | |||||
| Contrast Ratio | High | |||||
| Grey scale (linear) | bit | 14 | ||||
| Brightness control | bit | 14 | ||||
| Processing depth | bit | 14 | ||||
| Color | 281 Trillions | |||||
| Display Refresh Rate | Hz | 1920 | ||||
| Operation Power | V | AC85-230V | ||||
| Max. Power Consumption | W/m² | 800 | ||||
| Average Power Consumption | W/m² | 320 | ||||
| Control Mode | Asynchronous | |||||
| Video Frame Rate | Hz | 50/60 | ||||
| Input Types Supported | RJ45 / WIFI (opt) | |||||
| 3D ready (optional) | No | |||||
| Calibration | No | |||||
| Lifetime (50% brightness) | h | 50000 | ||||
| Operating Humidity Range | 10-95% | |||||
| Operating Temperature Range | -30°C / +55°C | |||||
| Screen Uniformity Correction | Yes | |||||
| Certification | CE / EMC | |||||
| Available options | - | |||||
| Compatibility | Windows 10/8/7/XP | |||||
