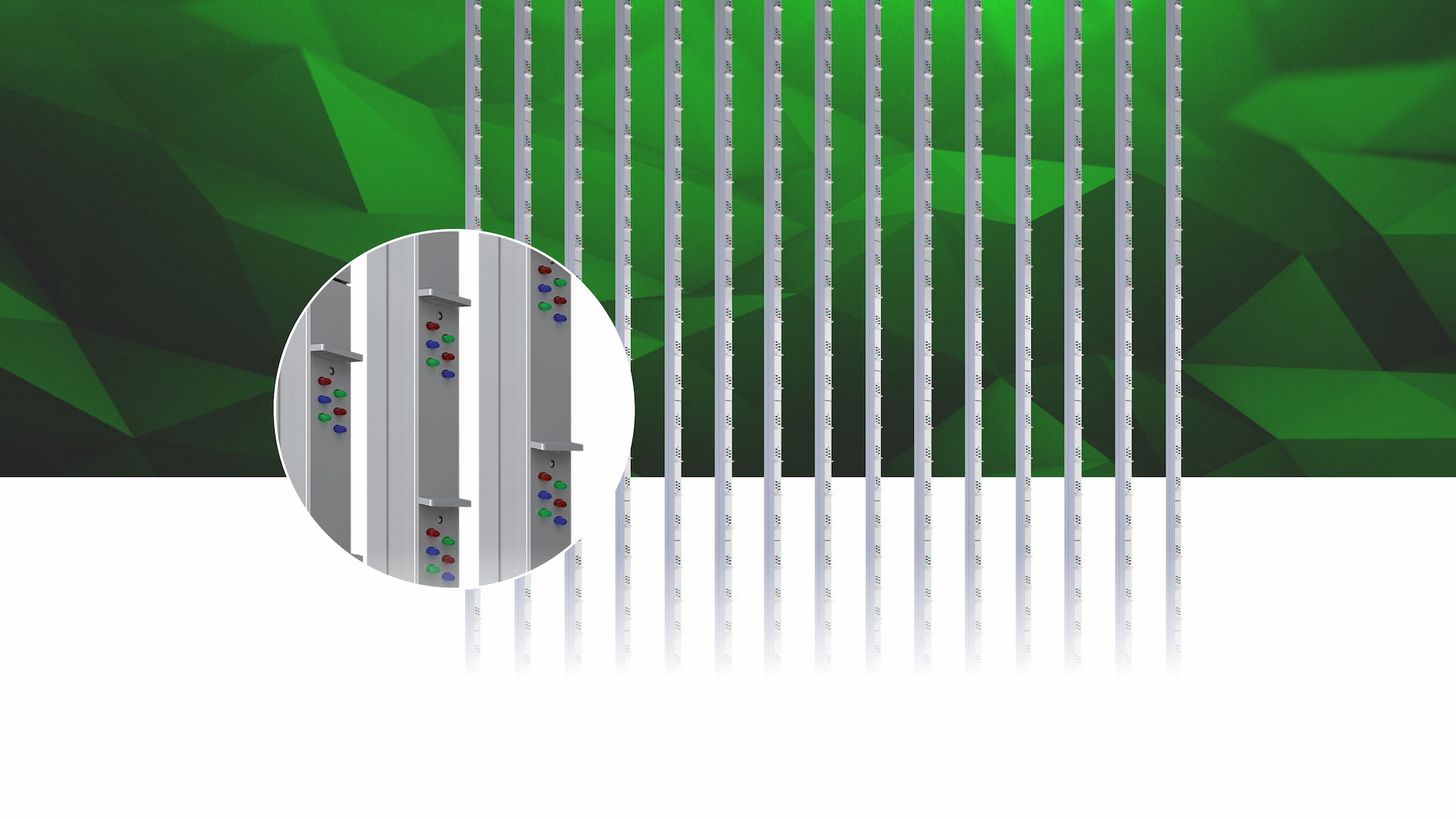

Commonly known as the ‘’LED Stripes’’, the OXYGEN Series by Artixium has garnered high praises throughout Europe. By utilizing the 2R2G2B configuration this IP66 LED solution is ideal for architectural lighting. Whether it is day or night this outdoor fixed LED installation product will make your next architectural projects look absolutely spectacular due to its extremely high brightness. One of the main features of the OXYGEN series is the customizable lengths of the ‘’led stripes’’ so that it is capable of fitting into existing structures.
Application
OUTDOOR
PIXEL PITCH
P30.9 P61.8
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
Display Area (W X H)
BRIGHTNESS
WEIGHT
MATERIAL

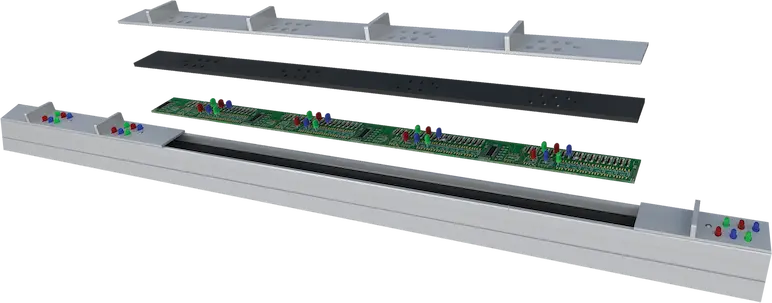

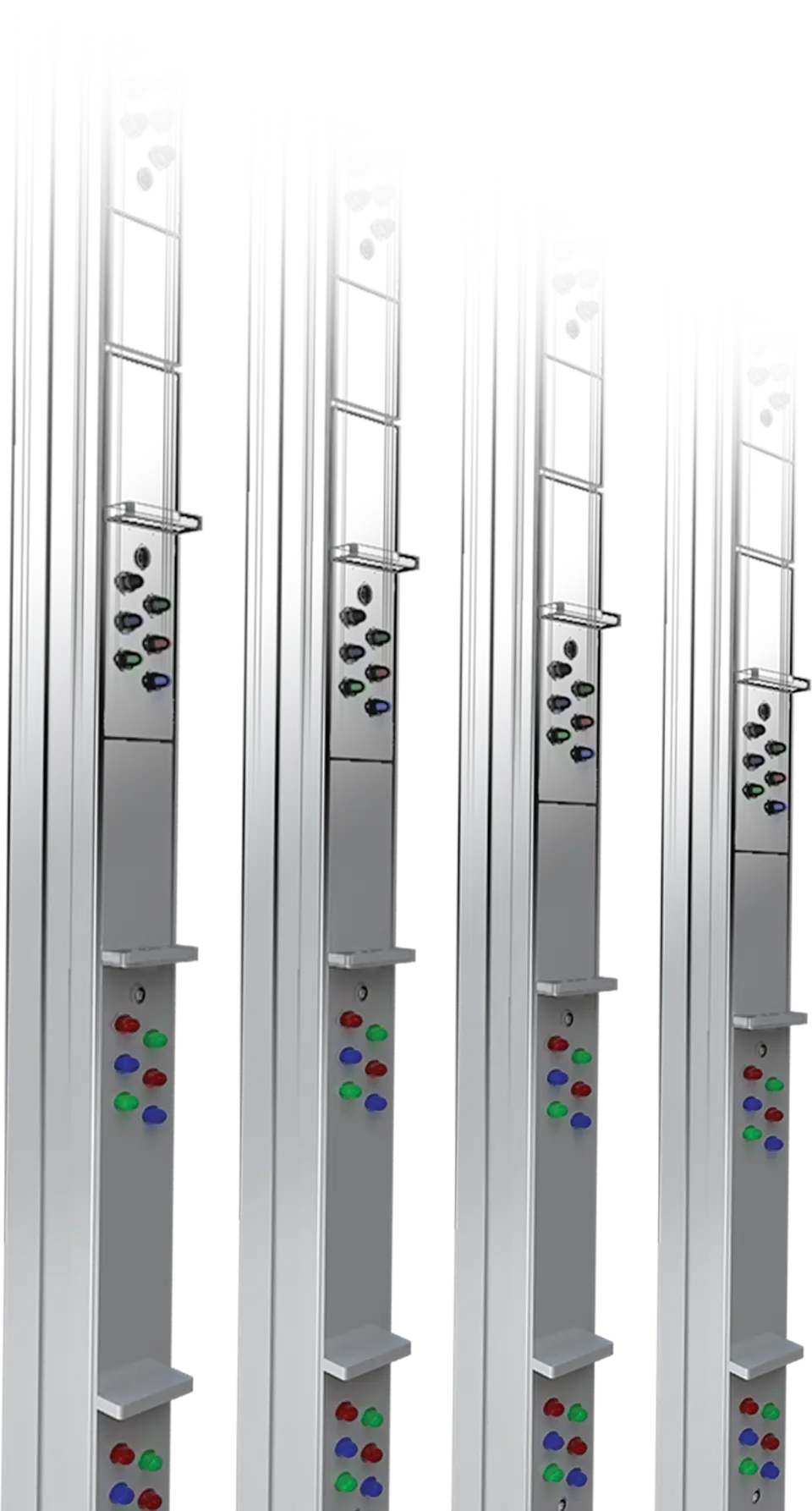

One of the main features of the OXYGEN series is the customizable length of each LED stripe in order to fit any existing structure. The aluminum shader's color can also be changed to match your requirements. Sturdy and durable, the OXYGEN can also be curved in accordance with tailored LED projects. This product is lightweight, easy to maintain, and very cost-effective both in freight and in manpower required for its integration and maintenance.
The integration of the OXYGEN can be done horizontally or vertically by only one technician due to its lightweight. The integration process requires a few preliminary steps for any architectural project: establishment of the structural plans, construction, or implementation of the support structure, integration of the OXYGEN LED stripes, power and data management, and finally testing of the LED display.

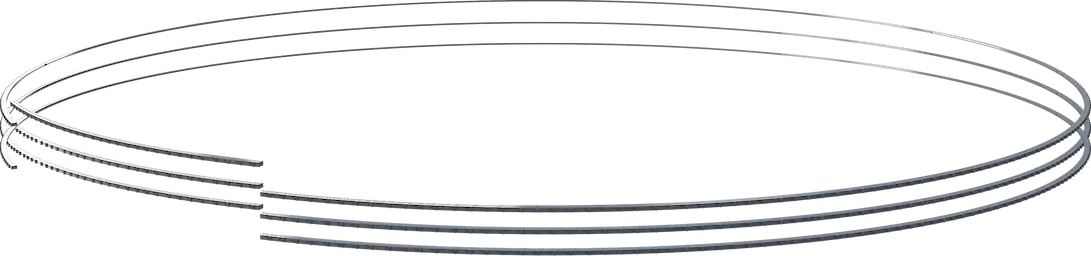

Each OXYGEN LED stripe can be curved to 30°, meaning that only 12 stripes are required to create a full circle. This feature allows for numerous customized LED display projects and makes the OXYGEN the right product for your largescale architectural LED display.
BACK MAINTENANCEOutdoorFront MaintenanceTransparentCurveSportMultisportSoccerRugbySwimmingBasketballKartingIce Rink
| OUTDOOR | |||
| Product Parameters | Unit | 30,9 | 61,8 |
| Pixel Pitch | mm | 30,94 | 61,88 |
| LED | DIP Oval 3mm | ||
| Application | Outdoor facade | ||
| Ingress Protection | IP | IP65 | |
| Brightness | cd/sqm | 6000 Nits @5volts | |
| Color Temperature after calib (adjustable) | deg. K | 6500 | |
| Viewing Angle (50% brightness) | deg. | 110(+/-55) H / 60 V | |
| Cabinet Size (WxHxD) | mm | 30 x 1980 x 35 | |
| Display area (WxH) | mm | 30 x 1980 | |
| Module Size (WxHxD) | mm | No module | |
| Pixel Matrix Per Cabinet (WxH) | px | 1 x 64 | 1 x 32 |
| Pixel Matrix Per Module (WxH) | px | No module | |
| Pixel Density | px/sqm | 1045 | 261 |
| Weight | kg/cabinet | 2,5 | 2 |
| Cabinet Material | Profiled aluminum + painted mask (RAL optional) | ||
| Maintenance Mode | Front and back | ||
| Mask specification | Aluminum mask (RAL optional) | ||
| Contrast Ratio | High | ||
| Grey scale (linear) | bit | 16 | |
| Brightness control | bit | 16 | |
| Processing depth | bit | 16 | |
| Color | 281 Trillions | ||
| Display Refresh Rate | Hz | 1920 | |
| Operation Power | V | AC85-230V | |
| Max. Power Consumption | W/sqm | 500 | |
| Average Power Consumption | W/sqm | 252 | |
| Control Mode | Synchronization | ||
| Video Frame Rate | Hz | 50/60Hz | |
| Input Types Supported | DVI / SDI / HDMI | ||
| 3D ready (optional) | Yes | ||
| Calibration | Yes | ||
| Lifetime (50% brightness) | h | 50000 | |
| Operating Humidity Range | 10-95% | ||
| Operating Temperature Range | -10°C / +50°C | ||
| Screen Uniformity Correction | - | ||
| Certification | CE / ETL / CCC | ||
| Available options | Aluminum mask (RAL option available) | ||
| Compatibility | No | ||
