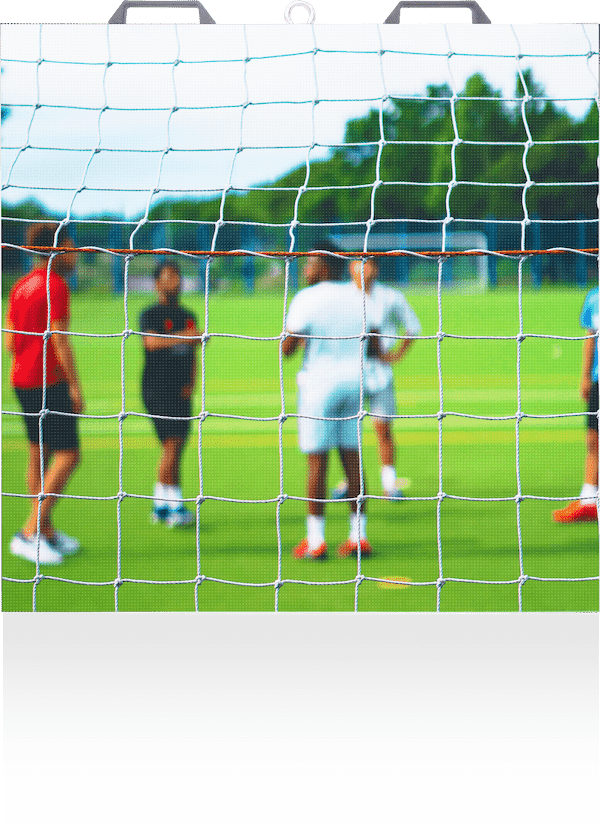

The THORITE 2.0 is the ideal LED fascia solution: bright, durable, and easy to implement and maintain. Thanks to its smart frame design, changing a single module or a complete cabinet is easily achieved, allowing for cost-effective maintenance. The integration is simple but smart, consisting of a frame fixed all around the chosen stadium tiers with «U» shaped receivers specially designed to integrate the position pins on each cabinet.
Application
OUTDOOR
PIXEL PITCH
P10.4
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP68 (Front)
IP67 (Rear)
Display Area (W X H)
750 X 750 MM
BRIGHTNESS
≤5500 Nits @5 Volts
WEIGHT
20KG / sqm
MATERIAL
DIE-CASTING ALUMINUM
The modules of the THORITE 2.0 FASCIA were conceived to ease the process of replacing them rapidly. In the unlikely case of one of them failing, it would take only one technician and one minute to change it, allowing for an uninterrupted diffusion of your different sponsors' promotional messages. With the THORITE 2.0 FASCIA, you invest in quality as well as peace of mind.

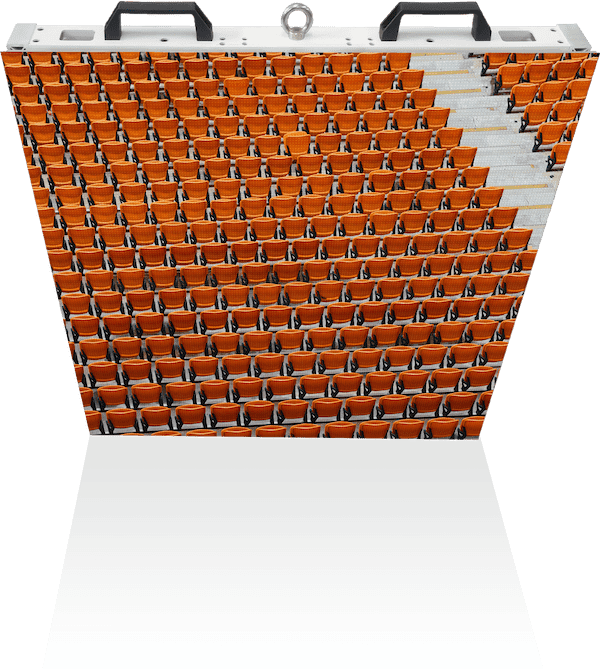

Two handles are attached to each cabinet to facilitate its handling by one person. It is a smart yet rarely implemented concept for products in this category, which will save both time and effort while installing and displacing the cabinets. An additional security ring is added in order to secure the cabinets and to prevent them from falling down.

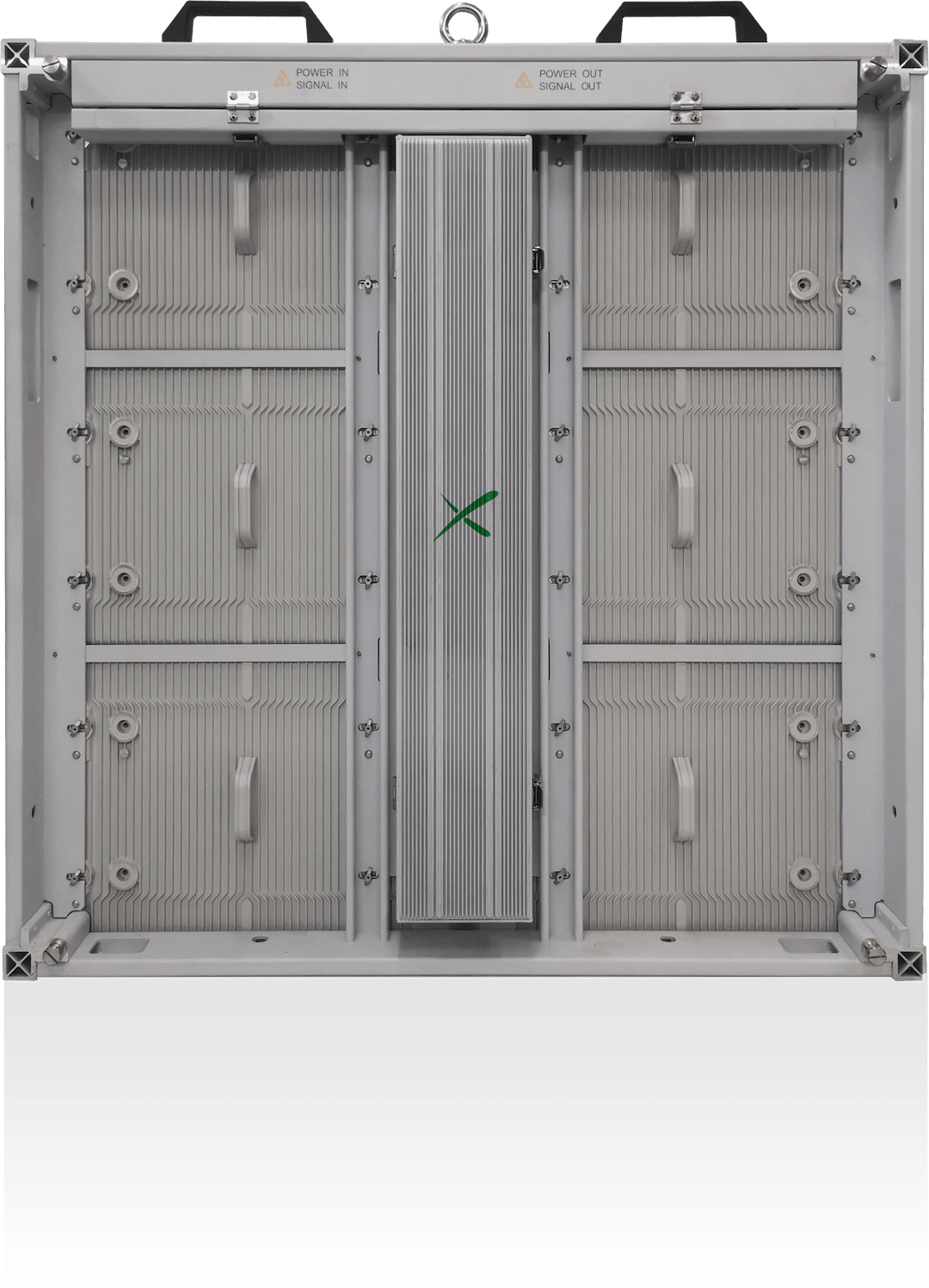

Thanks to the light aluminum used to make the cabinets and to the heat dissipation design on each module, hot weather won't be a problem of any sort. This was specially conceptualized to avoid any overheating problem that can often occur while working with outdoor applications.

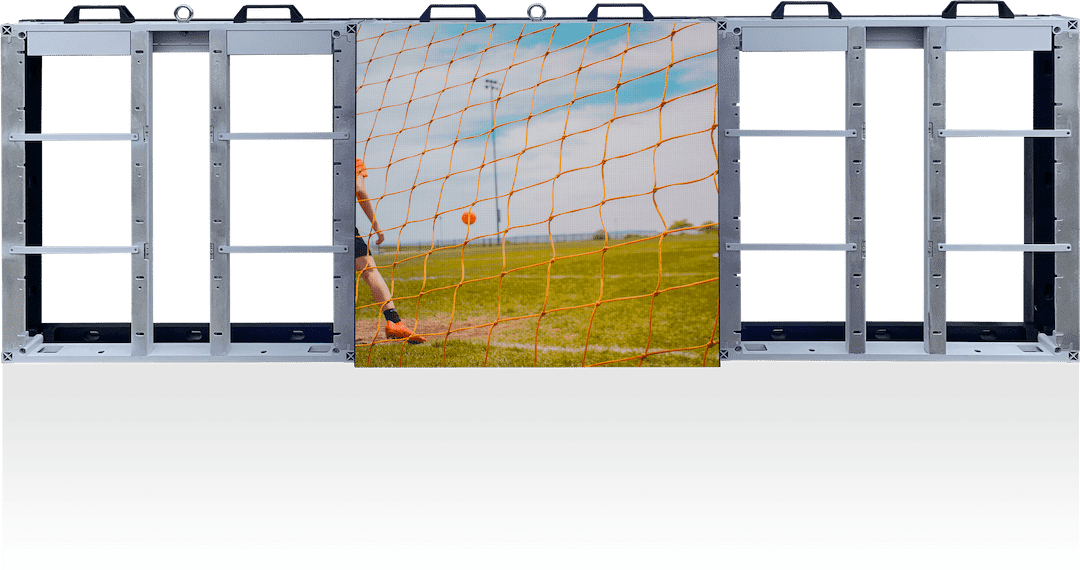

Once the frames have been installed, which is facilitated by a lateral pin system, each cabinet placed upon them will be perfectly aligned and jointed to one another, offering the audience of your matches a flawless visual experience for each of your sponsors' messages. You can add additional lateral screws to secure such positioning even more, but isn't necessary to obtain a perfect result.
BACK MAINTENANCEOutdoorFront MaintenanceSportMultisportSoccerRugbySwimmingBasketballIce Rink
| OUTDOOR | ||
| Product Parameters | Unit | 10.4 |
| Pixel Pitch | mm | 10,42 |
| LED | SMD3535 | |
| Application | Outdoor fascia | |
| Ingress Protection | IP | IP68 (front) /IP67 (rear) |
| Brightness | cd/sqm | ≤ 5500 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 |
| Viewing Angle (50% brightness) | deg. | 140V / 160H |
| Cabinet Size (WxHxD) | mm | 750 x 750 x 96.2 |
| Display area (WxH) | mm | 750 x 750 |
| Module Size (WxHxD) | mm | 375 x 250 x 21.6 |
| Pixel Matrix Per Cabinet (WxH) | px | 72 x 72 |
| Pixel Matrix Per Module (WxH) | px | 36 x 24 |
| Pixel Density | px/sqm | 9216 |
| Weight | kg/sqm | 20 |
| Cabinet Material | Aluminum Die Casting | |
| Maintenance Mode | Back or Front | |
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders | |
| Contrast Ratio | High | |
| Grey scale (linear) | bit | 15 |
| Brightness control | bit | 16 |
| Processing depth | bit | 16 |
| Color | 281 Trillions | |
| Display Refresh Rate | Hz | 3840 |
| Operation Power | V | AC110-220V |
| Max. Power Consumption | W/sqm | 600 |
| Average Power Consumption | W/sqm | 180 |
| Control Mode | Synchronization | |
| Video Frame Rate | Hz | 50/60Hz |
| Input Types Supported | DVI / SDI / HDMI | |
| 3D ready (optional) | Yes | |
| Calibration | Yes | |
| Lifetime (50% brightness) | h | 50000 |
| Operating Humidity Range | 10-95% | |
| Operating Temperature Range | -20°C / +60°C | |
| Screen Uniformity Correction | Yes | |
| Certification | EMC CLASS B / CE / ETL / CCC | |
| Available options | Curve, hanging bars | |
| Compatibility | - |
