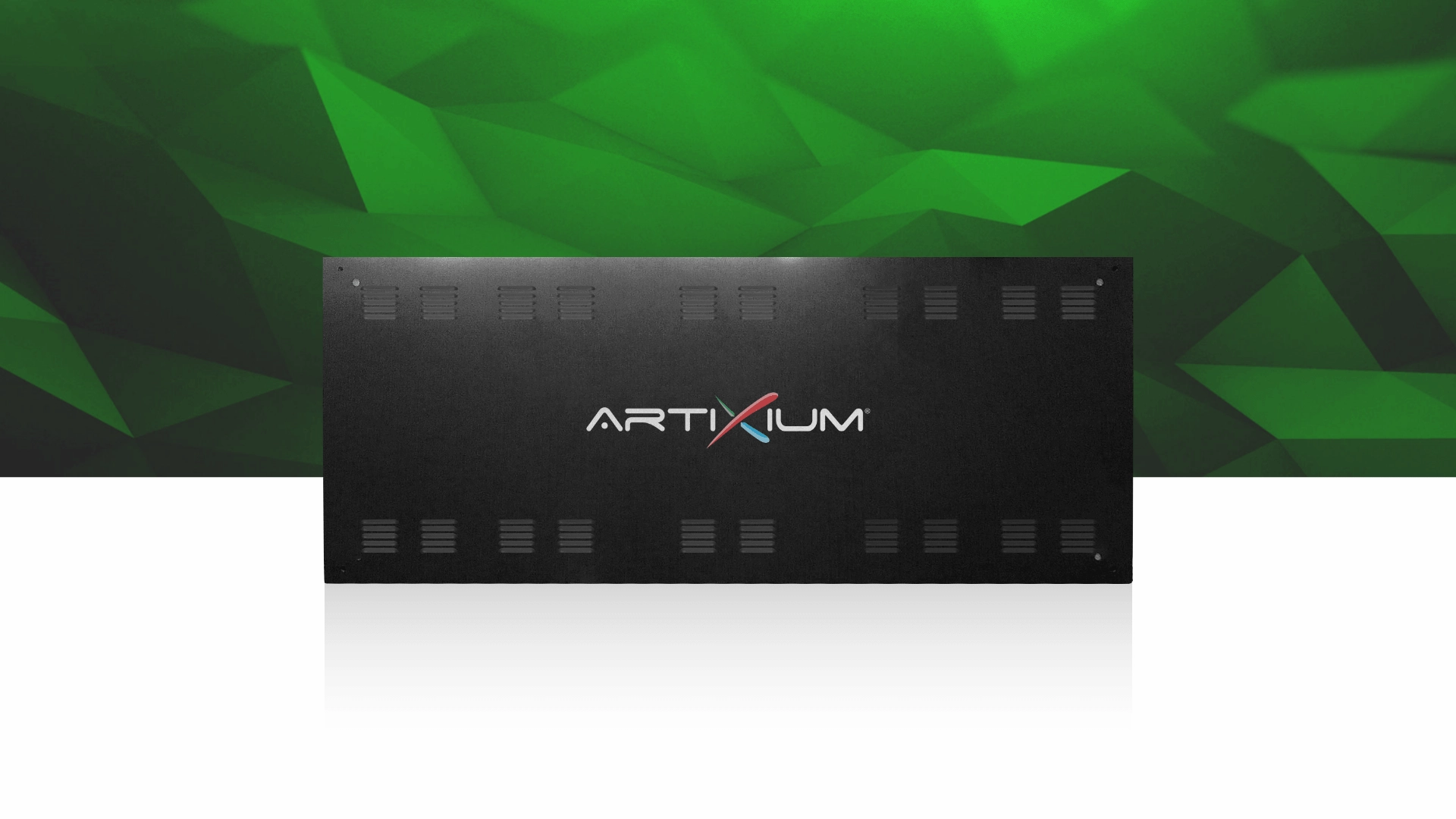

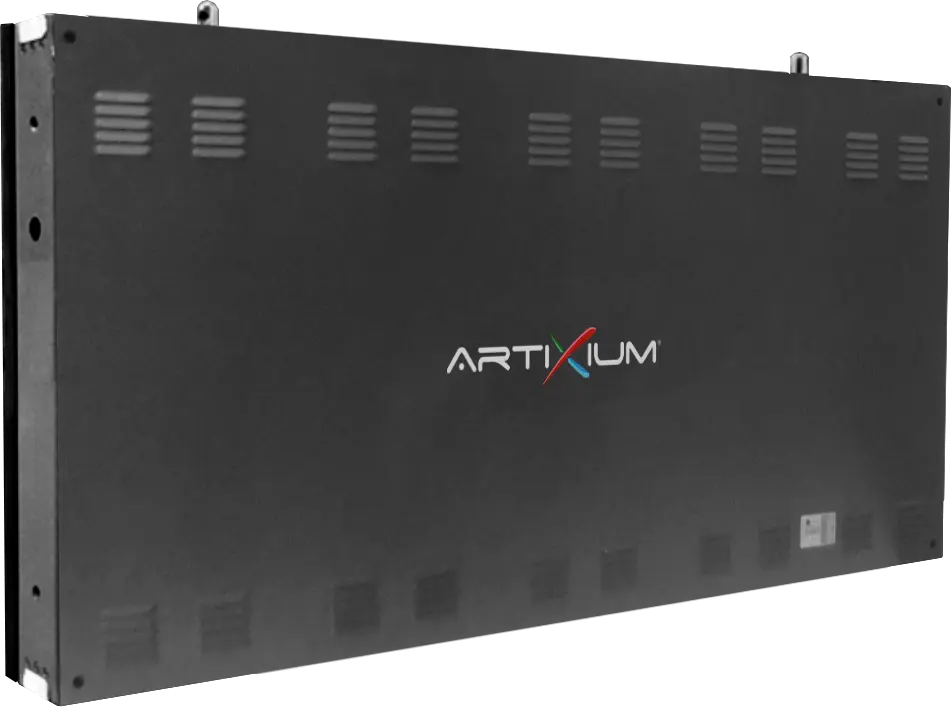

The HYDROGEN FASCIA is derived from our HYDROGEN range, dedicated to ribbon LED applications for sports venues. It is a reliable, simple, and highly customizable product, that allows you to display your sponsors’ visual content to be seen by your whole audience.
Application
OUTDOOR
PIXEL PITCH
P6.6
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP65 (Front)
IP54 (Rear)
Display Area (W X H)
1600 x 800 mm
BRIGHTNESS
≤6500 NITS @5Volts
WEIGHT
38 KG / sqm
MATERIAL
REINFORCED STEEL CABINETS
The HYDROGEN FASCIA was designed to withstand extreme climatic conditions. It is waterproof, can function in temperatures from -20°C to 60°C, and its mask protects the LEDs from any sort of physical damage. This product will stay true to its original condition for a long time and will keep on functioning normally no matter what.
This type of LED ribbon is more often than not integrated directly into the stadium bleachers. That is why your application needs to be maintainable from the front. The HYDROGEN FASCIA's modules can easily be removed from the front with a special tool, giving you total access to the power box, motherboard, and other internal components.
We can provide tailored HYDROGEN FASCIA cabinets, considering for instance the size of your bleachers. You can therefore be assured that your LED ribbon will perfectly fit your stadium.
With a brightness going up to 6500 NITS, a high contrast ratio, and a 10mm pixel pitch, you make sure that your sponsors' visual content is visible, day or night, from anywhere in your stadium.
FRONT MAINTENANCESportMultisportSoccerRugbySwimmingBasketballKartingIce RinkHydrogen Fascia
| OUTDOOR | ||
| Product Parameters | Unit | 6,6 |
| Pixel Pitch | mm | 6,67 |
| LED | SMD3535 3in1 | |
| Application | Outdoor fascia | |
| Ingress Protection | IP | IP65 |
| Brightness | cd/sqm | ≤ 6500 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 |
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V |
| Cabinet Size (WxHxD) | mm | 1600 x 800 x 124 |
| Display area (WxH) | mm | 1600 x 800 |
| Module Size (WxHxD) | mm | 320 x 160 x 25 |
| Pixel Matrix Per Cabinet (WxH) | px | 240 x 120 |
| Pixel Matrix Per Module (WxH) | px | 48 x 24 |
| Pixel Density | px/sqm | 22500 |
| Weight | kg/sqm | 38 |
| Cabinet Material | Steel cabinet with reinforcement | |
| Maintenance Mode | Front | |
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders | |
| Contrast Ratio | High | |
| Grey scale (linear) | bit | 15 |
| Brightness control | bit | 16 |
| Processing depth | bit | 16 |
| Color | 281 Trillions | |
| Display Refresh Rate | Hz | 3840 |
| Operation Power | V | AC85-230V |
| Max. Power Consumption | W/sqm | 600 |
| Average Power Consumption | W/sqm | 200 |
| Control Mode | Synchronization | |
| Video Frame Rate | Hz | 50/60Hz |
| Input Types Supported | DVI / SDI / HDMI | |
| 3D ready (optional) | Yes | |
| Calibration | Yes | |
| Lifetime (50% brightness) | h | 50000 |
| Operating Humidity Range | 10-95% | |
| Operating Temperature Range | -20°C / +60°C | |
| Screen Uniformity Correction | Yes | |
| Certification | EMC CLASS B / CE / ETL / CCC | |
| Available options | Neutrik outdoor connectors / Aluminum cabinet / Size can be customized | |
| Compatibility | No |
