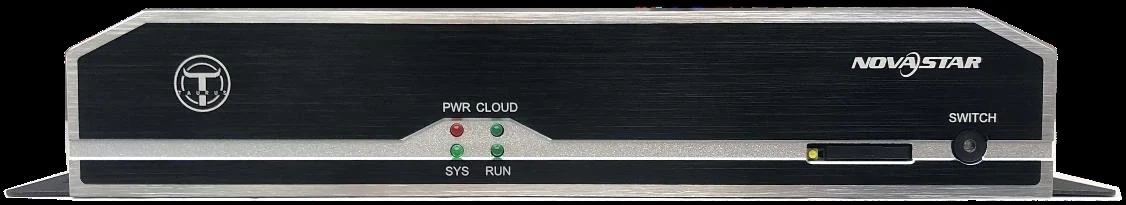

NovaStar TB8 control system
NovaStar

NovaStar TB8

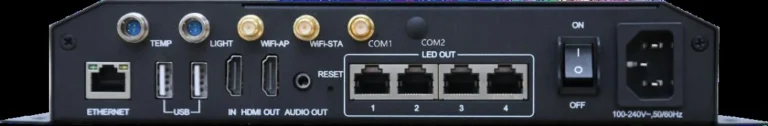

The TB8 is a second-generation NovaStar Taurus multimedia player for full-color LED displays. It drives up to 2,300,000 pixels through four Gigabit Ethernet outputs and has an HDMI input with automatic scaling and an HDMI loop output.

It runs in asynchronous mode (internal content) or synchronous mode (HDMI source) and supports synchronized playback across several screens. It is controlled from a PC, phone or tablet over Wi‑Fi, Ethernet or optional 4G, with multi-site cloud publishing and monitoring. It suits DOOH and digital signage.

Technical specifications

Type
Synchronous / asynchronous LED multimedia player
Loading capacity
2,300,000 pixels
Ethernet outputs
4 × Gigabit (all main, or 2 main + 2 backup)
Video inputs / outputs
1 × HDMI 1.3 IN, 1 × HDMI 1.3 OUT (loop)
Processor and storage
8-core 1.5 GHz, 2 GB RAM + 8 GB (4 GB available)
Video decoding
H.265 4K@60fps, H.264 4K@25fps / 1080p@60fps
Connectivity
Ethernet, permanent Wi‑Fi AP + STA / AP+STA, optional 4G (module sold separately)
Sensors
Light and temperature sensor connectors
Power / consumption
100–240 V AC, 50/60 Hz; 20 W max.
Operating temperature
−20 °C to +60 °C
Dimensions (L × W × H)
278.5 × 139.5 × 45.0 mm
Weight
1,352.3 g

Last updated: October 12, 2026 · Source: manufacturer data NovaStar

Download the full datasheet
