NovaStar TB3

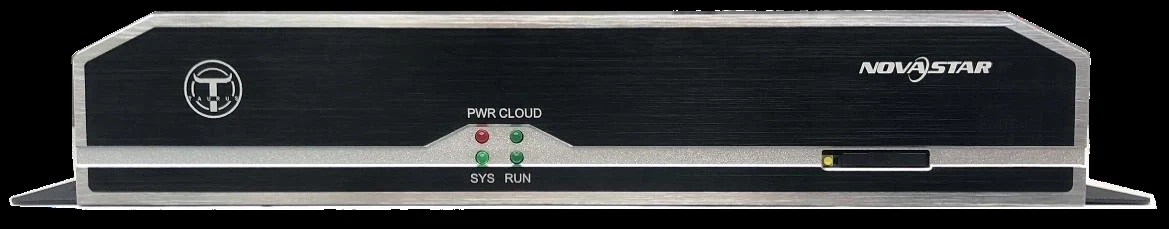

The TB3 is a second-generation NovaStar Taurus multimedia player for full-color LED displays. It combines content playback and sending, with a loading capacity of 650,000 pixels and two Gigabit Ethernet outputs, one of them for backup.

It is controlled from a PC, phone or tablet over Wi‑Fi (AP, STA or AP+STA), Ethernet, or 4G with an optional module. It decodes H.265 video up to 4K, plays solutions from a USB drive and adjusts brightness through a sensor. It suits signage and retail displays that run without a PC.

Free quote — reply within 24h Download the datasheet

Technical specifications

Type: LED multimedia player (asynchronous playback)
Loading capacity: 650,000 pixels
Max. width / height: 4096 px / 1920 px

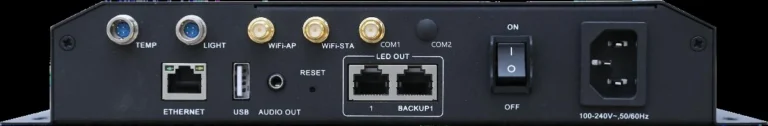

Ethernet outputs: 2 × Gigabit (1 main + 1 backup)
Processor and storage: 8-core 1.5 GHz, 2 GB RAM + 8 GB (4 GB available)
Video decoding: H.265 4K@60fps, H.264 4K@25fps / 1080p@60fps
Connectivity: Ethernet, Wi‑Fi AP / STA / AP+STA, optional 4G (module sold separately)
Sensors: Light and temperature sensor connectors
Power / consumption: 100–240 V AC, 50/60 Hz; 15 W max.
Operating temperature: −20 °C to +60 °C
Dimensions (L × W × H): 278.5 × 139.5 × 45.0 mm
Weight: 1,301.9 g
