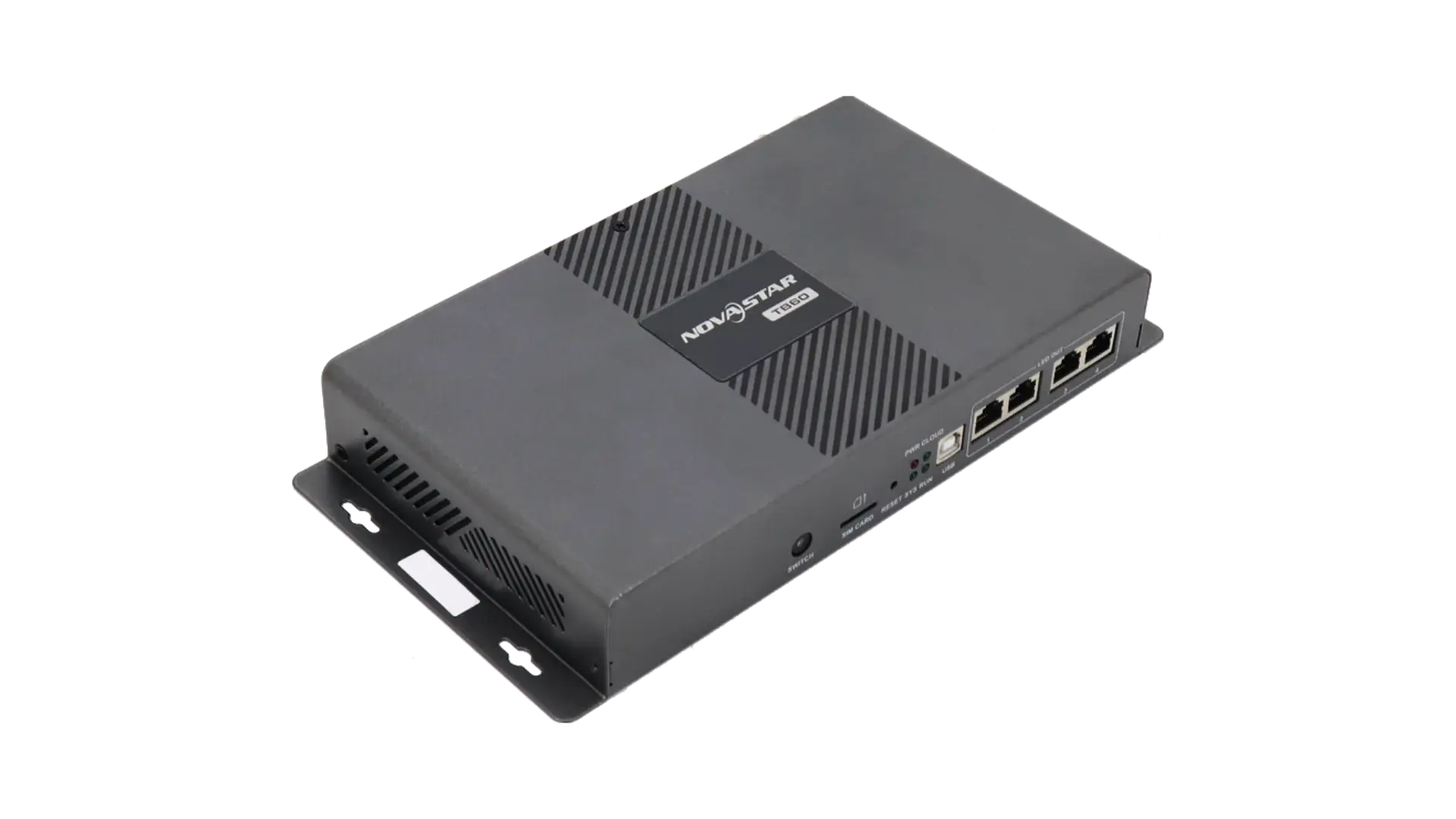

NovaStar TB60

The TB60 is the top model of NovaStar’s new-generation Taurus series for full-color LED displays. It drives up to 2,300,000 pixels through four Gigabit Ethernet outputs and has one HDMI 1.3 input and one HDMI 1.3 output.

It switches between asynchronous mode (stored content, 32 GB) and synchronous mode (HDMI source), with multi-screen synchronized playback via NTP or GPS. It is controlled from a PC, phone or tablet over Ethernet, Wi‑Fi or optional 4G, and remotely through VNNOX. It suits larger DOOH and digital signage screens.

Free quote — reply within 24h Download the datasheet

Technical specifications

Type: Synchronous / asynchronous LED multimedia player
Loading capacity: 2,300,000 pixels
Ethernet outputs: 4 × Gigabit
Video inputs / outputs: 1 × HDMI 1.3 IN, 1 × HDMI 1.3 loop OUT (up to 1920 × 1200 @ 60 Hz)
Processor and storage: Quad-core ARM A55 1.8 GHz, 1 GB RAM + 32 GB, Android 11
Playback: 4K decoding; sync / async mode switching; multi-screen sync (NTP, GPS)
Connectivity: Gigabit Ethernet, 2.4 GHz Wi‑Fi AP + STA simultaneously, optional 4G (module sold separately)
Control software: ViPlex Express, ViPlex Handy, VNNOX Care / VNNOX Media
Power / consumption: 100–240 V AC, 50/60 Hz; 18 W max.
Operating temperature: −20 °C to +60 °C
Dimensions (L × W × H): 274.3 × 139.0 × 40.0 mm
Weight: 1,230.4 g
