The TAXI CABLED is our solution for LED car signs, designed to endure intensive outdoor use. Made of aluminum and plastic, this product has high brightness and is very power effective. With a pixel pitch ranging from P2.5 to P5, it's an ideal solution for mobile promotional applications and many more.
Application
OUTDOOR
PIXEL PITCH
P2.5 P3.3 P5
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
960 x 320 mm (double face)
BRIGHTNESS
≤5000 NITS @5 Volts
WEIGHT
15 kg
MATERIAL
ALUMINUM + Plastic

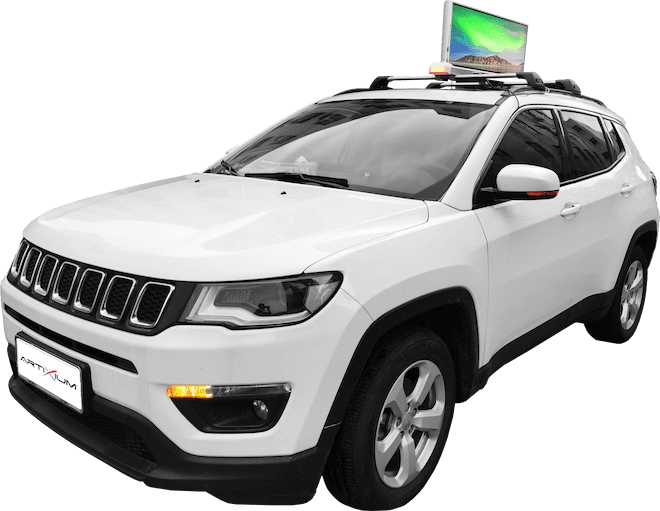

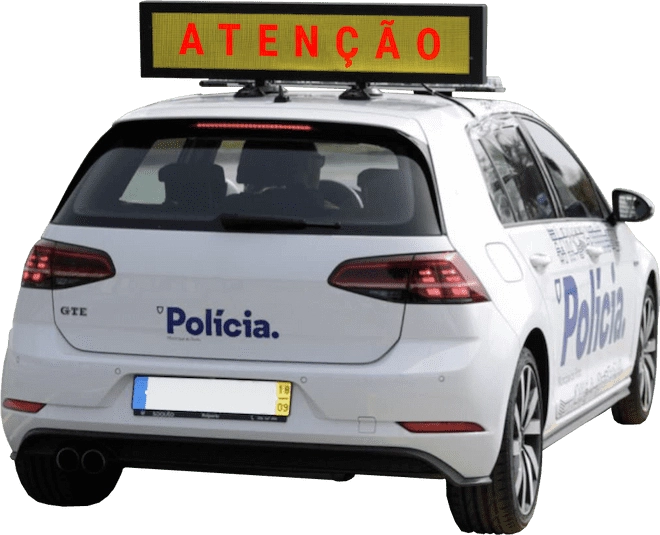

The TAXI CABLED is very fast and simple to integrate to your car's roof. It can be fastened to your roof rack, if you have one. If not, it comes with brackets that can be mechanically fixed to your car's roof without having to drill any hole.
This product comes with a 4G modem that allows you to manage several LED displays from one computer, making it ideal for large companies with diverse promotional needs.
The TAXI CABLED is completely waterproof and resistant to most particle ingress. It was conceived to endure any weather condition and to perform normally no matter the environment.

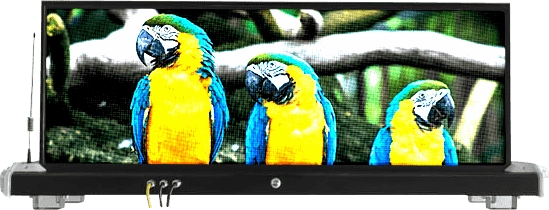

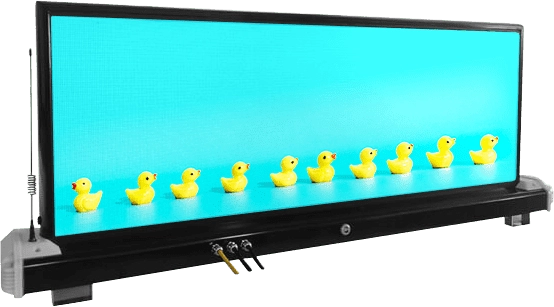

With a brightness going up to 5000 NITS, the TAXI CABLED is visible from afar, day or night. With this product, your company's cars will stand out, making your promotional spots attractive on its double face LED display.
OUTDOORBack MaintenanceHigh BrightnessSolutionSignageRobustTaxiRemote Display ManagementWaterproof
| OUTDOOR | ||||
| Product Parameters | Unit | 2.5 | 3.3 | 5 |
| Pixel Pitch | mm | 2,50 | 3,33 | 5,00 |
| LED | SMD1921 (Black Face) | SMD2727 3in1 (Black Face) | ||
| Application | Car Rooftop | |||
| Ingress Protection | IP | IP65 | ||
| Brightness | cd/sqm | ≤ 5000 Nits @5volts | ||
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | ||
| Device size (WxHxD) | mm | 1106 x 437 x 141 | ||
| Display area (WxH) | mm | 960 x 320 (double face) | ||
| Cabinet size (WxHxD) | mm | 960 x 320 x 58 | ||
| Module size (WxHxD) | mm | 320 x 320 x 18 | ||
| Device pixel matrix (WxH) | px | 384 x 128 | 288 x 96 | 192 x 64 |
| Cabinet pixel matrix (WxH) | px | 384 x 128 | 288 x 96 | 192 x 64 |
| Module pixel matrix (WxH) | px | 128 x 128 | 96 x 96 | 64 x 64 |
| Pixel Density | px/sqm | 160000 | 90000 | 40000 |
| Weight | kg | 15 | ||
| Cabinet Material | Aluminum + plastic | |||
| Maintenance Mode | Back only | |||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders | |||
| Contrast Ratio | High | |||
| Grey scale (linear) | bit | 16 | ||
| Brightness control | bit | 16 | ||
| Processing depth | bit | 16 | ||
| Color | 281 Trillions | |||
| Display Refresh Rate | Hz | 3840 | ||
| Operation Power | V | DC12V | ||
| Max. Power Consumption | W | 150 | ||
| Average Power Consumption | W | 60 | ||
| Control Mode | Asynchronization | |||
| Video Frame Rate | Hz | 50/60Hz | ||
| Input Types Supported | 4G/WIFI/GPS/LAN Internet | |||
| 3D ready (optional) | No | |||
| Calibration | No | |||
| Lifetime (50% brightness) | h | 50000 | ||
| Operating Humidity Range | 10-95% | |||
| Operating Temperature Range | -10°C / +50°C | |||
| Screen Uniformity Correction | - | |||
| Certification | CE / ETL / CCC | |||
| Available options | - | |||
| Compatibility | No | |||
