Solstice

Application
Indoor
PIXEL PITCH
P1 P1.5 P1.8
OPTION
NO OPTIONS AVAILABLE

Overview

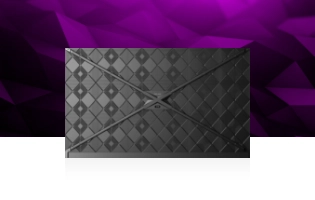

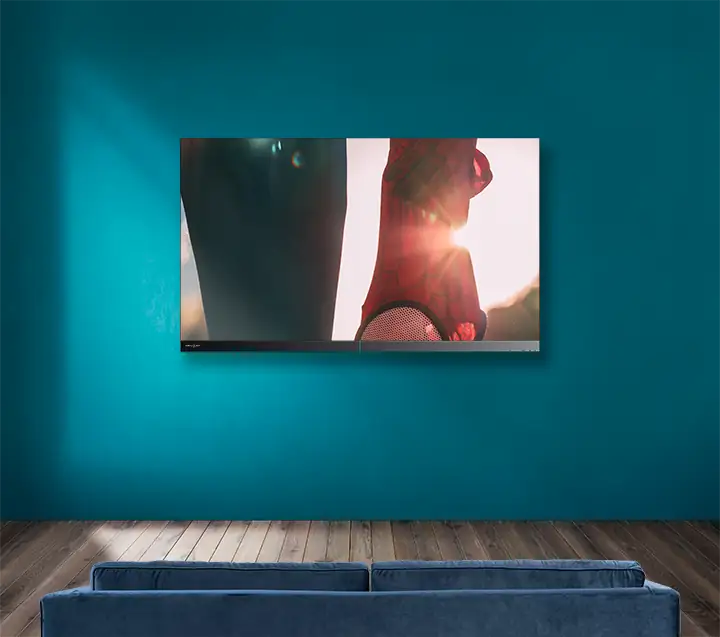

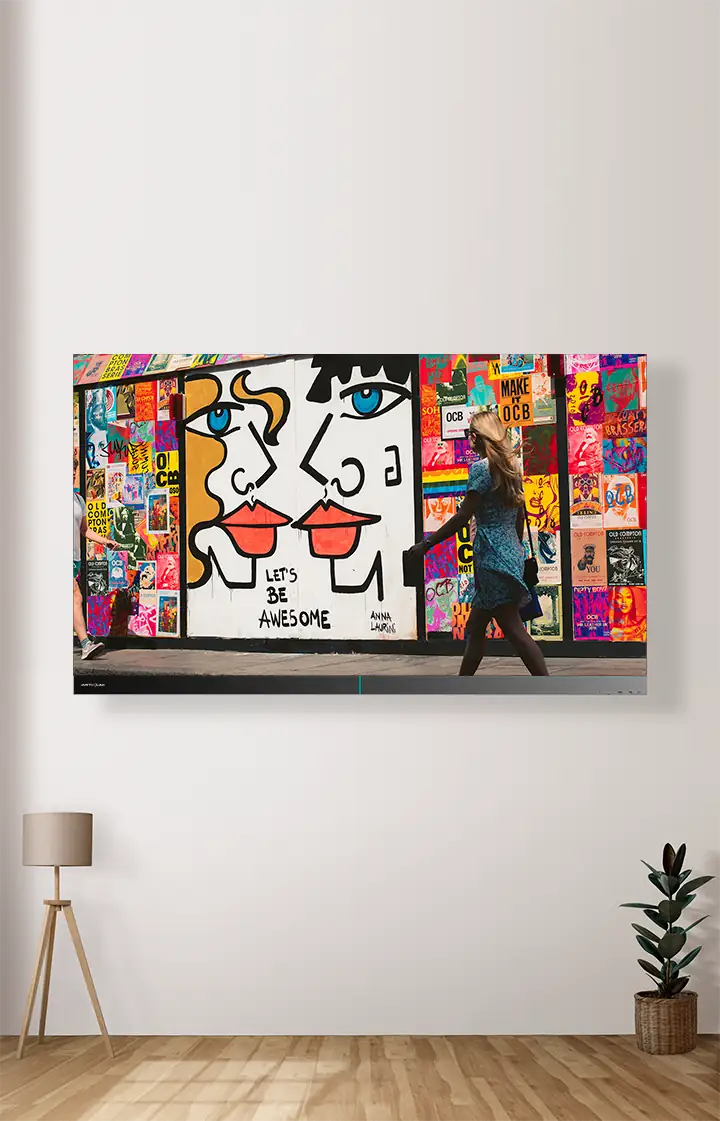

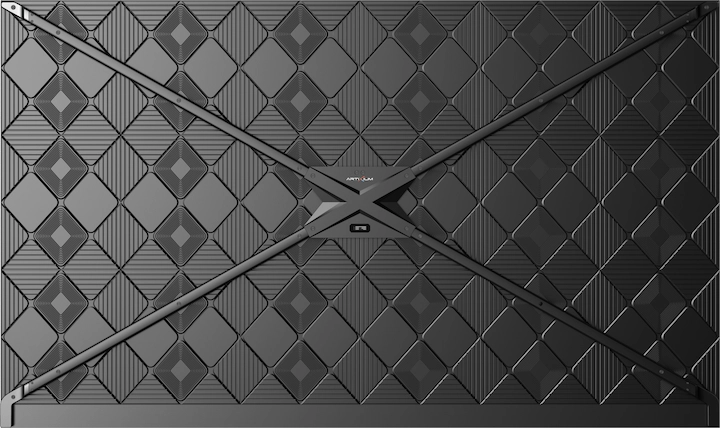

The SOLSTICE is a range of indoor giant LED smart TVs designed for the high-end market. Built with the best LED technology available on the market, this solution is one of the forerunners of what the LED displays will achieve in the future, in terms of visual quality, screen resistence and power consumption efficiency. With integrated 2x20W high quality speakers, you can have an authentic cinematic experience in the comfort of your living room.

Application
Indoor
PIXEL PITCH
P1 P1.5 P1.8
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP65 (front) / IP30 (back)
Display Area (W X H)
3060.06 x 1721.28 mm (solstice138)
3626.86 x 2041.11 mm (solstice165)
4080.1 x 2295 mm (solstice186)
BRIGHTNESS
≤ 1000 NITS @5volts
WEIGHT
125 - 150 - 198 kg
MATERIAL
Aluminum alloy

FEATURES

ultra hd fine pitch

The P1, P1.5 and P1.8 pixel pitches used by the SOLSTICE are what we call Ultra HD pitches, as they allow to attain 2K to 4K definition with a native 16:9 ratio. This LED screen is designed to boradcast high quality visual content, and is therefore the product of choice for leisure applications. Nonetheless, it can also be used in many professionnal applications where the image quality is key, such as monitoring rooms, conference rooms, control centers, etc.

many installation accessories

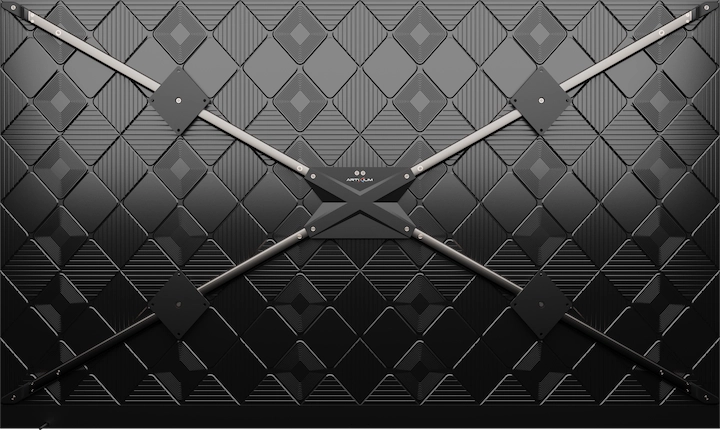

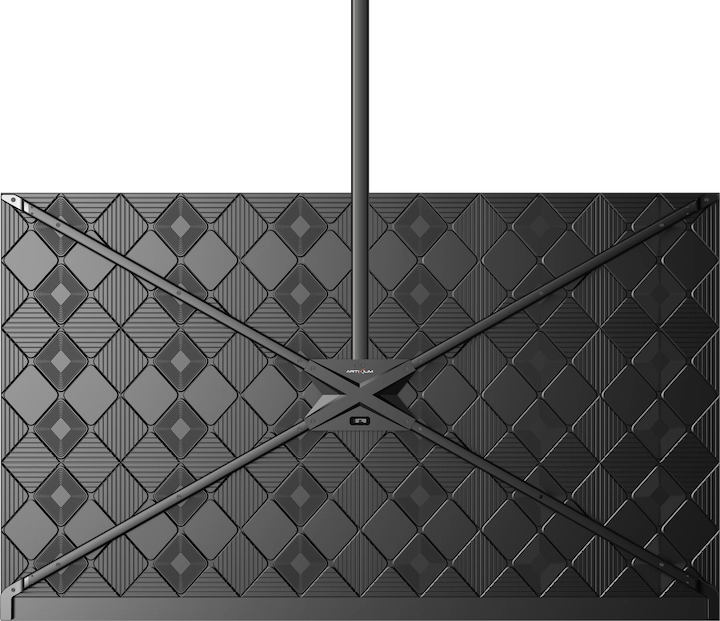

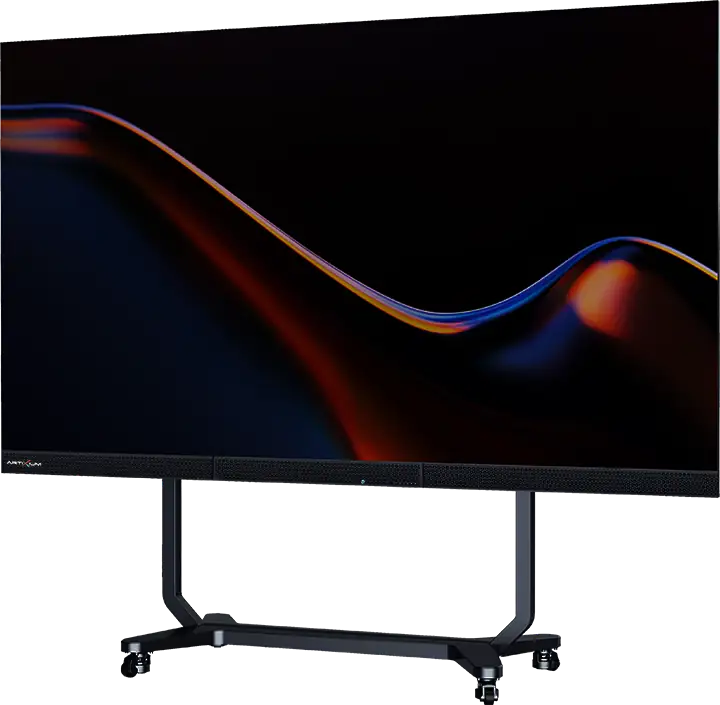

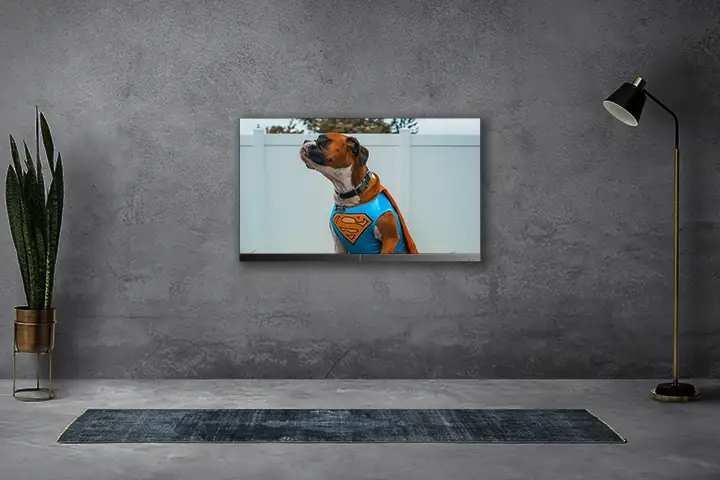

Your SOLSTICE LED screen comes with a wall mounting bracket, but we can also provide a bracket for ground stacking with integrated additional speakers, as well as a ceiling hanging bracket or a footstand with wheels. You can install your SOLSTICE prety much as you want, as it slim design will always ensure you that it fits in any given space.

plug & play cinema

The SOLSTICE is designed to be as easy to use as any regular Smart TV, with the visual quality of a cinema. It supports TV, HDMI, Ethernet, Wi-Fi & USB data inputs, and is managed with an user-friendly remote and a few buttons at the bottom of the device.

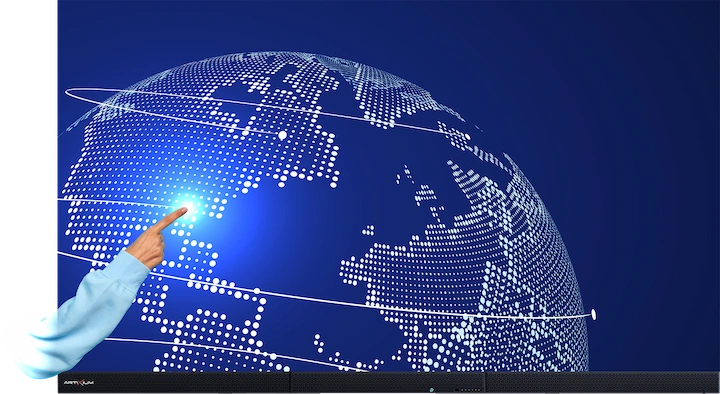

touch screen option

Upon request, your SOLSTICE can be equipped with a touch-reactive system that allows you to directly interact with the surface of your LED screen. This option is of great use to turn your indoor cinema into a professional-oriented conference screen.

INDOORFront Maintenance Solution Fine Pitch High Resolution Plug & Play High End Cinema Home Cinema Ultra Hd Fine Pitch Plug & Play Cinema Touch Screen Option

Technical Specifications

		INDOOR
Product Parameters	Unit	SOLSTICE138	SOLSTICE165	SOLSTICE186
Pixel Pitch	mm	1,59	1,89	1,06
LED		SMD2121
Application		Indoor LED cinema
Ingress Protection	IP	IP65 (front) / IP30 (back)
Brightness	cd/sqm	≤ 1000 Nits @5volts
Color Temperature after calib (adjustable)	deg. K	500 - 10000
Viewing Angle (50% brightness)	deg.	160(+/-70) H / 160 V
Device size (WxHxD)	mm	3062 x 1822.28 x 59	3628.8 x 2143.05 x 59	4082.04 x 2397.94 x 59
Display area (WxH)	mm	3060.06 x 1721.28	3626.86 x 2040.11	4080.1 x 2295
Cabinet size (WxHxD)	mm	No cabinet
Module size (WxHxD)	mm	127.50 x 191.25 x 15
Device pixel matrix (WxH)	px	1920 x 1080	1920 x 1080	3840 x 2160
Cabinet pixel matrix (WxH)	px	-
Module pixel matrix (WxH)	px	80 x 120	67 x 101	120 x 180
Pixel Density	px/sqm	393679	280247	885787
Weight	kg	125	150	198
Cabinet Material		Aluminum alloy
Maintenance Mode		Front
Mask specification		QCOB
Contrast Ratio		7000:01:00
Grey scale (linear)	bit	14
Brightness control	bit	16
Processing depth	bit	16
Color		281 Trillions
Display Refresh Rate	Hz	3840
Operation Power	V	AC220V
Max. Power Consumption	W/sqm	650
Average Power Consumption	W/sqm	150
Control Mode		Synchronization
Video Frame Rate	Hz	50/60Hz
Input Types Supported		DVI / SDI / HDMI
3D ready (optional)		Yes
Calibration		Yes
Lifetime (50% brightness)	h	50000
Operating Humidity Range		10-95%
Operating Temperature Range		-10°C / +50°C
Screen Uniformity Correction		-
Certification		CE / ETL / CCC
Available options		-
Compatibility		-
