Closed Trailer Mini

Application
OUTDOOR
PIXEL PITCH
P6.6 P8
OPTION
NO OPTIONS AVAILABLE

Overview

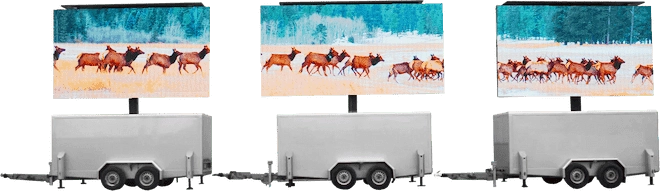

The CLOSED TRAILER MINI is the smallest product in our mobile LED truck range. It is a very peculiar solution, that will nonetheless fit many different projects. The chassis, the mast, and the support structure are specially designed to allow your mobile LED screen to fold into and unfold out of the truck. Your LED screen can thus be transported safely like any other cargo, and offer a 6sqm display surface once deployed, clearly visible from afar. This LED truck is ideal for rental use, as it allows you to integrate a giant LED screen in an ephemeral event.

Application
OUTDOOR
PIXEL PITCH
P6.6 P8
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP68
Display Area (W X H)
2880 x 1920 mm
BRIGHTNESS
≤10000 NITS @5 Volts
WEIGHT
144 kg (led parts)
MATERIAL
DIE-CASTING ALUMINUM

FEATURES

COBALT LED CABINETS

The COBALT is the ideal outdoor LED cabinet, and therefore the ideal choice for your CLOSED TRAILER MINI. With a brightness going up to 10000 NITS (the highest on the market), an IP68 (totally waterproof and dust-proof) and a pixel pitch ranging from P6.6 to P8 (ideal for a good visibility at medium and long range), the COBALT is one of our best selling products. Furthermore, it's light and slim enough to allow the screen's deploying system to work easily. This LED cabinet can be maintained both from the front and from the back, making your CLOSED TRAILER MINI's maintenance easier.

TAILORED TRAILER

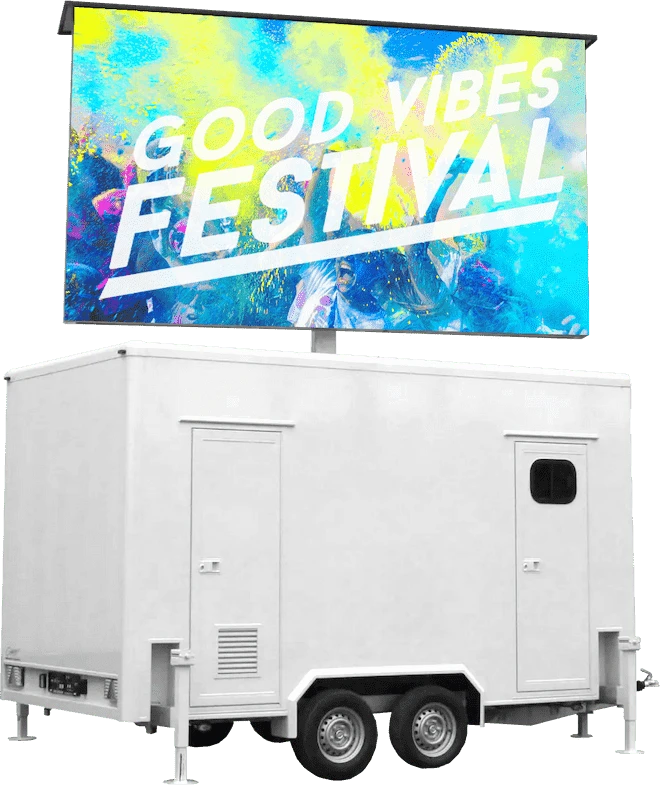

The CLOSED TRAILER MINI is designed for the LED screen to fit into it. This mobile solution gives you the ability to move and integrate a giant LED screen in a record time, making it ideal for shows, festivals, races, ephemeral drive-in theaters, etc.

HIGH RESILIENCE

Every element of the CLOSED TRAILER MINI, from the LED cabinets to the mast, to the chassis, are designed to ensure your LED screen's integrity. Such a large display surface is submitted to the weather conditions as well as to extreme pressure from the wind. Nonetheless, you can be sure that none of these will impact your CLOSED TRAILER MINI's condition, or its ability to perform.

Certifications

OUTDOORBack Maintenance Front Maintenance High Brightness Solution Mobile LED Truck Mobility Robust Waterproof Tailored LED Application

Technical Specifications

		OUTDOOR
Product Parameters	Unit	P6.6	P8
Pixel Pitch	mm	6,67	8,00
LED		SMD2727	SMD3535
Application		Outdoor
Ingress Protection	IP	IP68
Brightness	cd/sqm	≤ 10000 Nits @5volts
Color Temperature after calib (adjustable)	deg. K	6500
Viewing Angle (50% brightness)	deg.	180 H / 180 V
Device size (WxHxD)	mm	2880 x 1920 x 200
Display area (WxH)	mm	2880 x 1920
Cabinet size (WxHxD)	mm	960 x 960 x 101
Module size (WxHxD)	mm	480 x 320 x 26
Device pixel matrix (WxH)	px	432 x 288	360 x 240
Cabinet pixel matrix (WxH)	px	144 x 144	120 x 120
Module pixel matrix (WxH)	px	72 x 48	60 x 40
Pixel Density	px/sqm	22500	15625
Total Weight (only LED part)	kg	144
Cabinet Material		Die-casting aluminum
Maintenance Mode		Front and Back
Mask specification		95% Plastic + 5% Fiber / SS Screws / Shaders
Contrast Ratio		High
Grey scale (linear)	bit	16
Brightness control	bit	16
Processing depth	bit	16
Color		281 Trillions
Display Refresh Rate	Hz	3840
Operation Power	V	AC85-230V
Max. Power Consumption	W/sqm	550
Average Power Consumption	W/sqm	200
Control Mode		Synchronization
Video Frame Rate	Hz	50/60Hz
Input Types Supported		DVI / SDI / HDMI
3D ready (optional)		Yes
Calibration		Yes
Lifetime (50% brightness)	h	50000
Operating Humidity Range		10-95%
Operating Temperature Range		-20°C / +60°C
Screen Uniformity Correction		-
Certification		EMC CLASS B / CE / ETL / CCC
Available options		-
Compatibility		-
