This mobile LED poster comes with a pixel pitch ranging from P1.5 to P2.5, with an integrated plug & play system making the display of any visual content accessible to anyone. You can join several PAD 2.0 XL together to make one giant LED screen thanks to its wireless data transmission system. This product is a bigger version of the PAD 2.0, for those willing to add some weight to their LED poster in order to get a greater display surface.
Application
Indoor
PIXEL PITCH
P2 P2.5
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP43
Display Area (W X H)
960 x 2160mm
BRIGHTNESS
≤800 NITS @5Volts
WEIGHT
46 kg/unit
MATERIAL
DIE CASTING ALUMINUM
Upon request, we can integrate light and motion sensors to the PAD 2.0 XL. You can therefore make your visual content react to passerbys' movement or to the ambient light to offer an original and coherent promotional solution.
The fine pixel pitch of the PAD 2.0 XL is second to none but to our ultra HD media product range. With a high contrast ratio, you can display high-quality videos without any issue.

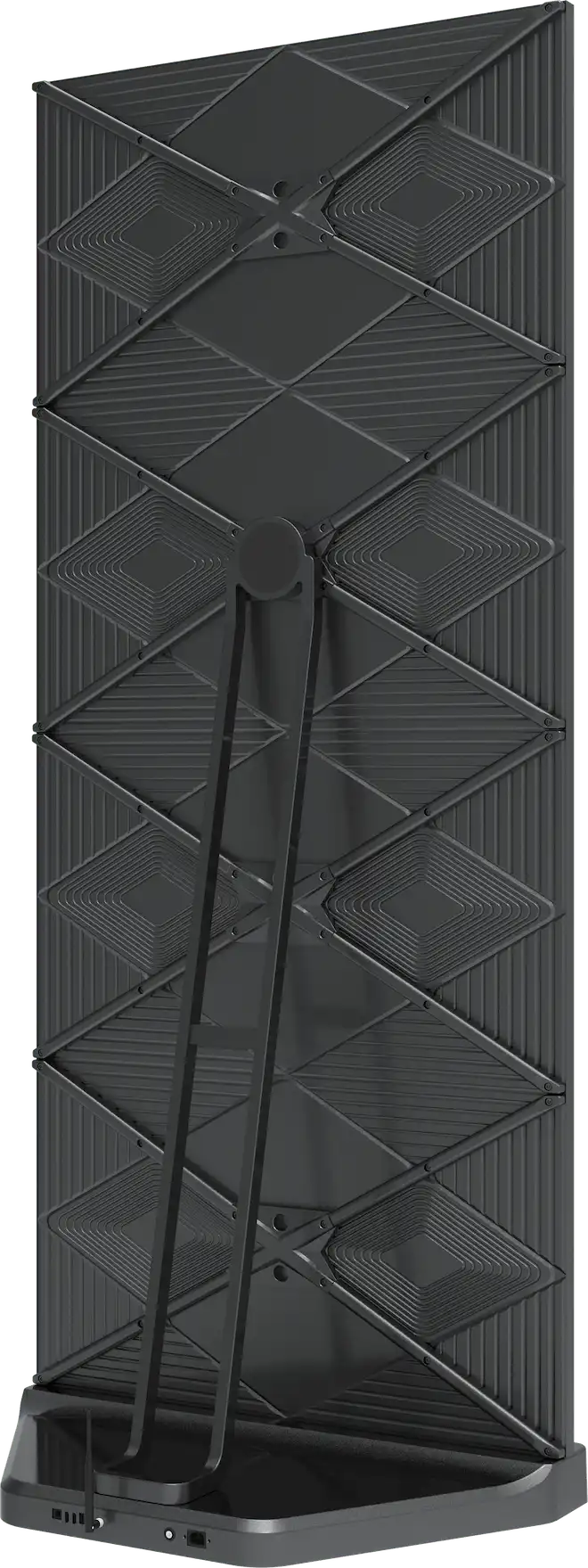

Even though the PAD 2.0 XL is the heaviest of our LED posters, it is light enough to be shifted, allowing you to modify your installation to your convenience. This process is made possible by the integrated power box which serves as a stand, making the process of moving the PAD 2.0 XL easy and safe. It's an ideal solution for shops, fairs, and every other LED application that requires a certain degree of mobility.
INDOORFront MaintenancePosterPadHigh ResolutionMobilityReactivity
| INDOOR | |||
| Product Parameters | Unit | 2.0 | 2.5 |
| Pixel Pitch | mm | 2,00 | 2,50 |
| LED | SMD2121 | ||
| Application | Mobile indoor LED poster | ||
| Ingress Protection | IP | IP43 | |
| Brightness | cd/sqm | ≤ 800 Nits @5volts | |
| Color Temperature after calib (adjustable) | deg. K | 500 - 10000 | |
| Viewing Angle (50% brightness) | deg. | 160(+/-70) H / 160 V | |
| Device size (WxHxD) | mm | 962 x 2246 x 590 | |
| Display area (WxH) | mm | 960 x 2160 | |
| Cabinet size (WxHxD) | mm | No cabinet | |
| Module size (WxHxD) | mm | 962 x 540 x 23,6 | |
| Device pixel matrix (WxH) | px | 480 x 1080 | 384 x 864 |
| Cabinet pixel matrix (WxH) | px | - | |
| Module pixel matrix (WxH) | px | 480 x 270 | 384 x 216 |
| Pixel Density | px/sqm | 250000 | 160000 |
| Weight | kg | 46 | |
| Cabinet Material | Die-casting aluminum | ||
| Maintenance Mode | Front | ||
| Mask specification | 95% Plastic + 5% Fiber / SS screws / No shaders | ||
| Contrast Ratio | 7000:1 | ||
| Grey scale (linear) | bit | 16 | |
| Brightness control | bit | 16 | |
| Processing depth | bit | 16 | |
| Color | 281 Trillions | ||
| Display Refresh Rate | Hz | 1920 - 3840 | |
| Operation Power | V | AC220V | |
| Max. Power Consumption | W/sqm | 650 | |
| Average Power Consumption | W/sqm | 150 | |
| Control Mode | Synchronization | ||
| Video Frame Rate | Hz | 50/60Hz | |
| Input Types Supported | DVI / SDI / HDMI | ||
| 3D ready (optional) | Yes | ||
| Calibration | Yes | ||
| Lifetime (50% brightness) | h | 50000 | |
| Operating Humidity Range | 10-95% | ||
| Operating Temperature Range | -10°C / +50°C | ||
| Screen Uniformity Correction | - | ||
| Certification | CE / ETL / CCC | ||
| Available options | - | ||
| Compatibility | - | ||
Indoor
960 x 2160mm
IP43
≤800 NITS @5Volts
P2 P2.5
46 kg/unit
Front Maintenance
DIE CASTING ALUMINUM
