We designed the PAD to offer a mobile and modulable solution to your LED display projects. This LED poster is light enough to be moved by one person alone, making it an ideal solution for any temporary application (showrooms, shop fronts, fairs, exhibitions, etc.). Thanks to an integrated plug & play system, broadcasting visual content is accessible to anyone, and several PAD screens can be joined to form one big and homogeneous LED screen.
Application
INDOOR OUTDOOR
PIXEL PITCH
P1.7 P2 P2.5
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP34
Display Area (W X H)
560 x 1890 mm
600 x 1600 mm
600 x 2000 mm
BRIGHTNESS
≤5800 NITS @5Volts
WEIGHT
27 - 44 - 51 kg/PAD
MATERIAL
ANODIZED ALUMINUM

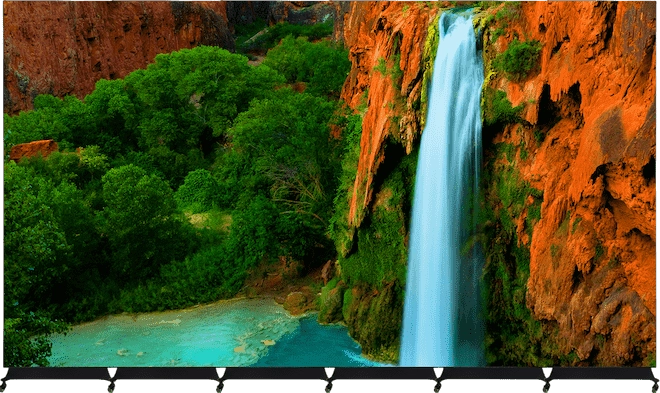

The PAD allows a 16:9 ratio by assembling 6 LED posters side by side. This process is facilitated by an integrated assembly system, and will only take a few minutes for one technician to operate.

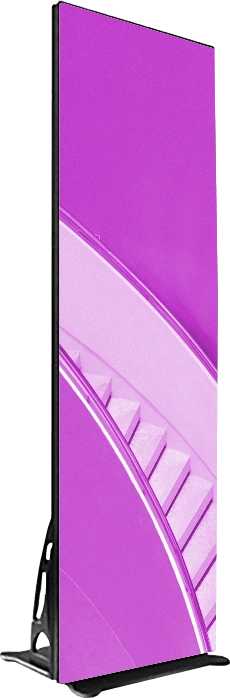

The PAD is available in P2.1 and P2.5, two fine pixel pitches that allow you to display quality visual content with a fine resolution.

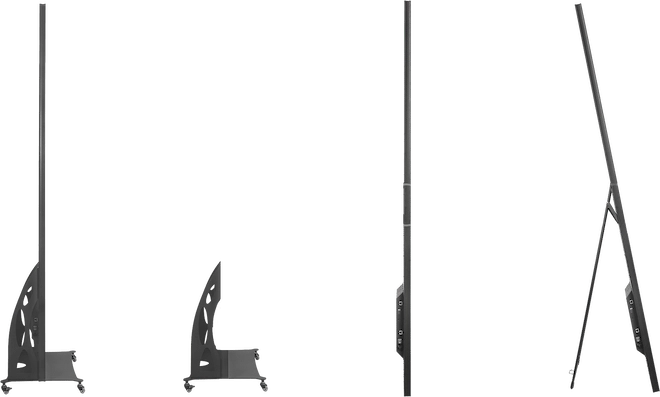

The PAD comes on a stand with wheels for effortless shifting. It can also be simply placed on the floor at a 35° angle thanks to its deployable leg. The PAD's dimensions and lightweight allow a great number of different configurations for your LED display ( angles, curves, spacings, etc.).
INDOOROutdoorFront MaintenanceHigh BrightnessSolutionPosterModulableFine PitchEasy AssemblyPad
| INDOOR | OUTDOOR | |||||
| Product Parameters | Unit | 1.7 | 2.0 | 2.5 | 2.5 | |
| Pixel Pitch | mm | 1,75 | 2,00 | 2,50 | 2,50 | |
| LED | SMD1515 3in1 (Black Face) | |||||
| Application | Indoor | Outdoor | ||||
| Ingress Protection | IP | IP34 | IP65 | |||
| Brightness | cd/sqm | ≤ 1300 Nits @5volts | ≤ 5800 Nits @5volts | |||
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | ||||
| Device size (WxHxD) | mm | 572 x 1902 x 68 | 612 x 1672 x 63 | 612 x 2072 x 63 | ||
| Display area (WxH) | mm | 560 x 1890 | 600 x 1600 | 600 x 2000 | ||
| Cabinet size (WxHxD) | mm | Pas de caisson | ||||
| Module size (WxHxD) | mm | 280 x 210 x 15 | 200 x 200 x 15 | |||
| Device pixel matrix (WxH) | px | 320 x 1080 | 280 x 945 | 224 x 756 | 240 x 640 | 240 x 800 |
| Cabinet pixel matrix (WxH) | px | Pas de caisson | ||||
| Module pixel matrix (WxH) | px | 160 x 120 | 140 x 105 | 112 x 84 | 80 x 80 | 80 x 80 |
| Pixel Density | px/sqm | 326531 | 250000 | 160000 | 160000 | |
| Device weight | kg | 27 | 44 | 51 | ||
| Material | Anodized Aluminum | |||||
| Maintenance Mode | Front | |||||
| Mask specification | 95% Plastic + 5% Fiber / SS screws / No shaders | |||||
| Contrast Ratio | High | |||||
| Grey scale (linear) | bit | 16 | ||||
| Brightness control | bit | 16 | ||||
| Processing depth | bit | 16 | ||||
| Color | 281 Trillions | |||||
| Display Refresh Rate | Hz | 3840 | ||||
| Operation Power | V | AC85-230V | ||||
| Max. Power Consumption | W/sqm | 600 | ||||
| Average Power Consumption | W/sqm | 200 | ||||
| Control Mode | Synchronization | |||||
| Video Frame Rate | Hz | 50/60Hz | ||||
| Input Types Supported | DVI / SDI / HDMI | |||||
| 3D ready (optional) | Yes | |||||
| Calibration | Yes | |||||
| Lifetime (50% brightness) | h | 50000 | ||||
| Operating Humidity Range | 10-95% | |||||
| Operating Temperature Range | -10°C / +50°C | |||||
| Screen Uniformity Correction | - | |||||
| Certification | CE / ETL / CCC | |||||
| Available options | - | |||||
| Compatibility | - | |||||
