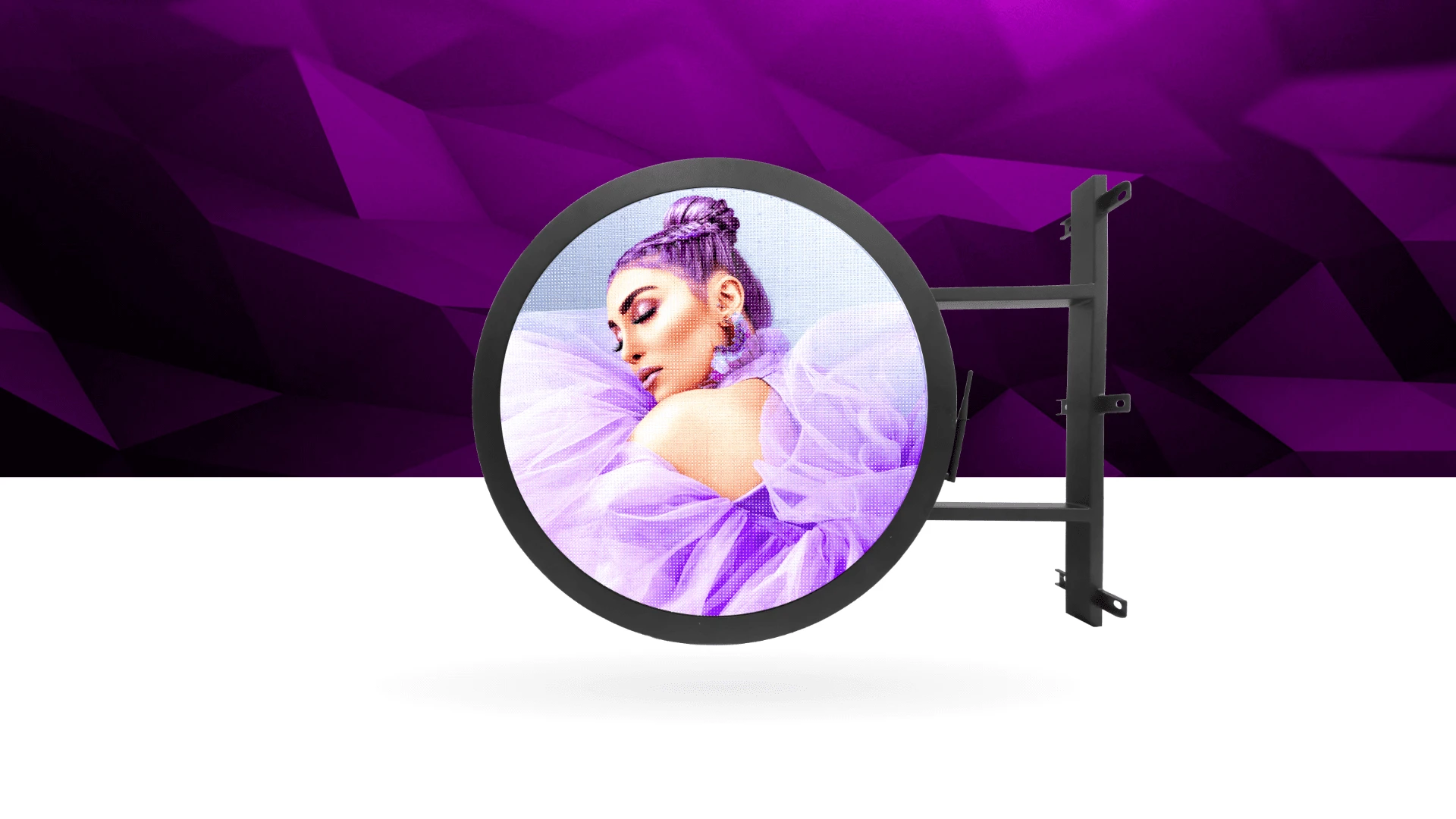

The WHEEL is an outdoor LED signage solution that can fit any shop front. Its double face LED display allows every passerby to see its visual content. This product is not to be mistaken for the well-known drugstores' signage, as its resolution is much higher, making it capable of displaying complex videos without trouble. Furthermore, the WHEEL is a highly resistant product, easy to integrate and use.
Application
OUTDOOR
PIXEL PITCH
P4.8
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
600 mm diameter (double face)
BRIGHTNESS
≤4500 Nits @5 Volts
WEIGHT
16 kg
MATERIAL
Steel
This LED signage's maintenance is operated from the front because of its double face display. This operation can be managed by one technician, as well as this product's integration which is as easy as a traditional sign.
Going up to 4500 NITS, the WHEEL's brightness offers excellent visibility, day or night. Its high contrast ratio allows a clear image definition, for better display quality.
A 4.8mm pixel pitch allows this LED sign to display videos with ease. The WHEEL is an ideal promotional solution for any business that wishes to make its storefront stand out at a reasonable cost.
The WHEEL was designed to simplify the display of visual content to the maximum. Once installed, a simple SD card or USB stick is sufficient to broadcast your visual content automatically. It's a great means to display promotional videos and animations.
Designed to work in extreme weather conditions, the WHEEL is waterproof and resistant to particle ingress. No matter the weather, this product will function normally and stay true to its original form.
OUTDOORFront MaintenanceHigh BrightnessSolutionSignageRobustPlug & PlayStoreWaterproof
| OUTDOOR | ||
| Product Parameters | Unit | 4,8 |
| Pixel Pitch | mm | 4,80 |
| LED | SMD1921 (Black Face) | |
| Application | Double Face LED display for Outdoor application | |
| Ingress Protection | IP | IP65 |
| Brightness | cd/sqm | ≤ 4500 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 |
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V |
| Device size (WxHxD) | mm | 916 x 685 x 110 |
| Display area (ø) | mm | 600 |
| Cabinet size (øxD) | mm | 600 x 110 |
| Module size (WxHxD) | mm | No module |
| Device pixel matrix (WxH) | px | 125 x 125 |
| Cabinet pixel matrix (WxH) | px | 125 x 125 |
| Module pixel matrix (WxH) | px | - |
| Pixel Density | px/sqm | 43403 |
| Weight | kg | 16 |
| Cabinet Material | Steel | |
| Maintenance Mode | Front Maintenance | |
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / No Shaders | |
| Contrast Ratio | High | |
| Grey scale (linear) | bit | 16 |
| Brightness control | bit | 16 |
| Processing depth | bit | 16 |
| Color | 281 Trillions | |
| Display Refresh Rate | Hz | 1920 |
| Operation Power | V | AC85-230V |
| Max. Power Consumption | W/sqm | 300 |
| Average Power Consumption | W/sqm | 150 |
| Control Mode | Asynchronization | |
| Video Frame Rate | Hz | 50/60Hz |
| Input Types Supported | SD Card / USB memory | |
| 3D ready (optional) | No | |
| Calibration | No | |
| Lifetime (50% brightness) | h | 50000 |
| Operating Humidity Range | 10-95% | |
| Operating Temperature Range | -10°C / +50°C | |
| Screen Uniformity Correction | ||
| Certification | CE / ETL / CCC | |
| Available options | No | |
| Compatibility | No |
