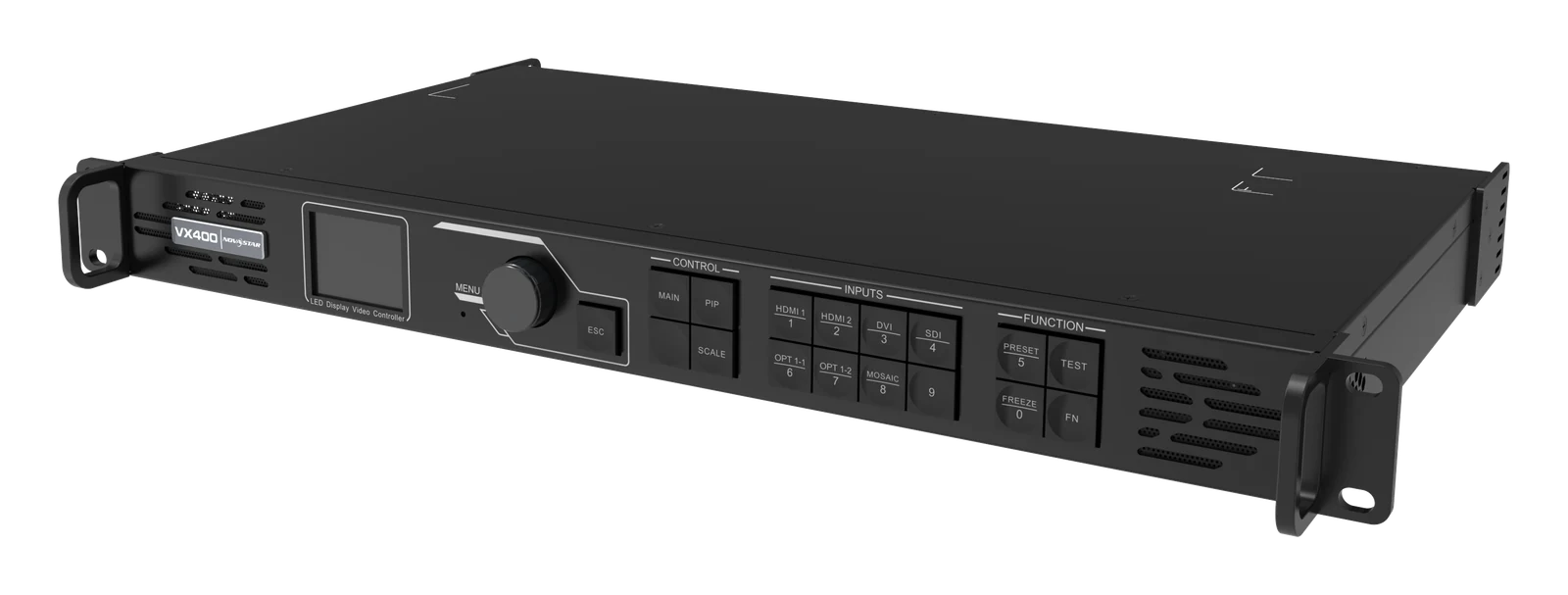

NovaStar VX400 Video Processor

The NovaStar VX400 is an all-in-one controller that integrates video processing and LED screen control in one box. It loads up to 2.6 million pixels over 4 Gigabit Ethernet ports, with a maximum width of 10,240 pixels.

It accepts HDMI, DVI, 3G-SDI and fiber sources, handles two layers and offers stepless output scaling. Configuration is done with NovaLCT and V-Can. NovaStar targets medium and high-end rental, stage control systems and fine-pitch LED screens.

Free quote — reply within 24h Download the datasheet

Technical specifications

Type: All-in-one controller (video processing + sending)
Loading capacity: 2,600,000 pixels
Max width / height: 10,240 px / 8,192 px
Ethernet outputs: 4 × Gigabit Ethernet
Fiber ports: 2 × OPT (OPT 1 input/output, OPT 2 copy/backup)
Video inputs: 2 × HDMI 1.3 (one with loop), 1 × DVI (with loop), 1 × 3G-SDI (with loop), 1 × OPT
Video / monitoring output: 1 × HDMI 1.3 (adjustable resolution)
Layers: 2 layers (adjustable size, position and priority)
Control: NovaLCT, V-Can; Ethernet and USB ports
Power consumption: 28 W (rated)
Dimensions (W × D × H): 483.6 × 301.2 × 50.1 mm
Weight: 4 kg (net)
