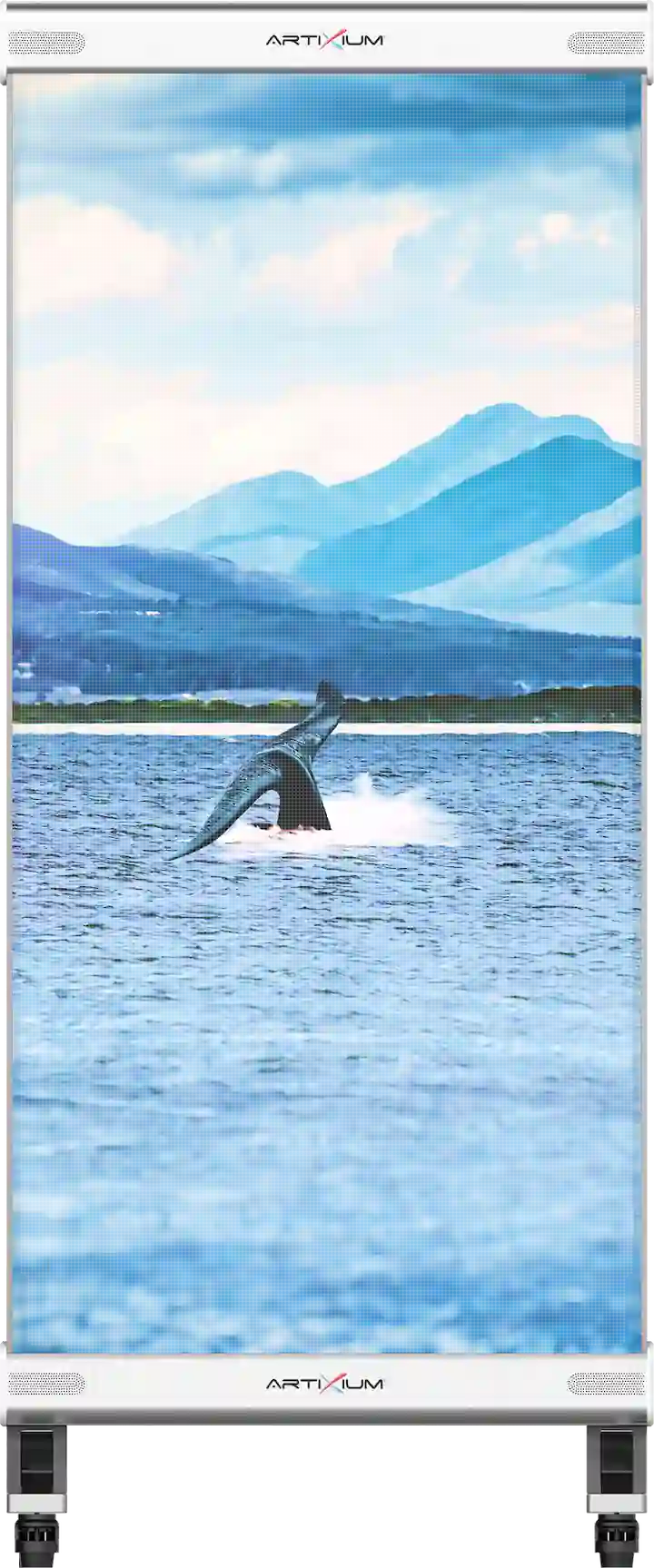

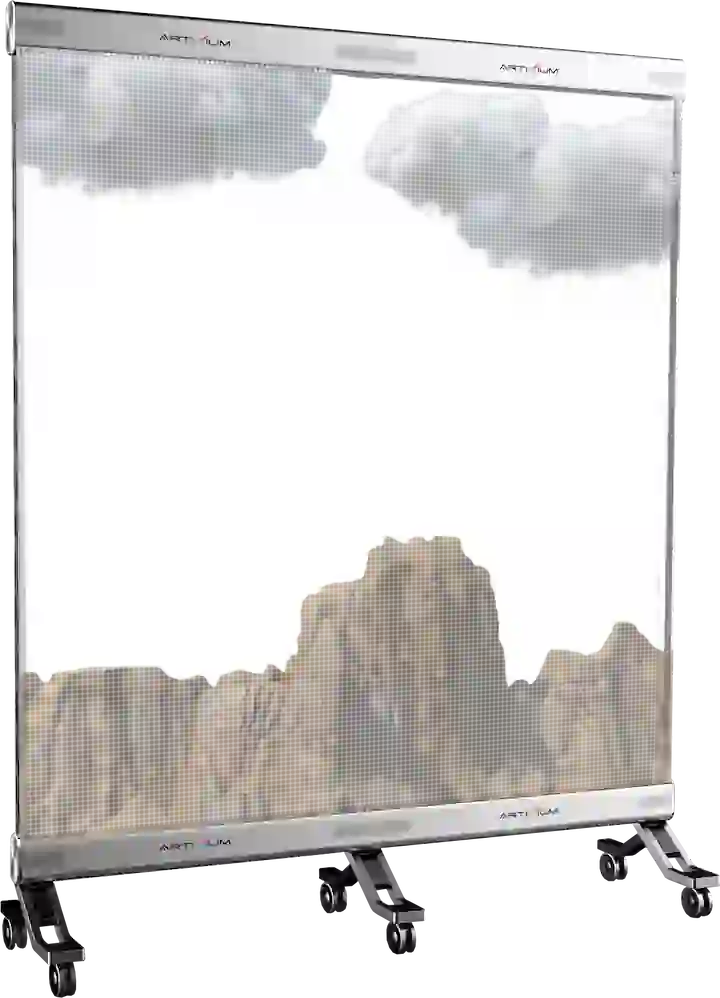

The ONYX TR 2.0 offers CALCITE 2.0 technology integrated into an all-in-one solution. A highly transparent LED mesh with a P3.9 pitch is embedded between two tempered glass plates, all enclosed by a lightweight, aesthetically pleasing, and durable aeronautic-grade aluminum frame. Thanks to the latest driver encapsulation technology, the visual effect of this product is closer to a hologram than traditional display. Completed with a wheeled stand system and a suspension system, the ONYX TR 2.0 is an elegant and user-friendly solution, ideal for trade shows, commercial signage, as well as offices, airports, etc.
Application
Indoor
PIXEL PITCH
P3.9
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP20
Display Area (W X H)

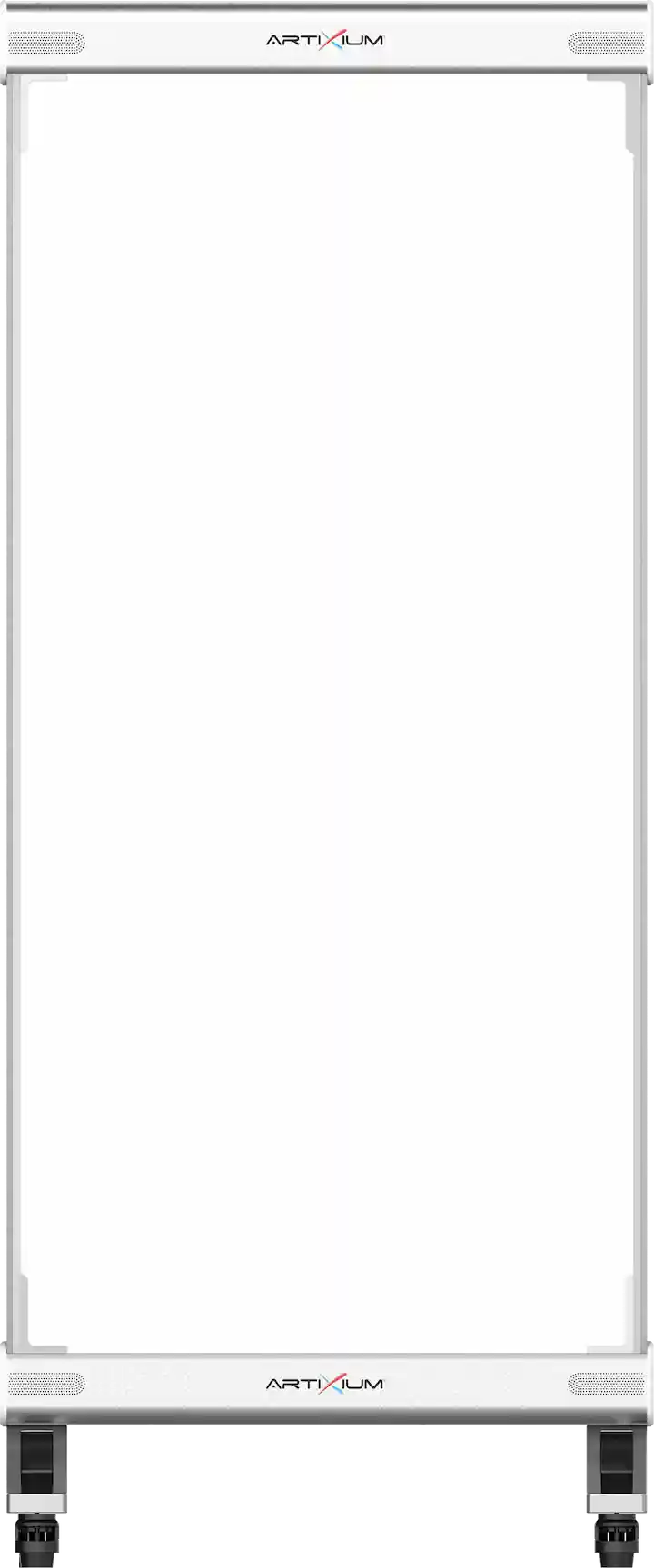

1000 x 2000 mm

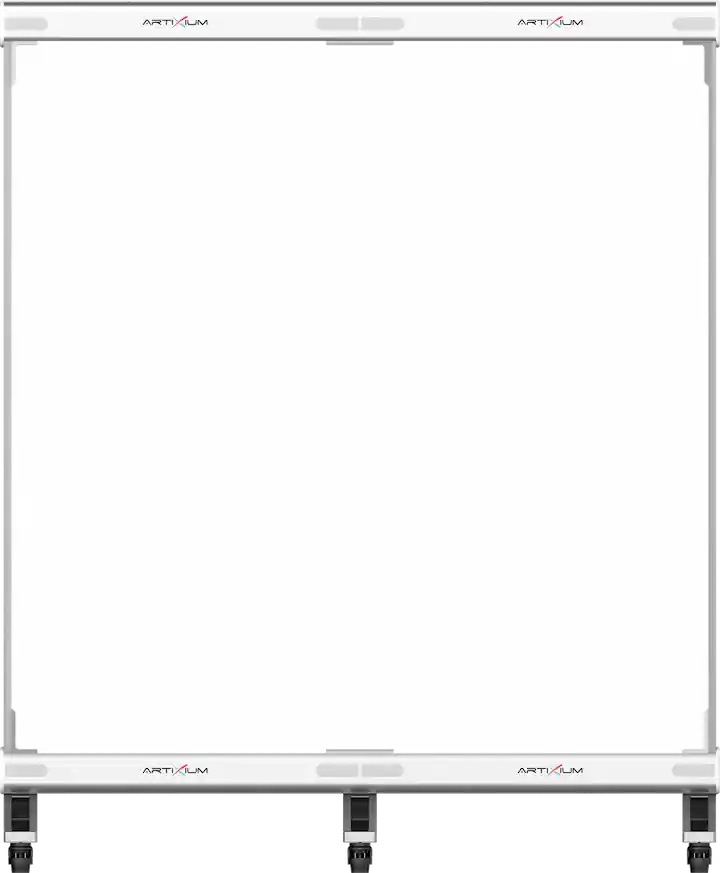

2000 x 2000 mm
BRIGHTNESS
≤ 4000 NITS @5volts
WEIGHT
40 - 60 kg
MATERIAL
Aeronautic aluminum + tempered glass

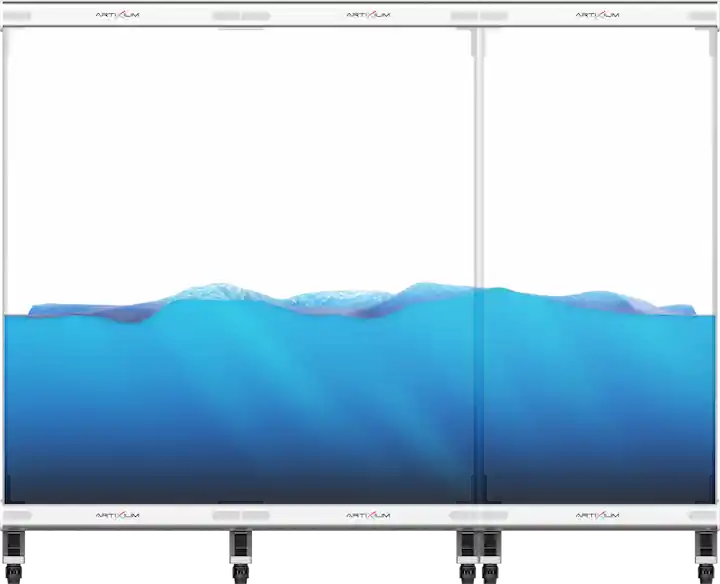

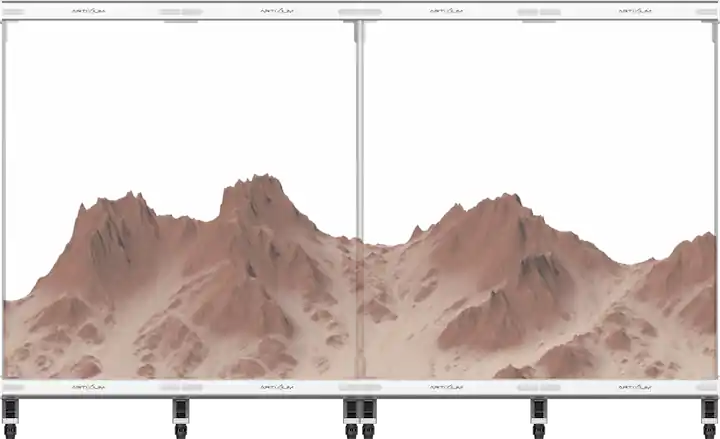

The ONYX TR 2.0 allows you to combine two posters on the sides, providing access to display surfaces of 3m x 2m and 4m x 2m. This straightforward process offers great flexibility when it comes to designing your transparent LED mobile screen.

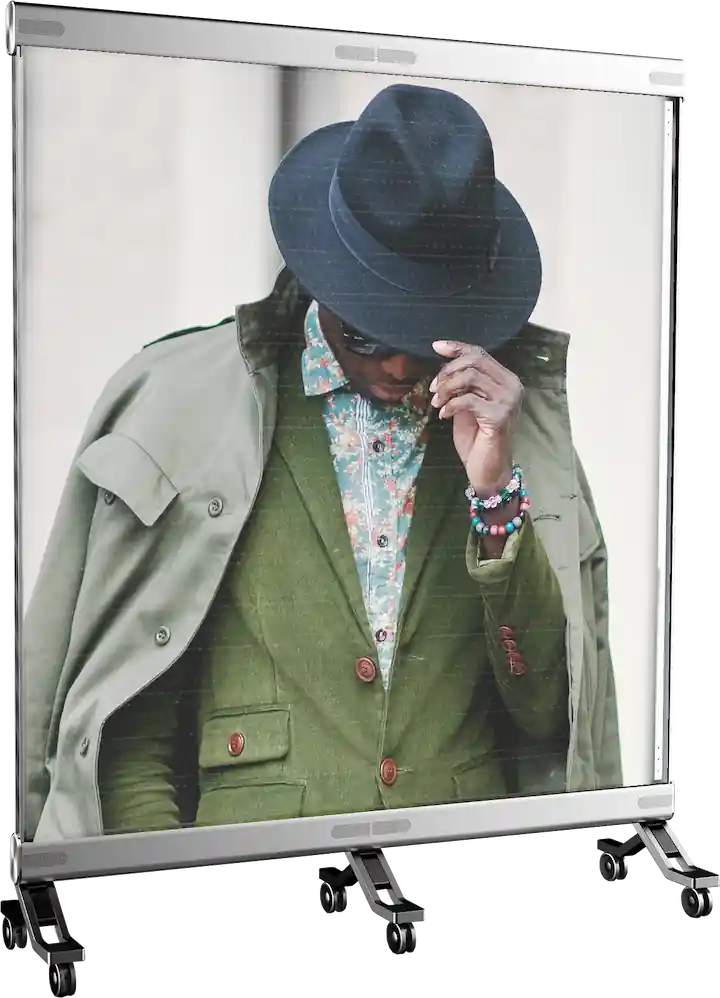

Similar to CALCITE 2.0, the ONYX TR 2.0 uses LEDs that are encapsulated with their drivers, occupying less space and allowing for a higher level of transparency than its predecessor, the ONYX TR.

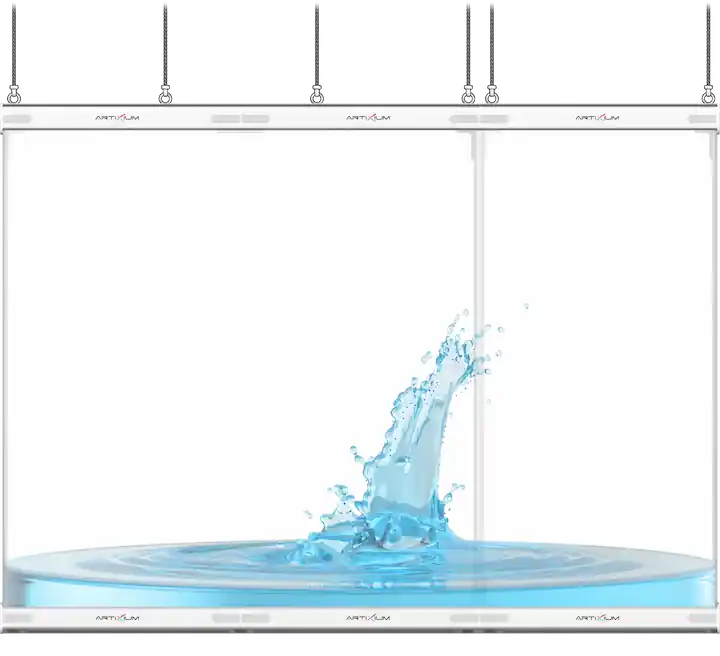

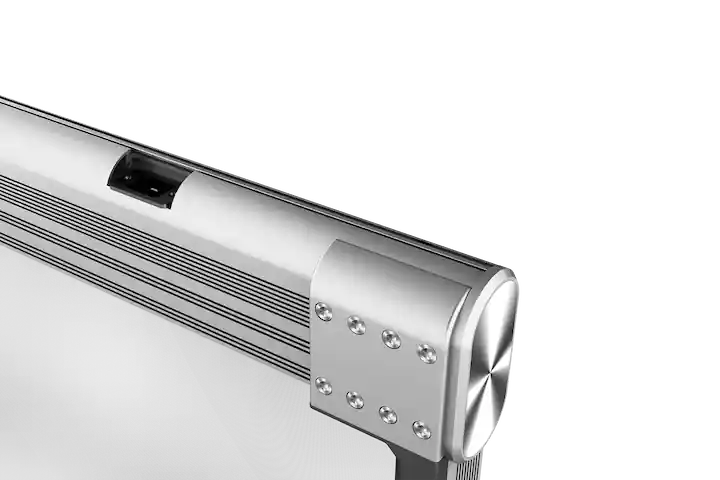

The frame of the ONYX TR 2.0 includes rings designed for suspending your transparent LED screen. Thanks to its lightweight design, your LED poster can be easily suspended from various types of structures.
| INDOOR | |||
| Product Parameters | Unit | S | XL |
| Pixel Pitch | mm | 3,91 | 3,91 |
| LED | Custom SMD2121 4in1 (RGB + driver) | ||
| Application | Indoor transparent LED poster | ||
| Ingress Protection | IP | IP20 | |
| Brightness | cd/m² | ≤ 4000 Nits @5volts | |
| Color Temperature after calib (adjustable) | deg. K | 6500 | |
| Viewing Angle (50% brightness) | deg. | 160 H / 160 V | |
| Device size (WxHxD) | mm | 1020 x 2452 x 500 | 2020 x 2452 x 500 |
| Display area (WxH) | mm | 1000 x 2000 | 2000 x 2000 |
| Cabinet size (WxHxD) | mm | No cabinet | |
| Module size (WxHxD) | mm | No module | |
| Device pixel matrix (WxH) | px | 256 x 512 | 512 x 512 |
| Cabinet pixel matrix (WxH) | px | No cabinet | No cabinet |
| Module pixel matrix (WxH) | px | No module | No module |
| Pixel Density | px/m² | 65536 | 65536 |
| Weight | kg | 40 | 60 |
| Material | Aeronautic grade aluminum frame + glass | ||
| Maintenance Mode | Front & back | ||
| Mask specification | No Mask | ||
| Contrast Ratio | High | ||
| Grey scale (linear) | bit | 16 | |
| Brightness control | bit | 16 | |
| Processing depth | bit | 16 | |
| Color | 281 Trillions | ||
| Display Refresh Rate | Hz | 3840 | |
| Operation Power | V | AC100-240V | |
| Max. Power Consumption | W/m² | 1200 | |
| Average Power Consumption | W/m² | 500 | |
| Control Mode | Synchronization | ||
| Video Frame Rate | Hz | 50/60Hz | |
| Input Types Supported | DVI / SDI / HDMI | ||
| 3D ready (optional) | Yes | ||
| Calibration | Yes | ||
| Lifetime (50% brightness) | h | 50000 | |
| Operating Humidity Range | 20-85% | ||
| Operating Temperature Range | 0°C / +50°C | ||
| Screen Uniformity Correction | - | ||
| Certification | CE / ETL / CCC | ||
| Available options | - | ||
| Compatibility | Two posters can be connected together | ||
