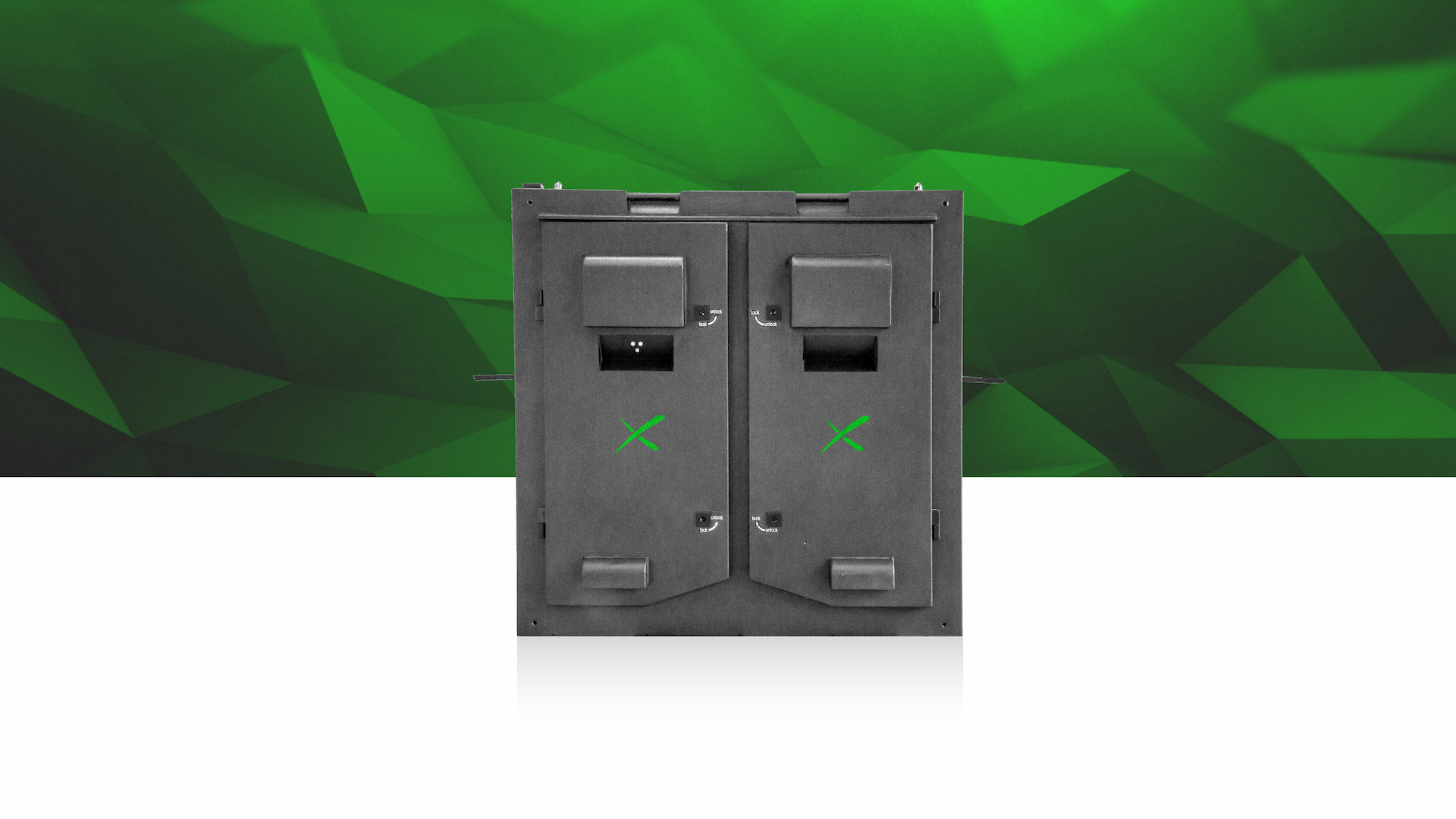

The HYDROGEN SCOREBOARD is our industry-standard and most accessible cabinet. It’s a highly customizable product, able to fit all kinds of LED scoreboard projects in many environments. Most of the HYDROGEN SCOREBOARD’s components are changeable or customizable, from the structure to the electronics. The many options available make this LED cabinet one of the most adaptable products in our range.
Application
OUTDOOR
PIXEL PITCH
P5 P6 P8 P10
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP65 (front)
IP54 (rear)
Display Area (W X H)
960 x 960 mm (customizable)
BRIGHTNESS
≤ 6000 Nits @5 Volts
WEIGHT
40kg/sqm
MATERIAL
STEEL OR ALUMINIUM CABINET

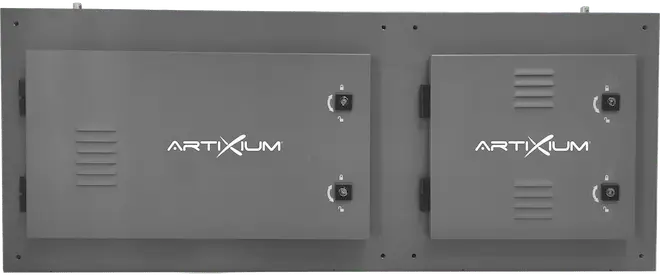

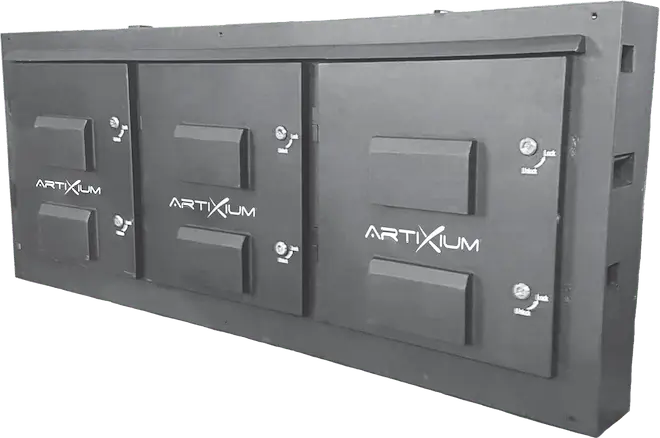

The HYDROGEN SCOREBOARD can be made of steel or CNC aluminum depending on the project. Steel cabinets, mostly dedicated to fixed LED applications, are heavy but robust, with a long lifespan. However, some projects require a lighter product, which is why we also sell CNC aluminum cabinets that weigh up to 20% less than steel cabinets.

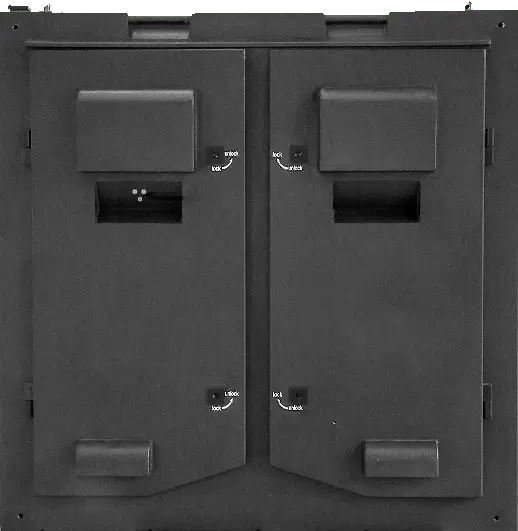

Upon request, we can implement additional waterproof protections on the power and data connectors, locking system, and wiring, ensuring a dry and flawless cabinet no matter the environment. Using car sealing protection for the back doors of the HYDROGEN SCOREBOARD insures 100% waterproof protection.

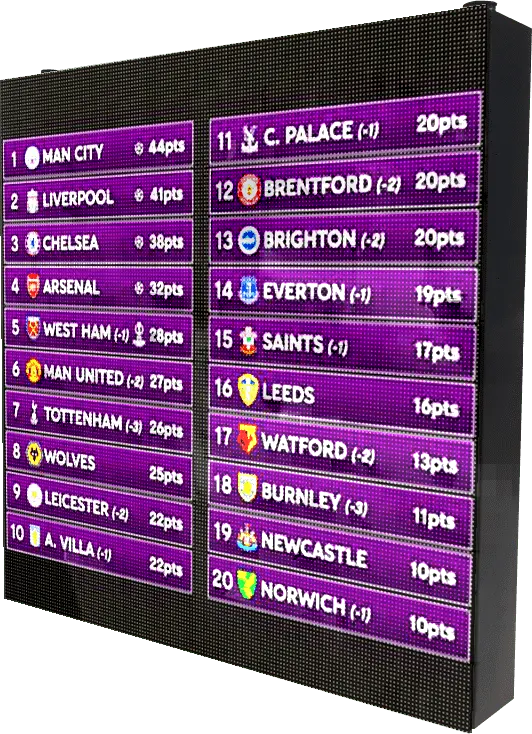

The HYDROGEN SCOREBOARD modules come in various dimensions to better fit any requirement. With a wide range of pixel pitches using SMD or DIP LEDs, the modules are optimized with protection masks (optional for indoor versions) for better resilience and better contrast.

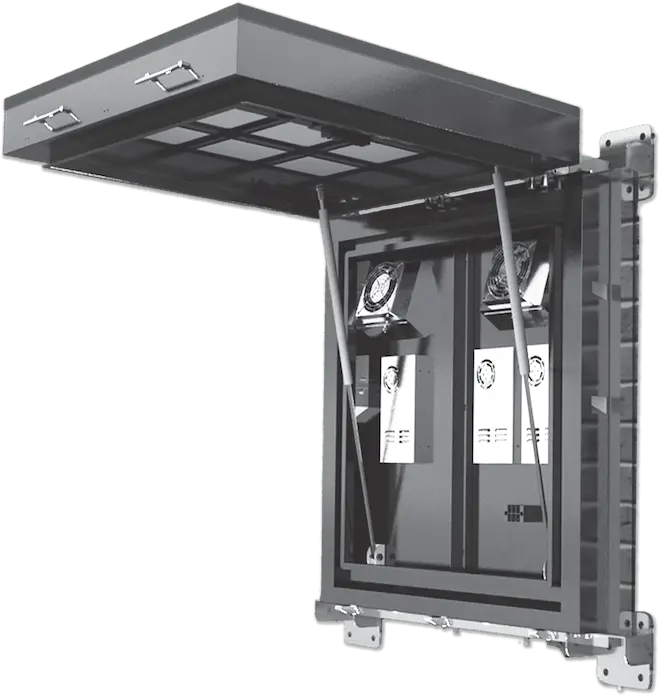

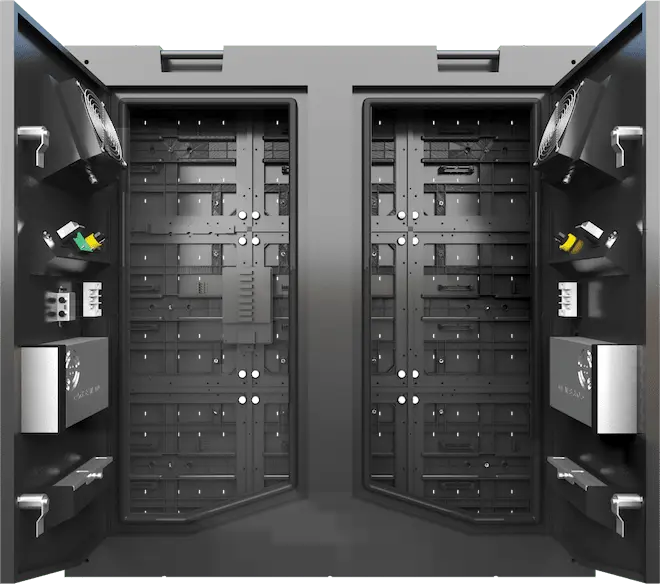

Most of the HYDROGEN SCOREBOARD cabinets can be maintained from the front or from the back. The outdoor versions come with a hydraulic system that gives access to the power box from the front, and the P5 to P16 outdoor versions come with magnetic modules.
The HYDROGEN SCOREBOARD is fully EMC compliant, with cable management following the AWG (American Wire Gauge) guidelines. Line filters protect the power supply from power surges with safety earthing. Other optional electronic features are also available, such as monitoring boards, light sensors for power efficiency, and a 3G control system.

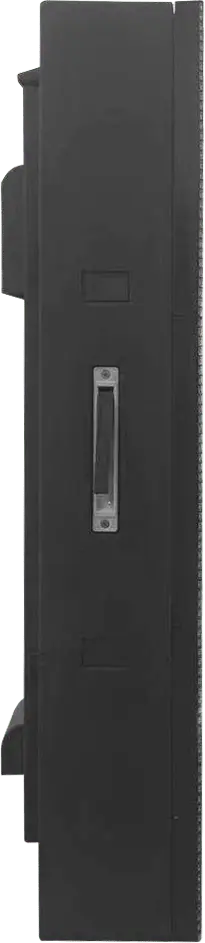

The integration of the HYDROGEN SCOREBOARD can be done in many different ways. Because of the cabinet's weight, this process requires several technicians, yet it offers multiple possibilities such as wall integration, hanging, stacking, and more else. Once integrated, the HYDROGEN SCOREBOARD LED display makes for a sturdy and durable installation.

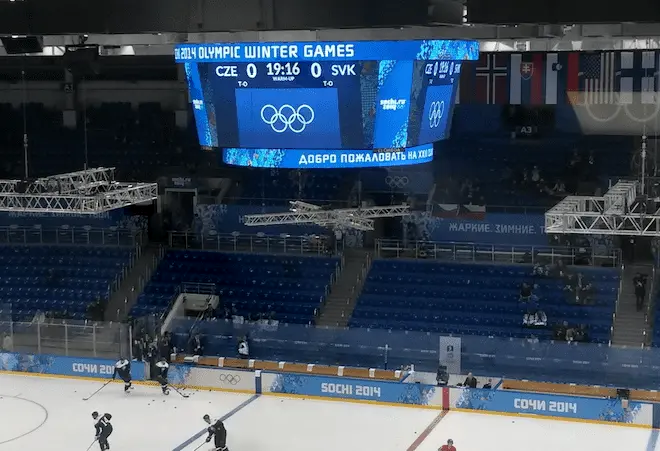

Upon request, we can provide HYDROGEN SCOREBOARD cabinets designed to allow +/-10° curves or 90° angles. This adds yet more possibilities to fit your custom LED display project.
OUTDOORSportMultisportSoccerRugbySwimmingBasketballKartingIce RinkHydrogen ScoreboardScoreboard
| OUTDOOR | |||||
| Product Parameters | Unit | 5 | 6 | 8 | 10 |
| Pixel Pitch | mm | 5,00 | 6,00 | 8,00 | 10,00 |
| LED | SMD2727 3in1 (Black Face) | SMD3535 3in1 (Black Face) | |||
| Application | Outdoor Sport LED Scoreboard | ||||
| Ingress Protection | IP | IP65 (front) / IP54 (rear) | |||
| Brightness | cd/sqm | ≤ 6000 Nits @5volts | |||
| Color Temperature after calib (adjustable) | deg. K | 6500 | |||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | |||
| Cabinet Size (WxHxD) | mm | 960 x 960 x 198 | |||
| Display area (WxH) | mm | 960 x 960 | |||
| Module Size (WxHxD) | mm | 320 x 160 x 25 / 160 x 160 x 25 | 192 x 192 x 25 | 320 x 320 x 25 | 320 x 160 x 25 / 160 x 160 x 25 |
| Pixel Matrix Per Cabinet (WxH) | px | 192 x 192 | 160 x 160 | 120 x 120 | 96 x 96 |
| Pixel Matrix Per Module (WxH) | px | 64 x 32 / 32 x 32 | 32 x 32 | 40 x 40 | 32 x 16 / 16 x 16 |
| Pixel Density | px/sqm | 40000 | 27778 | 15625 | 10000 |
| Weight | kg/sqm | 45 | 40 | ||
| Cabinet Material | Reinforced steel | ||||
| Maintenance Mode | Back only (Front optional) | ||||
| Mask specification | 95% Plastic + 5% Fiber / Clip type (no screws) / Shaders | ||||
| Contrast Ratio | High | ||||
| Grey scale (linear) | bit | 16 | |||
| Brightness control | bit | 16 | |||
| Processing depth | bit | 16 | |||
| Color | 281 Trillions | ||||
| Display Refresh Rate | Hz | 3840 | |||
| Operation Power | V | AC85-230V | |||
| Max. Power Consumption | W/sqm | 900 | |||
| Average Power Consumption | W/sqm | 300 | |||
| Control Mode | Synchronization | ||||
| Video Frame Rate | Hz | 50/60Hz | |||
| Input Types Supported | DVI / SDI / HDMI | ||||
| 3D ready (optional) | yes | ||||
| Calibration | yes | ||||
| Lifetime (50% brightness) | h | 50000 | |||
| Operating Humidity Range | 10-95% | ||||
| Operating Temperature Range | -20°C / +60°C | ||||
| Screen Uniformity Correction | - | ||||
| Certification | CE / ETL / CCC | ||||
| Available options | Aluminium cabinet / Front access modules / Front access by Hydraulic / Hanging bars Curved cabinet / 90° Angles / Neutrik outdoor connectors / Size can be customised |
||||
| Compatibility | Cabinets mechanically compatible with each other | ||||
