Overview

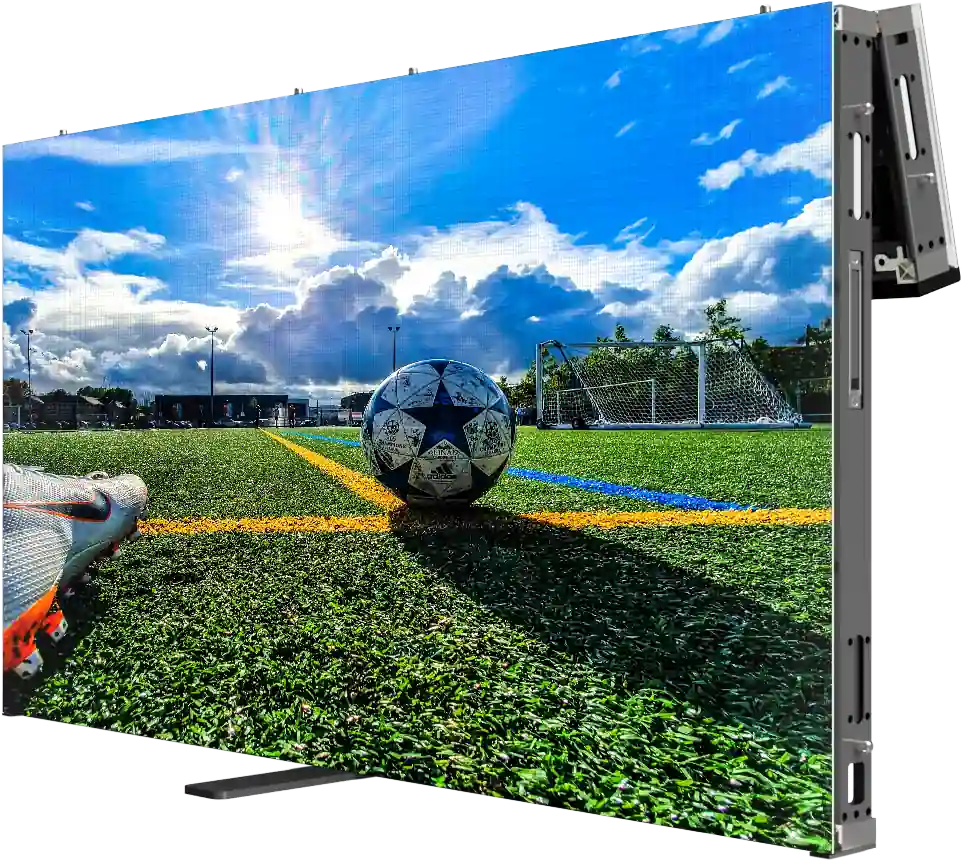

The NEIPATEC® ST Duo is the double-sided version of the NEIPATEC® ST LED stadium perimeter system.
It retains the robust structure and user-friendly design of the NEIPATEC® ST while adding a second display area, reaching a total height of 1200 mm (900 + 300 mm).
This system is designed for clubs looking to increase advertising surface and TV visibility, or to offer double-sided content to their audience, without changing their existing infrastructure or adding complexity to pitch-side logistics.

Application
OUTDOOR
PIXEL PITCH
P6.2 P6.6 P8.3 P10

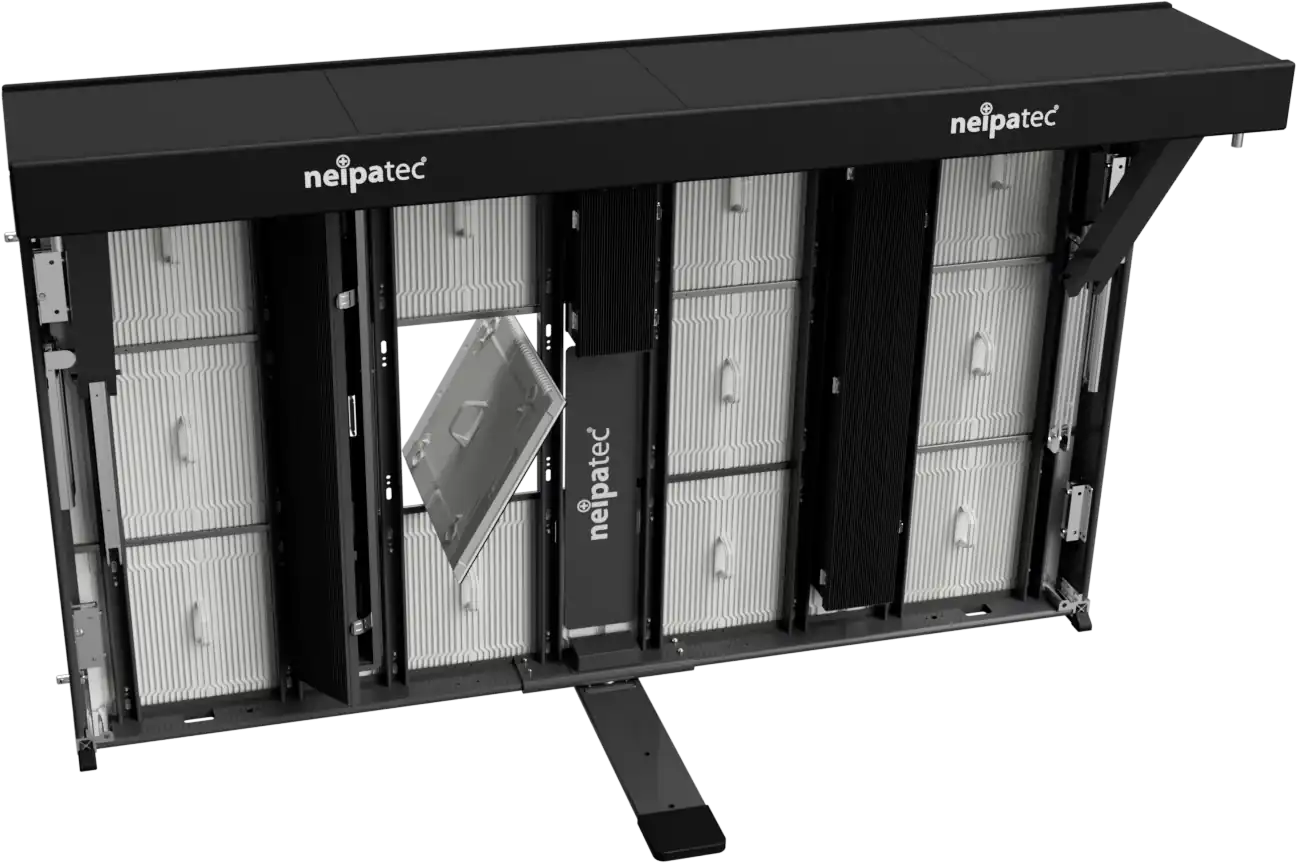

MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP 68 (FRONT) / IP 66 (REAR)
Display Area (W X H)
1600 x 928 x 105
BRIGHTNESS
≤ 7500 NITS
WEIGHT
45 kg/m²
MATERIAL
Die-Casting Aluminum

Technical Specifications

		OUTDOOR
Product Parameters	Unit	6.2	6.6	8.3	10
Pixel Pitch	mm	6,25	6,67	8,33	10,00
LED		SMD3535
Application		Outdoor extended perimeter system
Ingress Protection	IP	IP68 (Front) / IP66 (Rear)
Brightness	cd/m²	≤ 7500
Color Temperature after calib (adjustable)	deg. K	6500
Viewing Angle (50% brightness)	deg.	160 H / 160 V
Cabinet Size (WxHxD)	mm	1600 x 1238 x 105
Display area (WxH)	mm	1600 x 1200
Module Size (WxHxD)	mm	400 x 300 x 20
Pixel Matrix Per Cabinet (WxH)	px	256 x 192	240 x 180	192 x 144	160 x 120
Pixel Matrix Per Module (WxH)	px	64 x 48	60 x 45	48 x 36	40 x 30
Pixel Density	px/m²	25600	22500	14400	10000
Weight	kg	73.6
Cabinet Material		Die-casting aluminum
Maintenance Mode		Front & Rear
Mask specification		95% Rubber + 5% Fiber / SS Screws / Shockproof shaders
Contrast Ratio		High
Grey scale (linear)	bit	16
Brightness control	bit	16
Processing depth	bit	16
Color		281 Trillions
Display Refresh Rate	Hz	3840
Operation Power	V	AC90-260V
Max. Power Consumption	W/m²	550
Average Power Consumption	W/m²	200
Control Mode		Synchronization
Video Frame Rate	Hz	50/60Hz
Input Types Supported		DVI / SDI / HDMI
3D ready (optional)		Yes
Calibration		Yes
Lifetime (50% brightness)	h	50000
Operating Humidity Range		10-90%
Operating Temperature Range		-20°C / +60°C
Screen Uniformity Correction		-
Certification		CE (LVD, EMC), ETL,CB
Available options		Gold wire, corners
Compatibility		No
