Overview

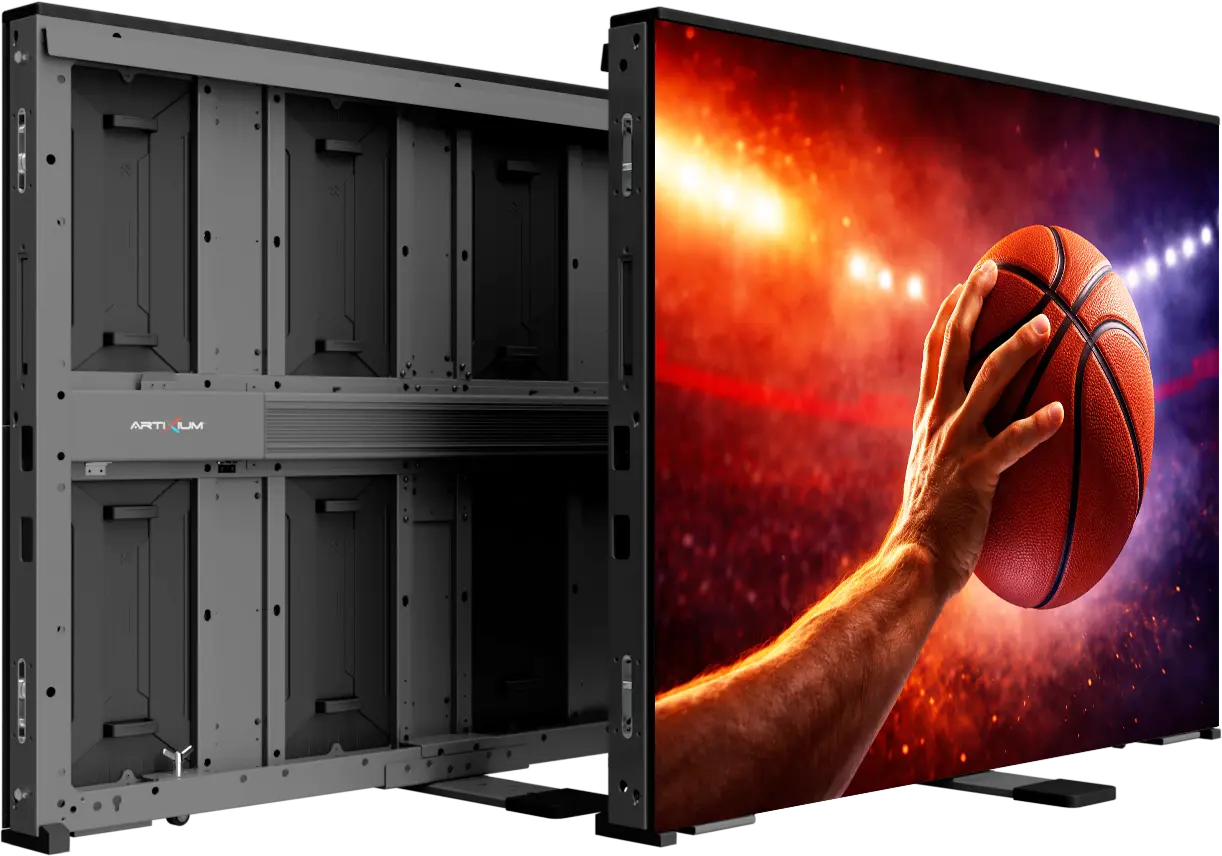

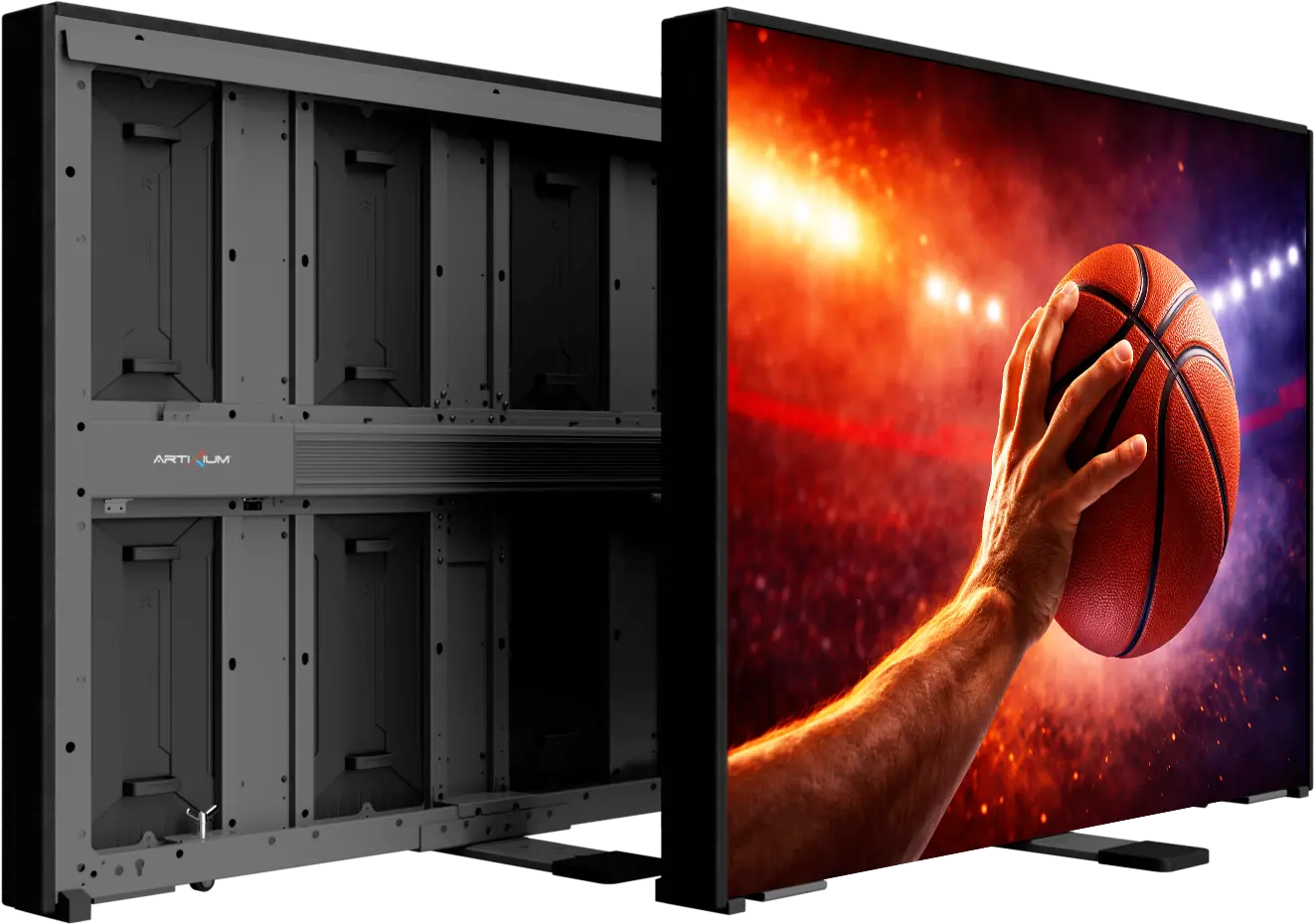

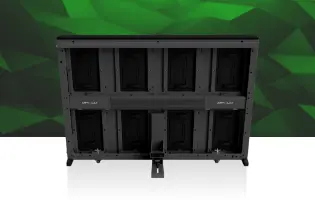

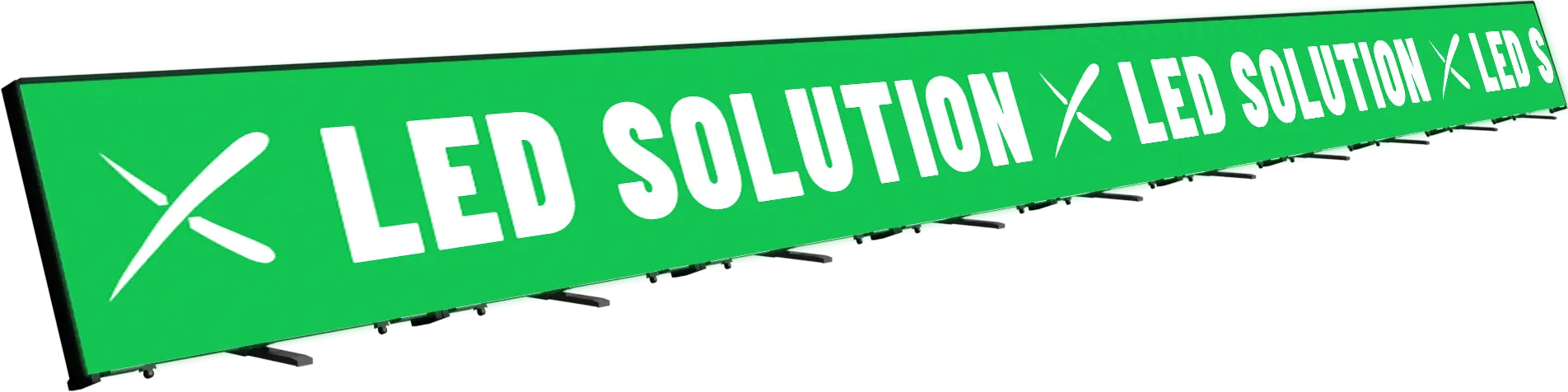

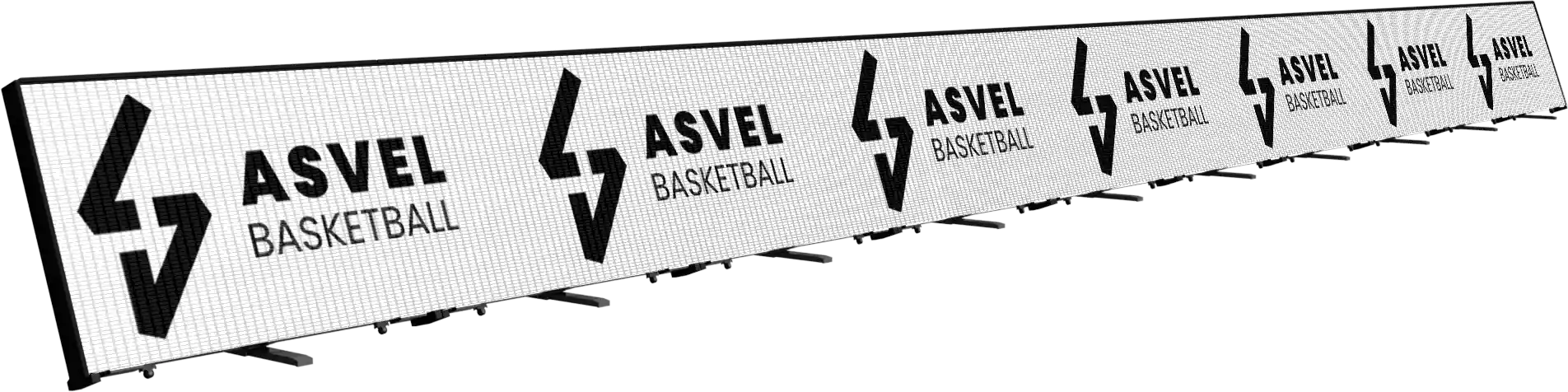

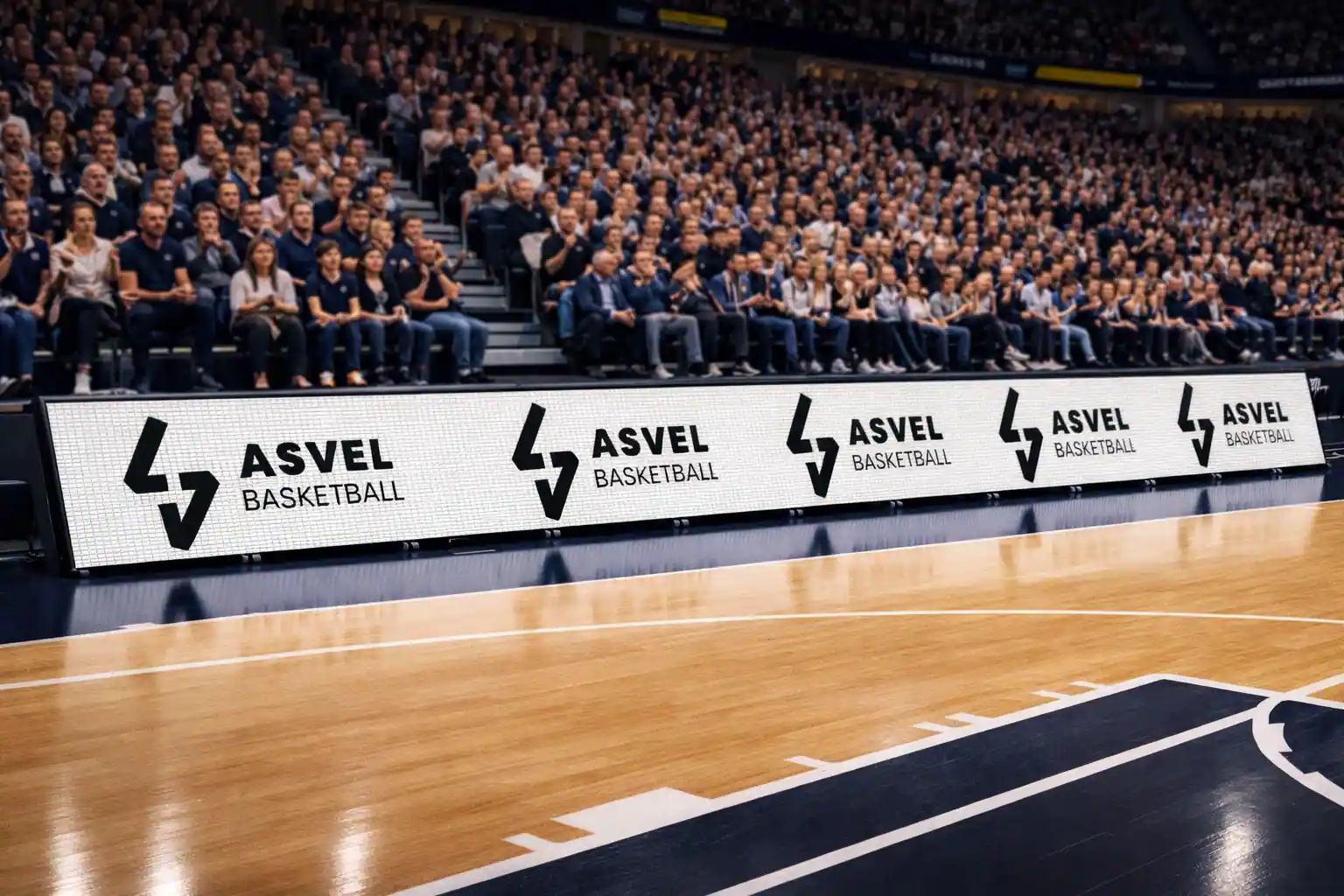

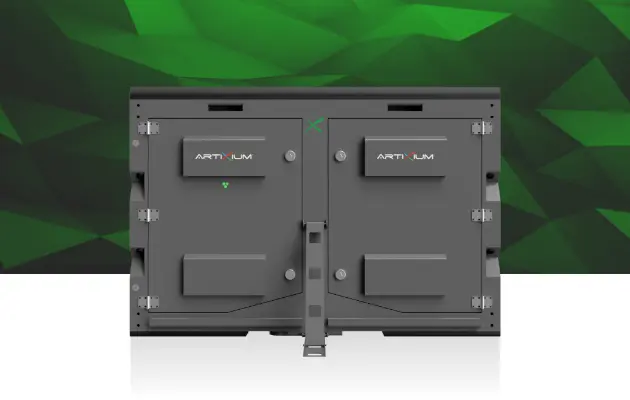

The Granite Sport is a LED perimeter solution specifically designed for indoor sports venues. Combining high visual performance, enhanced player safety, and outstanding installation flexibility, it adapts seamlessly to a wide range of configurations, from pitch perimeter to LED ribbon displays. Engineered to meet the demands of professional events, it ensures strong visual impact and reliable day-to-day operation.

Application
Indoor
PIXEL PITCH
P6.2

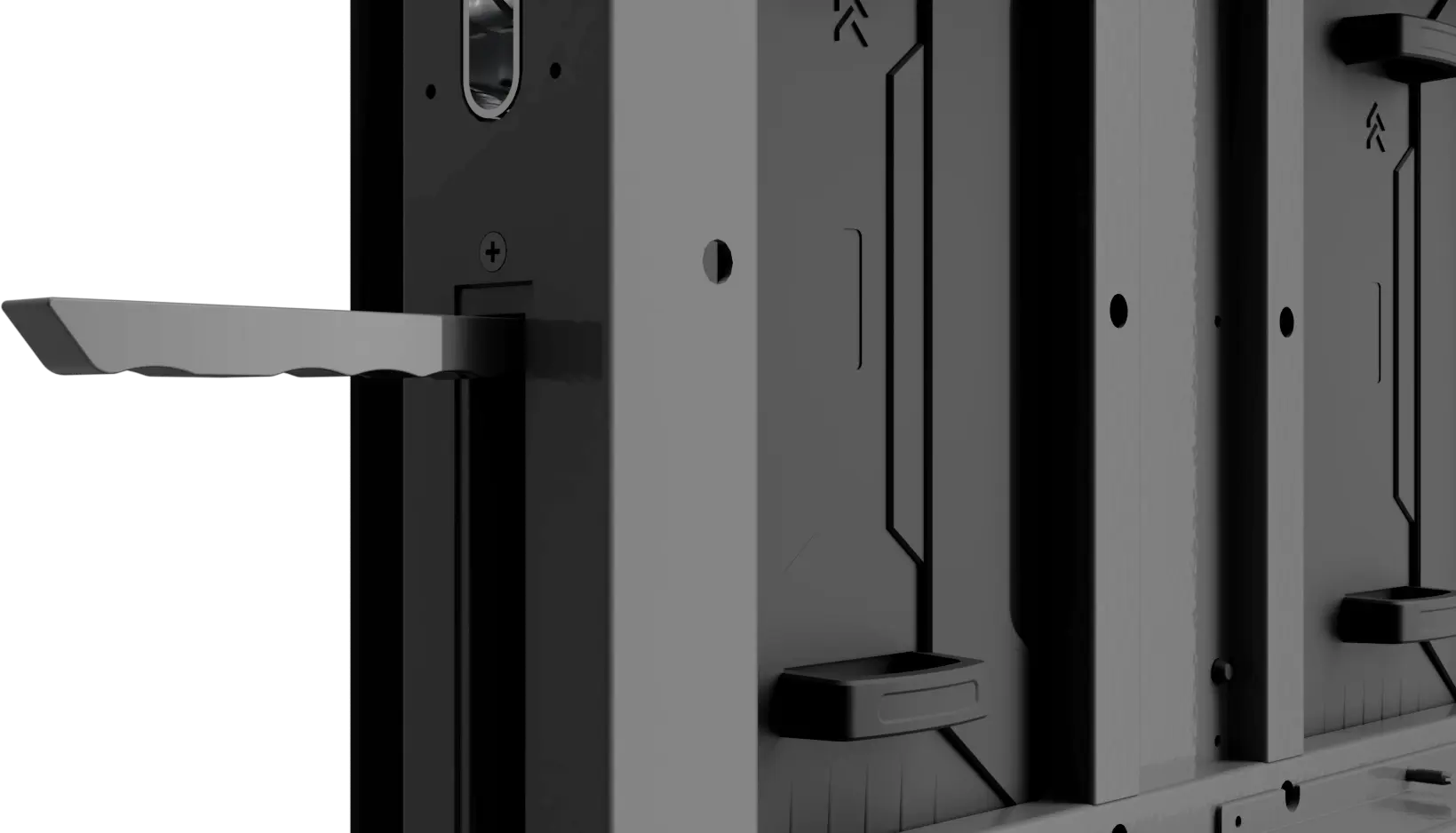

MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP30
Display Area (W X H)
1600 x 938 x 105
BRIGHTNESS
≤ 1000 NITS
WEIGHT
25.6-28 kg/cabinet
MATERIAL
Die-casting aluminum

Technical Specifications

		INDOOR
Product Parameters	Unit	4.5	5.5	6.2
Pixel Pitch	mm	4,55	5,56	6,25
LED		SMD2121
Application		Système périmétrique extérieur étendu
Ingress Protection	IP	IP30
Brightness	cd/m²	≤ 1000
Color Temperature after calib (adjustable)	deg. K	6500
Viewing Angle (50% brightness)	deg.	160 H / 40-60 V
Cabinet Size (WxHxD)	mm	1200 x 800 x 82 / 1200 x 900 x 82
Display area (WxH)	mm	1200 x 800 / 1200 x 900
Module Size (WxHxD)	mm	300 x 400 x 18 / 300 x 450 x 18
Pixel Matrix Per Cabinet (WxH)	px	264 x 176 / 264 x 198	216 x 144 / 216 x 162	192 x 128 / 192 x 144
Pixel Matrix Per Module (WxH)	px	66 x 88 / 66 x 99	54 x 72 / 54 x 81	48 x 64 / 48 x 72
Pixel Density	px/m²	48400	32400	25600
Weight	kg	25.6 / 28
Cabinet Material		Die-casting aluminum (polycarbonate modules)

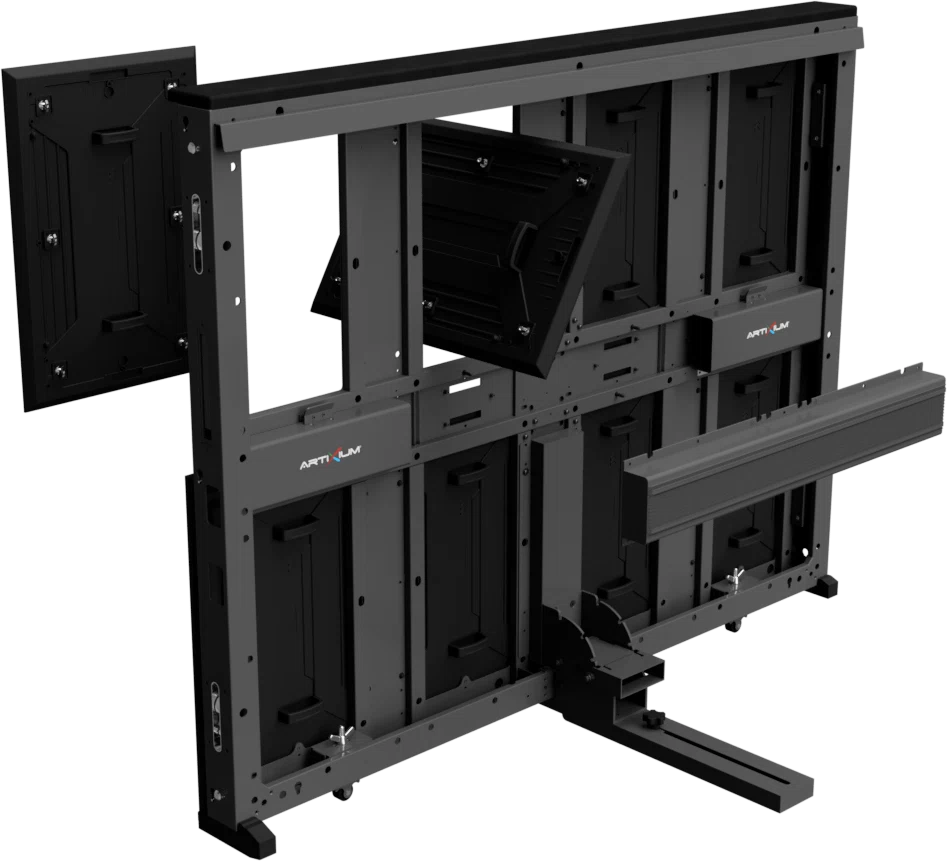

Maintenance Mode		Back (front opt.)
Mask specification		95% Rubber + 5% Fiber / SS Screws / Anti-shock shaders
Contrast Ratio		High
Grey scale (linear)	bit	14-16
Brightness control	bit	16
Processing depth	bit	16
Color		281 Triillions
Display Refresh Rate	Hz	7680
Operation Power	V	AC100-240V
Max. Power Consumption	W/m²	560
Average Power Consumption	W/m²	170
Control Mode		Synchronous / Asynchronous
Video Frame Rate	Hz	50/60Hz
Input Types Supported		DVI / SDI / HDMI
3D ready (optional)		Yes
Calibration		Yes
Lifetime (50% brightness)	h	50000
Operating Humidity Range		10-95%
Operating Temperature Range		-20°C / +50°C
Screen Uniformity Correction		-
Certification		CE (LVD, EMC), ETL, FCC, RoHS

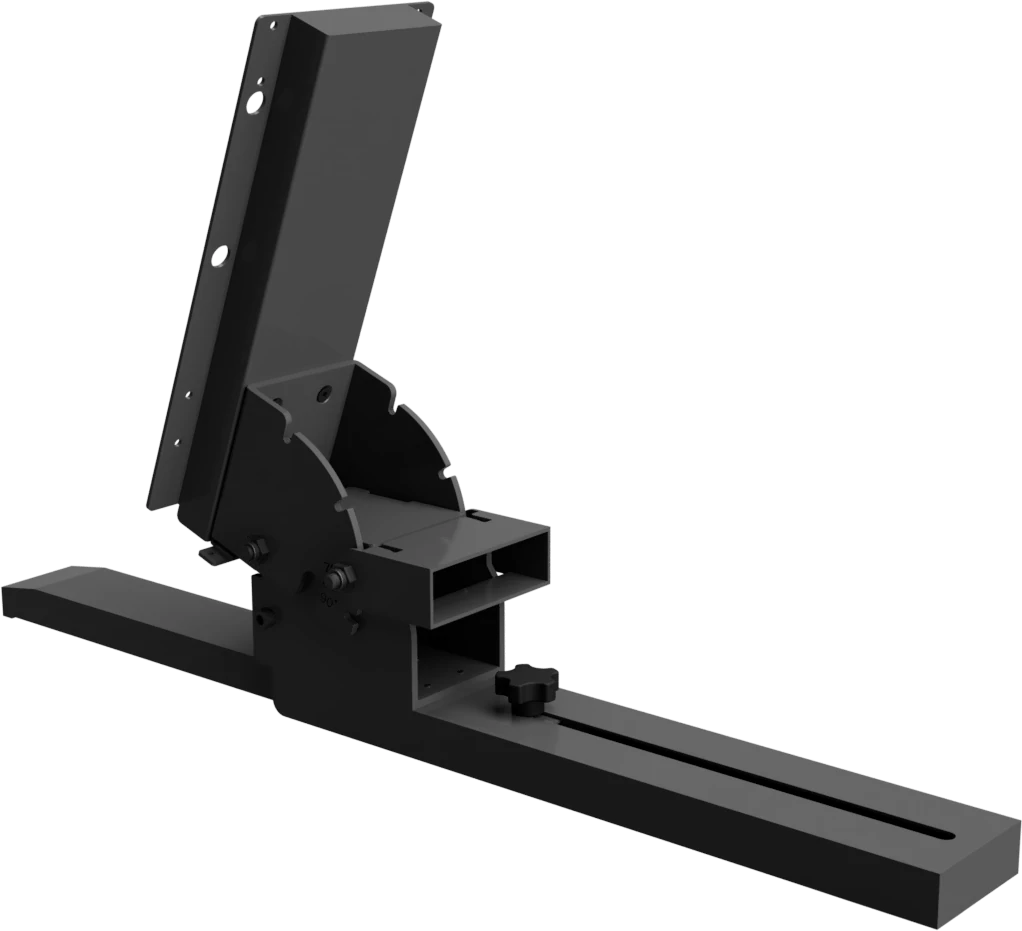

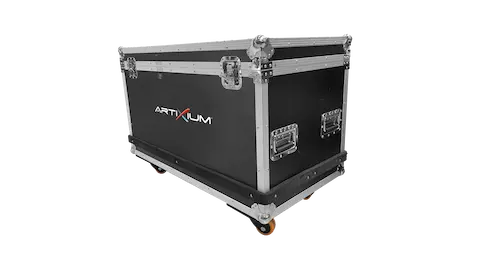

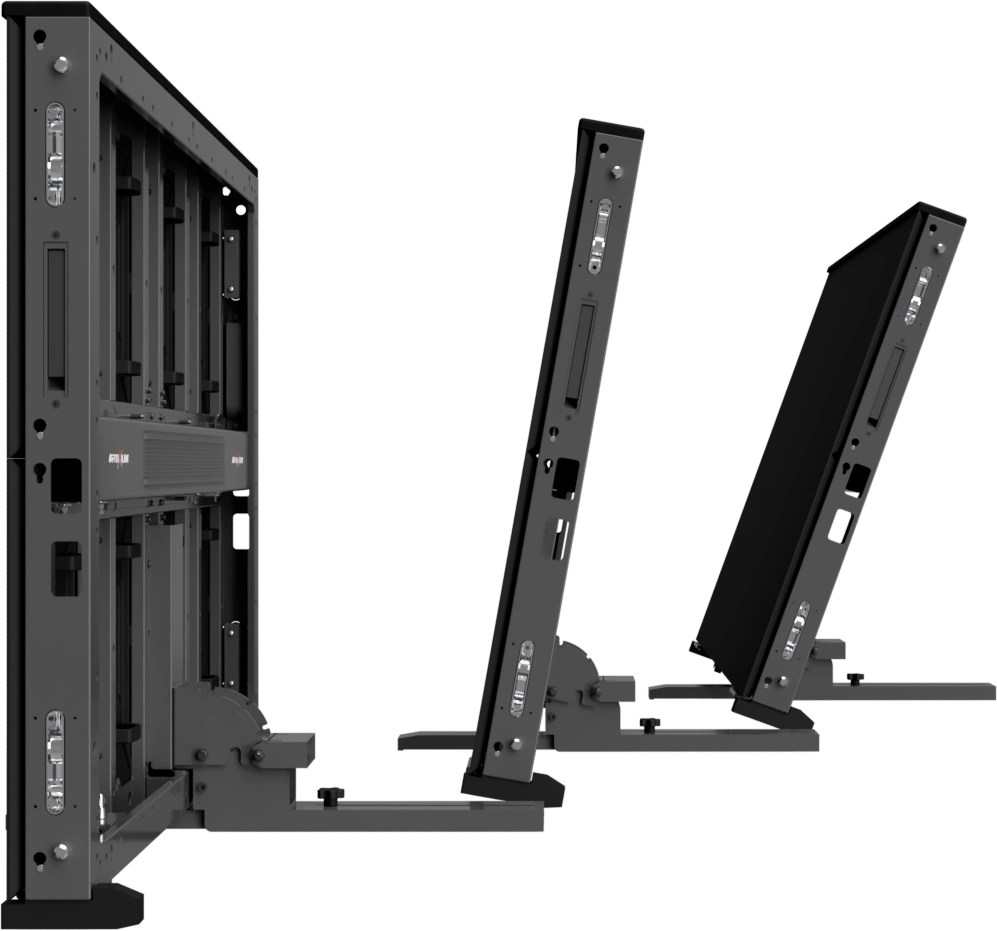

Available options		Flightacases 6in1, High brightness (3500 nits), Wheels, Tilting feet, Side bumpers
Compatibility		-
