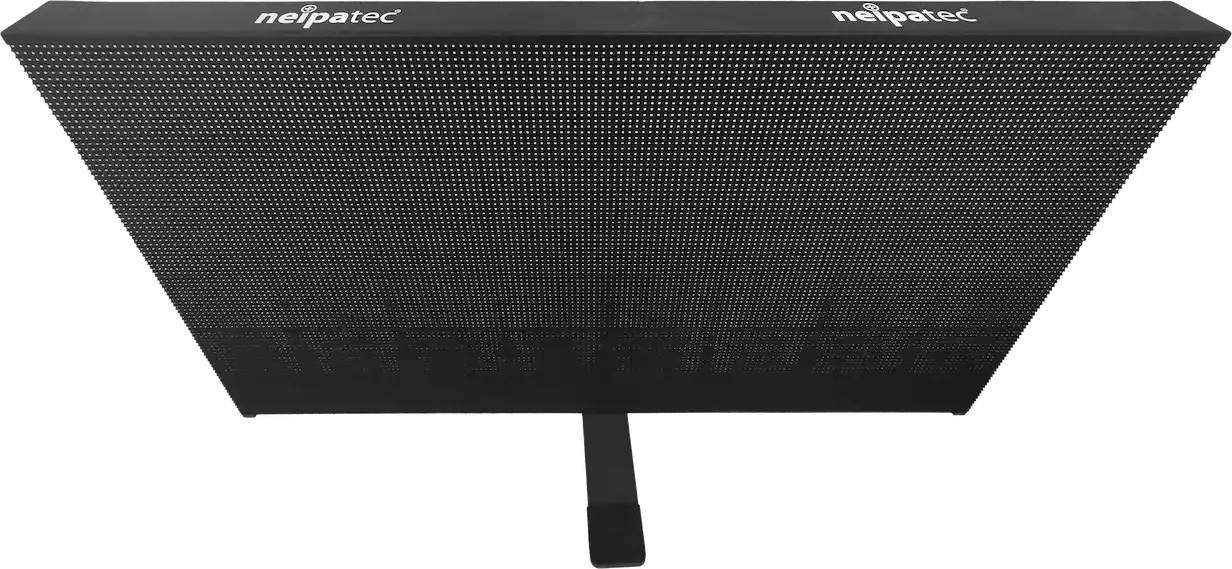

The NEIPATEC® ST is our standard high league dedicated LED perimeter system. It is a robust, easy to maintain, and fast to install cabinet. When designing the NEIPATEC® ST, we managed to implement many of the NEIPATEC® PRO VR’s elements while still offering a lower-cost product.
Application
OUTDOOR
PIXEL PITCH
P6.2 P6.6 P8.3 P10
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP68 (FRONT) / IP66 (REAR)
Display Area (W X H)
1600 x 900 mm
BRIGHTNESS
≤ 7500 NITS @5Volts
WEIGHT
45kg/sqm
MATERIAL
Die-Casting Aluminum

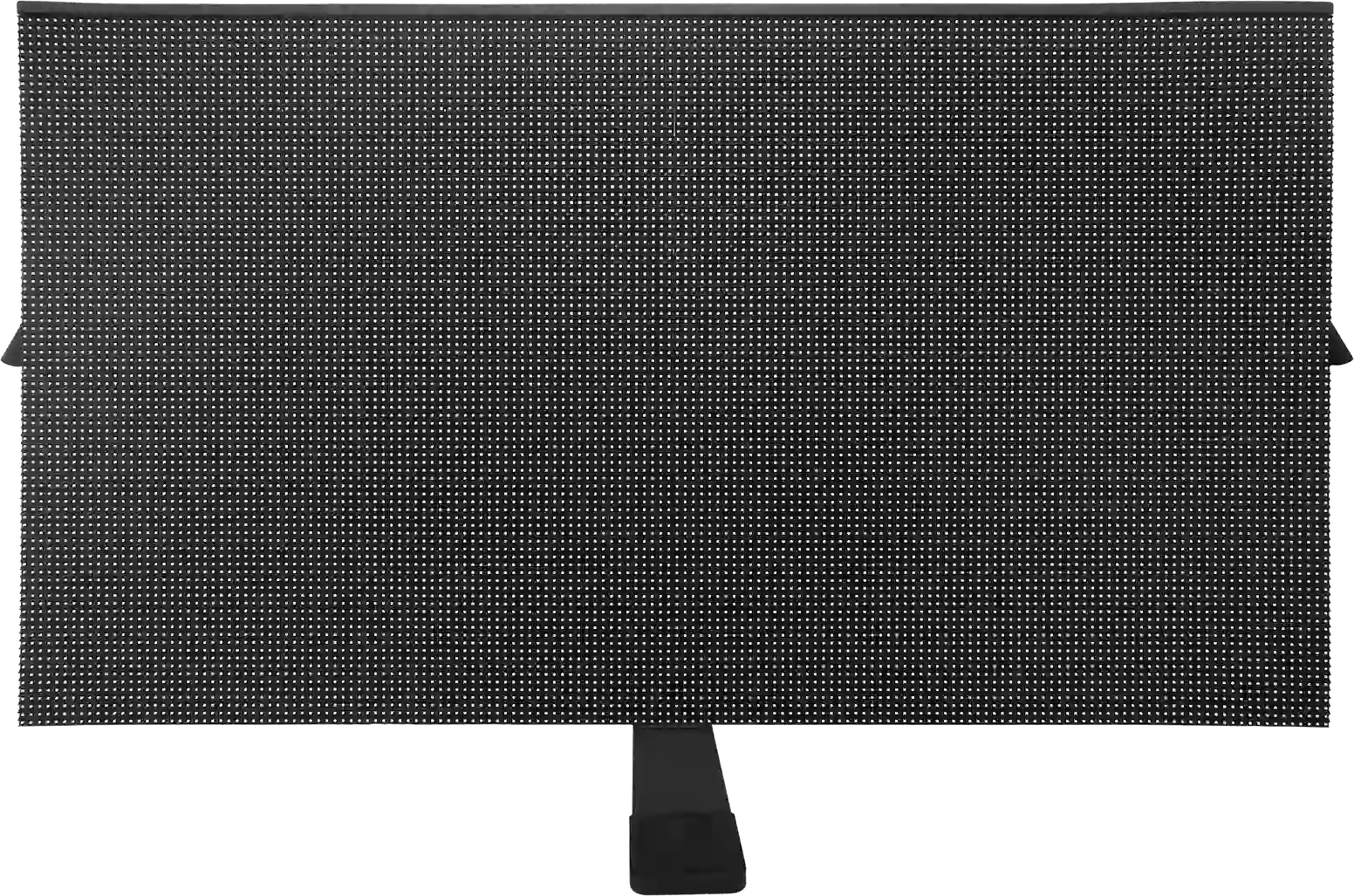

The NEIPATEC® ST is the only LED perimeter system able to attain a 7500 NITS brightness. Your LED stadium perimeter will stay bright for a longer period. Through time, the color uniformity of your LED display usually degrades. This makes a regular calibration necessary for a uniform LED display. This process will reduce your screen brightness by 5 to 10% (2~3 years). For instance, this product is estimated to maintain a 6750 NITS brightness after 6 years of intensive use.
The NEIPATEC® ST is a tough and durable product. It is completely waterproof, resistant to particle ingress, shockproof and can sustain temperatures going from -20°C to 60°C.

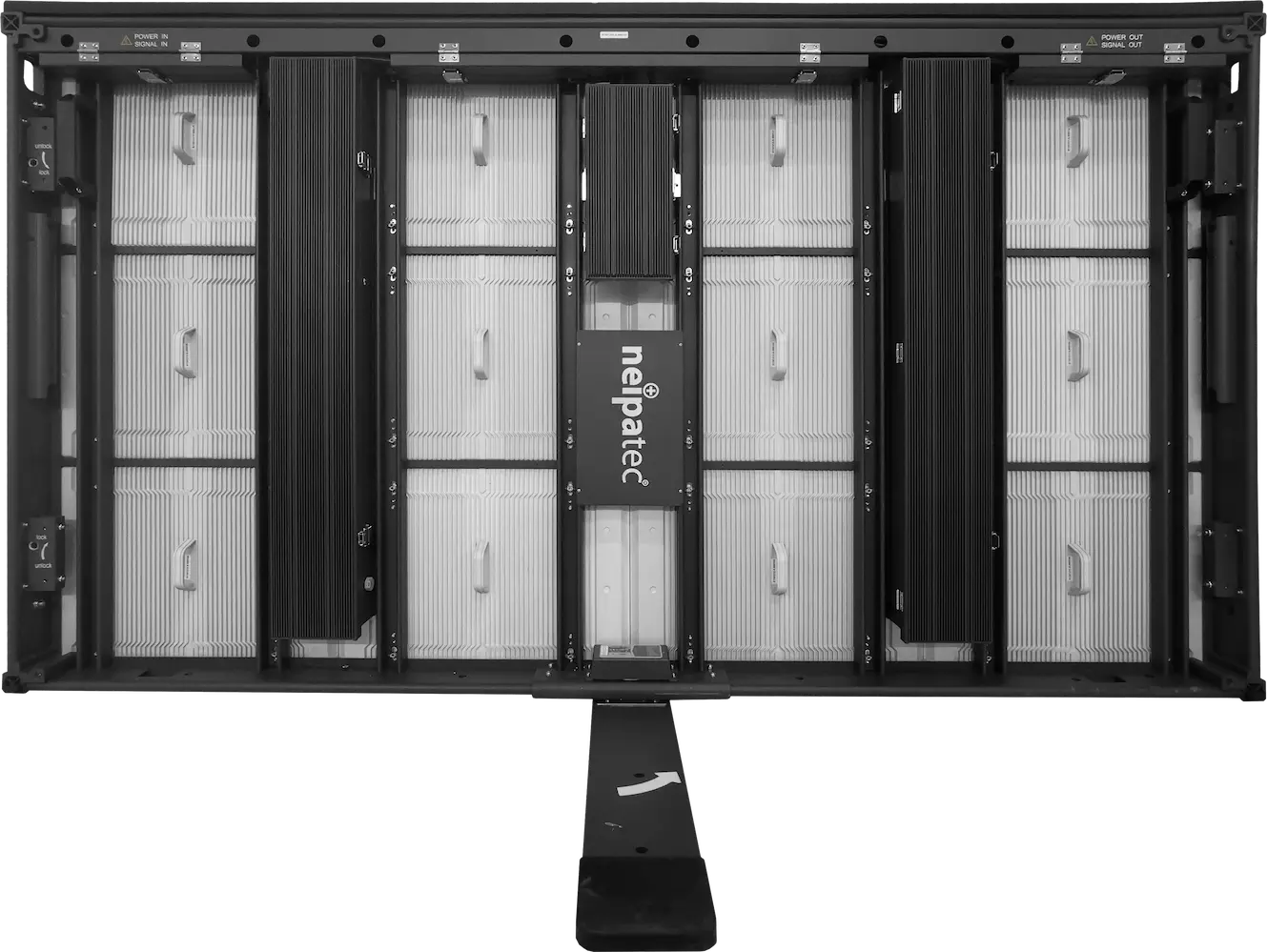

This LED cabinet is designed to be as light as possible. The NEIPATEC® ST’s rotative stand, inspired by the NEIPATEC ® PRO VR’s, helps a fast and easy installation process. The modules, accessible from the front and back, are quick to replace, making it possible to repair your perimeter system mid-game in case of an emergency.

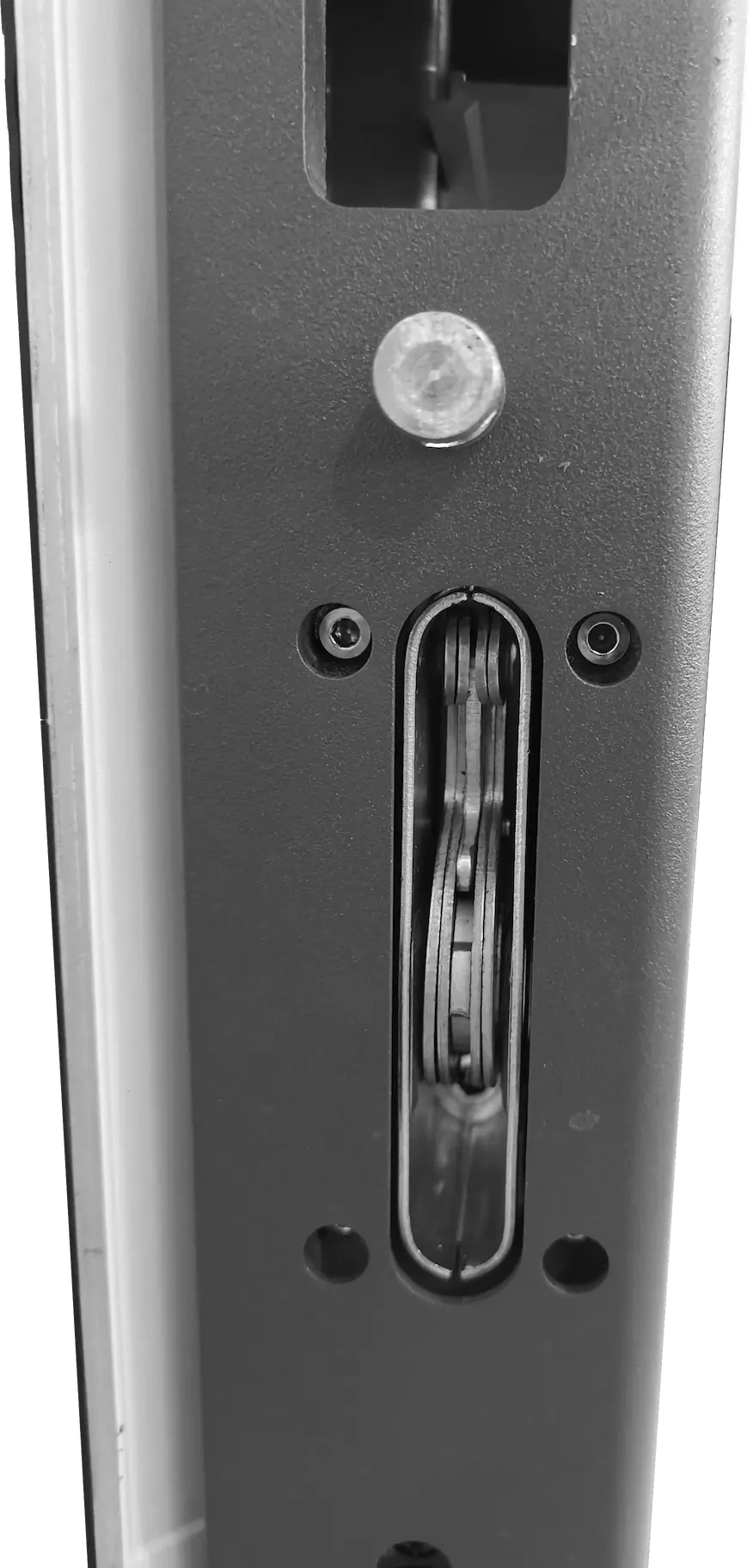

The NEIPATEC® ST comes with a rotative footstand that presents many advantages. First, it allows for you LED cabinets to take less space for storage and transport. Moreover, it’s an exellent means to stabilize your LED perimeter, as it offers a perpendicular support at the front & the back of your cabinets which, locked together on the sides, create a sturdy and stable LED screen, extremely resilient to wind pressure.

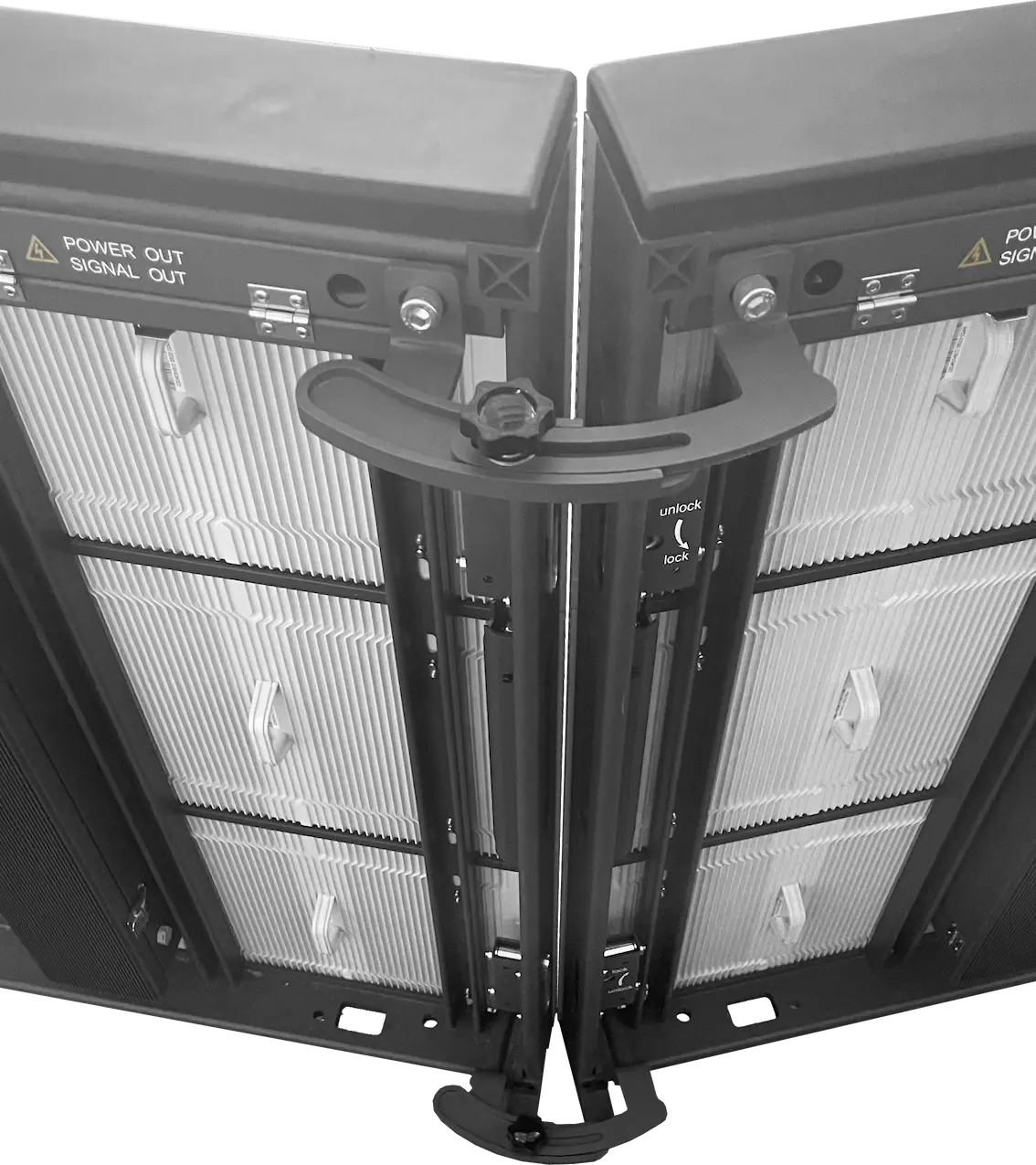

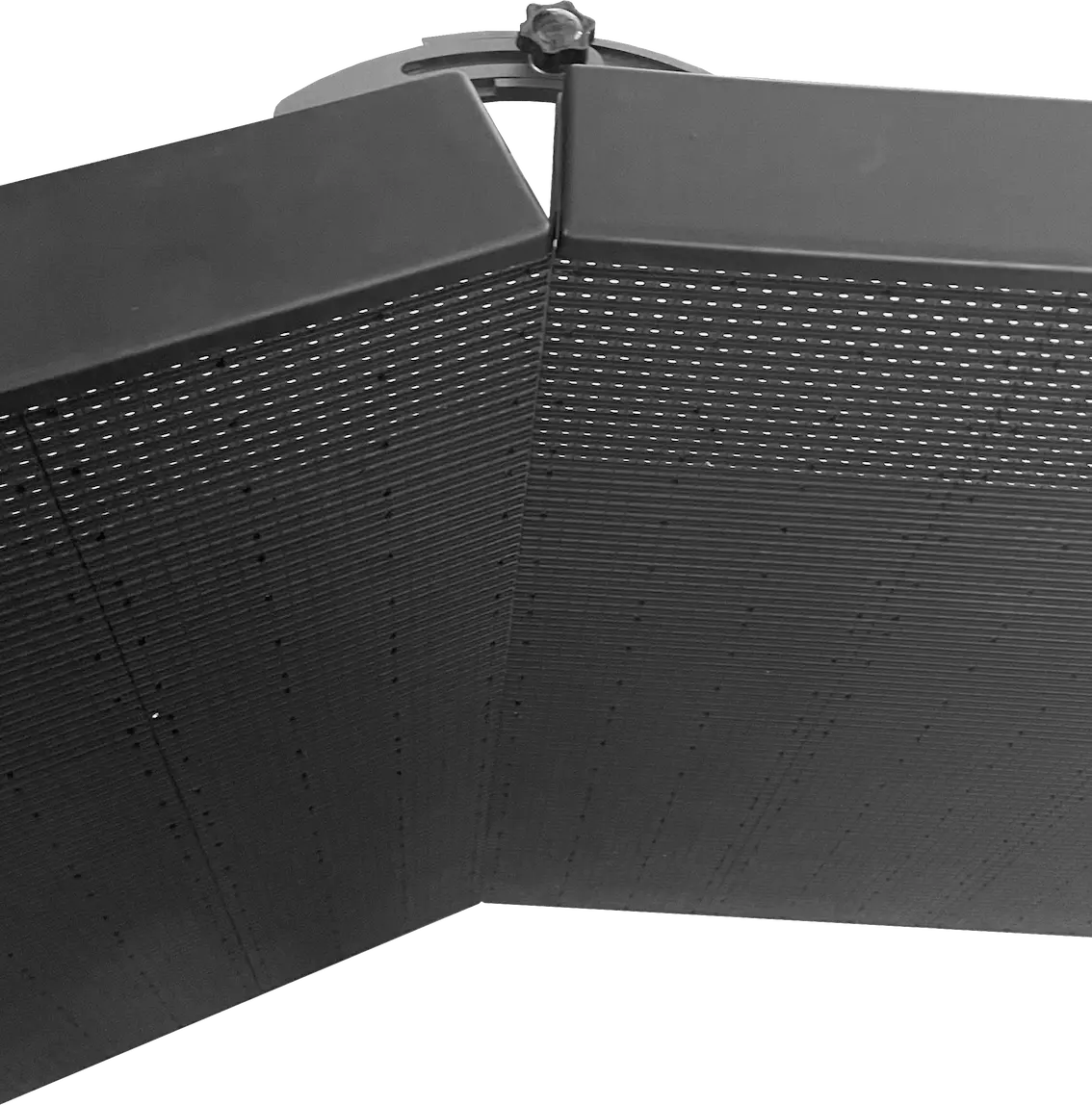

Connecting plates were specially conceived to assemble eight angle NEIPATEC ® ST cabinets together to form a 90° angle at your stadium’s corners. It’s a user friendly device that allows you to lock two cabinets together at any given angle, offering a smooth and aesthetic curve to broadcast your visual content all around your stadium.
Storage cases are placed at the top of each cabinet to hide and protect the cables. No cable is visible after the installation of the NEIPATEC® ST is complete. These cases are easily attainable without any tools.
Virtual advertising is a process used in the field of television broadcasting which makes it possible to sublimate one or several streams of advertisement over the advertisement seen in the stadium by the spectator. The signal emitted by the cameras is demultiplexed in post-production. Each advertisement thus obtained is then sent to the dedicated broadcaster. From then, the advertisement seen on the perimeter system by the TV spectator will be different from the one seen by the stadium spectator, as well as from a spectator that watches the same match on a different channel. Since the stadium advertising rights are often the property of local clubs, TV broadcasters have every interest in replacing said advertisements with their own. This technology is a great tool for targeting different audiences watching the same match.
Thanks to its components, the NEIPATEC ® ST allows to display visual content adapted to TV retransmissions, using virtual technology in overlay. Virtual advertising is a process used in the field of television broadcasting which makes it possible to sublimate one or several streams of advertisement over the advertisement seen in the stadium by the spectator
BACK MAINTENANCEFront MaintenanceSportLED Perimeter SystemMultisportSoccerRugbyNeipatecVirtual ReadyVirtual Advertisement Technology
| OUTDOOR | |||||
| Product Parameters | Unit | 6.2 | 6.6 | 8.3 | 10 |
| Pixel Pitch | mm | 6,25 | 6,67 | 8,33 | 10,00 |
| LED | SMD3535 | ||||
| Application | Outdoor regular league perimeter system | ||||
| Ingress Protection | IP | IP68 (Front) / IP66 (Rear) | |||
| Brightness | cd/sqm | ≤ 7500 | |||
| Color Temperature after calib (adjustable) | deg. K | 6500 | |||
| Viewing Angle (50% brightness) | deg. | 170 H / 110 V | |||
| Cabinet Size (WxHxD) | mm | 1600 x 928 x 105 | |||
| Display area (WxH) | mm | 1600 x 900 | |||
| Module Size (WxHxD) | mm | 400 x 300 x 20 | |||
| Pixel Matrix Per Cabinet (WxH) | px | 256 x 144 | 240 x 135 | 192 x 108 | 160 x 90 |
| Pixel Matrix Per Module (WxH) | px | 64 x 48 | 60 x 45 | 48 x 36 | 40 x 30 |
| Pixel Density | px/sqm | 25600 | 22500 | 14400 | 10000 |
| Weight | kg/sqm | 45 | |||
| Cabinet Material | Aluminum Die Casting | ||||
| Maintenance Mode | Front & Rear | ||||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / No Shaders | ||||
| Contrast Ratio | High | ||||
| Grey scale (linear) | bit | 16 | |||
| Brightness control | bit | 16 | |||
| Processing depth | bit | 16 | |||
| Color | 281 Trillions | ||||
| Display Refresh Rate | Hz | 3840 | |||
| Operation Power | V | AC90-260V | |||
| Max. Power Consumption | W/sqm | 550 | |||
| Average Power Consumption | W/sqm | 200 | |||
| Control Mode | Synchronization | ||||
| Video Frame Rate | Hz | 50/60Hz | |||
| Input Types Supported | DVI / SDI / HDMI | ||||
| 3D ready (optional) | Yes | ||||
| Calibration | Yes | ||||
| Lifetime (50% brightness) | h | 50000 | |||
| Operating Humidity Range | 10-90% | ||||
| Operating Temperature Range | -20°C / +60°C | ||||
| Screen Uniformity Correction | - | ||||
| Certification | CE (LVD, EMC), ETL,CB | ||||
| Available options | Gold wire, corners | ||||
| Compatibility | No | ||||
