  1. products
  2. sport
  3. Hydrogen Sport 2.0
  • Application

    Indoor

  • PIXEL PITCH

    P5 P6.6 P8

  • OPTION

    NO OPTIONS AVAILABLE

Overview

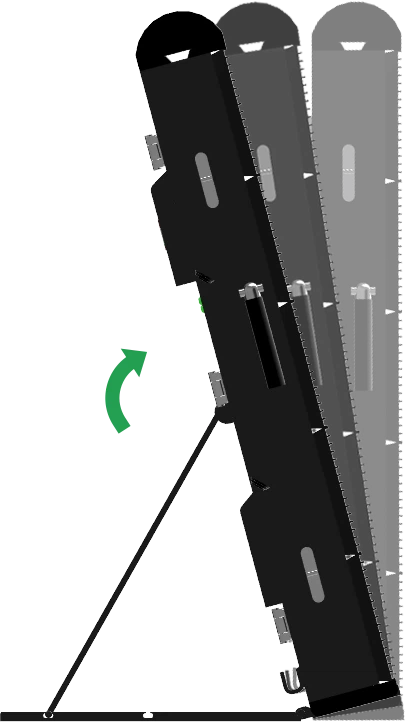

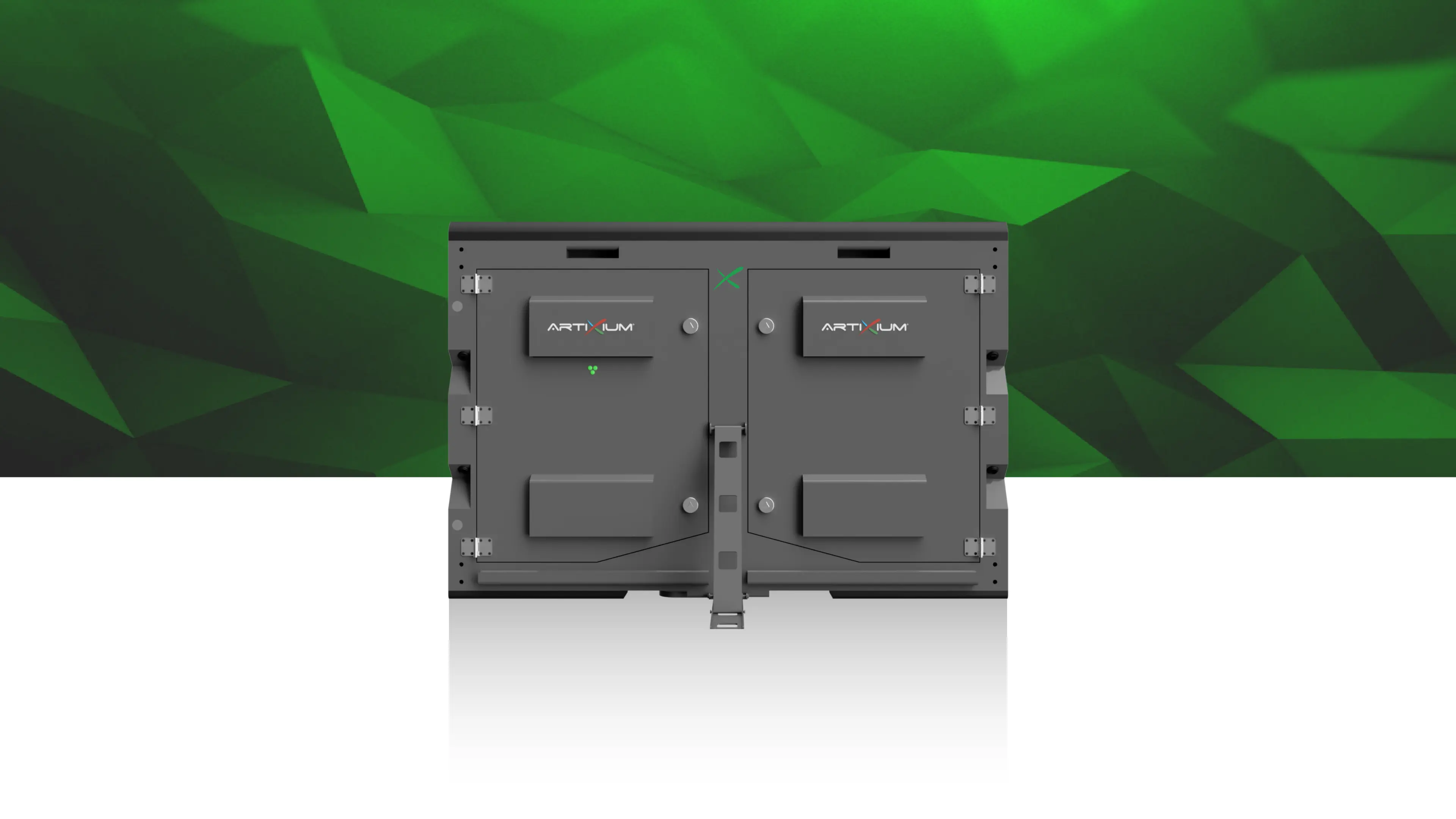

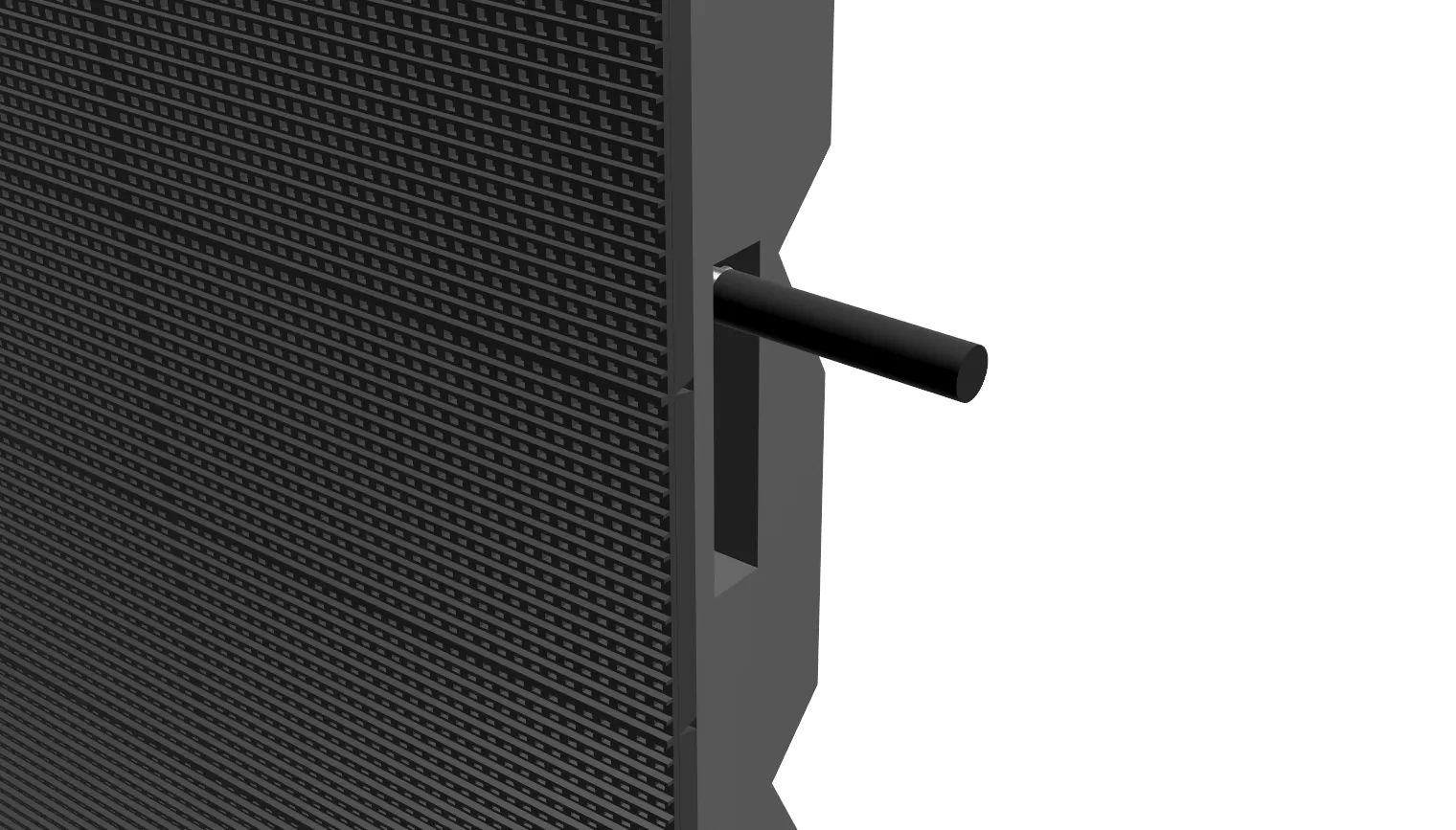

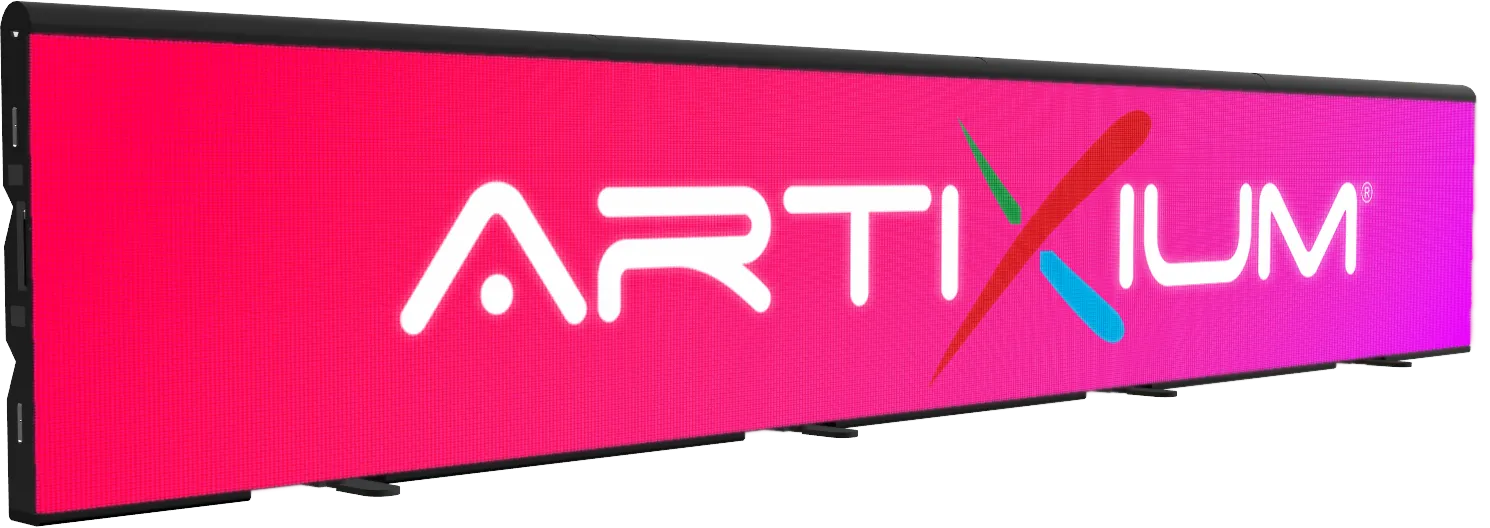

Tough and perfectly suited for indoor environments, the HYDROGEN SPORT 2.0 is a LED display designed to meet the demands of sports competitions. It stands out with specially designed feet that ensure stable positioning at 90° or 75°, while maintaining a remarkably slim profile. The system features a custom cable routing, along with side handles for easy handling. Finally, a 4-in-1 trans-port flycase is available as an option to simplify logistics.

  • Application
    Indoor

  • PIXEL PITCH
    P5 P6.6 P8

  • MAINTENANCE
    Back Maintenance

  • INGRESS PROTECTION
    IP30

  • Display Area (W X H)
    1280 x 800

  • BRIGHTNESS
    ≤2000 Nits

  • WEIGHT
    46 kg/cabinet

  • MATERIAL
    Galvanized steel

Features

customizable product

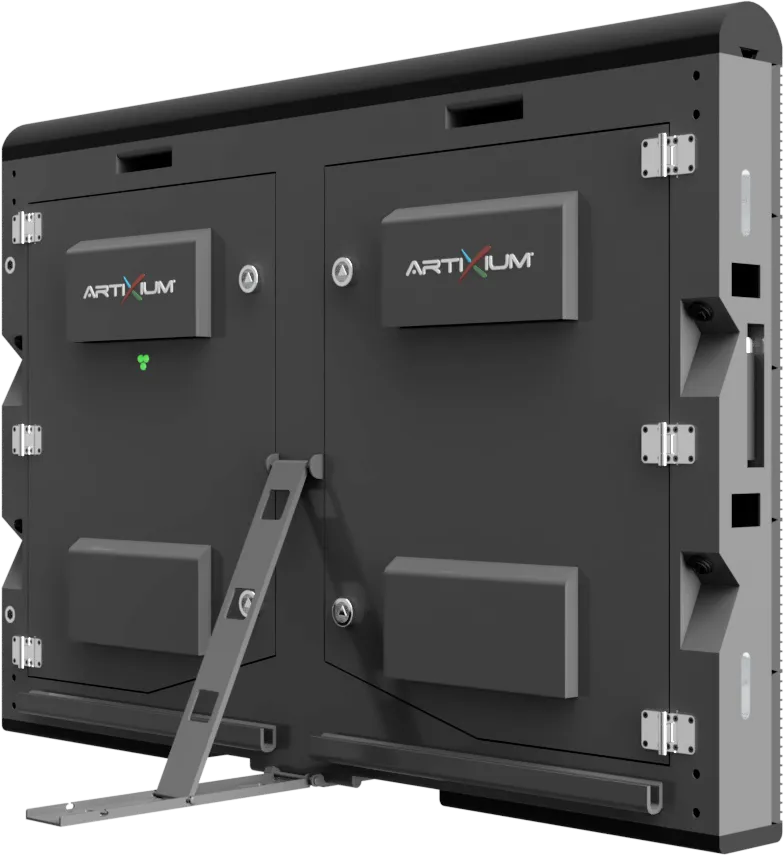

Just like the entire HYDROGEN product range, the HYDROGEN SPORT 2.0 is a highly customizable product. The va-rious available options help extend the product’s lifespan, simplify its integra-tion, or even adapt it to different confi-gurations. Whether stacked on the floor or hung from bleachers, many different situations require many different solu-tions, all of which can be answered by the HYDROGEN SPORT 2.0.

eazy maintenance

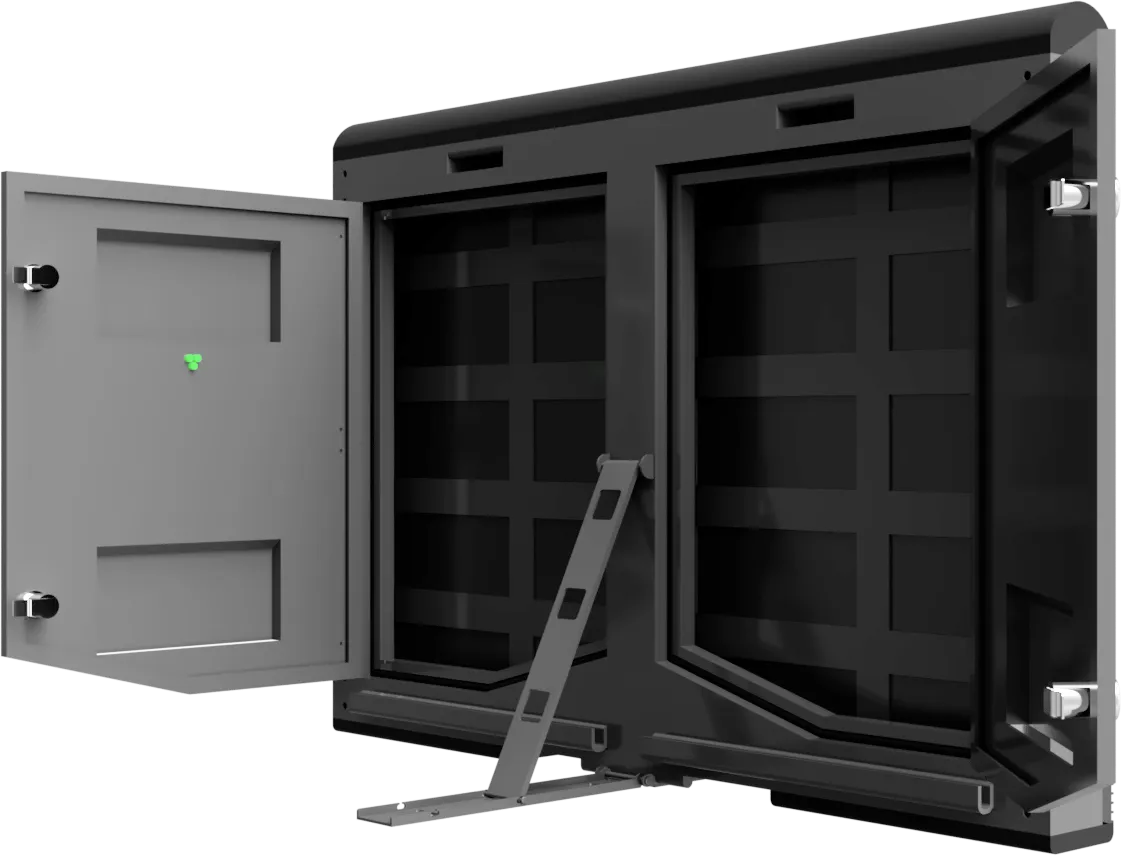

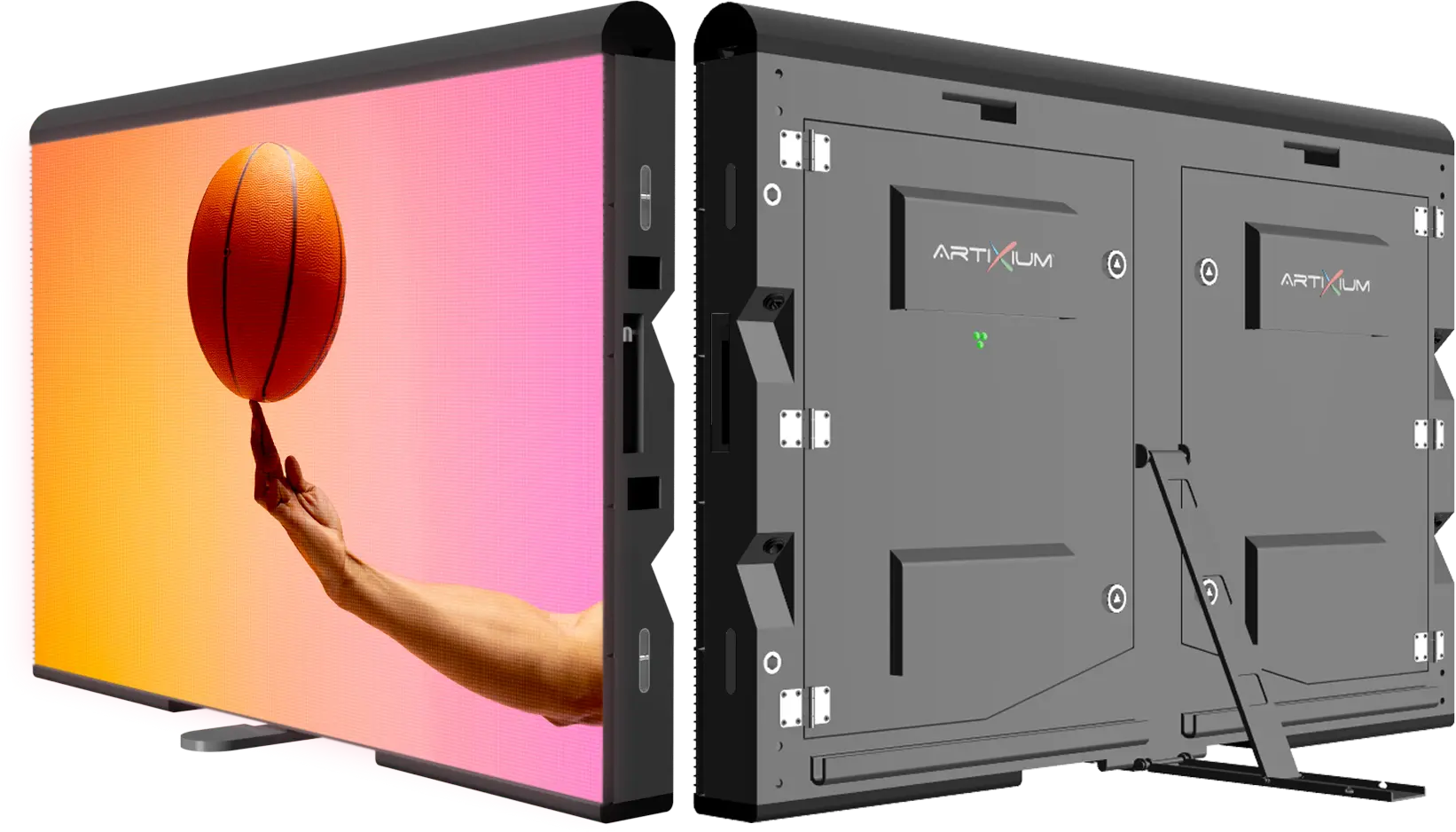

The HYDROGEN SPORT 2.0’s mainte-nance is operated from the back via the cabinet’s backdoors. It’s an easy process that can be managed by one qualified technician.

long lifespan

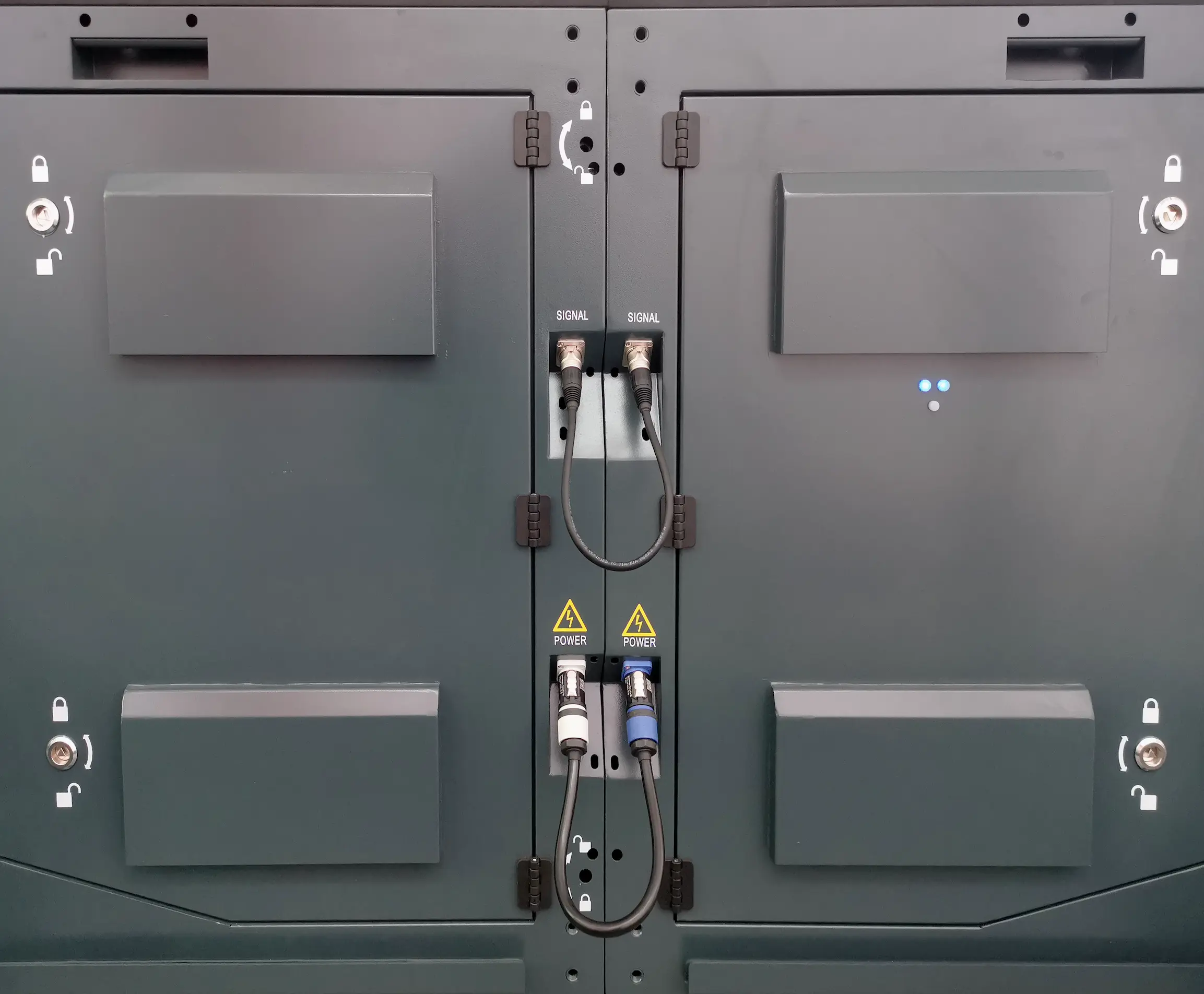

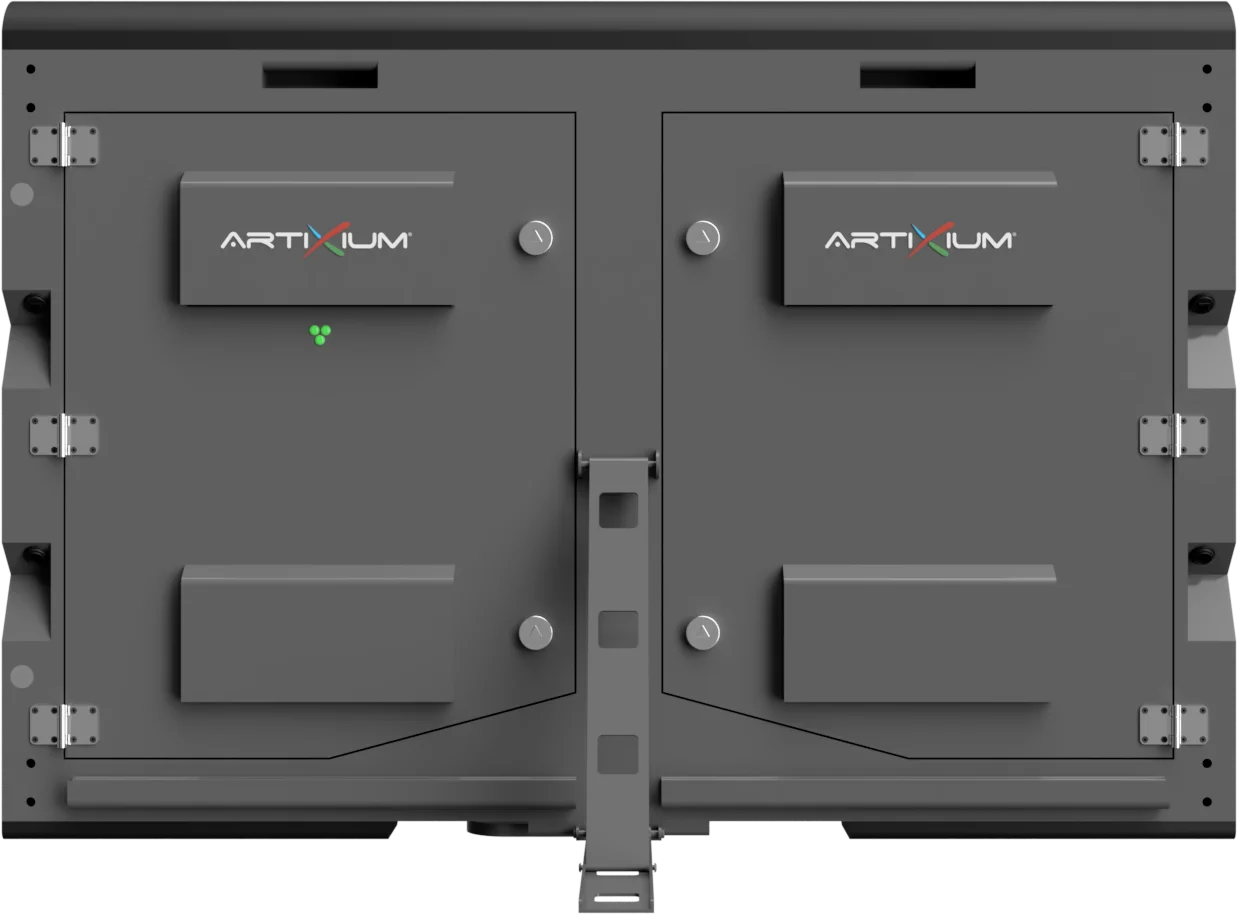

With a galvanized steel cabinet, Neutrik connectors on the rear, and built-in MRV412 receiving cards for optimal performance, the HYDROGEN SPORT 2.0 ensures excellent integrity in the long run. The same LED stadium peri-meter system will last you many years with no functioning issue.

visual properties

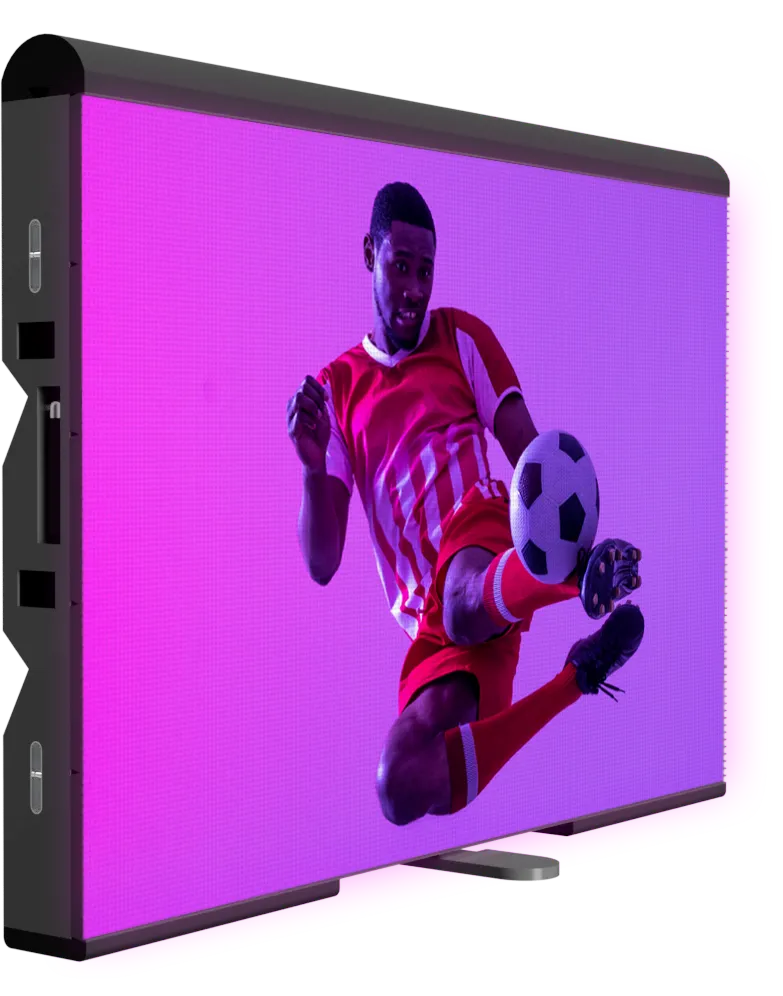

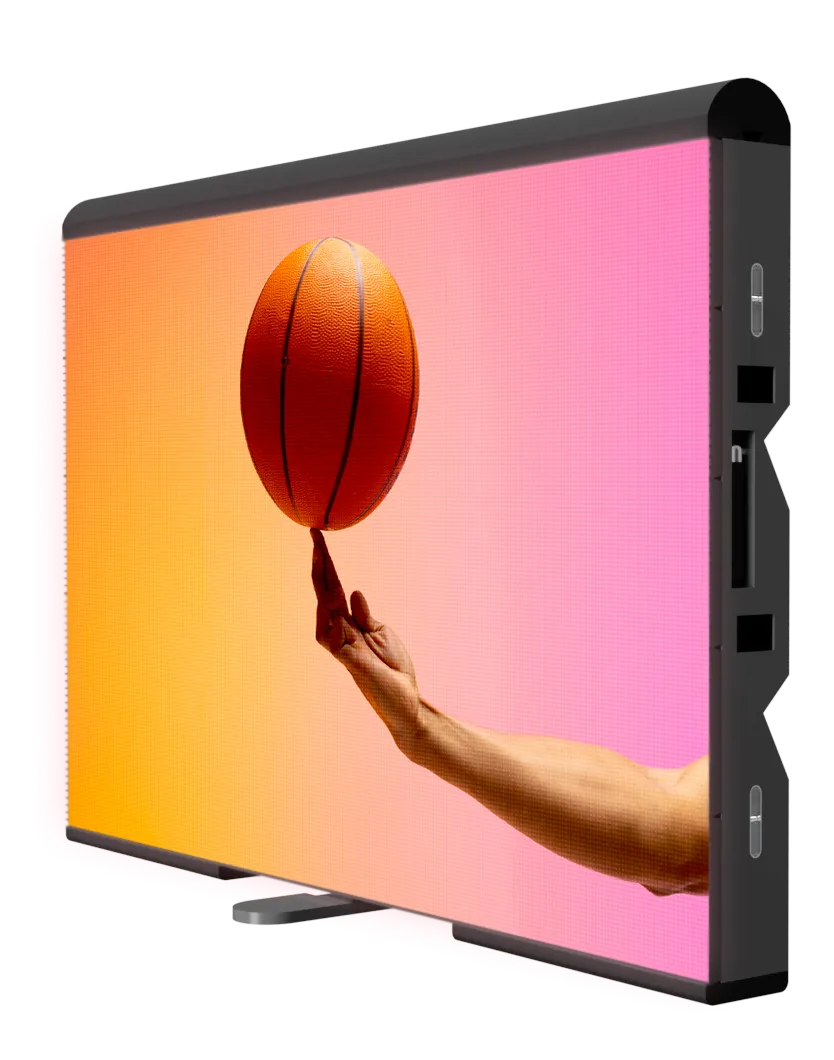

With a 2000 NITS brightness and a 5mm pixel pitch, you ensure clear visibility from anywhere in your stadium, day or night, to your different sponsors.

BACK MAINTENANCESportHydrogenLED Perimeter SystemMultisportSwimmingBasketballIce Rink

Technical Specifications

Download Specifications (excel)

  INDOOR
Product Parameters Unit 5 6.6 8
Pixel Pitch mm 5,00 6,67 8,00
LED   SMD1921 3en1 SMD2727 3en1 SMD3535 3in1
Application   Indoor LED Perimeter System
Ingress Protection IP IP30
Brightness cd/m² ≤ 2000 Nits @5volts
Color Temperature after calib (adjustable) deg. K 6500~8500K
Viewing Angle (50% brightness) deg. 140(+/-70) H / 140 V
Cabinet Size (WxHxD) mm 1280 x 880 x 130
Display area (WxH) mm   1280 x 800
Module Size (WxHxD) mm 320 x 160
Pixel Matrix Per Cabinet (WxH) px 256 x 160 192 x 120 160 x 100
Pixel Matrix Per Module (WxH) px 64 x 32 48 x 24 40 x 20
Pixel Density px/m² 40000 22500 15625
Weight kg/m² 46 kg/cabinet
Cabinet Material   Galvanized steel
Maintenance Mode   Back only
Mask specification   95% Plastic + 5% Fiber / SS Screws / No shaders
Contrast Ratio   High
Grey scale (linear) bit 14~16
Brightness control bit 14~16
Processing depth bit 14~16
Color   281 Trillions
Display Refresh Rate Hz 3840
Operation Power V AC85-230V
Max. Power Consumption W/m² 300
Average Power Consumption W/m² 120
Control Mode   Synchronisation
Video Frame Rate Hz 50/60Hz
Input Types Supported   DVI / SDI / HD-SDI
3D ready (optional)   yes
Calibration   yes
Lifetime (50% brightness) h 50000
Operating Humidity Range   10-90%
Operating Temperature Range   -10°C / +50°C
Screen Uniformity Correction   Brightness + chromaticity
Certification   CE / ETL / CCC
Available options   Neutrik indoor connectors / Aluminum / Perimeter System option / Size can be customised
Compatibility   No

COMPATIBLE ACCESSORIES

MSD300-1
Sending Card
MSD600-1
Sending Card
MCTRL300
Sending Box
MCTRL600
Sending Box
MCTRL660
Sending Box
MCTRL700
Sending Box
MCTRL4K
Sending Box
MCTRL R5
Sending Box
MRV328
Receiving card
MRV336
Receiving card
MRV366
Receiving card
MRV412
Receiving card
MRV432
Receiving card
MRV208
Receiving card
MRV266
Receiving card
MRV216
Receiving card
MRV416
Receiving card
MRV300-1
Receiving card
MRV560-1
Receiving card
AT32
Receiving card
A4S
Receiving card
A5S
Receiving card
A5S PLUS
Receiving card
A7S PLUS
Receiving card
A8S
Receiving card
A8S-N
Receiving card
A10S PLUS
Receiving card
A10S PRO
Receiving card
TB30
Media Player
TB50
Media Player
TB60
Media Player
VX4S-N
Video Processor
VX6S
Video Processor
VX600
Video Processor
VX1000
Video Processor
VX16S
Video Processor
HDR MASTER 4K
Video Processor
NOVAPRO UHD
Video Processor
NOVAPRO UHD JR
Video Processor
J6
Video Processor
MON300
Monitor Card
NS060
Light Sensor
MTH310
Temperature sensor
TCB300 LCD PLAYER
Media Player
CVT310
Fiber Converter
CVT4K-S
Fiber Converter
CVT4K-M
Fiber Converter
CVT10
Fiber Converter
CVT10 PRO
Fiber Converter
ACCESSORY FLIGHT CASE
Flight case
Request a quotation
*
*
*
*
  INDOOR Product Parameters Unit 5 6.6 8 Pixel Pitch mm 5,00 6,67 8,00 LED   SMD1921 3en1 SMD2727 3en1 SMD3535 3in1 Application   Indoor LED Perimeter System Ingress Protection IP IP30 Brightness cd/m² ≤ 2000 Nits @5volts Color Temperature after calib (adjustable) deg. K 6500~8500K Viewing Angle (50% brightness) deg. 140(+/-70) H / 140 V Cabinet Size (WxHxD) mm 1280 x 880 x 130 Display area (WxH) mm   1280 x 800   Module Size (WxHxD) mm 320 x 160 Pixel Matrix Per Cabinet (WxH) px 256 x 160 192 x 120 160 x 100 Pixel Matrix Per Module (WxH) px 64 x 32 48 x 24 40 x 20 Pixel Density px/m² 40000 22500 15625 Weight kg/m² 46 kg/cabinet Cabinet Material   Galvanized steel Maintenance Mode   Back only Mask specification   95% Plastic + 5% Fiber / SS Screws / No shaders Contrast Ratio   High Grey scale (linear) bit 14~16 Brightness control bit 14~16 Processing depth bit 14~16 Color   281 Trillions Display Refresh Rate Hz 3840 Operation Power V AC85-230V Max. Power Consumption W/m² 300 Average Power Consumption W/m² 120 Control Mode   Synchronisation Video Frame Rate Hz 50/60Hz Input Types Supported   DVI / SDI / HD-SDI 3D ready (optional)   yes Calibration   yes Lifetime (50% brightness) h 50000 Operating Humidity Range   10-90% Operating Temperature Range   -10°C / +50°C Screen Uniformity Correction   Brightness + chromaticity Certification   CE / ETL / CCC Available options   Neutrik indoor connectors / Aluminum / Perimeter System option / Size can be customised Compatibility   No ">
