Overview

The COBALT FASCIA is the latest evolution of our renowned COBALT product line, specifically adapted for LED ribbon applications in stadiums and sports venues. Engineered for maximum visibility thanks to its ultra-high brightness, this product ensures your sponsors stand out—whether at night or in broad daylight. Designed to withstand harsh weather conditions, this LED cabinet delivers long-term performance without compromise.

Application
OUTDOOR
PIXEL PITCH
P10
MAINTENANCE

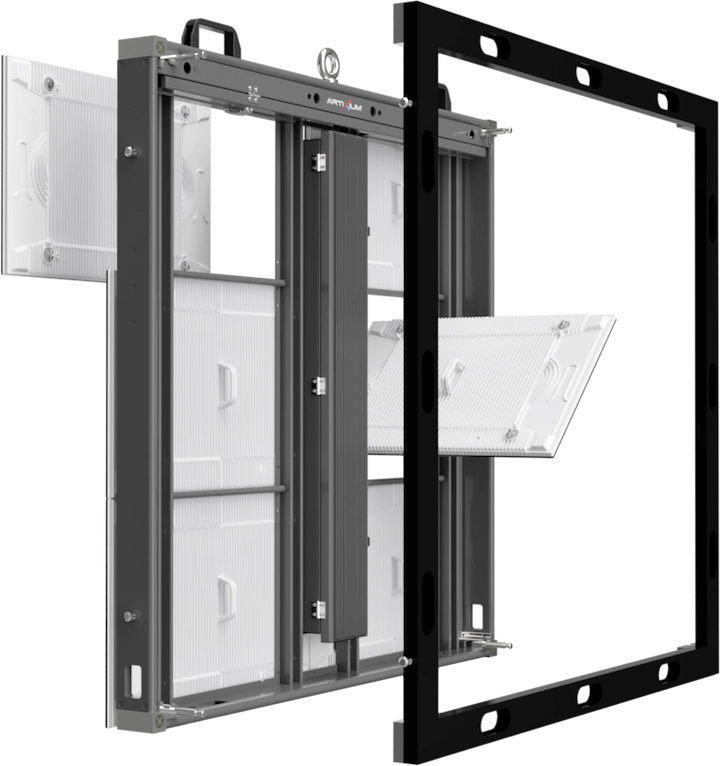

Back & Front Maintenance
INGRESS PROTECTION
IP68 (front) / IP67 (back)
Display Area (W X H)
960 x 960 mm
BRIGHTNESS
≤ 10000 NITS
WEIGHT
28 kg/cabinet
MATERIAL
Die-casting aluminum

Technical Specifications

		OUTDOOR
Product Parameters	Unit	10.4
Pixel Pitch	mm	10,00
LED		SMD3535
Application		Outdoor fascia
Ingress Protection	IP	IP68 (front) /IP67 (rear)
Brightness	cd/m²	≤ 10000 Nits @5volts
Color Temperature after calib (adjustable)	deg. K	6500
Viewing Angle (50% brightness)	deg.	140V / 180(+/-90) H
Cabinet Size (WxHxD)	mm	960 x 960 x 101
Display area (WxH)	mm	960 x 960
Module Size (WxHxD)	mm	480 x 320 x 26
Pixel Matrix Per Cabinet (WxH)	px	96 x 96
Pixel Matrix Per Module (WxH)	px	48 x 32
Pixel Density	px/m²	10000
Cabinet weight	kg	27
Cabinet Material		Die-casting aluminum
Maintenance Mode		Back or Front
Mask specification		95% Plastic + 5% Fiber / SS Screws / Shaders
Contrast Ratio		High
Grey scale (linear)	bit	15
Brightness control	bit	16
Processing depth	bit	16
Color		281 Trillions
Display Refresh Rate	Hz	3840
Operation Power	V	AC110-220V
Max. Power Consumption	W/m²	550
Average Power Consumption	W/m²	200
Control Mode		Synchronization
Video Frame Rate	Hz	50/60Hz
Input Types Supported		DVI / SDI / HDMI
3D ready (optional)		Yes
Calibration		Yes
Lifetime (50% brightness)	h	50000
Operating Humidity Range		10-95%
Operating Temperature Range		-20°C / +60°C
Screen Uniformity Correction		Yes
Certification		EMC CLASS B / CE / ETL / CCC

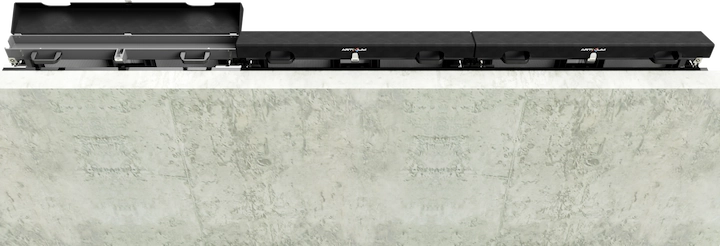

Available options		Top cable management cover
Compatibility		-
