Overview

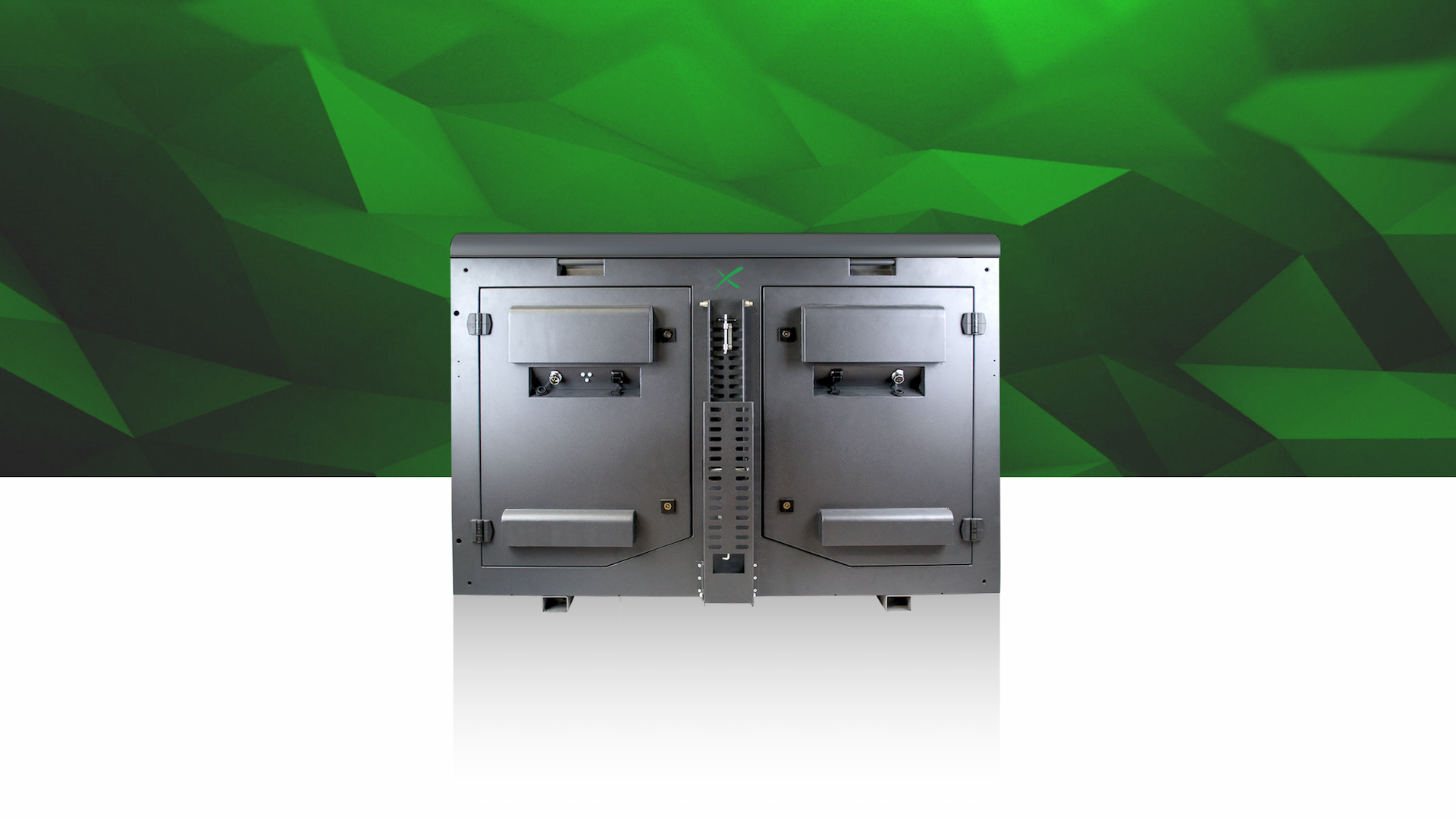

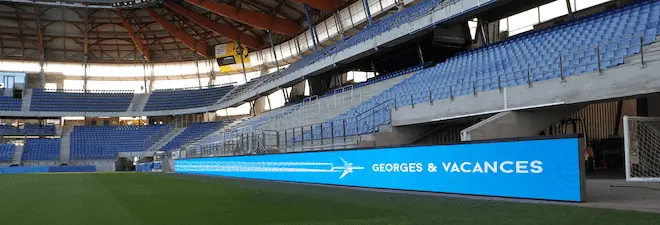

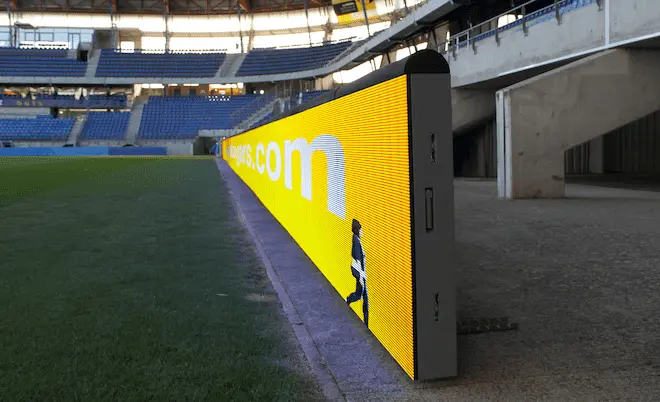

Tough and reliable, the HYDROGEN SPORT is our recommended product for regular sports leagues. This LED perimeter system is a cost-effective investment as the HYDROGEN SPORT stands out with its long lifespan and ability to perform normally under harsh weather circumstances. Furthermore, it’s a highly modulable product, and the many available options make it able to fit numerous different applications, as peculiar as they can be.

  • Application
    INDOOR OUTDOOR

  • PIXEL PITCH
    P5 P6.6 P8 P10

  • MAINTENANCE
    Back Maintenance

  • INGRESS PROTECTION
    IP41 (in.)
    IP65 / IP54 (front / back - out.)

  • Display Area (W X H)
    1280 x 800 mm (P5
    P6.6)
    1280 x 960 mm (P8
    P10)

  • BRIGHTNESS
    ≤2000 Nits @5 Volts (in.)
    ≤5500 Nits @5 Volts (out.)

  • WEIGHT
    35 - 55 KG/sqm

  • MATERIAL
    Galvanized steel

FEATURES

customizable product

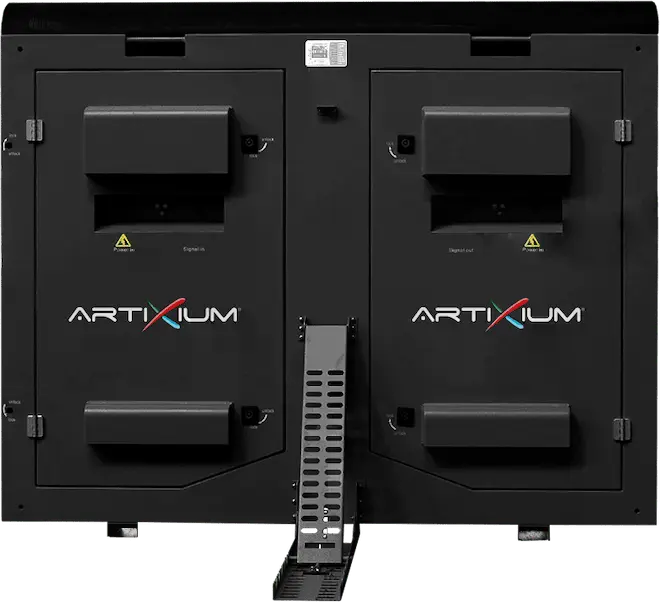

Like the entire HYDROGEN product range, the HYDROGEN SPORT is highly customizable. The many options allow you to extend your product's lifespan, facilitate, or even modulate your LED perimeter's integration. Whether it's stacked on the floor or hung from bleachers, many different situations require many other solutions, all of which can be answered by the HYDROGEN SPORT.

easy maintenance

The HYDROGEN SPORT's maintenance is operated from the back via the cabinet's backdoors. It's an easy process that can be managed by one qualified technician.

long lifespan

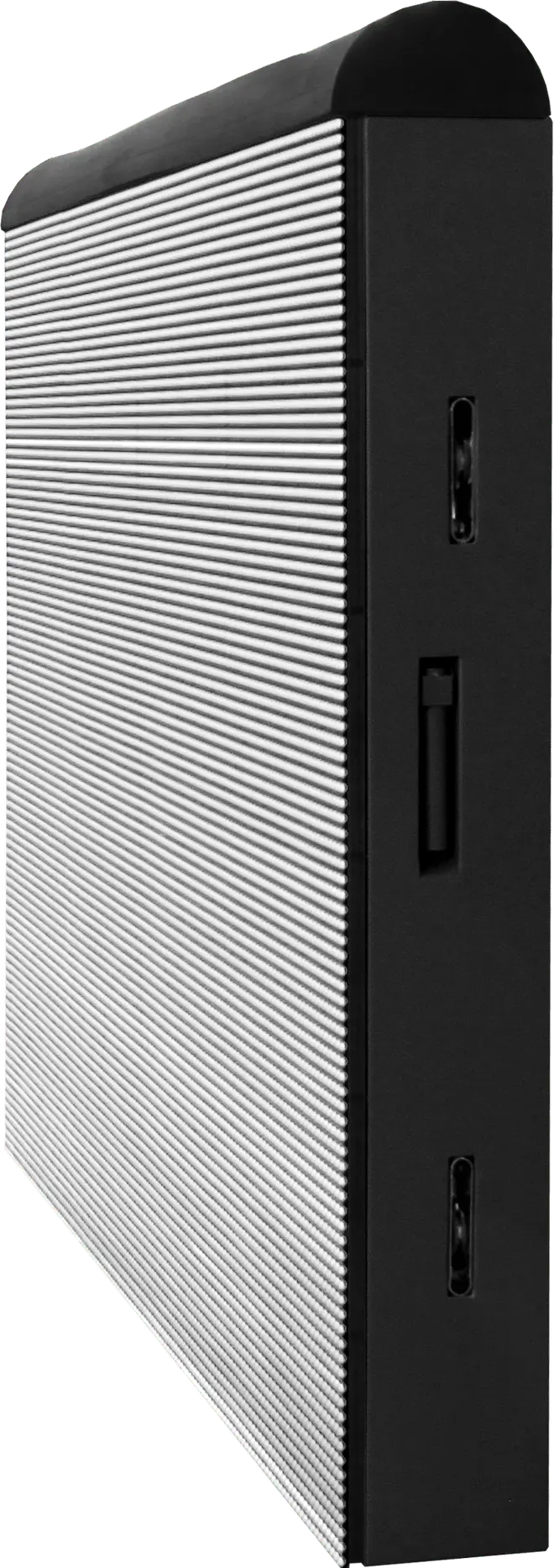

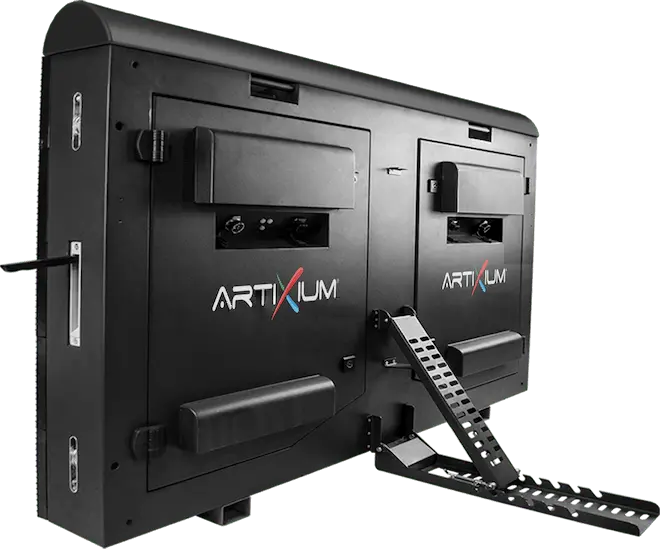

With a reinforced steel cabinet, high-performance waterproof seals, and a backdoor designed to protect the cooling openings from the rain, the HYDROGEN SPORT ensures excellent integrity in the long run. The same LED stadium perimeter system will last you many years with no functioning issue.

visual properties

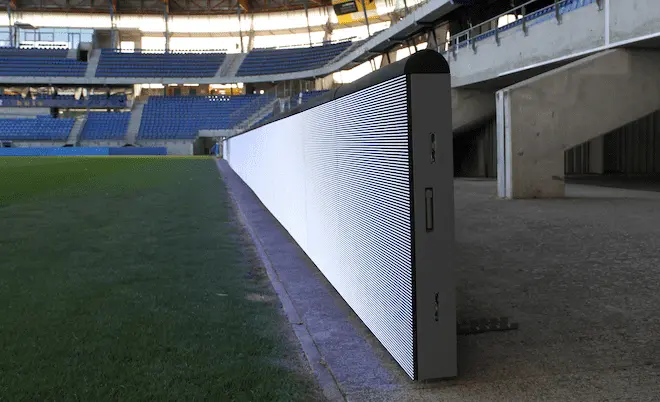

With a 5500 NITS brightness and a 10mm pixel pitch, you ensure clear visibility from anywhere in your stadium, day or night, to your different sponsors.

Certifications

SPORTHydrogenLED Perimeter SystemMultisportSoccerRugby

Technical Specifications

Download Specifications (excel)

    INDOOR OUTDOOR
Product Parameters Unit 5 6.6 8 10 10
Pixel Pitch mm 5,00 6,67 8,00 10,00 10,00
LED   SMD2727 SMD3528 3in1 (Black Face) SMD2727 3in1 (Black Face)
Application   LED Perimeter System
Ingress Protection IP IP41 IP65 (front) / IP54 (rear)
Brightness cd/m² ≤ 2000 Nits @5volts ≤ 5500 Nits @5volts
Color Temperature after calib (adjustable) deg. K 6500
Viewing Angle (50% brightness) deg. 140(+/-70) H / 140 V
Cabinet Size (WxHxD) mm 1280 x 800 x 225 1280 x 960 x 225
Display area (WxH) mm 1280 x 800 1280 x 960
Module Size (WxHxD) mm 320 x 160 320 x 160 x 15
Pixel Matrix Per Cabinet (WxH) px 256 x 160 192 x 120 160 x 120 128 x 96 128 x 96
Pixel Matrix Per Module (WxH) px 64 x 32 48 x 24 40 x 20 32 x 16 32 x 16
Pixel Density px/m² 40000 22500 15625 10000 10000
Weight kg/m² 35 55
Cabinet Material   Galvanized steel
Maintenance Mode   Back only
Mask specification   95% Plastic + 5% Fiber / SS Screws / No shaders 95% Plastic + 5% Fiber / SS Screws / Shaders
Contrast Ratio   High
Grey scale (linear) bit 16
Brightness control bit 16
Processing depth bit 16
Color   281 Trillions
Display Refresh Rate Hz 3840
Operation Power V AC85-230V
Max. Power Consumption W/m² 900
Average Power Consumption W/m² 300
Control Mode   Synchronisation
Video Frame Rate Hz 50/60Hz
Input Types Supported   DVI / SDI / HDMI
3D ready (optional)   yes
Calibration   yes
Lifetime (50% brightness) h 50000
Operating Humidity Range   10-95%
Operating Temperature Range   -10°C / +50°C -20°C / +60°C
Screen Uniformity Correction   Brightness + chromaticity
Certification   CE / ETL / CCC
Available options    Neutrik indoor connectors / Neutrik outdoor connectors / Aluminum / Perimeter System option / Size can be customised
Compatibility    No
Request a quotation
*
*
*
*
