Beryl XR

PERFORMANT XR ORIENTED LED DISPLAY

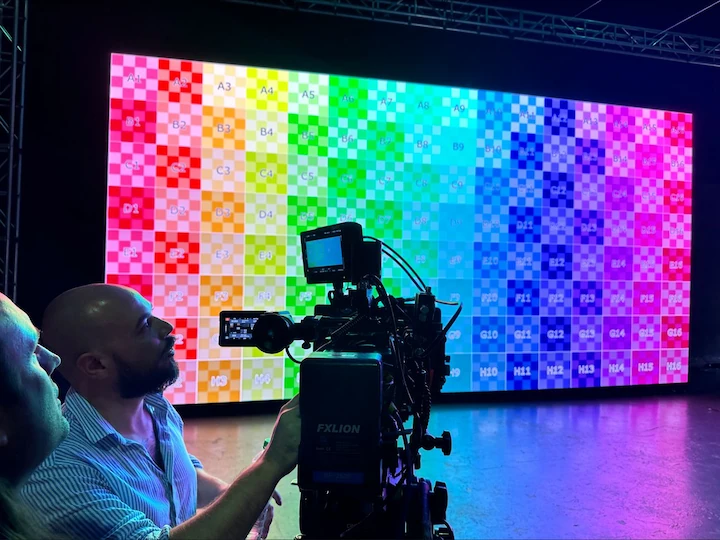

The top two requirements for an effective XR LED set are high resolution and a low scan rate. Our BERYL XR comes in P1.5, P1.9 & P2.6, fine pixel pitches compared to our competitors’ XR LED screens. Moreover, the 7680 Hz refresh rate allows for a smooth calibration and synchronization of your LED display with the cameras. While the quality of your renders will definitely show on this LED display, you can also rest assured your Extended Reality set will respond in real-time the camera and the actor’s movements. Investing in the BERYL XR is the right choice if you want to get the best out of this technology.

CUSTOMIZABLE INTEGRATION

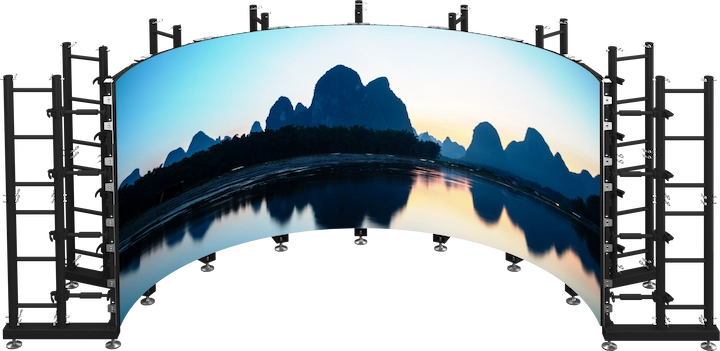

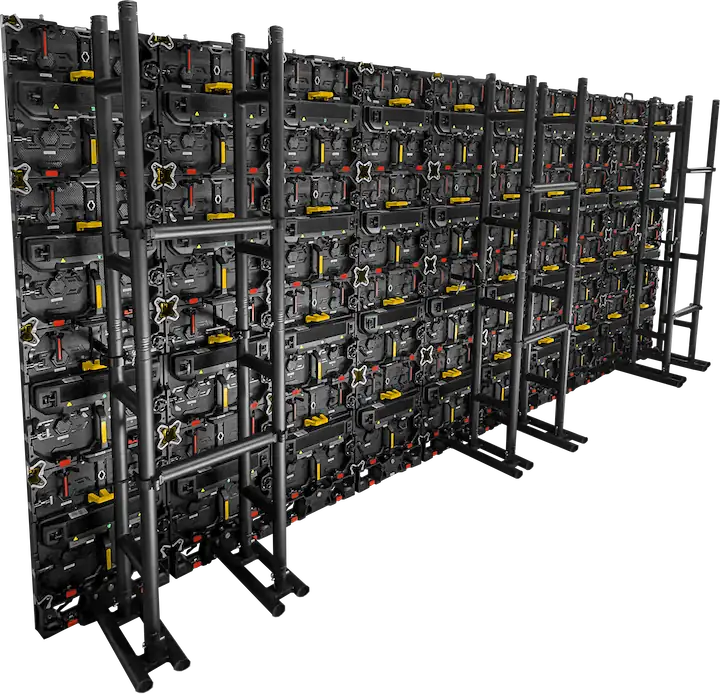

The BERYL XR supports several types of integration, as it can be hung from a ceiling, stacked on the floor or even affixed to a structure. It also provides a toolless curve locking system to fit tailored installations on the spot, can be integrated at 90° concave angles and is both glare-resistant and scratch-resistant. These features make the BERYL XR easy to integrate and easy to displace, the same application can follow you all along your production process, saving you both time and money.

EXTENDED REALITY

Extended Reality (XR) is the combination of Augmented Reality (AR) and Mixed Reality (MR). AR places virtual imagery over a live background, while MR combines camera tracking and realtime rendering to create an immersive virtual environment, visible live on the LED set and shot on camera. With XR, you can implement extremely complex visual effects to any audiovisual production, even live broadcast. You can use this technology in innumerable ways, as any media that uses cameras can upgrade to XR to further improve their audience’s visual experience.

THE NEXT GENERATION OF AUDIOVISUAL PRODUCTION

XR technology is becoming a solution of choice for numerous video productions. Its advantage over the traditional green screens and other visual effect methods is obviously the real-time reaction to the actors and cameras movements, that allows for a live broadcasting or a much more immersive filming set that can be further enhanced during the post production process. An ever-growing number of television or cinema productions have already invested in this technology, for an astonishing result. Famous TV series "The Mandalorian" for instance is well known for its use of XR technology during the production process.

optimized scan rate

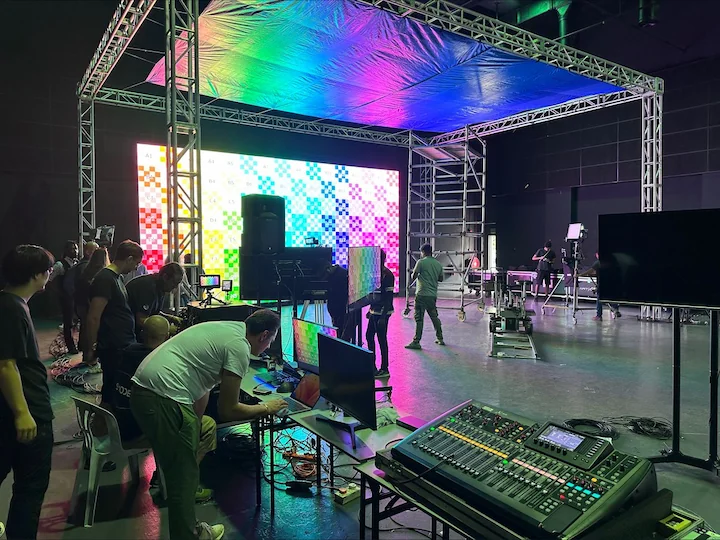

A LED display’s scan rate is defined by the number of drivers compared to the number of integrated circuits. In principle, a single integrated circuit transmits a visual signal to a group of 16 LEDs, while a driver transmits the signal to a group of integrated circuits. By augmenting the number of drivers, you ensure a faster and more fluid signal transmission to all the LEDs that compose your XR screen. This makes your refresh rate much higher and thus allows a better calibration for your XR LED screen. Built with Brompton Technology processors, the BERYL XR cabinets have a 1/10 scan rate with a P1.5 pitch and a 1/8 scan rate with P1.9 & P2.6 pitches. Thus, your XR scene can easily attain a 7680 Hz refresh rate.

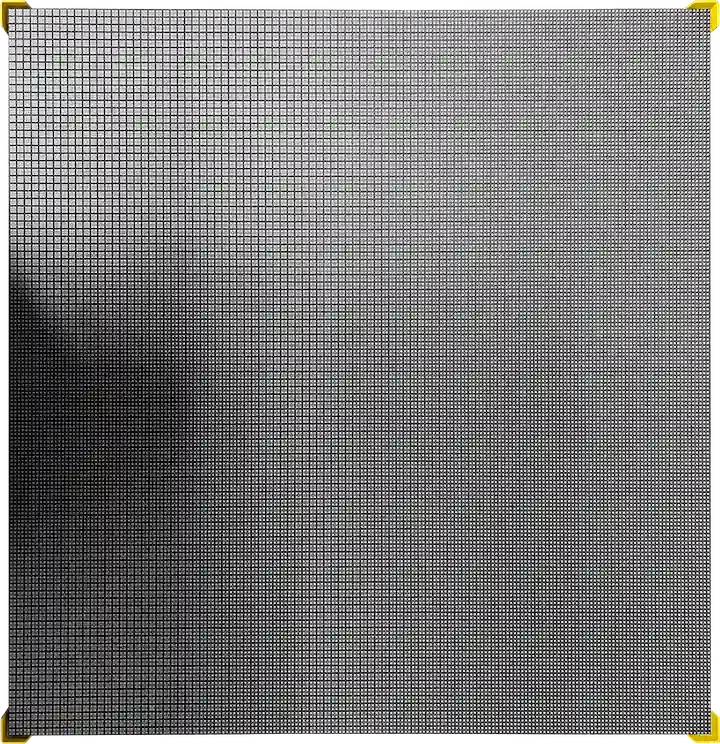

miniled 4in1

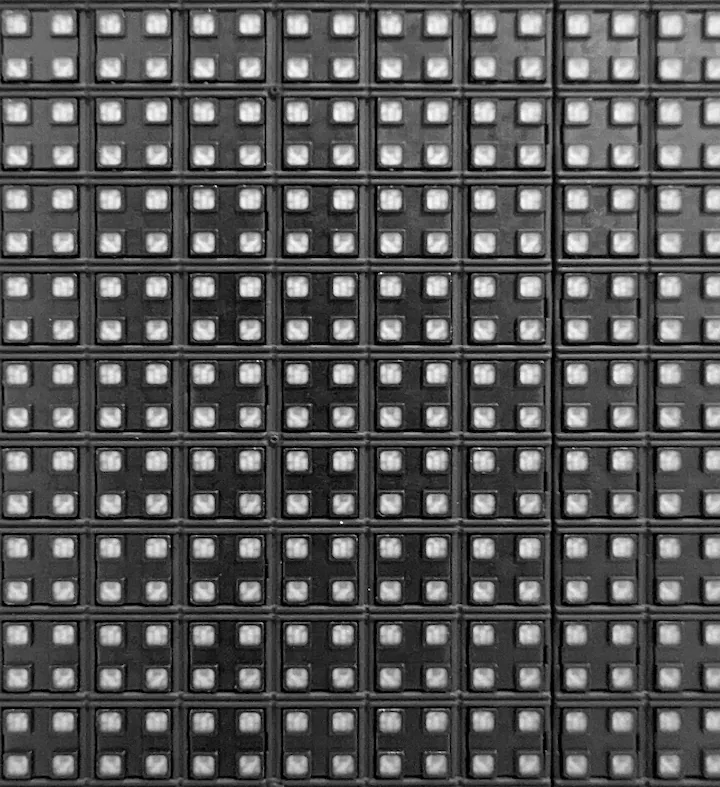

The MiniLED 4in1 consists in 4 small LEDs encapsulated in the space that a normal SMD LED represents. This technology offers numerous advantages, but the most noteworthy are the tremendous gains in both image resolution and LED durability. The first one is quite self-explanitory, as you multiply the effective number of LEDs by 4 on your modules. The second one is due to the encapsulation, which works like the GME technology, but on the LED level rather than on the whole module. While adding to the LEDs resistance, it still allows a qualified technician to repair each MiniLED 4in1 individually, while this operation is almost impossible on a GME module.

99.9% of DCI-P3 gamut

Digital Cinema Initiatives (DCI) is an association of cinema production companies. The DCI-P3 color gamut, created to render real-life colors as faithfully as possible, covers 25% more of the colorimetric space than sRGB. Thanks to its MiniLED 4in1, the BERYL XR can restitute the quasi-integrality of this space, which is destined to become the new standard for digital displays.

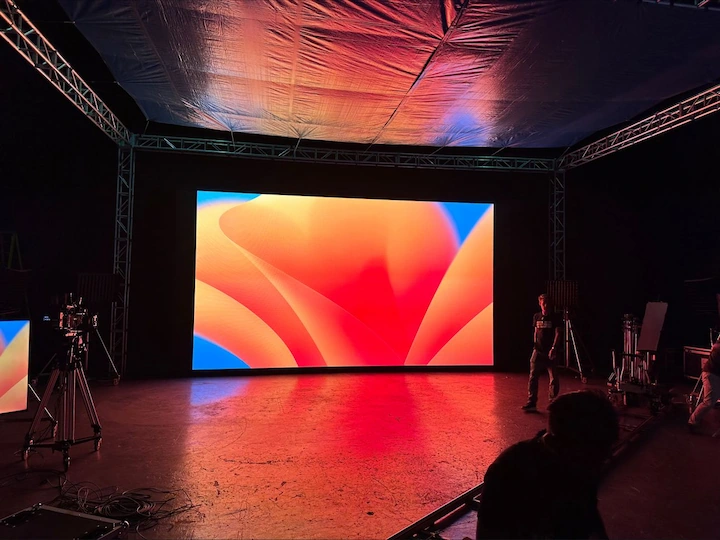

hd pitch

The P1.5, P1.9 & P2.6 pixel pitches are what are considered to be fine pitches, Ultra HD pitches even. You can indeed easily attain Ultra HD or 4K definition with a limited number of cabinets. This feature is ideal for extended reality, where your scene’s visual definition will be an obvious advantage for your different shootings.
