  1. products
  2. event
  3. Helium 2.0
  • Application

    Indoor

  • PIXEL PITCH

    P1.9 P2.6 P2.9 P3.9

  • OPTION
    90

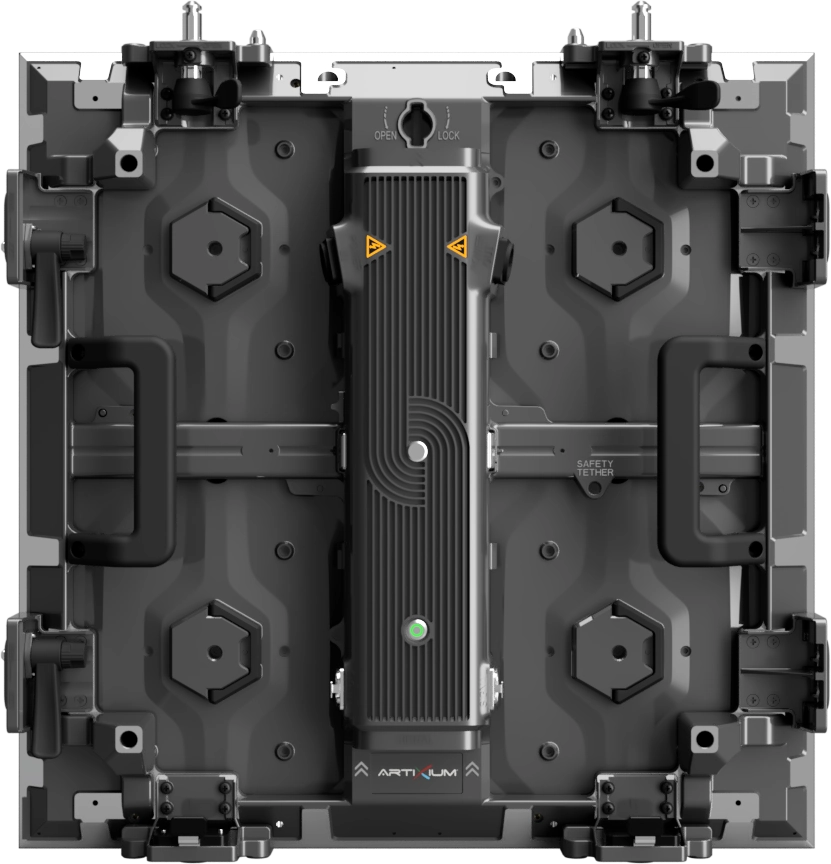

Overview

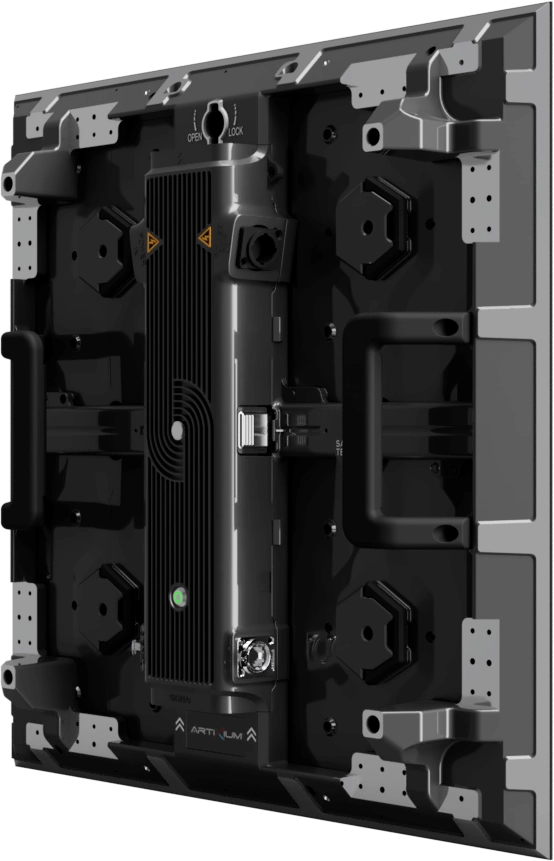

Designed for cubic and 90° applications, this LED cabinet, available in P1.9, P2.6, P2.9, and P3.9, is fully compatible with our renowned BERYL and BORON 2.0 touring cabinets, making it the ideal solution to expand the capabilities of your touring LED cabinet fleet.
Equipped with all the usual touring-oriented features,  such as toolless locking systems, integrated handles, and front & rear maintenance, this product stands out for its versatility, thanks to flat or 45° add-ons that can be inverted on all four sides of the frame.

  • Application
    Indoor

  • PIXEL PITCH
    P1.9 P2.6 P2.9 P3.9

  • MAINTENANCE
    Back & Front Maintenance

  • INGRESS PROTECTION
    IP20

  • Display Area (W X H)
    500 x 500 mm

  • BRIGHTNESS
    ≤ 1300 NITS @5VOLTS

  • WEIGHT
    6 kg/cabinet

  • MATERIAL
    Die-casting aluminum

Features

MINILED 4in1

The HELIUM 2.0, in its P1.9 and P2.6 variants, integrates cutting-edge MiniLED 4in1 technology. This innovation encapsulates four smaller LEDs within the footprint of a traditional SMD LED, resulting in superior image resolution and enhanced durability. The encapsulation not only increases the LED’s resistance to physical stress but also facilitates individual LED repairs, ensuring prolonged operational efficiency. By adopting this advanced technology, the HELIUM 2.0 delivers vibrant visuals and robust performance, making it an ideal choice for dynamic touring environments.

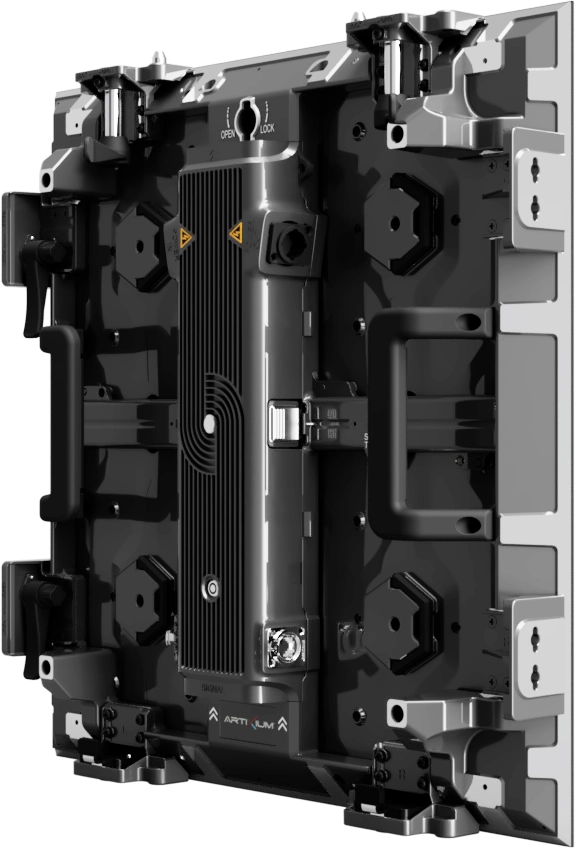

touring oriented features

The HELIUM 2.0 comes equipped with all the essential touring-oriented features, from ergonomic handles and toolless locking systems to front and rear maintenance access. Fully compatible with the BERYL’s hanging bar/stacking system, it ensures seamless integration into your existing touring infrastructure.

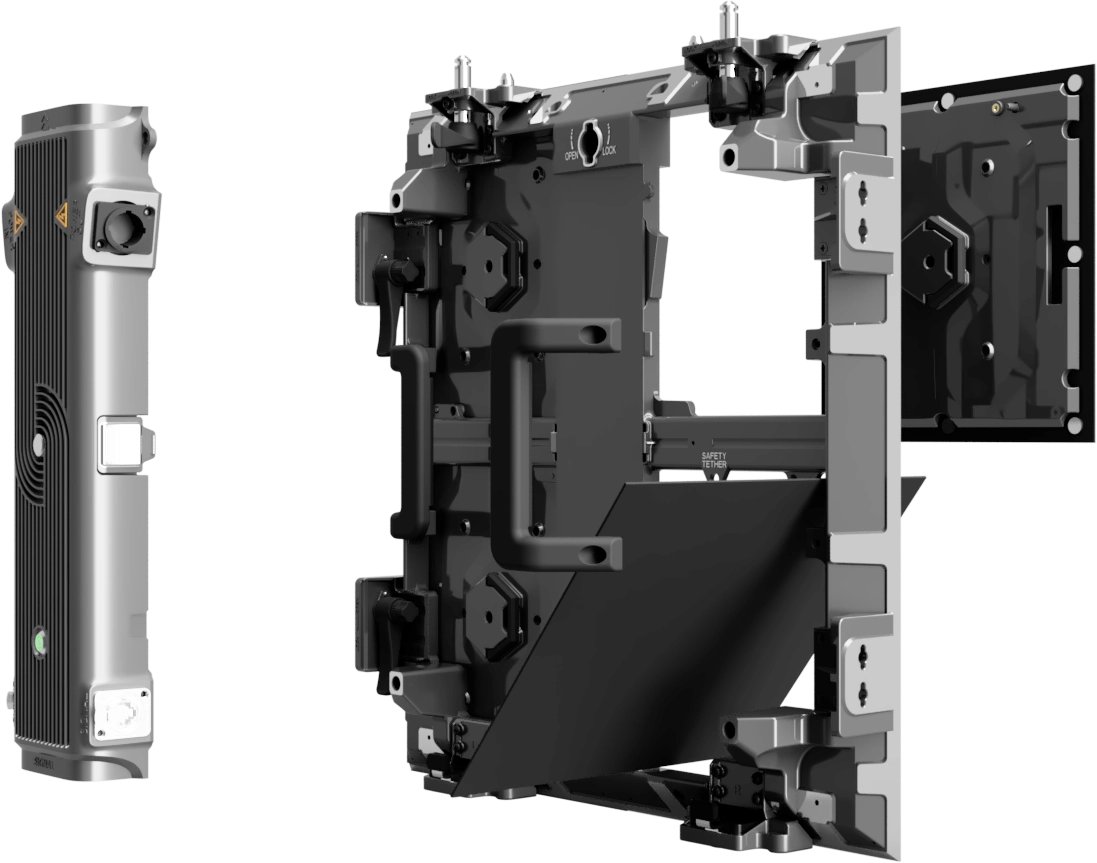

easy maintenance

Designed with efficiency in mind, the HELIUM 2.0 allows for quick and easy servicing from both the front and rear of the cabinet. Thanks to its magnetic modules & toolless power box, maintenance operations are streamlined, minimizing downtime and keeping your setup running smoothly, even under tight event schedules.

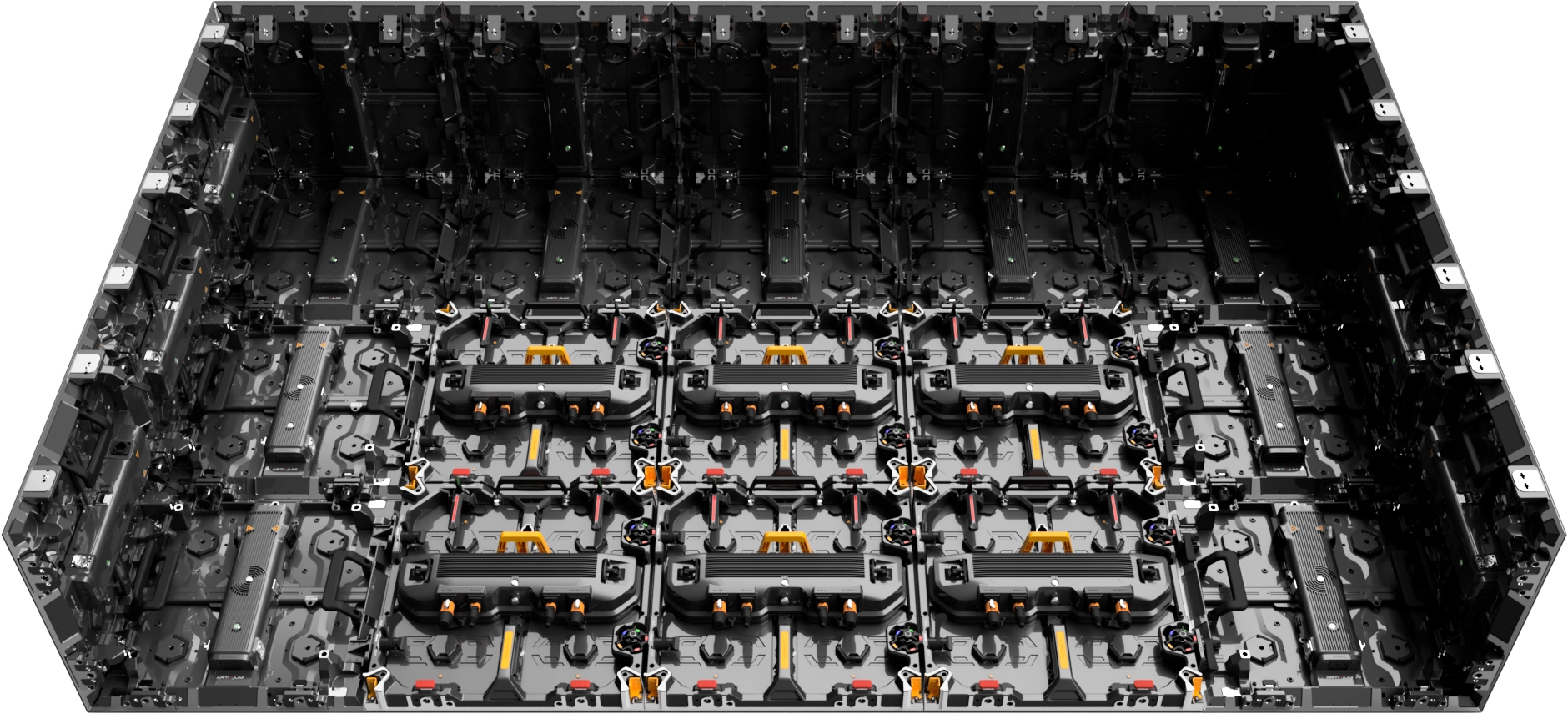

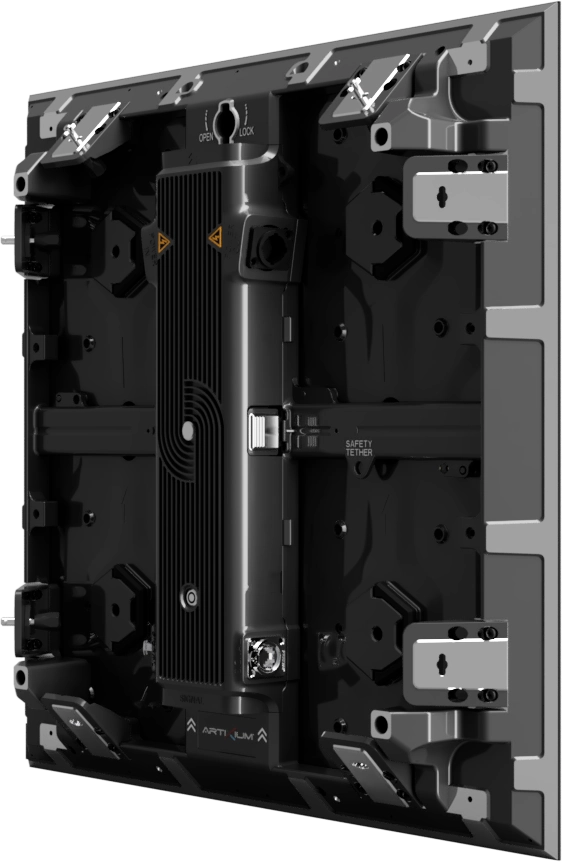

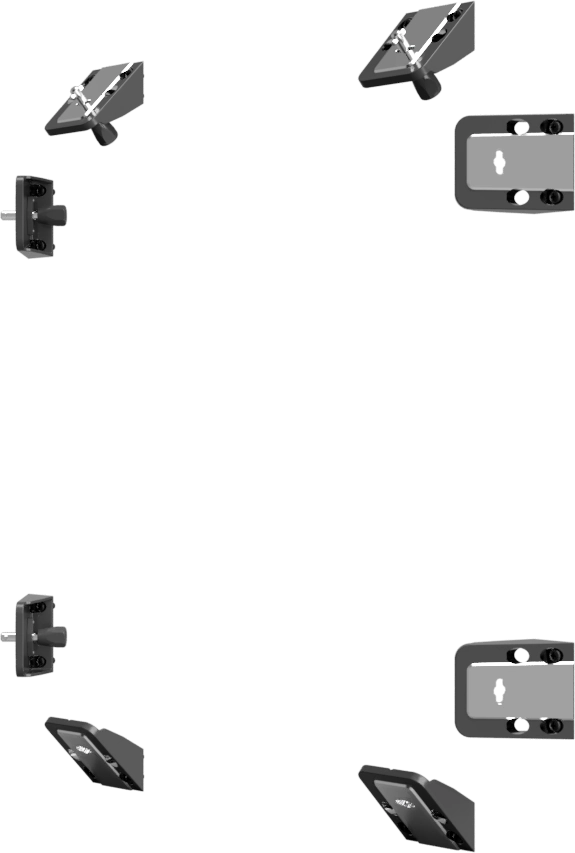

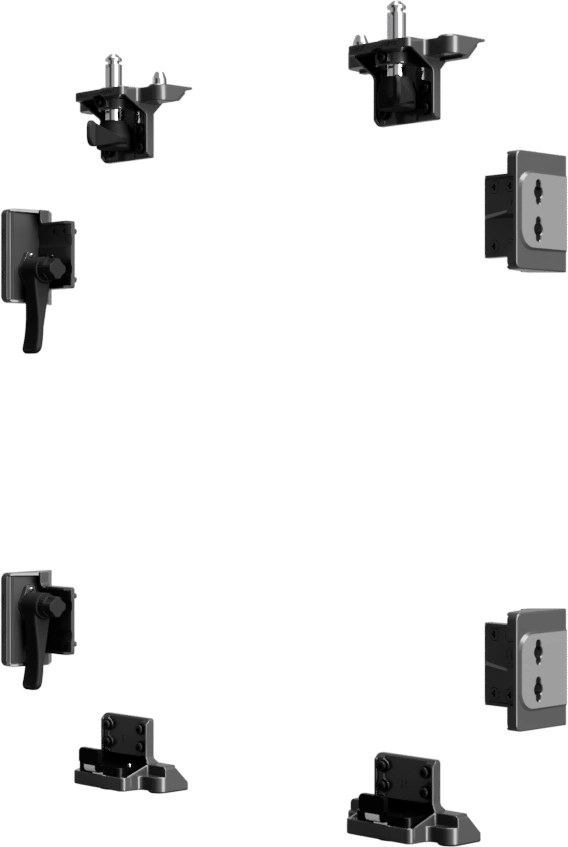

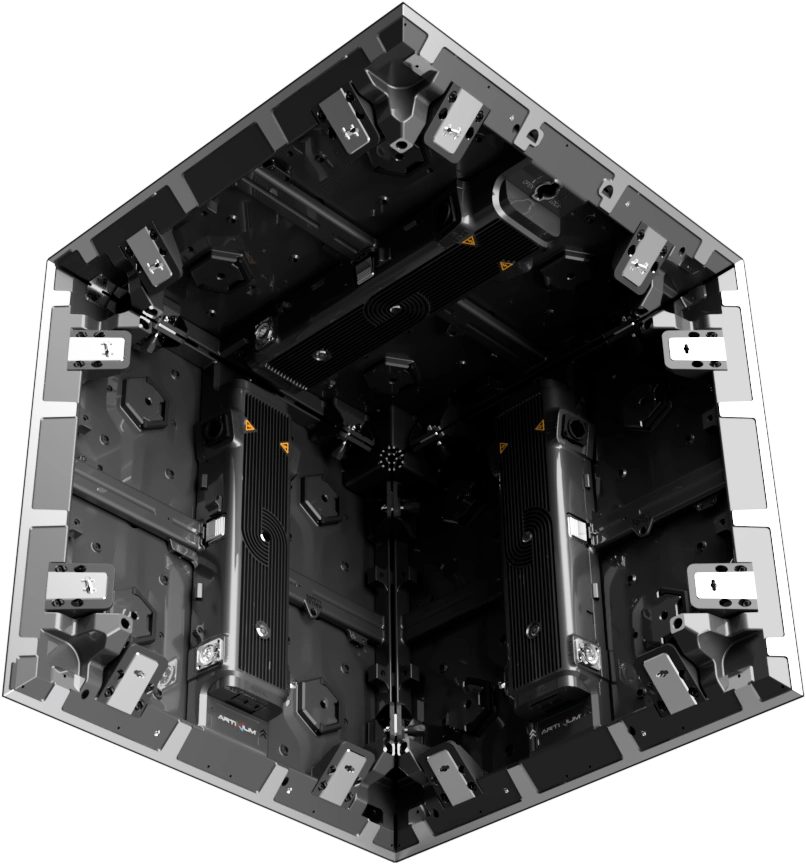

cabinet add-ons

The HELIUM 2.0 pushes modular design even further with its innovative four-side add-on system. Whether you’re working with flat edges or aiming for dynamic 90° angles, each side of the cabinet frame can be individually equipped and inverted to meet your creative and technical requirements. This smart design ensures maximum flexibility for cubic setups, creative builds, and seamless integration with the rest of your touring fleet.

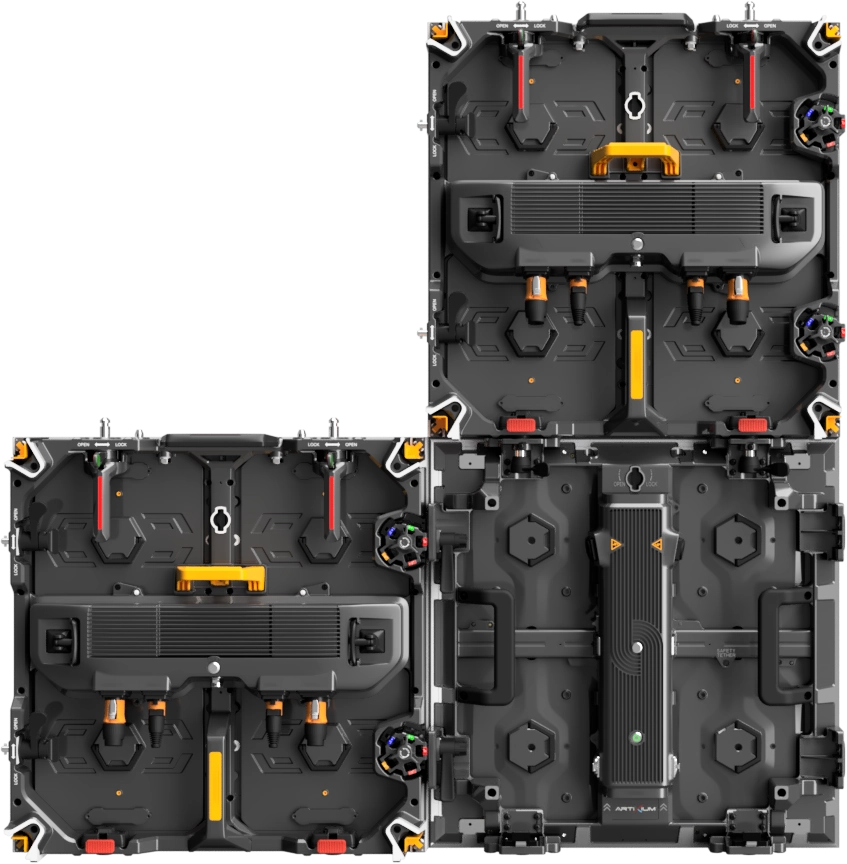

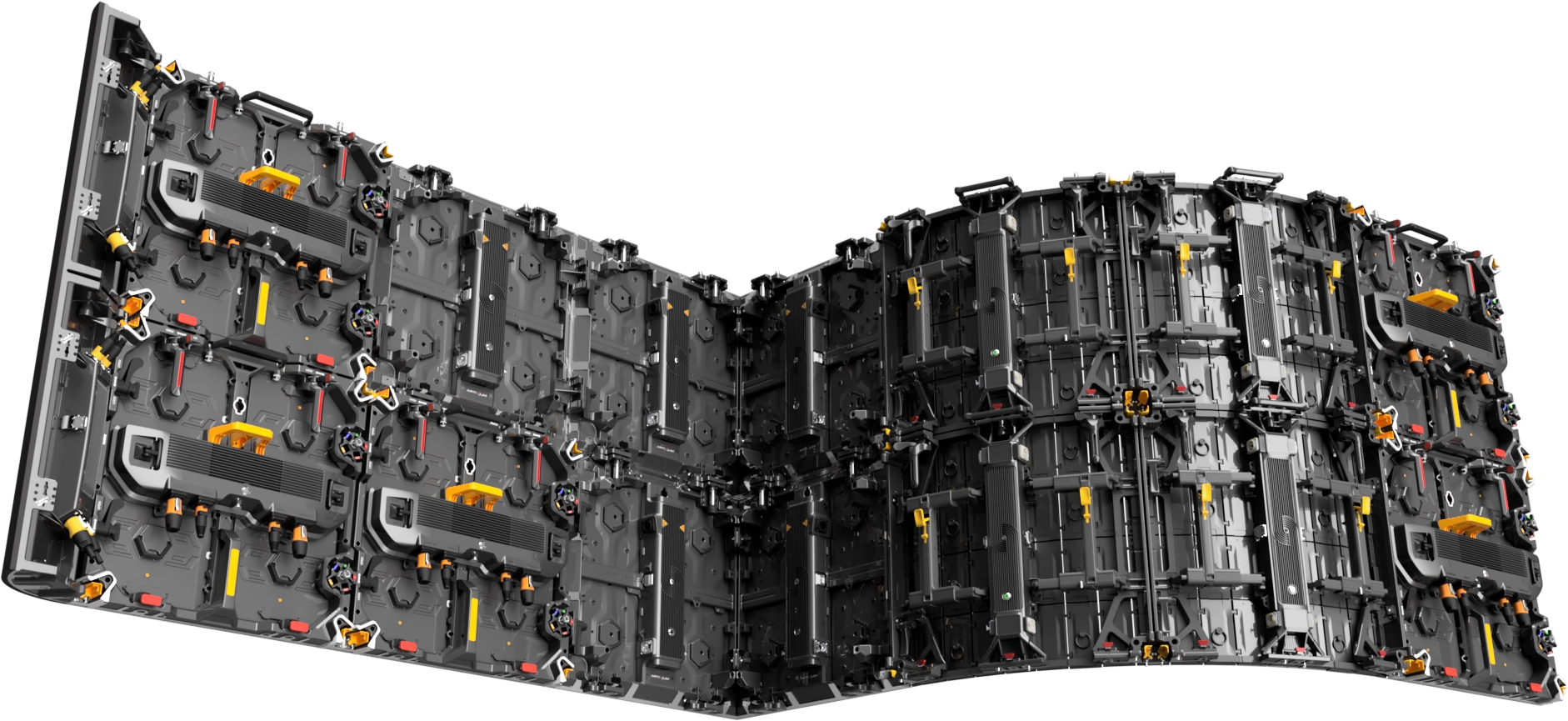

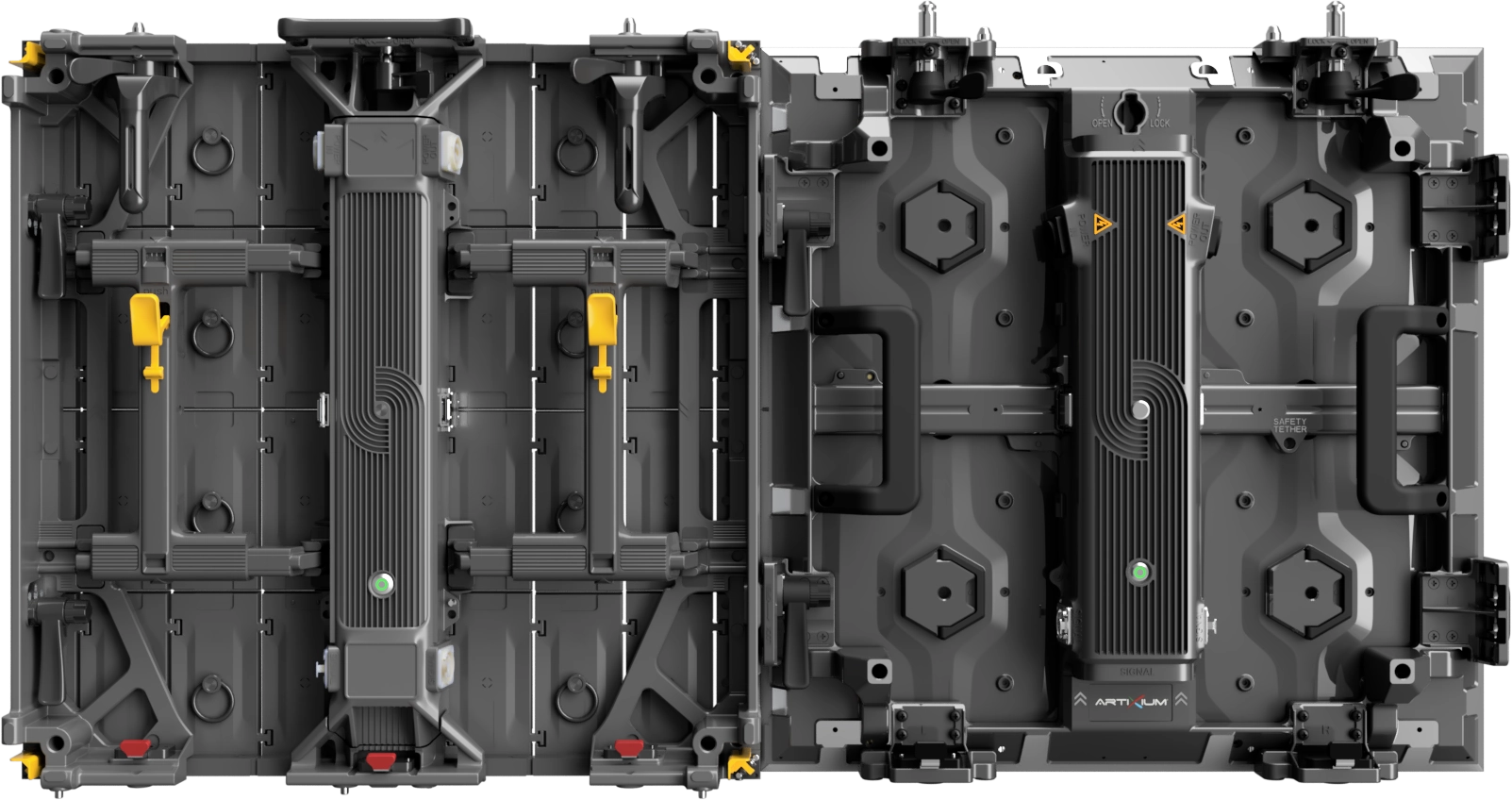

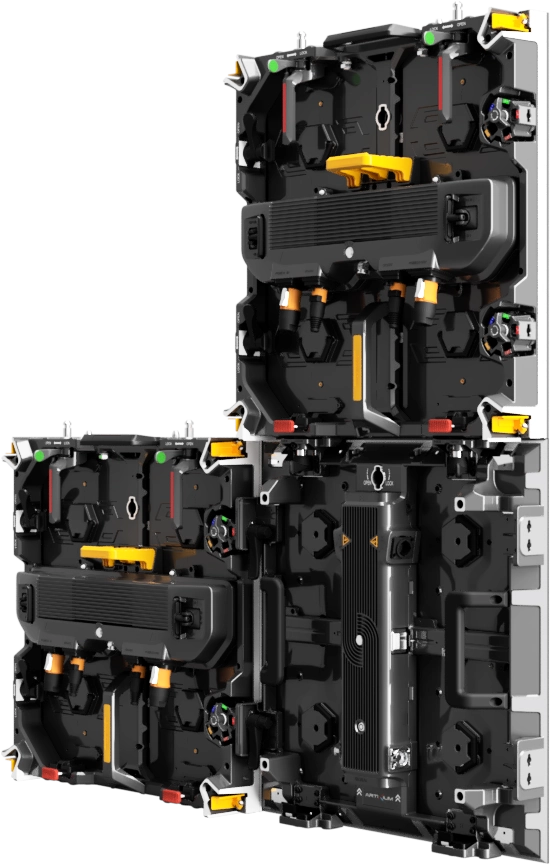

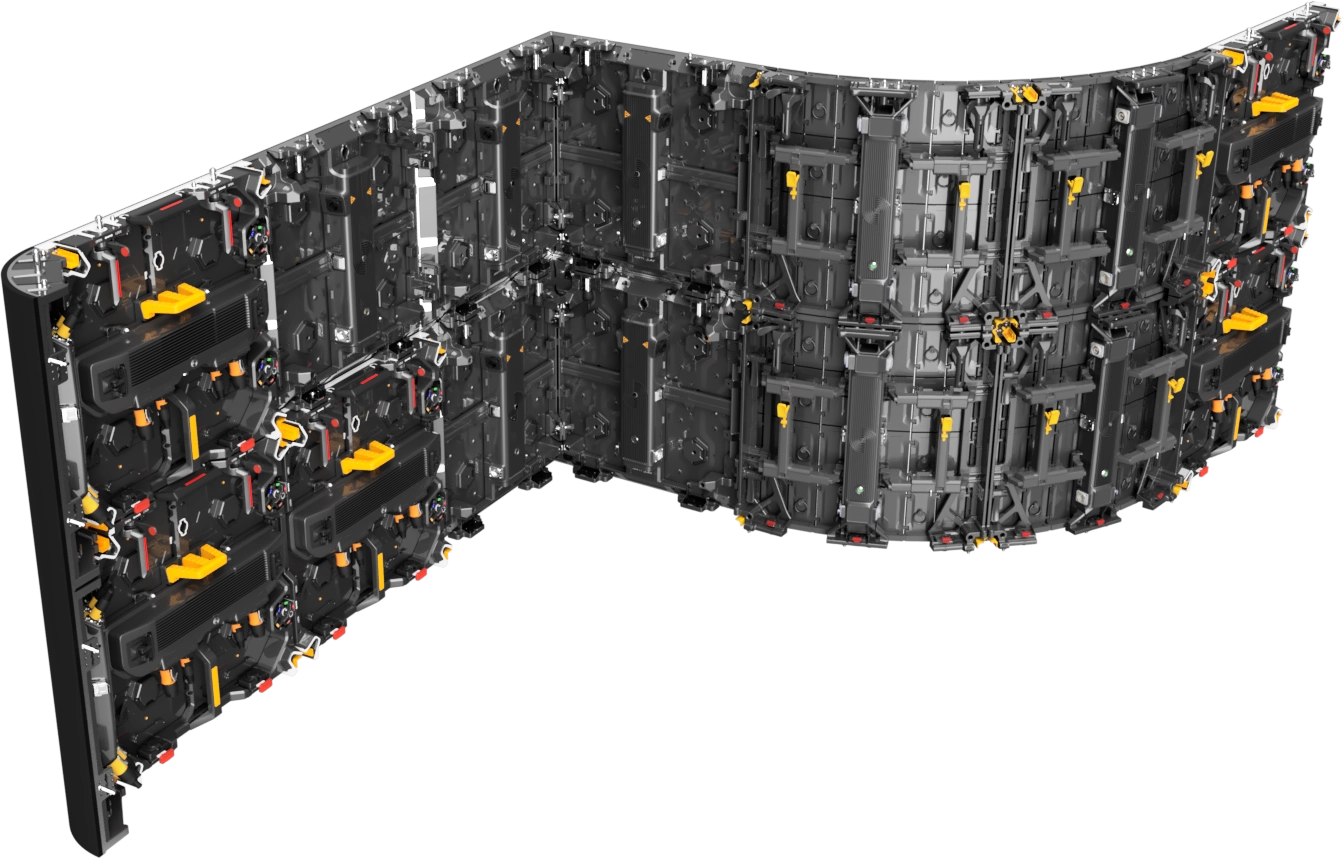

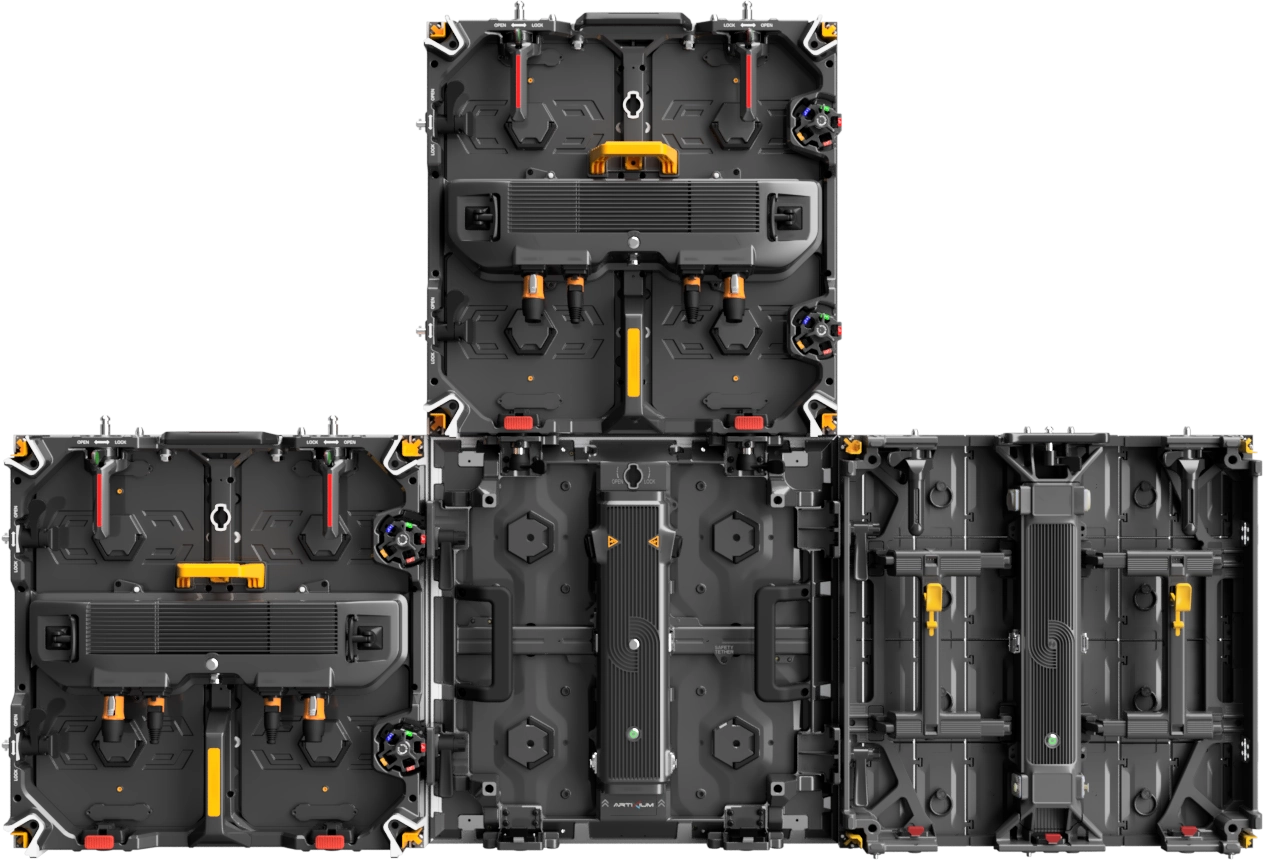

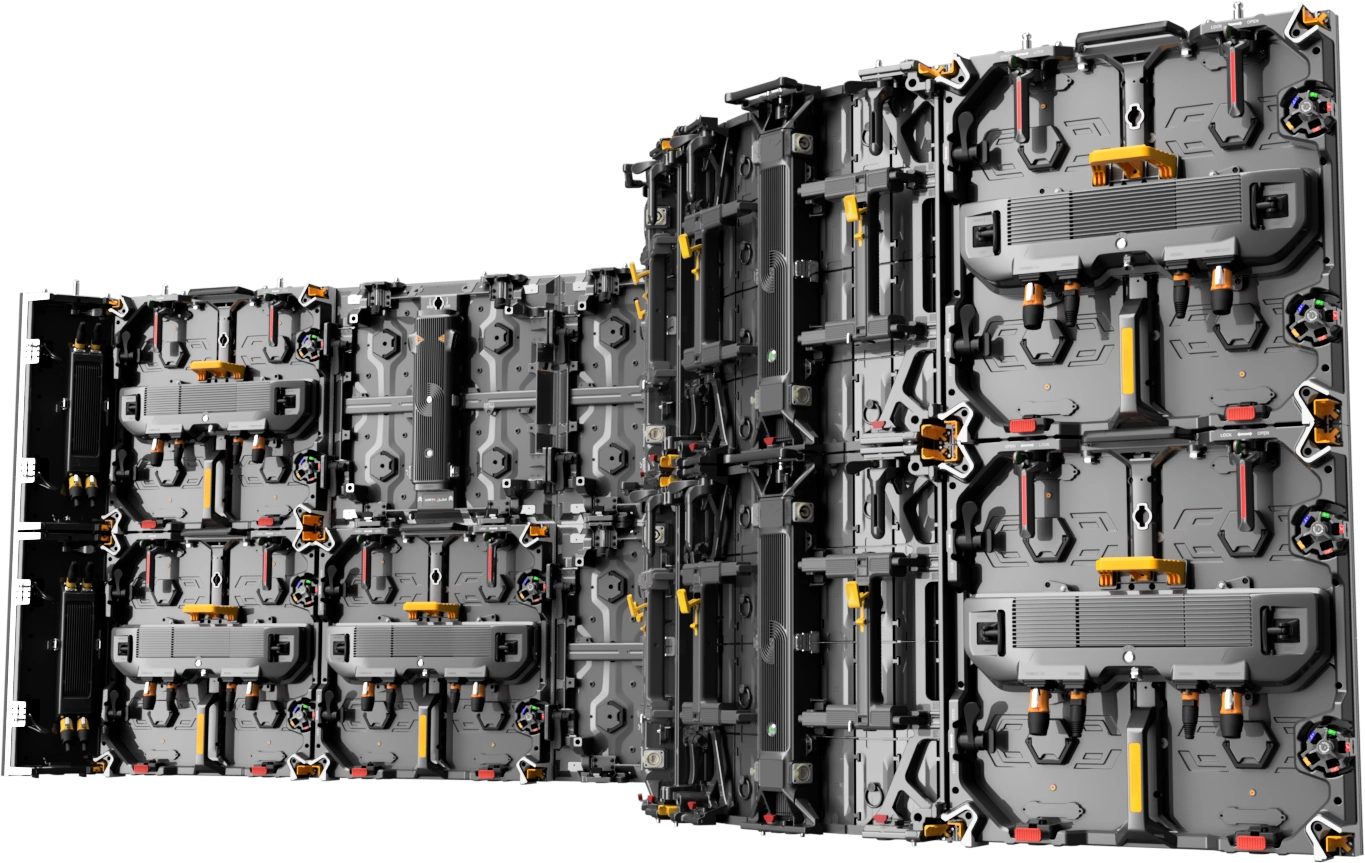

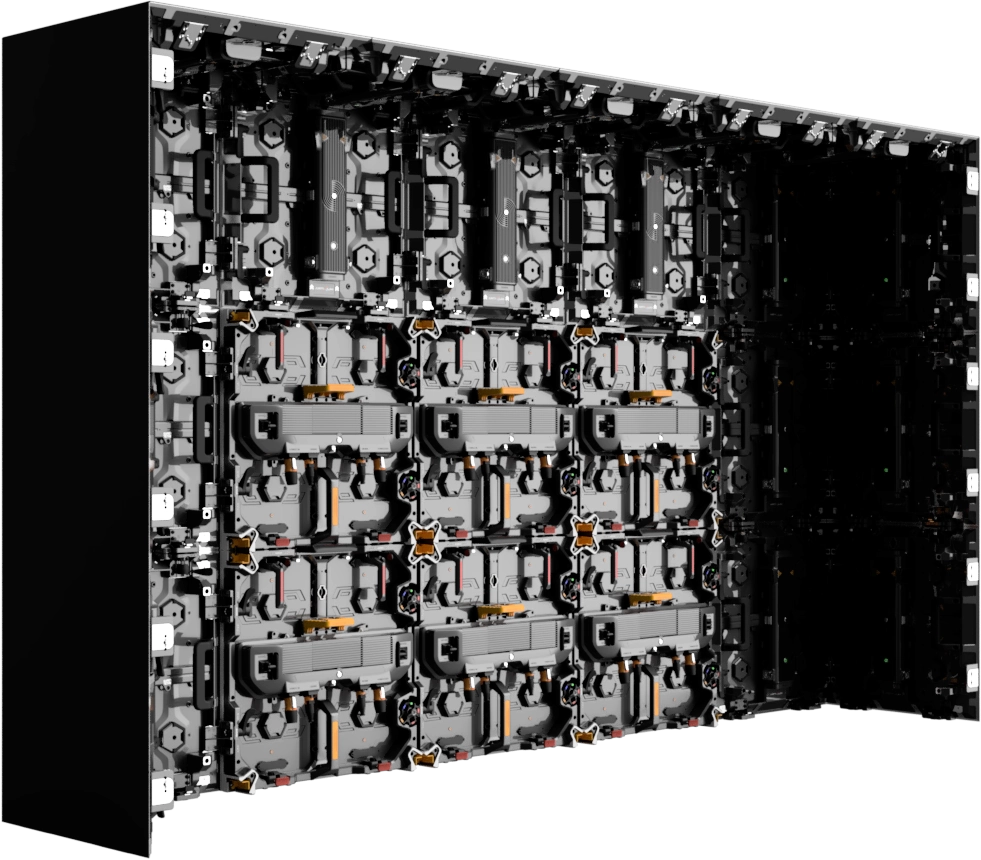

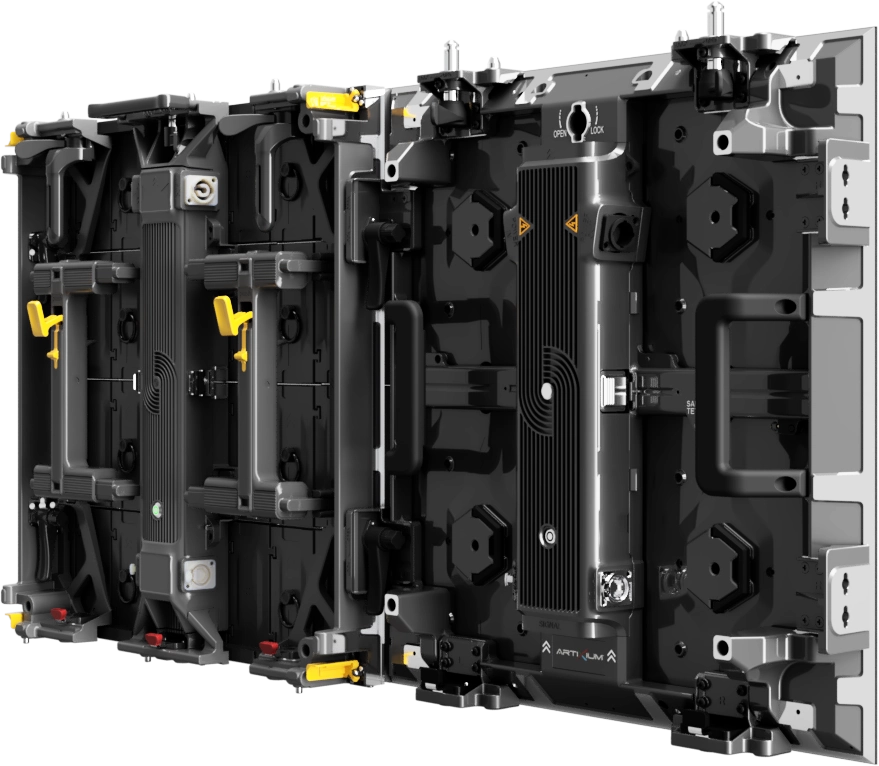

cross-compatibility

​The HELIUM 2.0 enhances our PRO TOURING lineup with exceptional compatibility features. It seamlessly integrates side-to-side with the BORON 2.0 and offers both side-to-side and top-to-bottom compatibility with the BERYL, providing unparalleled flexibility for your LED display configurations. This interoperability ensures that expanding and customizing your touring LED cabinet fleet is both efficient and straightforward.

Technical Specifications

    INDOOR
Product Parameters Unit 1.9 2.6 2.9 3.9
Pixel Pitch mm 1,95 2,60 2,98 3,91
LED   MiniLED 4in1 SMD2121
Application   Rental display for cubic applications
Ingress Protection IP IP20
Brightness cd/m² ≤ 1000 Nits @5volts ≤ 1300 Nits @5volts
Color Temperature after calib (adjustable) deg. K 6500
Viewing Angle (50% brightness) deg. 160H / 80V
Cabinet Size (WxHxD) mm 500 x 500 x 70
Display area (WxH) mm 500 x 500
Module Size (WxHxD) mm 250 x 250
Pixel Matrix Per Cabinet (WxH) px 256 x 256 192 x 192 168 x 168 128 x 128
Pixel Matrix Per Module (WxH) px 256 x 64 192 x 48 168 x 42 128 x 32
Pixel Density px/m² 262144 147456 112896 65536
Weight of cabinet and modules kg 6
Cabinet Material   Die-casting aluminum
Maintenance Mode   Front & Back
Mask specification   95% Plastic + 5% Fiber / SS Screws / No shaders
Contrast Ratio   High
Grey scale (linear) bit 16
Brightness control bit 16
Processing depth bit 16
Color   281 Trillions
Display Refresh Rate Hz 3840
Operation Power V AC85-230V
Max. Power Consumption W/m² 550 500 450
Average Power Consumption W/m² 168 150 135
Control Mode   Synchronization
Video Frame Rate Hz 50/60Hz
Input Types Supported   DVI / SDI / HDMI
3D ready (optional)   Yes
Calibration   Yes
Lifetime (50% brightness) h 50000
Operating Humidity Range   10-90%
Operating Temperature Range   -20°C / +50°C
Screen Uniformity Correction   -
Certification   CE / ETL / CCC / CB / FCC / PSE
Options   Hanging bars / stacking system
Compatibility    Compatible with the BERYL & the BORON 2.0

COMPATIBLE ACCESSORIES

MSD300-1
Sending Card
MSD600-1
Sending Card
MCTRL300
Sending Box
MCTRL600
Sending Box
MCTRL660
Sending Box
MCTRL700
Sending Box
MCTRL4K
Sending Box
MCTRL R5
Sending Box
MRV328
Receiving card
MRV336
Receiving card
MRV366
Receiving card
MRV412
Receiving card
MRV432
Receiving card
MRV208
Receiving card
MRV266
Receiving card
MRV216
Receiving card
MRV416
Receiving card
MRV300-1
Receiving card
MRV560-1
Receiving card
AT32
Receiving card
A4S
Receiving card
A5S
Receiving card
A5S PLUS
Receiving card
A7S PLUS
Receiving card
A8S
Receiving card
A8S-N
Receiving card
A10S PLUS
Receiving card
A10S PRO
Receiving card
TB30
Media Player
TB50
Media Player
TB60
Media Player
VX4S-N
Video Processor
VX6S
Video Processor
VX600
Video Processor
VX1000
Video Processor
VX16S
Video Processor
HDR MASTER 4K
Video Processor
NOVAPRO UHD
Video Processor
NOVAPRO UHD JR
Video Processor
J6
Video Processor
MON300
Monitor Card
NS060
Light Sensor
MTH310
Temperature sensor
TCB300 LCD PLAYER
Media Player
CVT310
Fiber Converter
CVT320
Fiber Converter
CVT4K-S
Fiber Converter
CVT4K-M
Fiber Converter
CVT10
Fiber Converter
CVT10 PRO
Fiber Converter
ACCESSORY FLIGHT CASE
Flight case
Request a quotation
*
*
*
*
