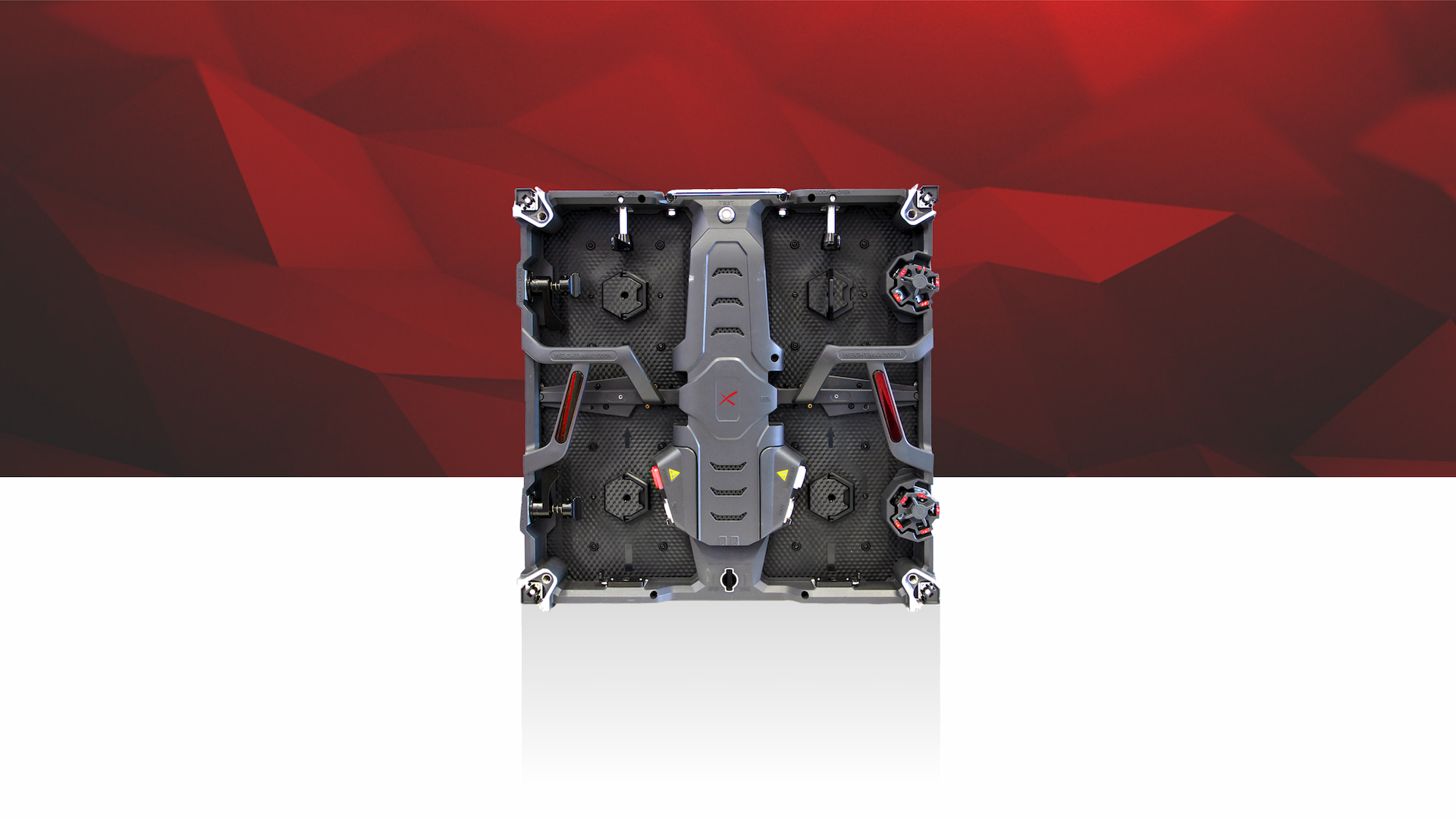

Although the CRYSTAL is designed for rental purposes, it can also fit permanent indoor installations. With a pixel pitch ranging from P1.8 to P3.9 and many user-friendly features, the CRYSTAL offers a great visual
experience and an easy integration and dismantlement process. It also allows curves, and we can provide you with cabinets specially beveled to fit 90° applications.
Application
Indoor
PIXEL PITCH
P1.8 P2.6 P2.9 P3.9
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP41
Display Area (W X H)
500 x 500 mm

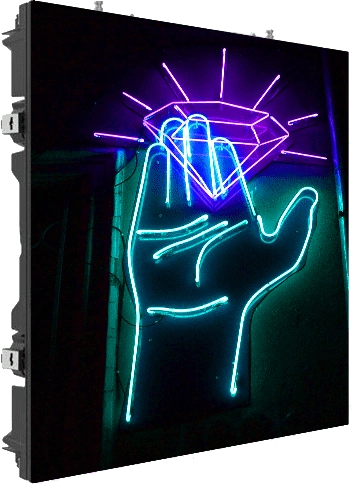

BRIGHTNESS
≤ 1000 Nits @5 Volts (miniled 4in1)
≤ 1500 Nits @5 Volts (SMD LED TYPE)
WEIGHT
8.5kg/cabinet
MATERIAL

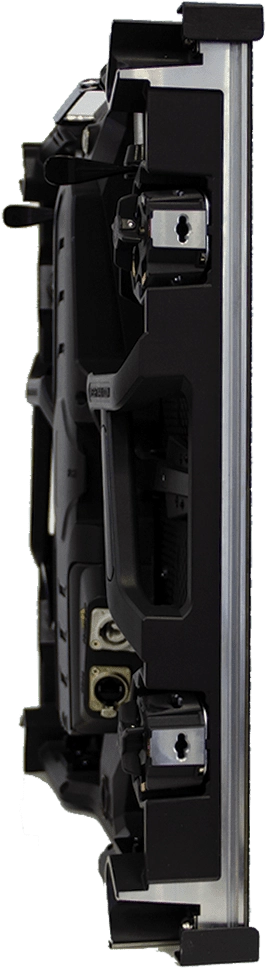

DIE-CASTING ALUMINUM
The P1.8 CRYSTAL cabinet uses the MINILED 4in1 technology, where four LEDs are encaplused in one, adding both resistance and display quality to your LED screen. It also allows you to repair just one LED instead of replacing the whole module using a tool designed for this purpose.

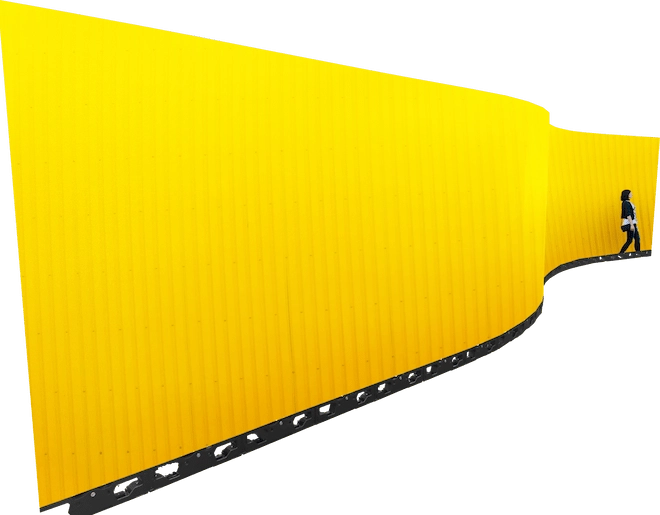

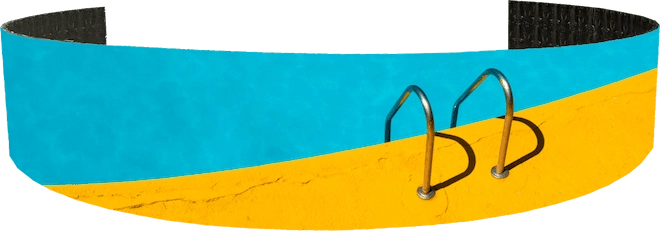

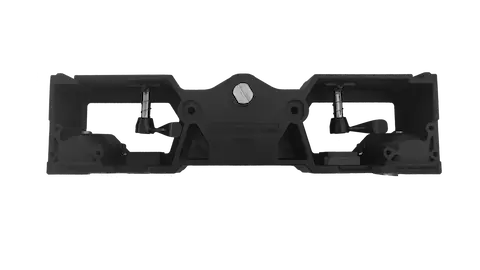

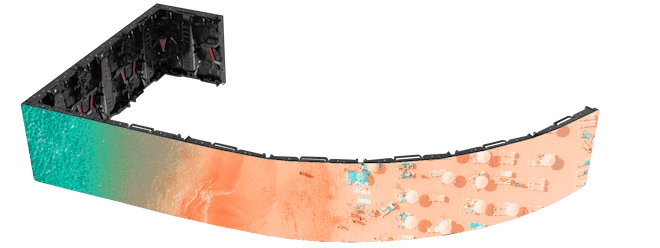

The CRYSTAL is designed to fit custom application projects, allowing curves, angles, and supporting different integration methods such as hanging, floor stacking, and more. The same cabinets can be used for many different projects, making the CRYSTAL LED a profitable investment for anyone who’s involved in the event industry.

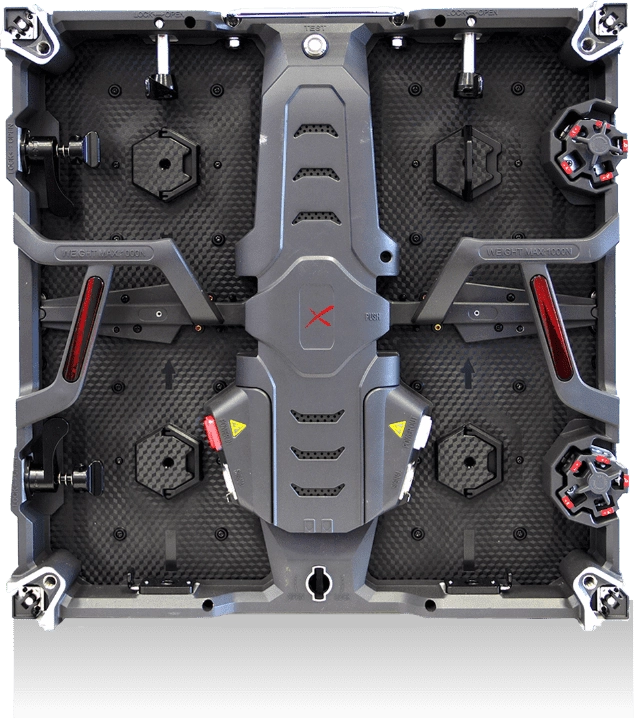

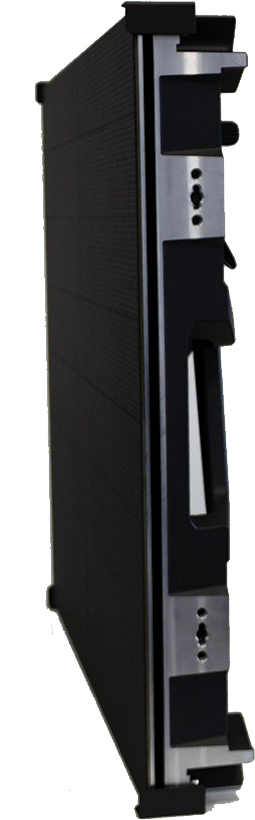

With toolless cabinet locking systems, curve locking systems, corner protections, and intelligent front or back access systems, the CRYSTAL is meant to be quick and easy to integrate, disassemble, and maintain. One technician is enough for both these processes, making this product an ideal touring solution.
| INDOOR | |||||
| Product Parameters | Unit | 1.8 | 2.6 | 2.9 | 3.9 |
| Pixel Pitch | mm | 1,89 | 2,60 | 2,98 | 3,91 |
| LED | MiniLED 4in1 | SMD2020 Full Black Face | SMD2020 Full Black Face | SMD2020 Full Black Face | |
| Application | Fine pitch rental application | ||||
| Ingress Protection | IP | IP41 | |||
| Brightness | cd/sqm | ≤ 1000Nits @5volts | ≤ 1500 Nits @5volts | ||
| Color Temperature after calib (adjustable) | deg. K | 6500 | |||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | |||
| Cabinet Size (WxHxD) | mm | 500 x 500 x 71 | |||
| Display area (WxH) | mm | 500 x 500 | |||
| Module Size (WxHxD) | mm | 250 x 250 x 15 | |||
| Pixel Matrix Per Cabinet (WxH) | px | 264 x 264 | 192 x 192 | 168 x 168 | 128 x 128 |
| Pixel Matrix Per Module (WxH) | px | 132 x 132 | 96 x 96 | 84 x 84 | 64 x 64 |
| Pixel Density | px/sqm | 278784 | 147456 | 112896 | 65536 |
| Weight of cabinet and modules | kg | 8.5 | |||
| Cabinet Material | Die-casting aluminum | ||||
| Maintenance Mode | Front & back | ||||
| Mask specification | 95% Plastic + 5% Fiber / Clip type (no screws) / No Shaders | ||||
| Contrast Ratio | High | ||||
| Grey scale (linear) | bit | 16 | |||
| Brightness control | bit | 16 | |||
| Processing depth | bit | 16 | |||
| Color | 281 Trillions | ||||
| Display Refresh Rate | Hz | 3840 | |||
| Operation Power | V | AC85-230V | |||
| Max. Power Consumption | W/sqm | 800 | |||
| Average Power Consumption | W/sqm | 320 | |||
| Control Mode | Synchronization | ||||
| Video Frame Rate | Hz | 50/60Hz | |||
| Input Types Supported | DVI / SDI / HDMI | ||||
| 3D ready (optional) | Yes | ||||
| Calibration | Yes | ||||
| Lifetime (50% brightness) | h | 50000 | |||
| Operating Humidity Range | 10-95% | ||||
| Operating Temperature Range | -10°C / +50°C | ||||
| Screen Uniformity Correction | Below 0.0001 (Out of Control point) | ||||
| Certification | CE / ETL / CCC | ||||
| Features | Corner protection | ||||
