The BORON is the latest addition to our EVENT range. This product is unique in its overall design, wich allows ±25° inward and outward curves. This feature, combined with this LED cabinet’s lightweight and, makes it ideal for rental purposes, as it will fit many different exhibitions, scenographic applications, etc. Easy to install and dismount, the BORON can be provided with modulable trusses and hanging bars.
Application
Indoor
PIXEL PITCH
P1.9 P2.9 P3.7
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP20
Display Area (W X H)
500 x 500 mm
BRIGHTNESS
≤ 1200 NITS @5volts
WEIGHT
7.7 - 7 kg
MATERIAL
Die-casting aluminum

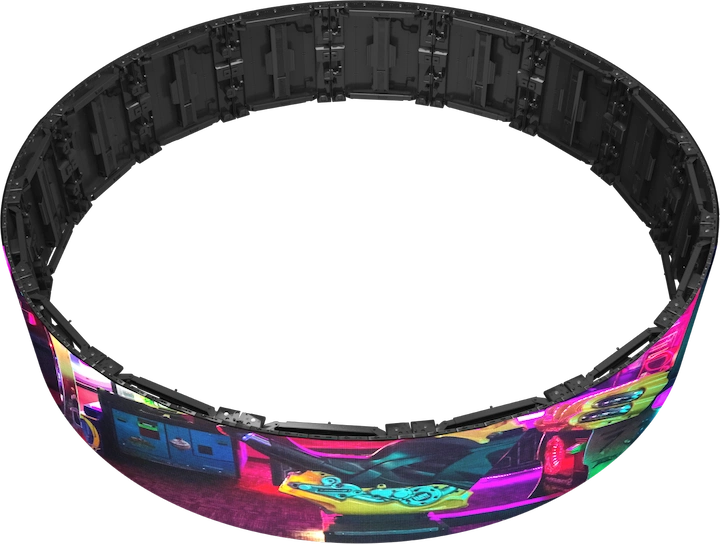

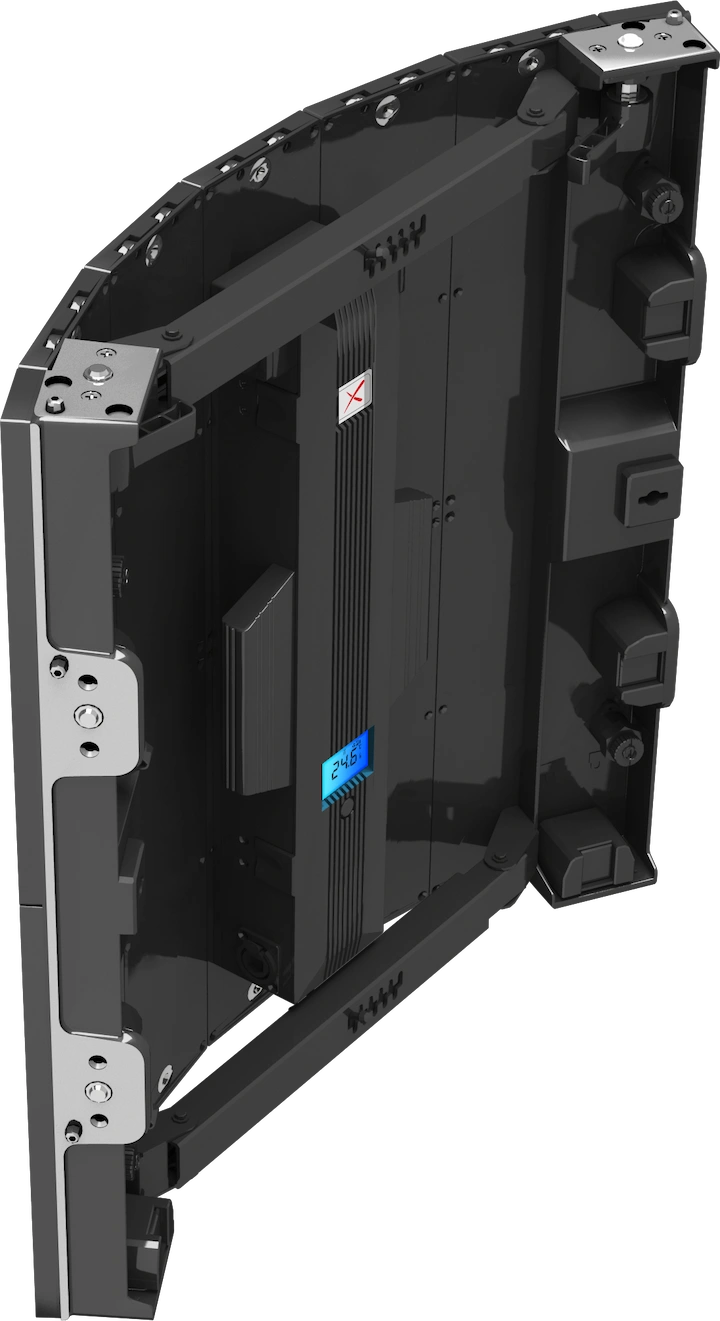

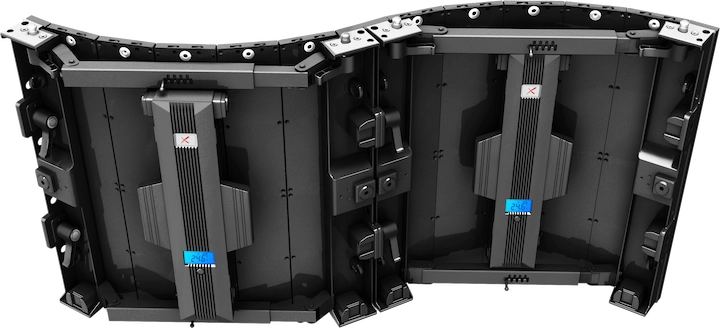

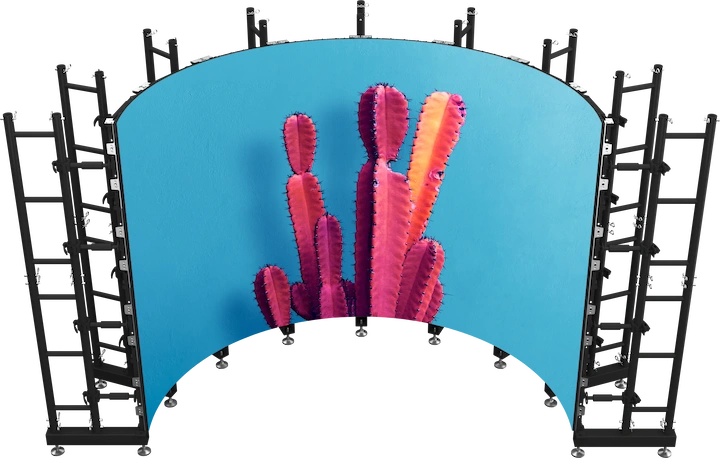

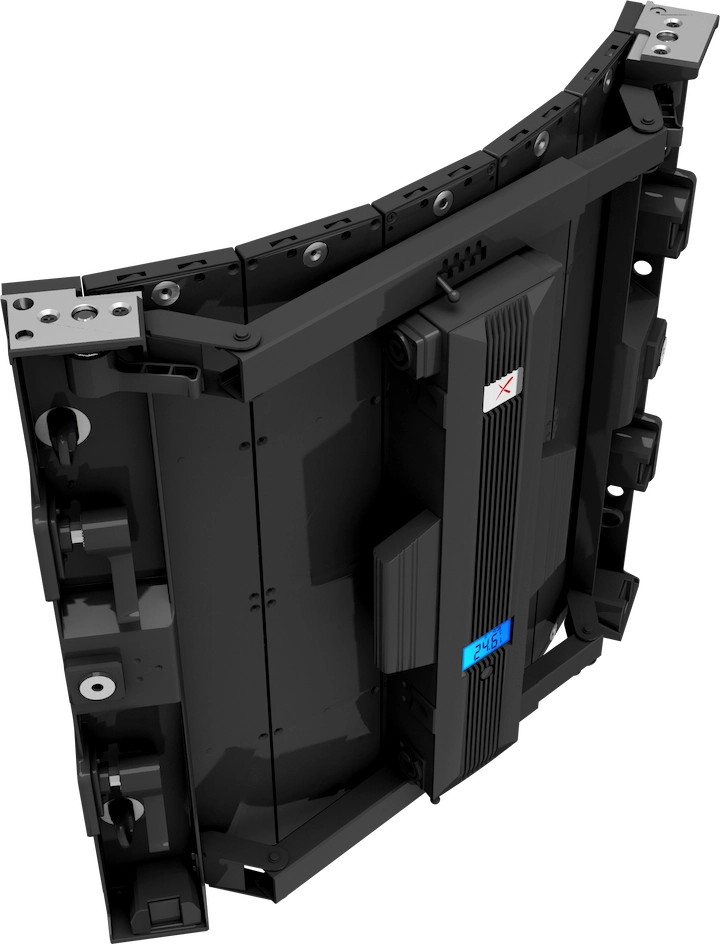

The BORON is quite peculiar, as where other cabinets have 4fouror more modules, it only has one articulated 500 x 500 mm LED module, fixed to a curvable heavy duty frame. Each cabinet can thus be curved at a 25° angle, both inward or outward, allowing you to create custom rental applications on the spot.
With a pixel pitch ranging from P1.9 to P3.7, the BORON is capable of displaying high quality, even HD content. Combined with the integrated system, this feature allows a great deal of creativity for your rental applications.

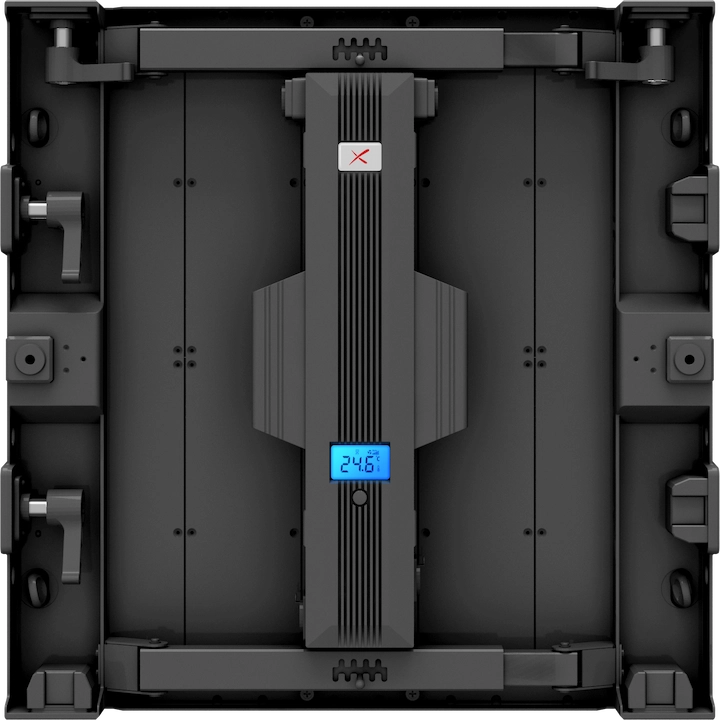

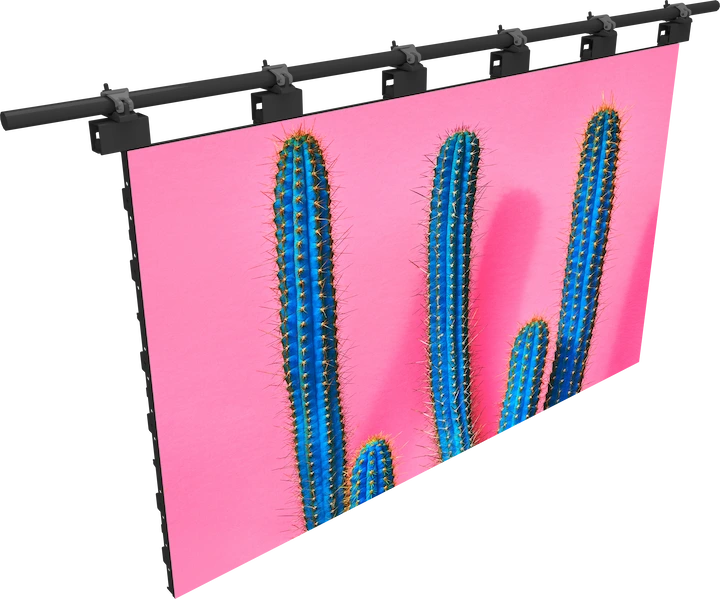

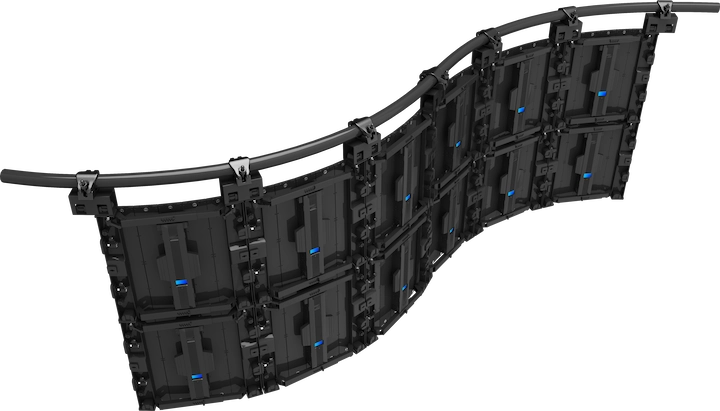

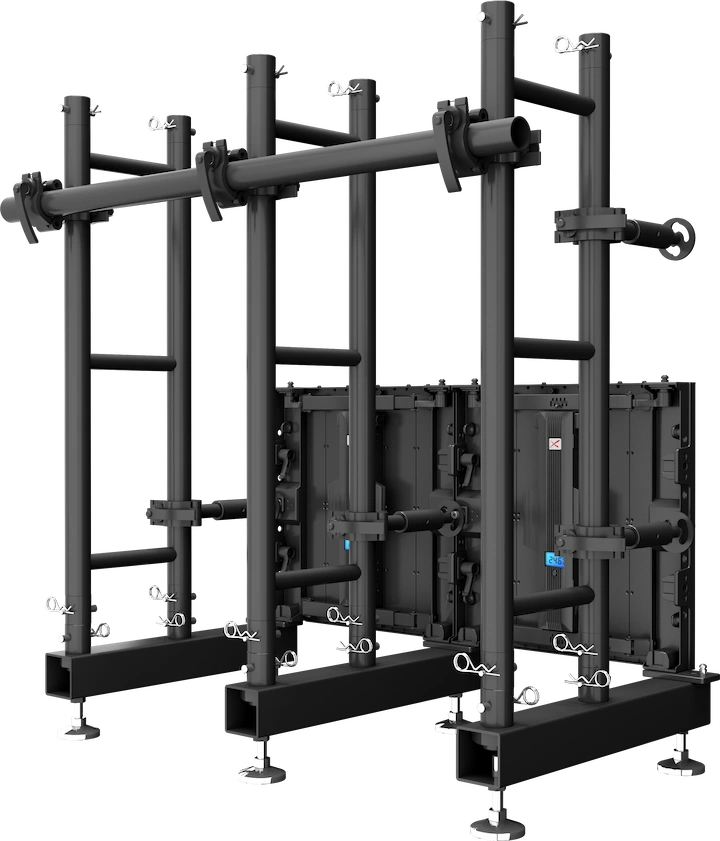

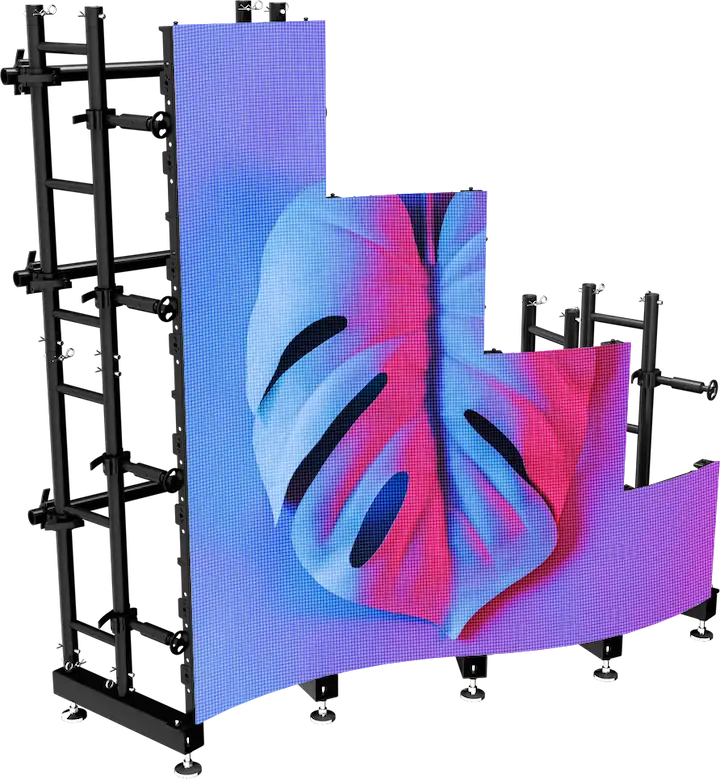

The BORON in itself is a touring-oriented display, with toolless locking systems, toolless curve setting, LCD monitoring screen, easy maintenance system, etc. This is further enhanced by the addition of adaptable, modular installation accessories, allowing custom curved floor stacking and hanging.

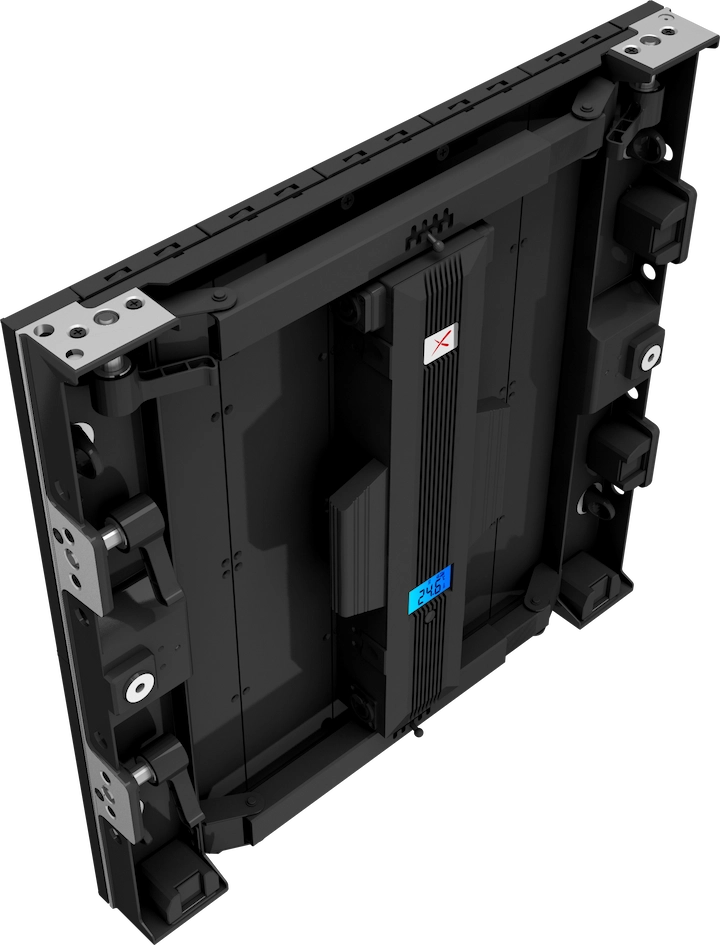

The module of the BORON is both mechanically and magnetically fixed to its frame, and can be removed from the front or the back of your LED display. The power box is fixed to the module, so it can be accessed from the front of your screen by removing the module, of directly from the back without removing the module. The maintenance process is designed to be quick, efficient, and applicable in any given screen disposition by one qualified technician.

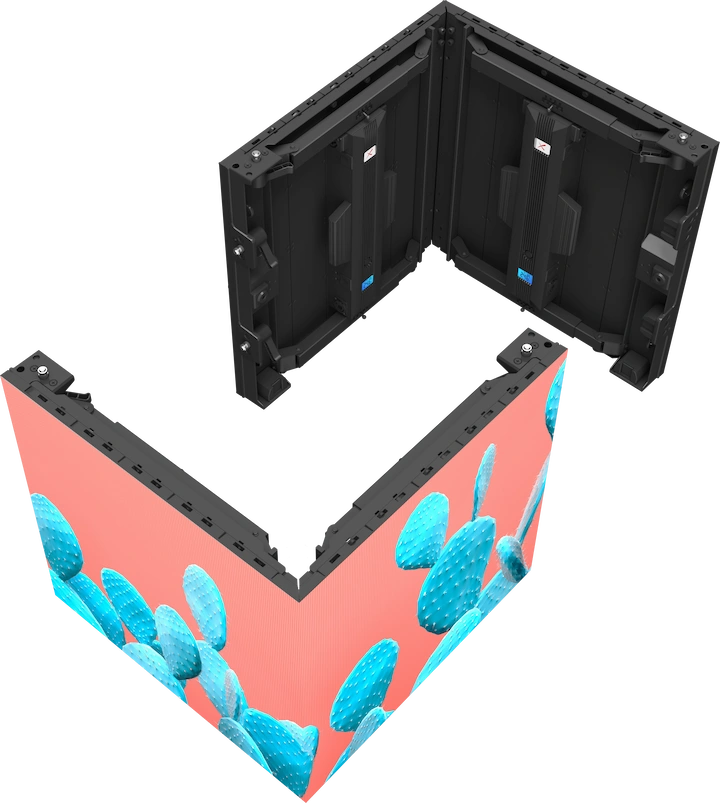

In order to further its adaptability to every project, we can provide BORON cabinets bevelled at 45° for seamless 90° applications. This, combined with the modular curving system, allows you to conceive the most creative applications for exhibitions, shows, concerts, festivals, etc.
The BORON toolless locking system is rather straightforward, using mechanical handlocks similar to those on the BERYL, AYRGON and other touring products. Thi system allows a sturdy yet quick installation process for your giant LED screen.
| INDOOR | ||||
| Product Parameters | Unit | 1.9 | 2.9 | 3.7 |
| Pixel Pitch | mm | 1,95 | 2,98 | 3,79 |
| LED | SMD1515 | |||
| Application | Rental flexible LED cabinet | |||
| Ingress Protection | IP | IP30 | ||
| Brightness | cd/sqm | ≤ 800 Nits @5volts | ≤ 1200 Nits @5volts | |
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||
| Viewing Angle (50% brightness) | deg. | 160H / 160V | ||
| Cabinet Size (WxHxD) | mm | 500 x 500 x 70 | ||
| Display area (WxH) | mm | 500 x 500 | ||
| Module Size (WxHxD) | mm | 500 x 500 | ||
| Pixel Matrix Per Cabinet (WxH) | px | 256 x 256 | 168 x 168 | 132 x 132 |
| Pixel Matrix Per Module (WxH) | px | 256 x 256 | 168 x 168 | 132 x 132 |
| Pixel Density | px/sqm | 262144 | 112896 | 69696 |
| Weight of cabinet and modules | kg | 7.7 | 7 | |
| Cabinet Material | Die-casting aluminum | |||
| Maintenance Mode | Back & front | |||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / No shaders | |||
| Contrast Ratio | High | |||
| Grey scale (linear) | bit | 16 | ||
| Brightness control | bit | 16 | ||
| Processing depth | bit | 16 | ||
| Color | 281 Trillions | |||
| Display Refresh Rate | Hz | 3840 | ||
| Operation Power | V | AC85-230V | ||
| Max. Power Consumption | W/sqm | 400 | ||
| Average Power Consumption | W/sqm | 120 | ||
| Control Mode | Synchronization | |||
| Video Frame Rate | Hz | 50/60Hz | ||
| Input Types Supported | DVI / SDI / HDMI | |||
| 3D ready (optional) | Yes | |||
| Calibration | Yes | |||
| Lifetime (50% brightness) | h | 50000 | ||
| Operating Humidity Range | 10-80% | |||
| Operating Temperature Range | -40°C / +45°C | |||
| Screen Uniformity Correction | - | |||
| Certification | CE / ETL / CCC | |||
| Options | Corner protections / 90° cabinets | |||
| Compatibility | No | |||
