This indoor LED totem comes with an asymmetric pixel pitch that allows the broadcasting of visual content whilst retaining up to 65% transparency. It's a lightweight and reliable product, with a potential brightness high enough for semi-indoor applications. The ONYX TR is available in two versions: single face or double face; and several totems can be joined to extend the display surface.
Application
Indoor
PIXEL PITCH
P1.9a3.9 P2.8a5.6 P3.9a7.8
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP22
Display Area (W X H)
1000 x 2000 mm
BRIGHTNESS
≤5500 Nits @5 Volts
WEIGHT
30 kg (Single face)
45 kg (Double face)
MATERIAL
ALUMINUM

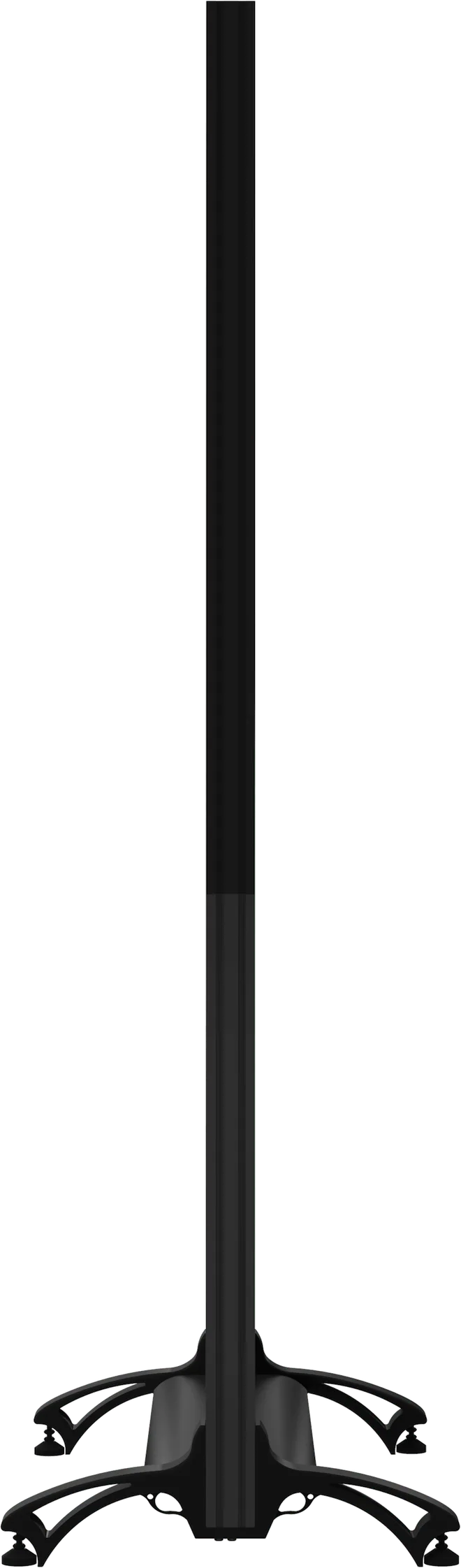

The ONYX TR comes with a stand that makes it easy to simply put on the floor. However, we can provide wheeled LED totems as well as a version with suspension rings for ceiling applications.

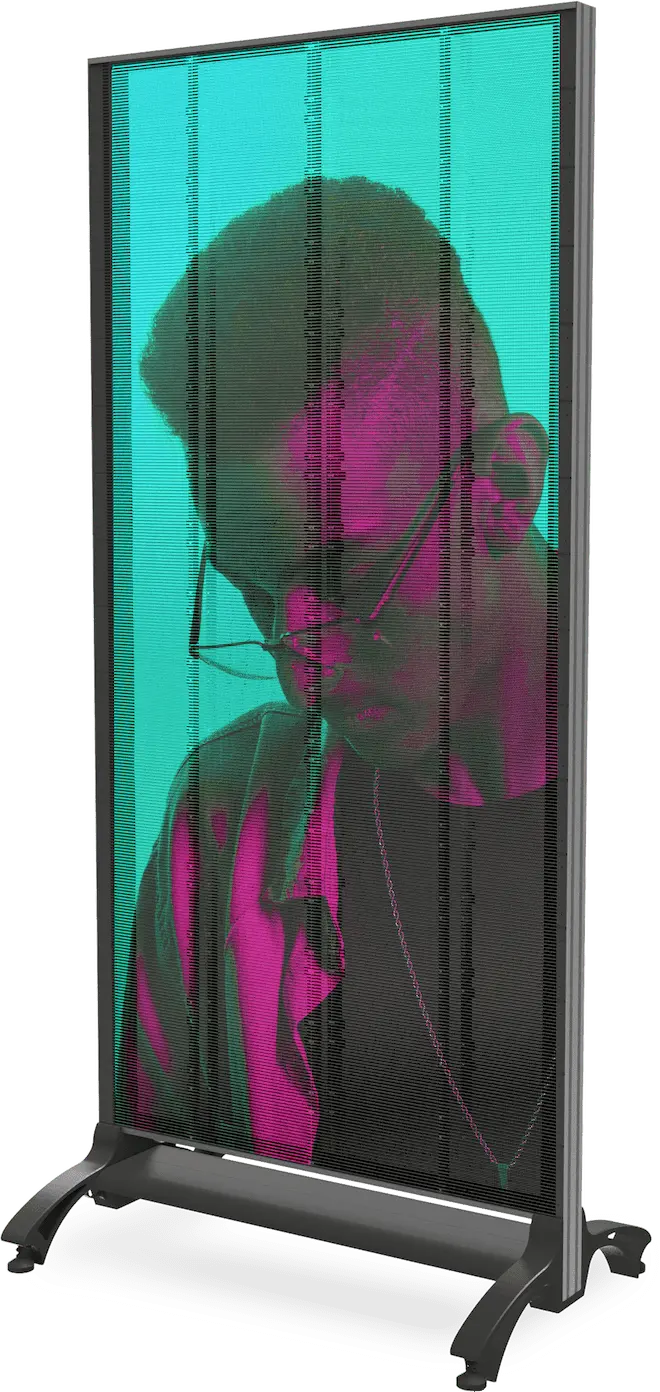

With a brightness going up to 5500 NITS, the ONYX TR can easily display visual content from the interior of a building to the exterior, through a glass surface. It's a polyvalent product that can fit any aesthetic or promotional project.

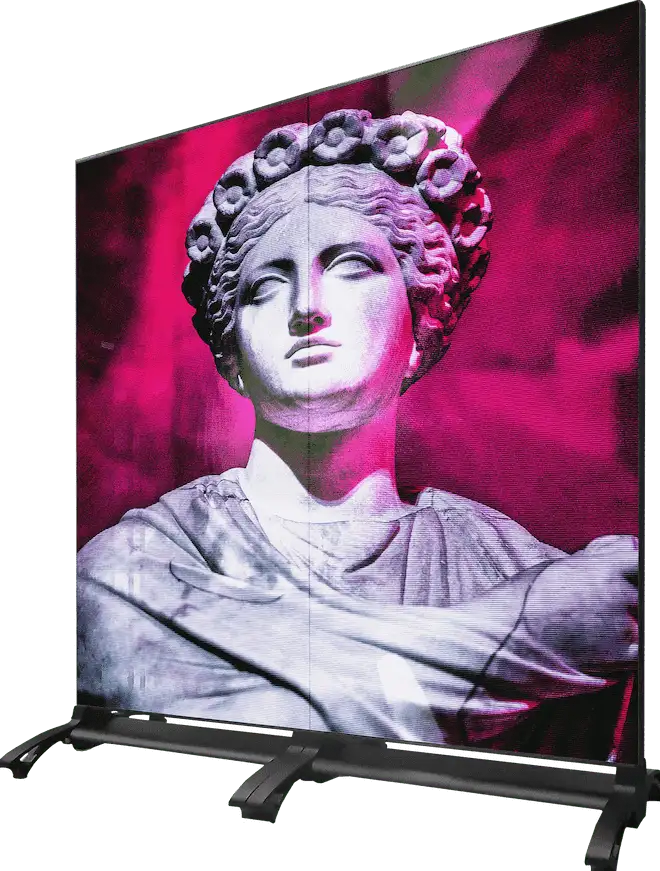

The ONYX TR comes with a plug & play system that facilitates the broadcasting of visual content, whether on one screen or several assembled totems.
Weighing from 30 kg to 45 kg, the ONYX TR can easily be shifted by two people to fit the needs of the moment on the spot. With this product, you can adapt your LED application to your shop's evolution.
The ONYX TR retains a certain transparency thanks to its asymmetric pixel pitch. This feature lets passersby see through your LED display, making it an ideal solution if you want to broadcast attractive visual content whilst conserving your shop's visual identity.
INDOORBack MaintenanceFront MaintenanceHigh BrightnessSolutionMobilityPlug & PlayShopping MallStoreTransparent
| INDOOR | ||||
| Product Parameters | Unit | 1.9a3.9 | 2.8a5.6 | 3.9a7.8 |
| Pixel Pitch | mm | 1,98 x 3,91 | 2,84 x 5,68 | 3,91 x 7,81 |
| LED | SMD1515 | SMD 1921 | ||
| Application | Fixed installation column type | |||
| Ingress Protection | IP | IP22 | ||
| Brightness | cd/sqm | ≤ 800 - 5500 Nits @5volts | ||
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | ||
| Device size (WxHxD) | mm | 1000 x 2214 x 650 | ||
| Display area (WxH) | mm | 1000 x 2000 | ||
| Cabinet size (WxHxD) | mm | No cabinet | ||
| Module size (WxHxD) | mm | 500 x 125 | ||
| Device pixel matrix (WxH) | px | 505 x 512 | 352 x 352 | 256 x 256 |
| Cabinet pixel matrix (WxH) | px | - | ||
| Module pixel matrix (WxH) | px | 253 x 32 | 176 x 22 | 128 x 16 |
| Pixel Density | px/sqm | 129169 | 61992 | 32747 |
| Weight | kg | 30 (single face) / 45 (double face) | ||
| Cabinet Material | Aluminum | |||
| Maintenance Mode | Front and back (tools required) | |||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders | |||
| Contrast Ratio | High | |||
| Grey scale (linear) | bit | 16 | ||
| Brightness control | bit | 16 | ||
| Processing depth | bit | 16 | ||
| Color | 281 Trillions | |||
| Display Refresh Rate | Hz | 3840 | ||
| Operation Power | V | AC50-220V ± 10% | ||
| Max. Power Consumption | W/sqm | 800 | ||
| Average Power Consumption | W/sqm | 400 | ||
| Control Mode | Synchronization | |||
| Video Frame Rate | Hz | 50/60Hz | ||
| Input Types Supported | DVI / SDI / HDMI | |||
| 3D ready (optional) | Yes | |||
| Calibration | Yes | |||
| Lifetime (50% brightness) | h | 50000 | ||
| Operating Humidity Range | 10%～80% | |||
| Operating Temperature Range | -14°C / +45°C | |||
| Screen Uniformity Correction | ||||
| Certification | CE / ETL / CCC | |||
| Available options | Double face | |||
| Compatibility | Compatible with each other | |||
