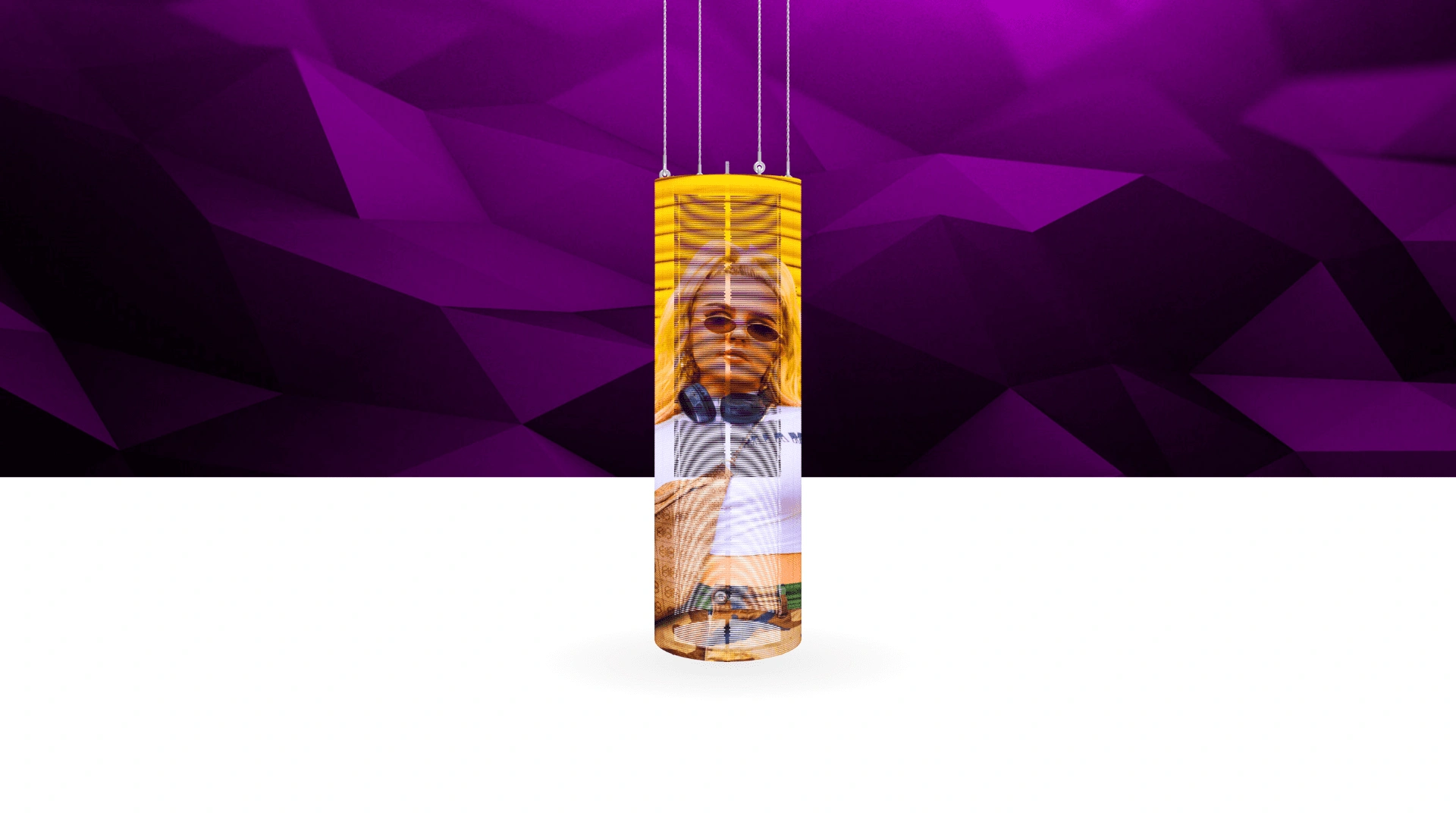

The CAGE can be hung from a ceiling as a chandelier LED display as well as on the floor as a LED totem. It’s a great solution if you’re looking for a way to modernize your business's visual identity. The design of the CAGE allows transparency and lets your LED display blend into the interior architecture of your building. The remote display control facilitates the CAGE’s management and lets you change your visual content with ease according to the tendencies of the moment.
Application
Indoor
PIXEL PITCH
P3.9a7.8 P7.8
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP22
Display Area (W X H)
3141 x 2000 mm
BRIGHTNESS
≤5500 Nits @5 Volts
WEIGHT
7 kg/sqm
MATERIAL
CNC Cutted Aluminum
The CABLE was added to our product range to facilitate your LED display's integration as much as possible. Thanks to the 2-in-1 data and power cable, its implementation is a quick and easy task. The visual display can then be managed from a distance, making your CABLE an accessible yet beautiful accessory to enhance your facilities.

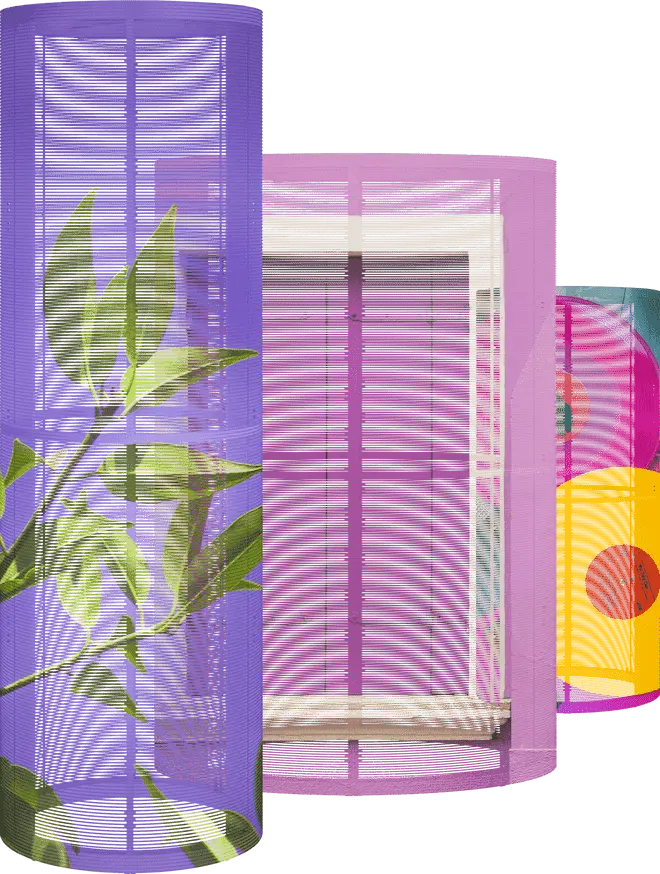

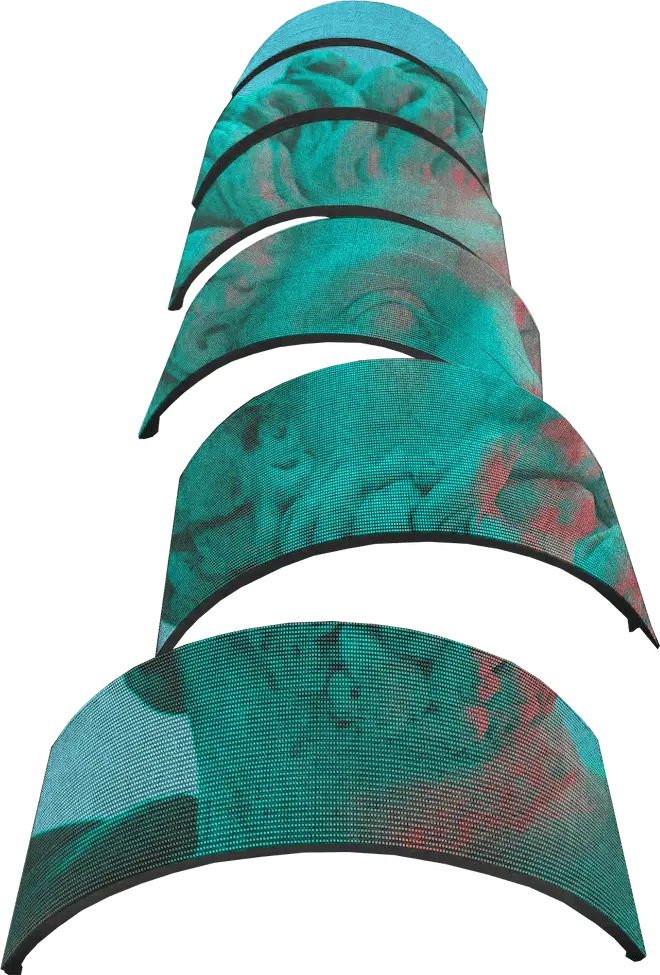

The standard CAGE is a cylinder of 636 mm in diameter and 500 mm in height, it's composed of two cabinets integrated. Both the diameter and height of your CAGE can be adjusted on-demand by adding cabinets vertically or horizontally.
The CAGE is a semi-indoor LED display, with a brightness sufficient for it to be visible from outside your shop through a glass surface. Furthermore, its transparency allows for passersby to see through the CAGE into your interior when they're taking a glance at your shop front.
INDOORBack MaintenanceHigh BrightnessSolutionCreativeEasy AssemblyShopping MallStoreTransparent
| INDOOR | |||
| Product Parameters | Unit | 3.9a7.8 | 7.8 |
| Pixel Pitch | mm | 3,91 x 7,81 | 7,81 |
| LED | SMD 1921 | ||
| Application | Indoor 360° LED application | ||
| Ingress Protection | IP | IP22 | |
| Brightness | cd/sqm | ≤ 800 - 5500 Nits @5volts | |
| Color Temperature after calib (adjustable) | deg. K | 3500-9300 Adjustable | |
| Viewing Angle (50% brightness) | deg. | 160°H / 160°V | |
| Device size (øxH) | mm | 1000 x 2000 | |
| Display area (WxH) | mm | 3141 x 2000 | |
| Cabinet size (WxHxD) | mm | No cabinet | |
| Module size (WxHxD) | mm | 500 x 500 x 1.6 | |
| Device pixel matrix (WxH) | px | 402 x 256 | |
| Cabinet pixel matrix (WxH) | px | - | |
| Module pixel matrix (WxH) | px | 128 x 64 | 64 x 64 |
| Pixel Density | px/sqm | 32747 | 16384 |
| Weight | kg/sqm | 7 | |
| Cabinet Material | CNC aluminum | ||
| Maintenance Mode | Back | ||
| Mask specification | No mask | ||
| Contrast Ratio | High | ||
| Grey scale (linear) | bit | 16 | |
| Brightness control | bit | 16 | |
| Processing depth | bit | 16 | |
| Color | 281 Trillions | ||
| Display Refresh Rate | Hz | 1920 | |
| Operation Power | V | AC220V | |
| Max. Power Consumption | W/sqm | 800 | |
| Average Power Consumption | W/sqm | 180 | |
| Control Mode | Synchronization | ||
| Video Frame Rate | Hz | 50Hz | |
| Input Types Supported | DVI / SDI / HDMI | ||
| 3D ready (optional) | - | ||
| Calibration | Yes | ||
| Lifetime (50% brightness) | h | 50000 | |
| Operating Humidity Range | 10 / 80% | ||
| Operating Temperature Range | -10°C / +45°C | ||
| Screen Uniformity Correction | - | ||
| Certification | FCC / CE / ETL / CCC / CB | ||
| Available options | - | ||
| Compatibility | No | ||
