With the IMMERSIVE LED BOX, we offer a means to digitalize your audio-visual studio. This product, tailored with MICA modules and HYDROGEN cabinets assembled on a steel structure, replaces the traditional green screen with a high definition three dimensions LED screen, broadcasting a live high-quality virtual background with its fine pixel pitch, on a 71.4 sqm surface. Even though this solution was designed for the audio-visual industry, it can suit any project where immersion is paramount (museums, showrooms, waiting lobbies, etc.). Thanks to the rubber mask of the MICA modules, the IMMERSIVE LED BOX is echo-proof, making the filming process a lot easier.
Application
Indoor
PIXEL PITCH
P2.5
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP43 (mica)
IP65 (hydrogen)
Display Area (W X H)
3520 x 960 mm (6pcs)
3520 x 3520 mm (2pcs)
3520 x 1920 mm (3pcs)
611 x 611 x 489 mm (4pcs)
BRIGHTNESS
≤1000 NITS @5 Volts
WEIGHT
489 x 1920 mm (2pcs
MATERIAL
Steel with reinforcements (Hydrogen)
Rubber, magnets & pcb (Mica)

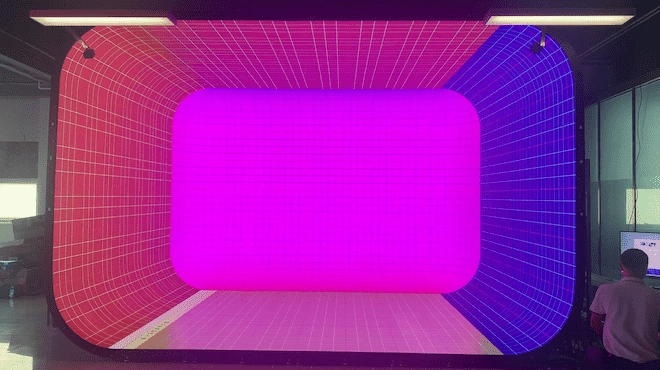

The IMMERSIVE LED BOX is made of MICA modules and HYDROGEN cabinets from our media product range. The first is renowned for its flexibility, fine pixel pitch, and easy front or back maintenance. The latter, with the GME (global module encapsulation), custom size, and the front access option, offers enough resistance to be used as a floor while displaying a P2.5 pixel pitch equivalent to the MICA's.

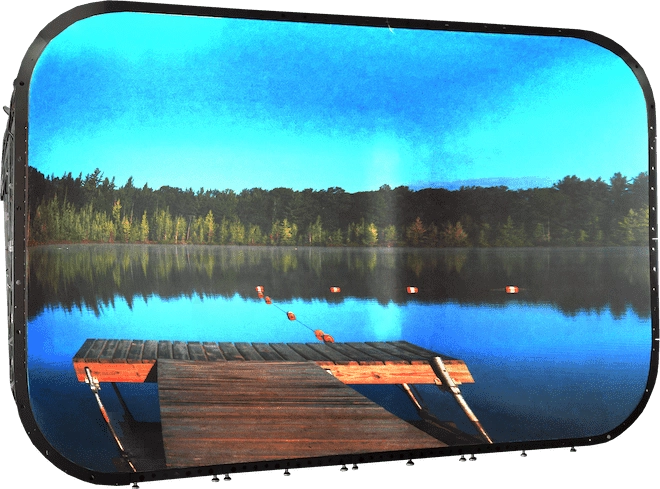

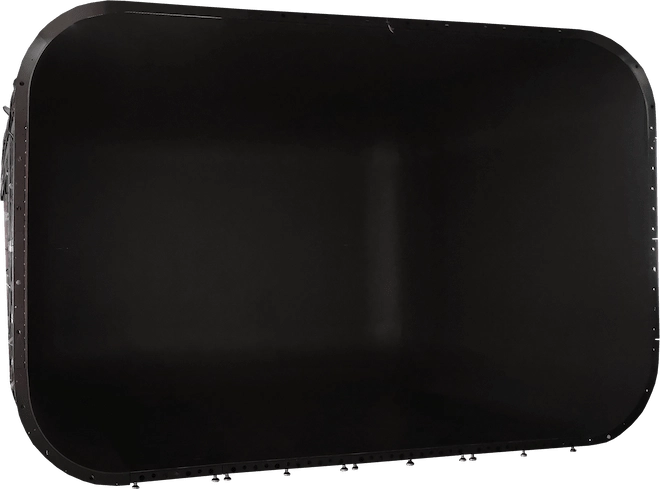

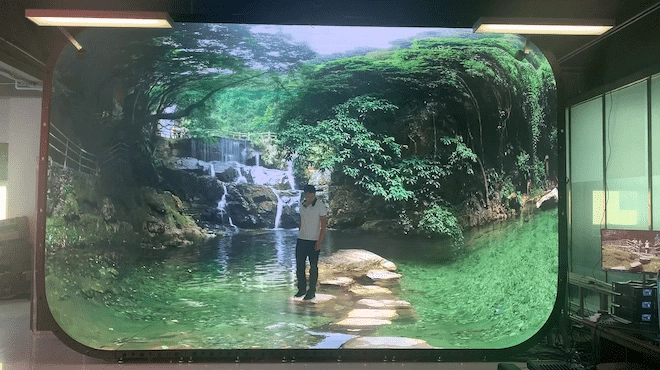

With a brightness going up to 1000 NITS, a high contrast ratio, and a 2.5mm pixel pitch, the IMMERSIVE LED BOX is designed to display lifelike high-quality visual content. It's the ideal solution for a virtual stage in a film or news studio.

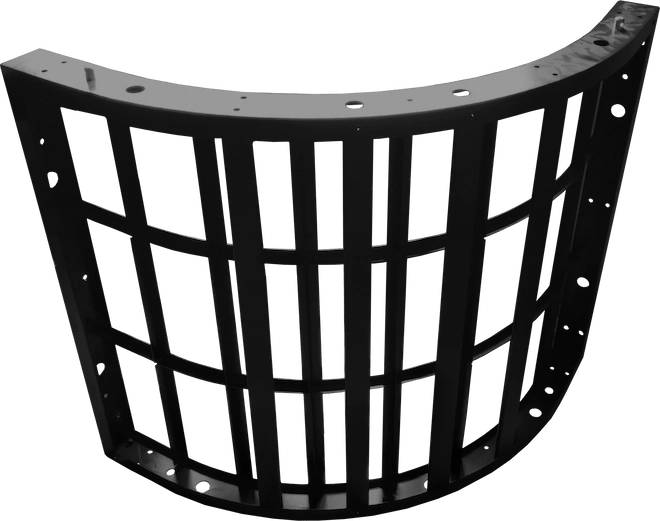

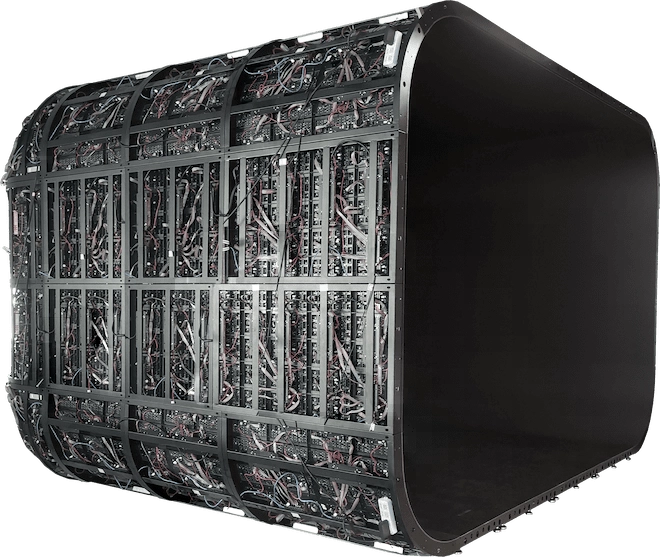

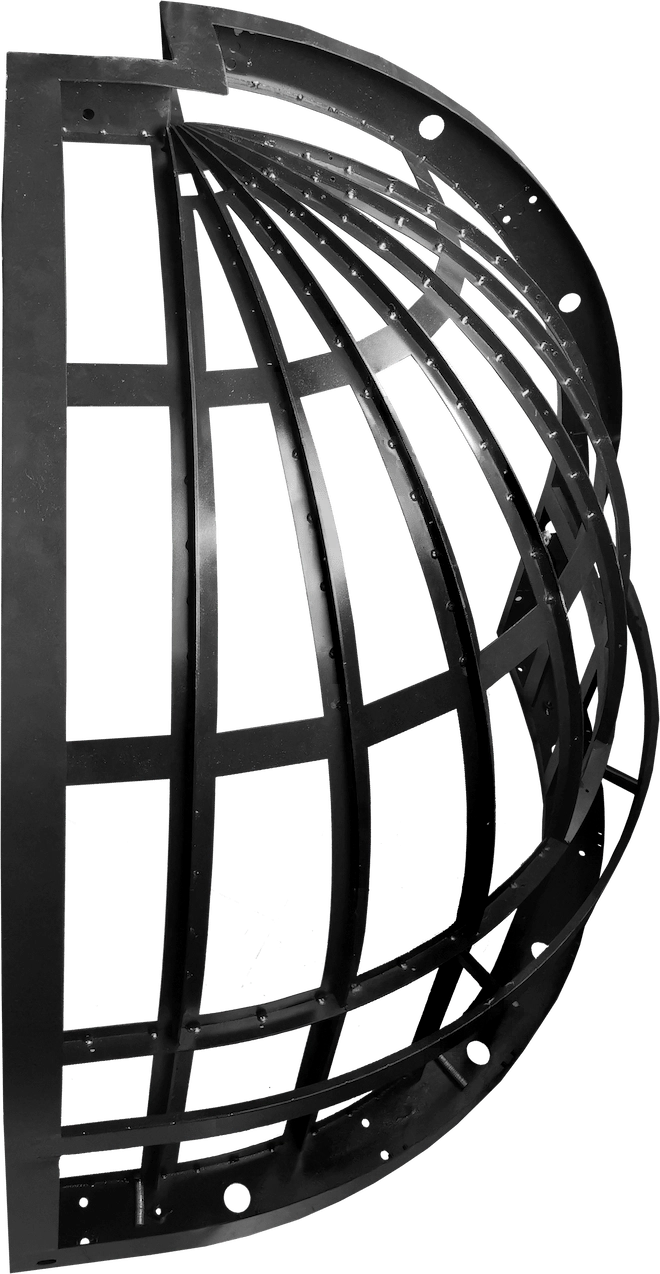

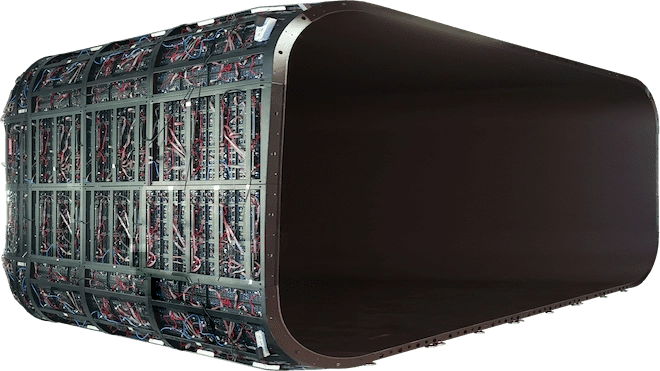

We have the IMMERSIVE LED BOX's frame made to be tough and resilient whilst allowing easy maintenance from the front or the back of your LED studio.

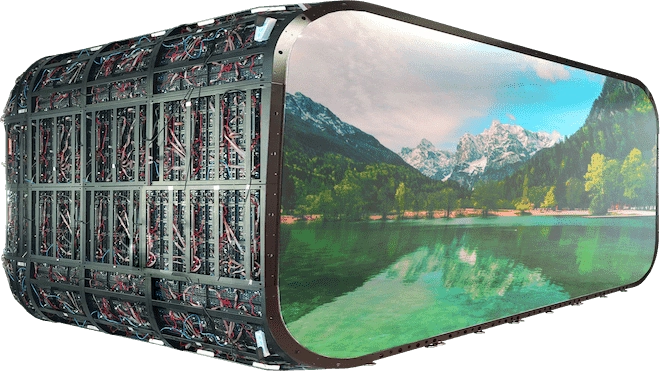

According to your studio's needs, we can provide an IMMERSIVE LED BOX tailored to your project thanks to the high modularity of the HYDROGEN and the MICA.

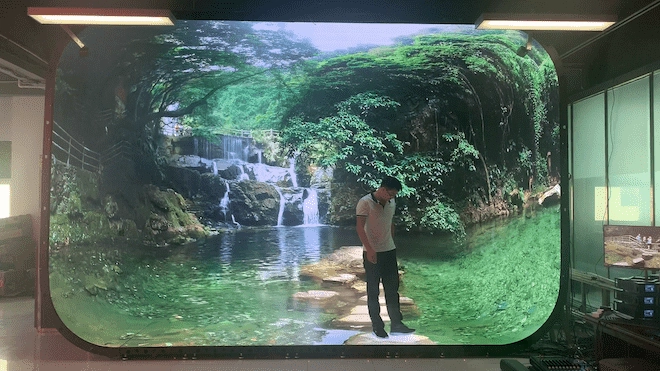

With this product, the seamless assembly of the different LED parts is key to offering a proper immersive experience. Therefore, the angles are made out of custom flexible LED modules to allow a perfect junction, for an immersive product.
INDOORBack MaintenanceFront MaintenanceSolutionIntegrated LED DisplayFine PitchHigh ResolutionCustom SizeImmersive LED Box
| INDOOR | ||
| Product Parameters | Unit | P2.5 |
| Pixel Pitch | mm | 2,50 |
| LED | SMD1921 (Hydrogen) / SMD2121 (Mica) | |
| Application | Indoor | |
| Ingress Protection | IP | IP65 (Hydrogen) / IP41 (Mica) |
| Brightness | cd/sqm | ≤ 1000 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 |
| Viewing Angle (50% brightness) | deg. | 140 H / 140 V |
| Device size (WxHxD) | mm | 3142 x 4742 x 4143 |
| Display area (WxH) | mm | 489 x 1920 (2pcs) 3520 x 960 (6pcs) 3520 x 3520 (2pcs) 3520 x 1920 (3pcs) 611 x 611 x 489 (4pcs) |
| Cabinet size (WxHxD) | mm | 960 x 960 x 198 (Hydrogen) / No cabinet (Mica) |
| Module size (WxHxD) | mm | 320 x 160 (Hydrogen) / 240 x 120 x 9 (Mica) |
| Device pixel matrix (WxH) | px | 1257 x 1897 x 1657 |
| Cabinet pixel matrix (WxH) | px | 384 x 384 |
| Module pixel matrix (WxH) | px | 128 x 64 / 96 x 48 |
| Pixel Density | px/sqm | 160000 |
| Total Weight (only LED part) | kg | 2615 |
| Cabinet Material | Steel with reinforcements (Hydrogen) / Rubber, magnets & pcb (Mica) | |
| Maintenance Mode | Front and Back | |
| Mask specification | 95% Plastic + 5% Fiber / SS screws / no shaders (Hydrogen) / Rubber (Mica) | |
| Contrast Ratio | High | |
| Grey scale (linear) | bit | 16 |
| Brightness control | bit | 16 |
| Processing depth | bit | 16 |
| Color | 281 Trillions | |
| Display Refresh Rate | Hz | 3840 |
| Operation Power | V | AC85-230V |
| Max. Power Consumption | W/sqm | 600 (Hydrogen) / 240 (Mica) |
| Average Power Consumption | W/sqm | 200 (Hydrogen) / 96 (Mica) |
| Control Mode | Synchronization | |
| Video Frame Rate | Hz | 50/60Hz |
| Input Types Supported | DVI / SDI / HDMI | |
| 3D ready (optional) | Yes | |
| Calibration | Yes | |
| Lifetime (50% brightness) | h | 50000 |
| Operating Humidity Range | 10-90% | |
| Operating Temperature Range | -20°C / +50°C | |
| Screen Uniformity Correction | - | |
| Certification | CE / ETL / CCC | |
| Available options | Custom size | |
| Compatibility | - |
