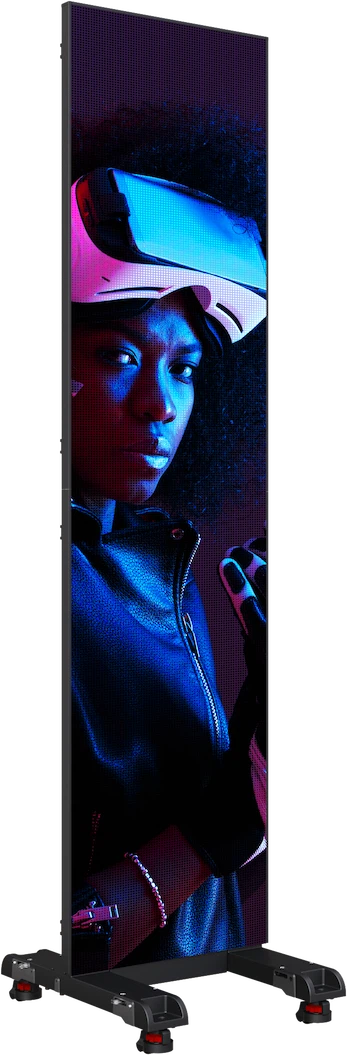

PAD LINK 2.0

Application
Indoor
PIXEL PITCH
P1.9 P2.6
OPTION
NO OPTIONS AVAILABLE

Overview

The PAD LINK 2.0 pushes the boundaries of LED display technology by combining the visual precision of the PAD 2.0 with the versatility of the PAD LINK.Its HOB (Hot Melt on Board) surface treatment ensures enhanced protection and outstanding visual uniformity, while the fine pixel pitches of 1.95 mm and 2.60 mm deliver exceptional image clarity.Thanks to its ingenious articulation and connection systems, it easily adapts to any environment — from retail spaces and exhibitions to events and dynamic advertising.

Application
Indoor
PIXEL PITCH
P1.9 P2.6
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP65 (front) / IP20 (back)
Display Area (W X H)
500 x 2000
BRIGHTNESS
≤ 1000 NITS@ 5volts
WEIGHT
30 kg
MATERIAL
Die-casting aluminum

FEATURES

Articulation

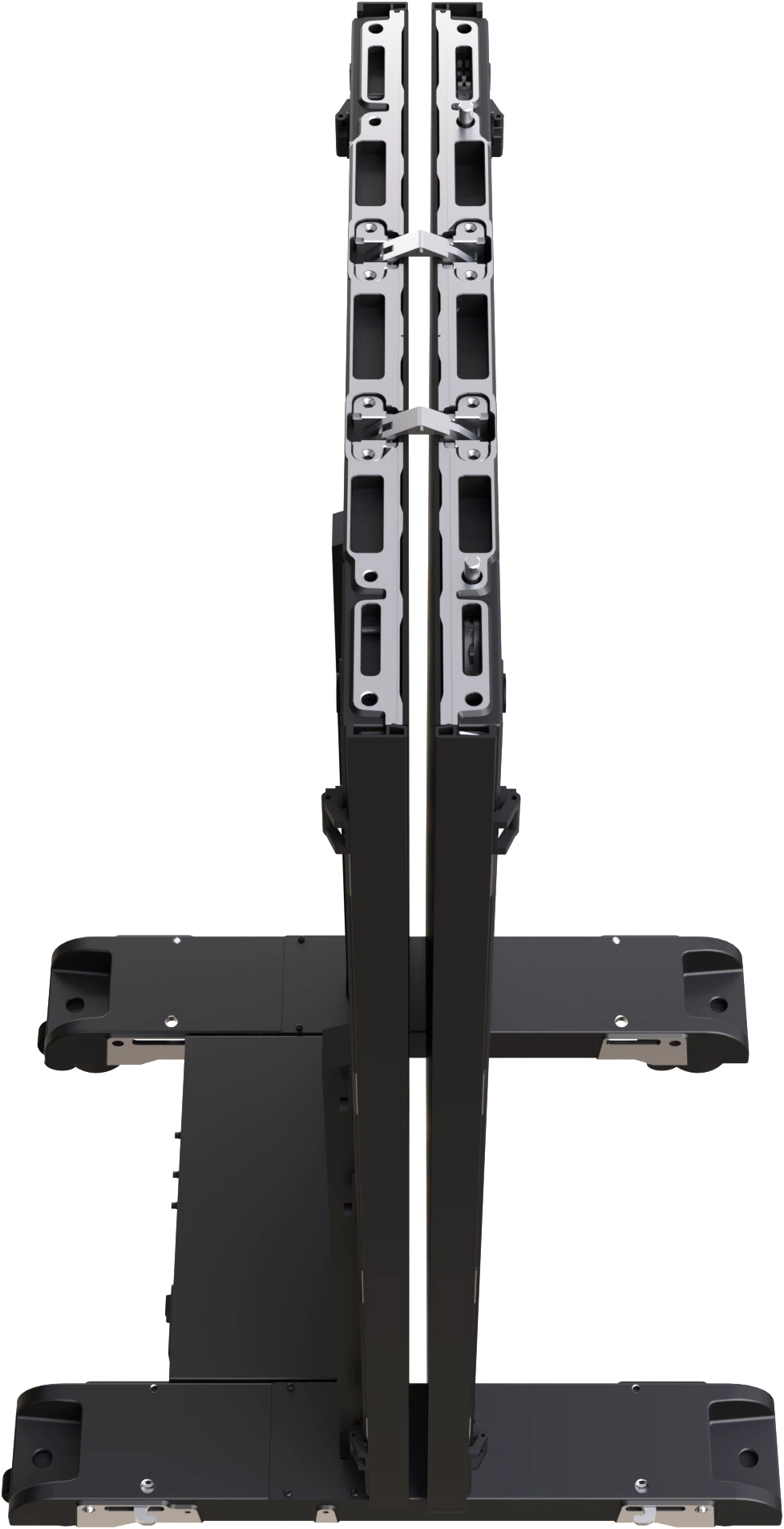

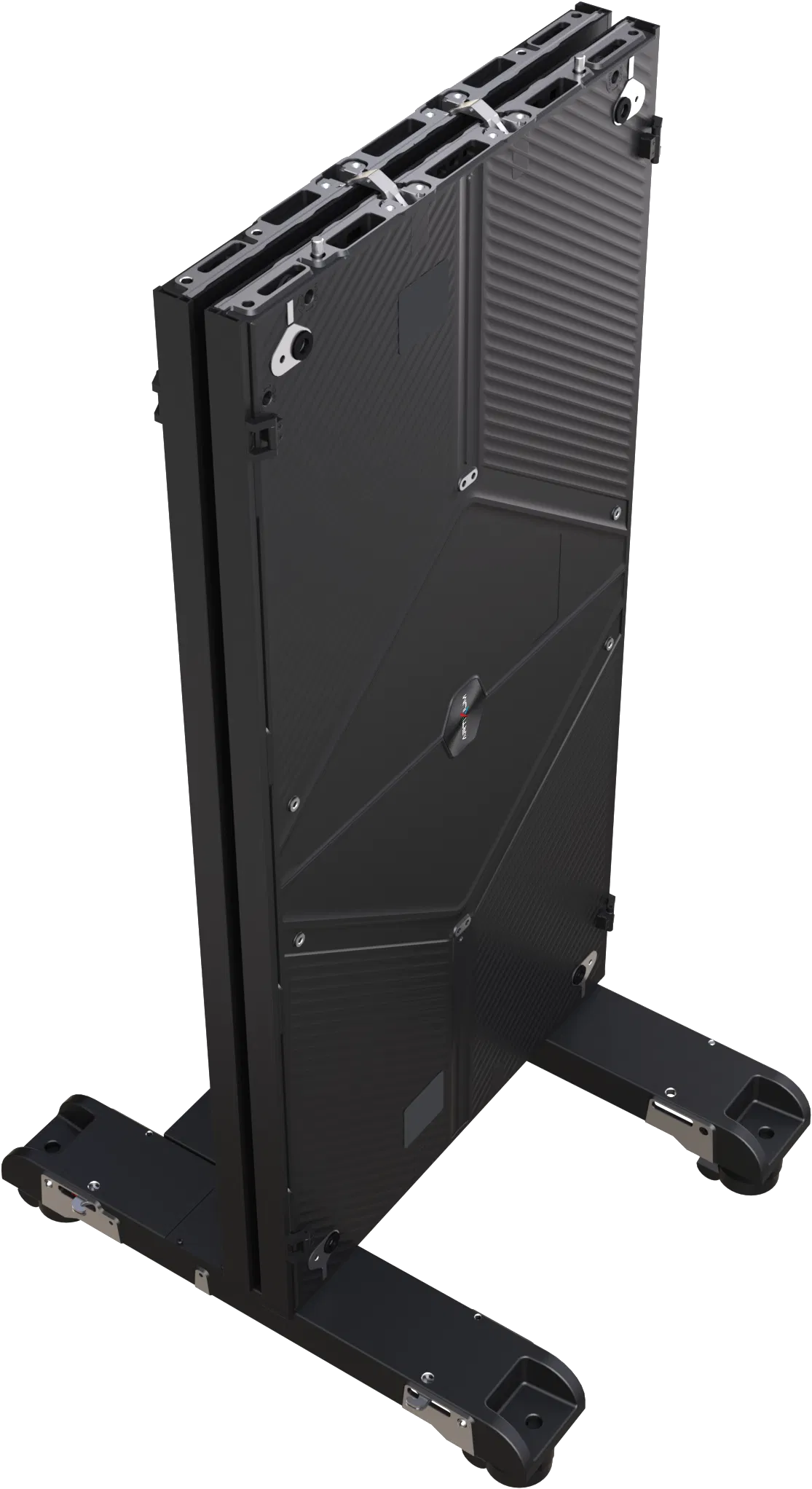

The PAD LINK 2.0 can be folded in half — forward for easier transport, or backward to create a dual 500x1000 mm display. This ingenious design streamlines logistics while providing outstanding versatility in the field.

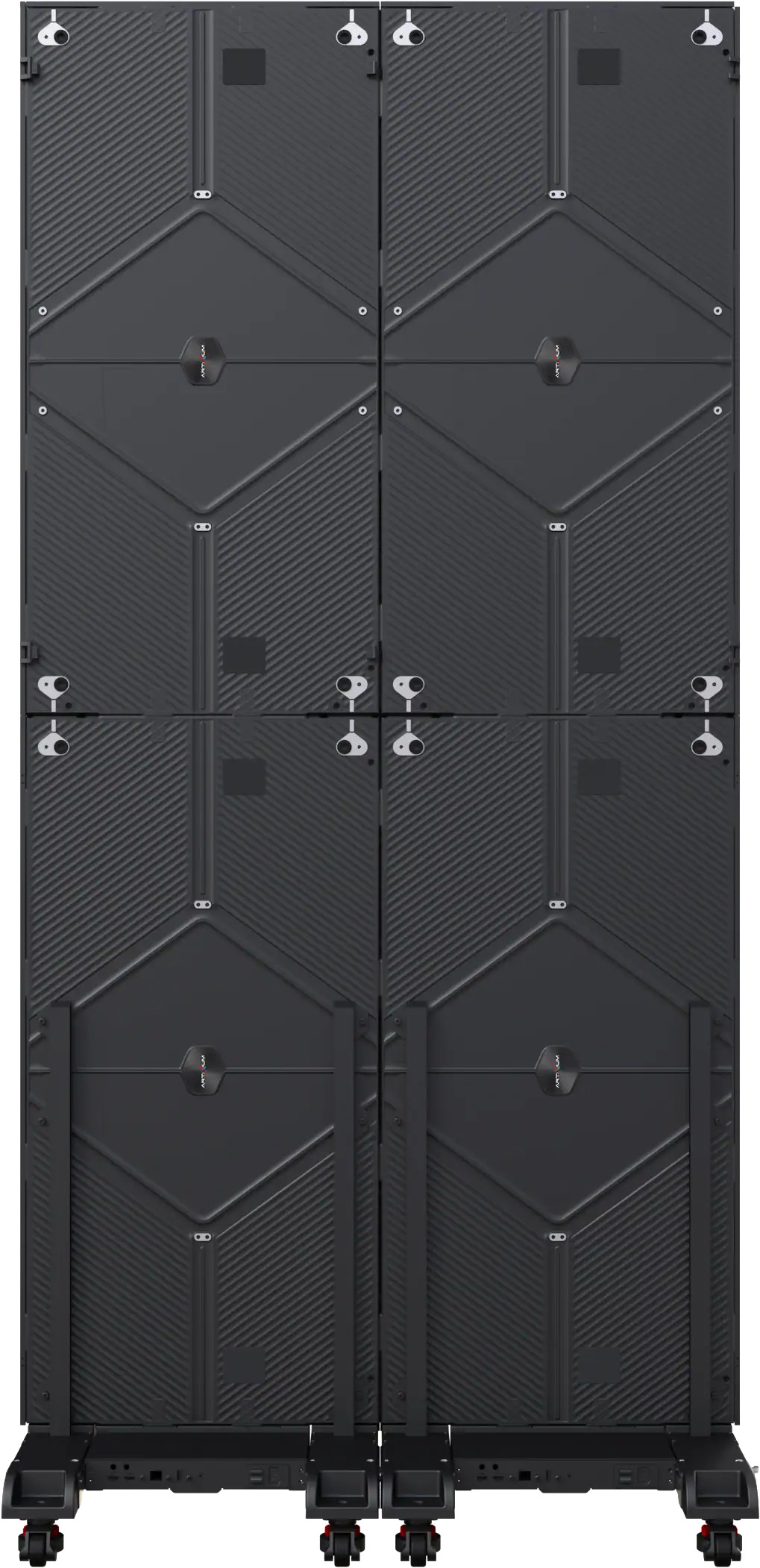

Assembly

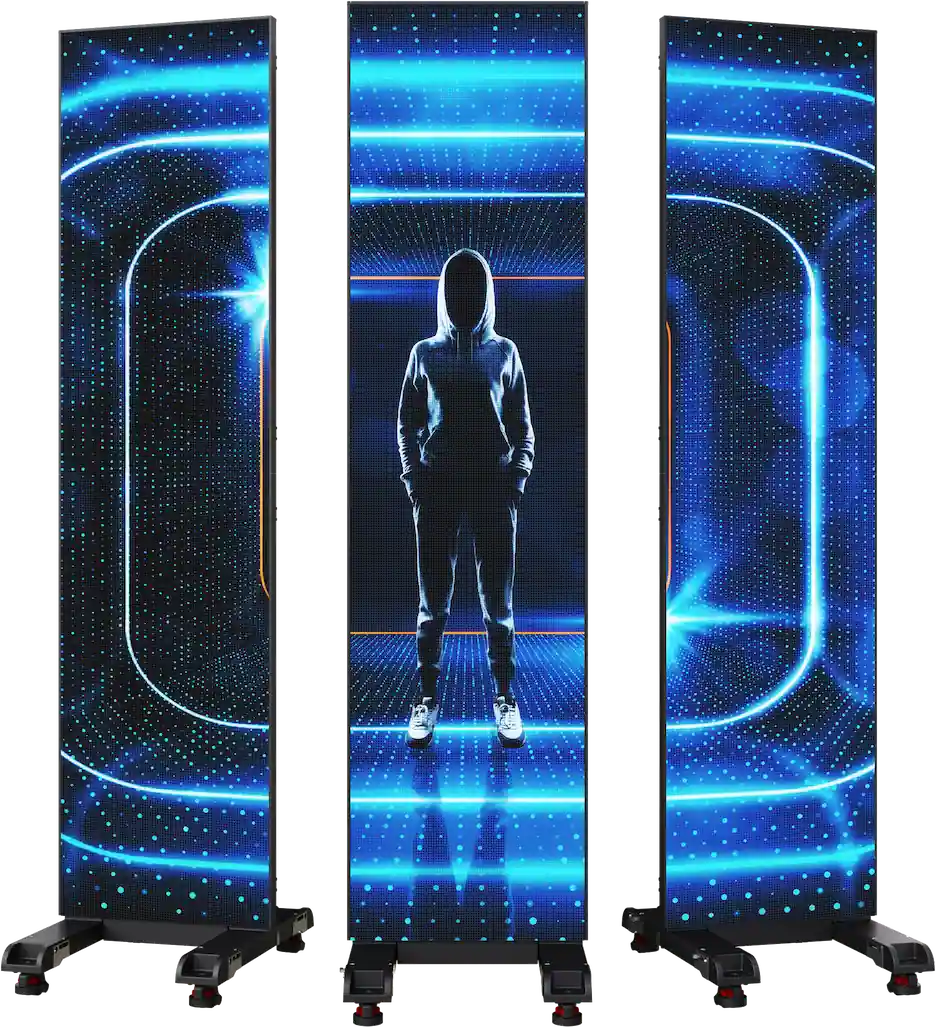

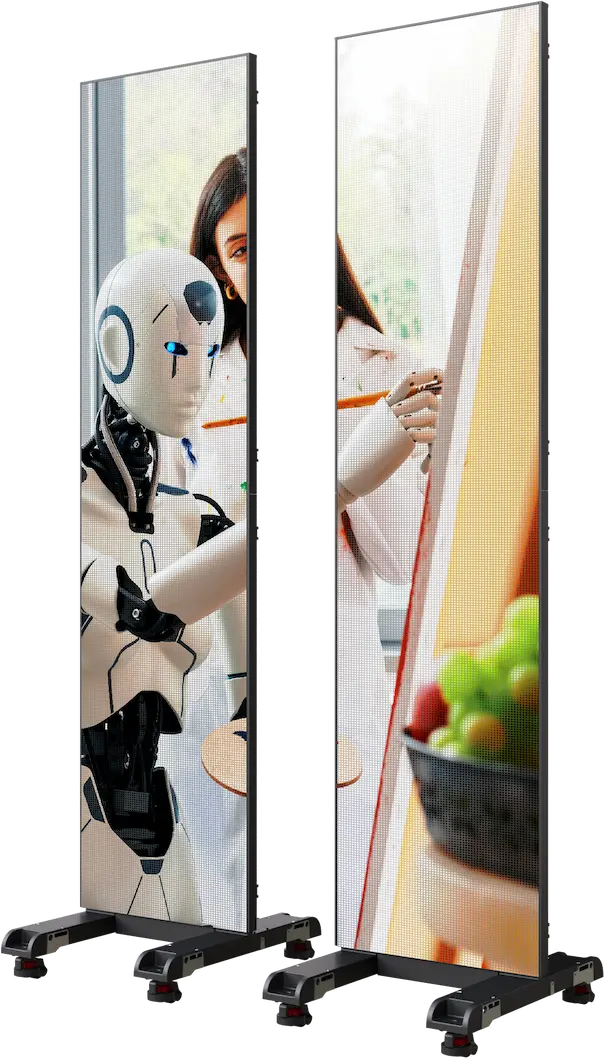

Multiple PAD LINK 2.0 units can be connected side by side to create a wide and seamless display. The integrated locking systems and precise level adjustment make installation remarkably easy, ensuring a fast, stable, and perfectly aligned setup.

HOB Technology

The PAD LINK 2.0 features HOB (Hot Melt on Board) technology, offering greater durability than GOB thanks to its hot-melt encapsulation. It provides enhanced protection against impacts and moisture, while maintaining excellent visual clarity.

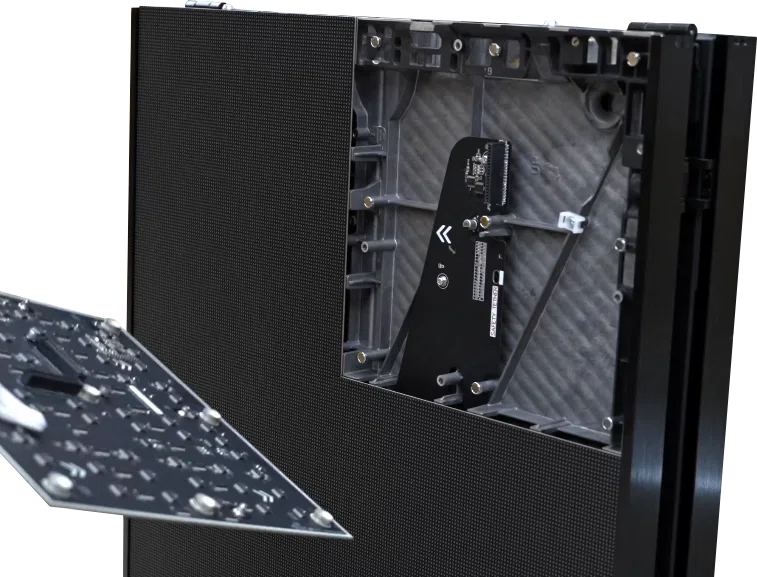

Front Maintenance

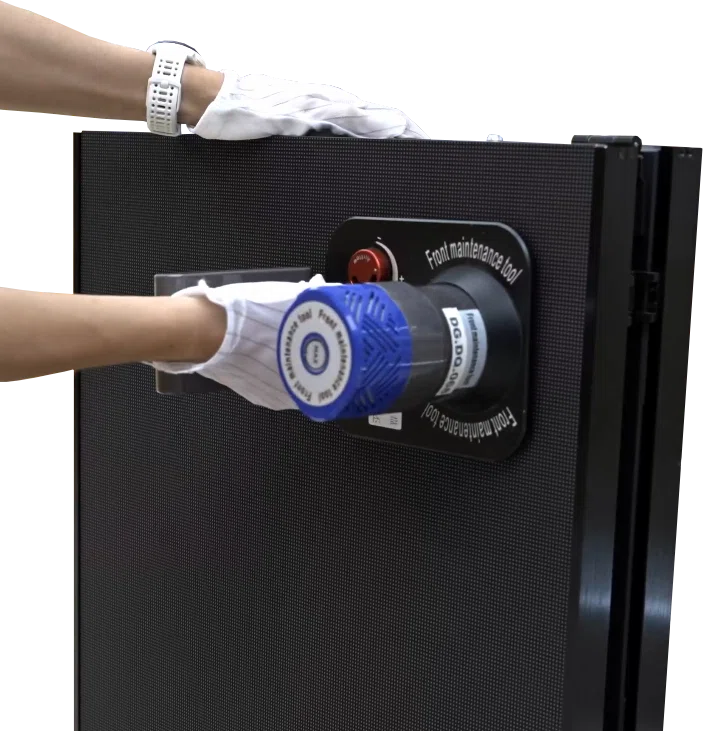

The front maintenance of the PAD LINK 2.0 has been designed to provide quick and easy access to the modules. Using a vacuum tool, each module can be removed within seconds without dismantling the structure or accessing it from the rear. This approach significantly reduces maintenance time and makes on-site servicing effortless, even in limited spaces.

Flightcases

The dedicated flight cases for the PAD LINK 2.0 are designed to carry two folded units, ready to be deployed upon arrival on site. Built to protect the screens during transport, they also simplify handling and logistics during installation. An optional protective cover can be provided, adding an extra layer of protection against dust, scratches, and moisture.

FRONT MAINTENANCESolution Poster Fine Pitch Easy Assembly Pad High Resolution Mobility Plug & Play

Technical Specifications

		INDOOR
Product Parameters	Unit	1.9	2.6
Pixel Pitch	mm	1,95	2,60
LED		SMD1212	SMD1515
Application		Mobile indoor LED poster
Ingress Protection	IP	IP65 (front) / IP20 (back)
Brightness	cd/m²	≤ 1000 Nits @5volts
Color Temperature after calib (adjustable)	deg. K	60000
Viewing Angle (50% brightness)	deg.	160 H / 160 V
Device size (WxHxD)	mm	518 x 2140 x 588
Display area (WxH)	mm	500 x 2000
Cabinet size (WxHxD)	mm	500 x 1000
Module size (WxHxD)	mm	250 x 250
Device pixel matrix (WxH)	px	256 x 1024	192 x 768
Cabinet pixel matrix (WxH)	px	256 x 512	192 x 384
Module pixel matrix (WxH)	px	128 x 128	96 x 96
Pixel Density	px/m²	262144	147456
Device weight	kg	30
Material		Die-casting aluminum
Maintenance Mode		Front only
Mask specification		HOB (Hot melt On Board)
Contrast Ratio		High
Grey scale (linear)	bit	16
Brightness control	bit	16
Processing depth	bit	16
Color		281 Trillions
Display Refresh Rate	Hz	1920 - 3840
Operation Power	V	AC100-240V
Max. Power Consumption / poster	W	540
Average Power Consumption / poster	W	180
Control Mode		Synchronization
Video Frame Rate	Hz	50/60Hz
Input Types Supported		USB / HDMI / RJ45 / Wi-Fi / 4G
3D ready (optional)		yes
Calibration		yes
Lifetime (50% brightness)	h	50000
Operating Humidity Range		10-90%
Operating Temperature Range		-20°C / +50°C
Screen Uniformity Correction		-
Certification		CE / ETL / CCC
Available options		-
Compatibility		Several posters can be linked side by side
