QMAKER

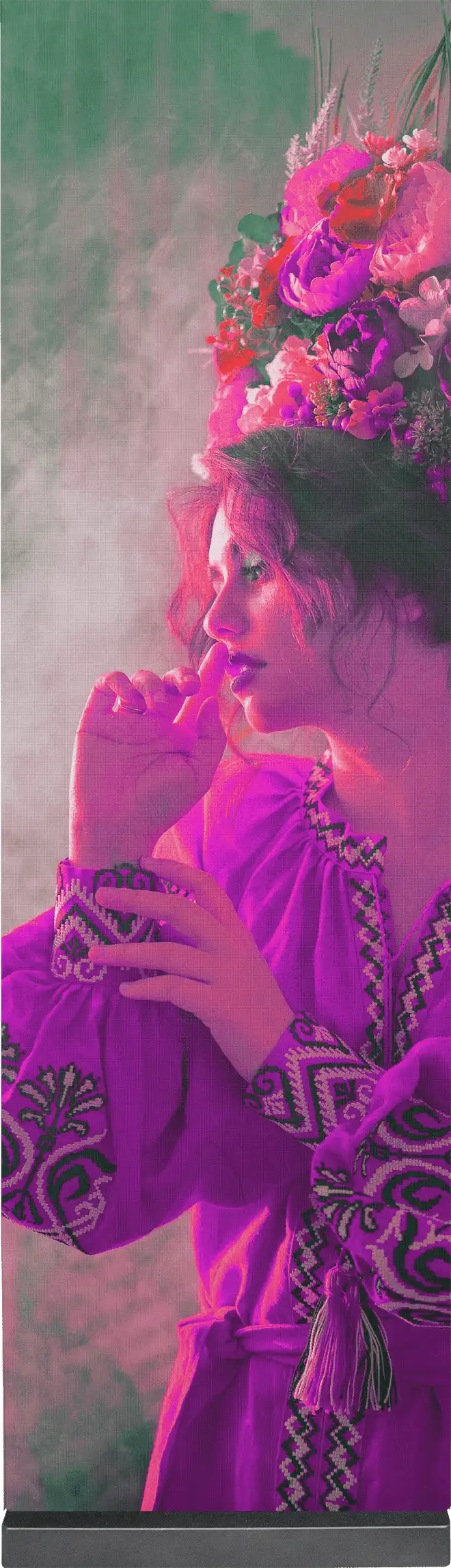

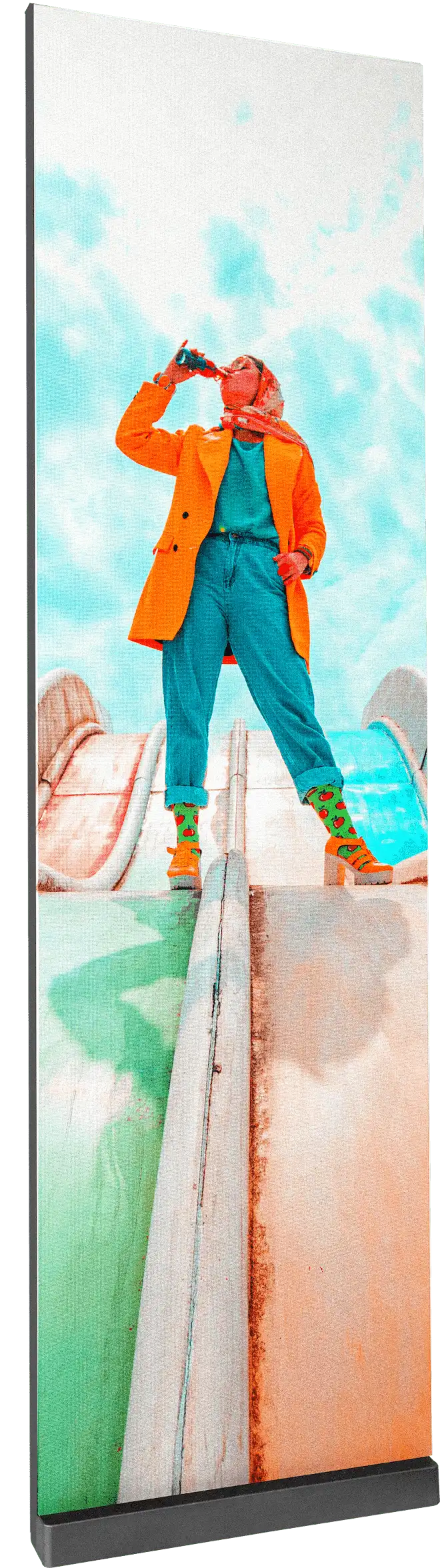

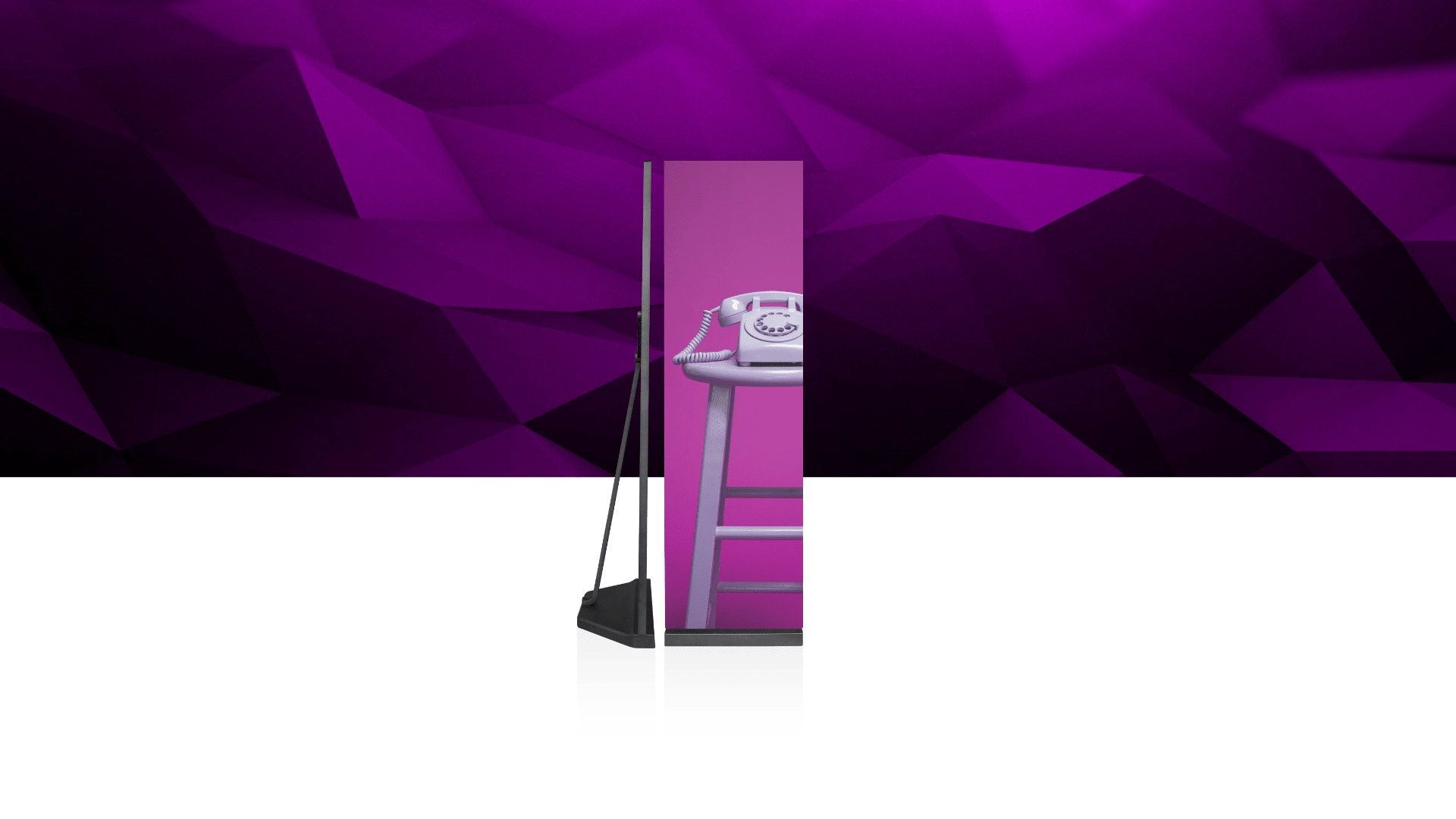

This mobile LED poster has a fine pixel pitch ranging from P1.5 to P2.5. It comes with a plug & play system allowing you to display high-quality visual content by simply plugging a USB stick in. Several PAD 2.0 can be assembled laterally to form one giant LED screen. This product is the high-end version of our PAD, with better visual properties, lighter weight, and better resilience to particle ingress.
Application
Indoor
PIXEL PITCH
P1.5
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP43
Display Area (W X H)
512 x 1768 mm
BRIGHTNESS
≤800 NITS @5Volts
WEIGHT
23.5 kg/unit
MATERIAL
DIE CASTING ALUMINUM
The fine pixel pitch of the PAD 2.0 is second to none but to our ultra hd media product range. With a high contrast ratio, you can display high quality videos without any issue.

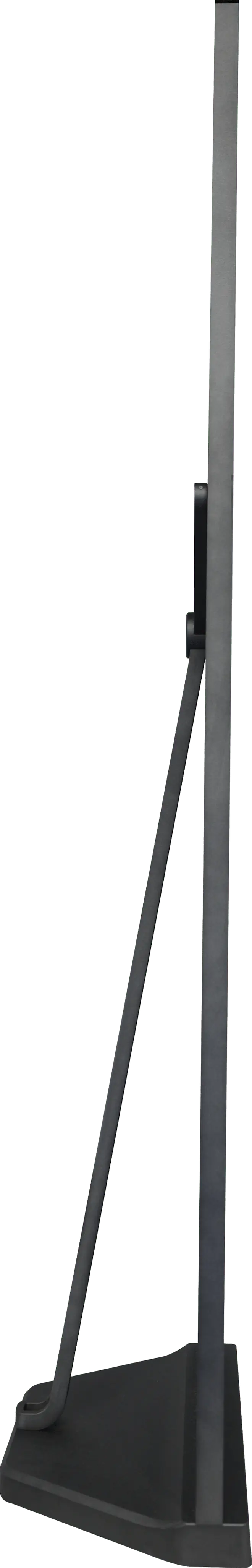

The PAD 2.0 is our lightest LED poster, a feat that isn't matched by any of our competitors. This feature makes it ideal for temporary LED installations such as exhibitions, fairs, etc. The integrated power box and stand makes shifting the PAD 2.0 easy and quick whilst ensuring the LEDs integrity.
Upon request, we can integrate light and motion sensors into the PAD 2.0. You can therefore make your visual content react to passerbys' movement or to the ambient light to offer an original and coherent promotional solution.
INDOORFront MaintenanceSolutionFine PitchPadHigh ResolutionMobilityReactivity
| INDOOR | ||
| Product Parameters | Unit | 1.5 |
| Pixel Pitch | mm | 1,50 |
| LED | SMD1212 | |
| Application | Mobile indoor LED poster | |
| Ingress Protection | IP | IP43 |
| Brightness | cd/sqm | ≤ 800 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 500 - 10000 |
| Viewing Angle (50% brightness) | deg. | 160(+/-70) H / 160 V |
| Device size (WxHxD) | mm | 512 x 1768 x 329 |
| Display area (WxH) | mm | 512 x 1768 |
| Cabinet size (WxHxD) | mm | No cabinet |
| Module size (WxHxD) | mm | 512 x 573.76 x 23.6 |
| Device pixel matrix (WxH) | px | 341 x 1146 |
| Cabinet pixel matrix (WxH) | px | - |
| Module pixel matrix (WxH) | px | 341 x 382 |
| Pixel Density | px/sqm | 443577 |
| Weight | kg | 23.5 |
| Cabinet Material | Die-casting aluminum | |
| Maintenance Mode | Front | |
| Mask specification | 95% Plastic + 5% Fiber / SS screws / No shaders | |
| Contrast Ratio | 7000:1 | |
| Grey scale (linear) | bit | 16 |
| Brightness control | bit | 16 |
| Processing depth | bit | 16 |
| Color | 281 Trillions | |
| Display Refresh Rate | Hz | 1920 - 3840 |
| Operation Power | V | AC220V |
| Max. Power Consumption | W/sqm | 500 |
| Average Power Consumption | W/sqm | 120 |
| Control Mode | Synchronization | |
| Video Frame Rate | Hz | 50/60Hz |
| Input Types Supported | DVI / SDI / HDMI | |
| 3D ready (optional) | Yes | |
| Calibration | Yes | |
| Lifetime (50% brightness) | h | 50000 |
| Operating Humidity Range | 10-95% | |
| Operating Temperature Range | -10°C / +50°C | |
| Screen Uniformity Correction | - | |
| Certification | CE / ETL / CCC | |
| Available options | - | |
| Compatibility | - |
Indoor
512 x 1768 mm
IP43
≤800 NITS @5Volts
P1.5
23.5 kg/unit
Front Maintenance
DIE CASTING ALUMINUM
